What Are The Parts of A Hydraulic Motor?

Hydraulic motors are indispensable to fluid power systems. They transform flow and pressure from a hydraulic pump with motor setup into rotational force, powering machinery through mechanical energy. A robust hydraulic pump motor relies on several interdependent components—gears, vanes, pistons, and actuators—to function reliably under diverse operating conditions.

Different designs of hydraulic motors and pumps require distinct internal assemblies, so understanding the variations across gear, vane, and piston motors is essential before selecting the right hydraulic pump to motor combination.

Types of Hydraulic Motors

This is elaborated in detail on our blog 《What Are The 3 Most Common Types Of Hydraulic Motors?》. If you want to know more, you can go to this article. Here, we only provide a basic explanation,In the world of hydraulic motors, three major categories dominate: gear, piston, and vane. Hydraulic gear motors feature a rugged construction that allows for high-speed operation, making them ideal in systems where rotary motion is continuous. On the other hand, vane hydraulic motors excel in low-speed, high-torque scenarios—perfect for machines like injection molding systems. Piston hydraulic motors, especially the axial and radial designs, deliver exceptional power density and are prevalent in heavy-duty industrial equipment.

All these motors can be further classified based on performance: low-speed/high-torque (LSHT) or high speed hydraulic motor types, depending on the application demands.

Gear Hydraulic Motor: Core Components

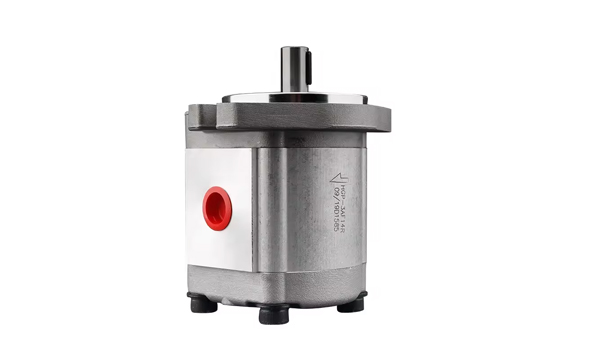

A hydraulic gear motor typically comprises a driven gear, an idler gear, a housing, and an output shaft. Pressurized fluid driven by a hydraulic pump to motor system enters through an inlet, makes the gears mesh to generate torque, and conveys that energy outward through the output shaft.

• Driven Gear: Directly powered by fluid pressure, it turns and transmits torque to the output shaft, converting hydraulic energy into mechanical motion.

• Idler Gear: While not connected to the shaft, it meshes with the driven gear to guide fluid flow and reduce backflow.

• Housing: Encases the gears and channels fluid flow. Precision in manufacturing ensures minimal internal leakage and high strength to withstand pressure and wear.

• Output Shaft: Transfers torque from the gears to the load. It demands both fatigue resistance and effective sealing to prevent leakage.

Vane Hydraulic Motor: Key Elements

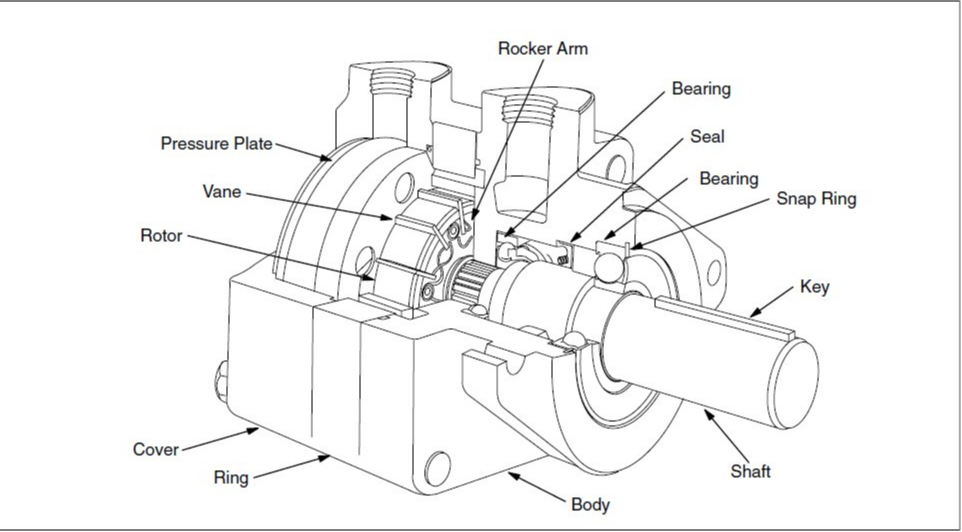

A vane motor hydraulic design includes a housing featuring inlet and outlet ports, a rotor, and numerous sliding vanes. Pressurized oil from the hydraulic pump motor drives these vanes and rotor, creating torque.

• Rotor: Connected to the drive shaft, it whirls under fluid pressure and pushes on the vanes.

• Vanes: Fitted in rotor slots, they extend outward under pressure or centrifugal force, maintaining contact with the housing wall to form sealed chambers and produce motion.

• Housing: Often with an eccentric bore, it molds sealed envelopes for fluid, requiring smooth and accurate inner surfaces to reduce friction and leakage.

• Ports: The inlet delivers high-pressure oil, while the outlet expels low-pressure fluid; thoughtful port engineering diminishes noise and energy loss.

Piston Hydraulic Motor: Internal Mechanism

Piston motors—vital in hydraulic pumps and motors systems—come in axial and radial configurations and are built to manage high-pressure, high-efficiency tasks. Their primary parts include the cylinder block, pistons, rotor or stator, swashplate or bent-axis mechanism, and valve plate.

• Cylinder Block: Contains pistons and helps regulate their smooth travel. It requires hard-wearing materials and tight machining to minimize wear and internal leakage.

• Pistons: Slide back and forth under pressure, transforming fluid energy into rotational power. These components are precision-made, often hardened for durability.

• Swashplate / Bent-Axis Mechanism: Found in axial motors, this converts pistons’ reciprocating motion into shaft rotation, while governing displacement.

• Stator: Used in radial piston designs, it forms a stable reaction surface against which pistons push, producing consistent torque.

• Valve Plate: Distributes pressurized fluid into piston chambers and channels exhaust fluid, enabling uninterrupted operation.

Glossary: Hydraulic Motor & Pump Terminology

When exploring hydraulic motors and pumps, these terms frequently appear:

• Bore: The inside diameter of the cylinder that houses the piston—critical in defining pressure limits.

• Compensator: Regulates flow in a hydraulic pump to motor assembly to prevent pressure overload.

• Flange: A shaped interface for mounting—ensuring durable connections and preventing leaks or vibration.

• Housing: A protective shell for components, engineered for high fatigue resistance.

• Inlet / Outlet Valves: Control the entry and exit of fluid, influencing efficiency and preventing backflow.

• Seals: Elements like O-rings that prevent leaks between mating parts.

• Shafts: Cylindrical rods that transfer torque from internal components.

• Swashplate: A disc that transforms the linear action of pistons into rotational output in an axial piston system.

Whether you’re evaluating an orbit hydraulic motor, hydraulic gear motor, or another hydraulic motor pump type, it’s key to understand each component’s function and interplay. Such knowledge ensures the right hydraulic pump with motor pairing—boosting system longevity, efficiency, and safety.
