A Practical Reliability Guide to Materials, Failure Mechanisms, and Engineering Validation
Fluid power systems—hydraulics and pneumatics—are the “muscle and nerves” of modern industry. They transmit energy through pressurized fluid in a closed circuit, and seals are the barrier that keeps that circuit closed. When sealing fails, the result is rarely “just a small leak”: you can quickly get pressure instability, contamination, actuator malfunction, and unplanned downtime.

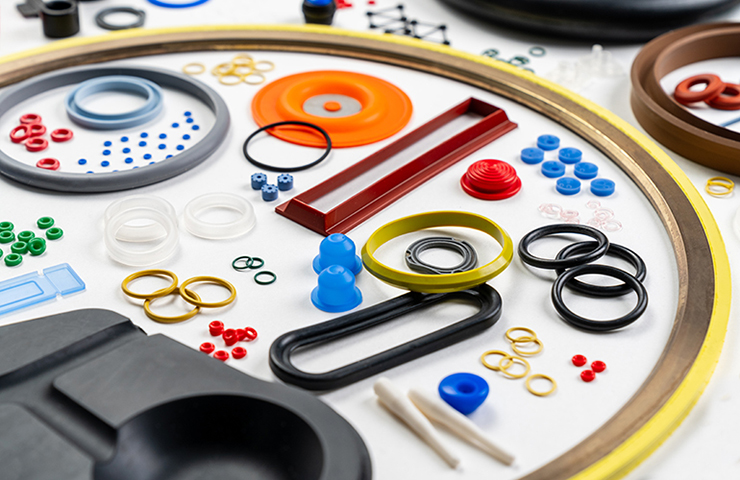

Among all seal types, O-rings remain the most widely used in fluid power because they’re simple, cost-effective, and provide bi-directional sealing. But from a reliability perspective, elastomers are not disposable accessories. Under high pressure, seals can extrude; under high temperature, elastomers chemically degrade and develop compression set; under extreme cold, materials shrink and lose contact stress. That’s why understanding polymer chemistry + compounding + real operating conditions is essential for every hydraulic engineer, maintenance manager, and OEM purchaser.
This guide consolidates the material science basics, the most common failure mechanisms, and the verification standards you can use to build a reliability-first sealing strategy—especially for heavy-duty hydraulics used across Belt & Road markets in Russian-speaking and Spanish-speaking regions.
1) Why elastomer selection is a system reliability decision (not a spare-part decision)
A hydraulic system is a chain. If the seal is the weak link, failure can cascade:
Minor weeping → oil loss and housekeeping issues
Oil film + dust → abrasive ingress → valve spool scoring
Contamination → pump wear → system-wide failure
Downtime → high repair cost + production loss + safety risk
In many real cases, a low-cost seal choice turns into a high-cost maintenance event because leakage is often the first symptom of deeper reliability degradation.
Where seals matter most in practice:
Hydraulic cylinders (rod seals, piston seals, static O-rings)
Hydraulic valves (cartridge valves, proportional valves, directional valves)
Hydraulic pumps & motors (shaft sealing, static port sealing)
Hydraulic hose and fitting assemblies (O-ring face seals, bonded seals, adapters, quick couplers)
If your application includes hose assemblies or quick connections, the sealing strategy must be aligned with your hydraulic hoses, hydraulic fittings, and quick couplers—areas where leakage often starts due to vibration, thermal cycling, and assembly variability.
2) Elastomer material science basics: polymer + formulation + curing system
In fluid power, people often label materials only by polymer family: NBR, FKM, EPDM, HNBR. But final performance depends on the full compound, including:
Even within the same “family,” different grades can behave very differently depending on molecular structure, monomer ratio (e.g., ACN content in NBR), and curing type.
2.1 Polarity and “like dissolves like”
Compatibility between elastomer and hydraulic fluid is heavily influenced by molecular polarity.
NBR contains polar ACN groups → good resistance to non-polar mineral oil-based hydraulic fluids
EPDM is non-polar → it can swell severely in mineral oils, losing mechanical strength fast
This is why EPDM can be “excellent” in one system and “catastrophic” in another.
2.2 Vulcanization: sulfur vs peroxide curing
Vulcanization converts a linear polymer into a 3D network.
Sulfur curing: strong mechanical properties and fatigue resistance, but can show higher compression set at elevated temperature due to network rearrangement.
Peroxide curing: stronger C–C crosslinks → better heat stability and improved compression set resistance, preferred for high-performance, high-temperature hydraulic applications.
2.3 Fillers, hardness, and extrusion resistance
In high-pressure hydraulics, hardness is your first defense against extrusion.
70 Shore A is the common general-purpose choice.
For higher pressures (and larger clearance gaps), engineers often move to 90 Shore A and/or use backup rings (PTFE, PEEK, nylon, filled PTFE).
Practical rule: pressure + clearance + temperature decides whether you need “material only” or “material + anti-extrusion structure.”
3) Core elastomer families for hydraulic sealing: what to use and when
Below is a practical, engineering-focused material matrix. Use it as a starting point—then confirm with fluid compatibility tests.
3.1 NBR (Nitrile): the workhorse for mineral oil hydraulics
Best match: mineral oil hydraulic fluids (ISO HL/HM/HV; DIN HLP/HVLP)
Typical strengths:
Excellent oil resistance (mineral oil, fuels, lubricants)
Cost-effective and widely available
Suitable for most mobile hydraulics
Typical range:
Weaknesses:
Use cases:
Construction machinery hydraulics
Standard cylinders, pumps, and valves
Fittings and hose connections in mineral-oil systems
3.2 HNBR (Hydrogenated NBR): “NBR upgraded” for heat + additives + longevity
HNBR reduces unsaturated bonds → significantly better:
When to upgrade from NBR to HNBR:
Oil temperature frequently exceeds ~100°C
Long service life is critical
Additive-rich fluids cause early NBR aging
Use cases:
High-reliability industrial power units
Drilling and heavy-duty equipment
Applications where downtime cost is high
3.3 FKM (Fluoroelastomer, e.g., Viton®): high-temperature and chemical stability
FKM is a premium choice due to strong C–F bonds:
But FKM is not universal:
Can degrade in strong bases
Some amine additives can be problematic
Not suitable for certain phosphate ester fluids (depending on formulation)
Use cases:
High-temperature industrial hydraulics
Gas boosting and low-permeation sealing requirements
Severe chemical environments (when compatible)
3.4 EPDM: the correct solution for fire-resistant fluids (and the wrong solution for mineral oil)
EPDM is the go-to elastomer for:
Water-glycol fluids (HFC)
Phosphate ester fire-resistant fluids (HFD-R, e.g., aviation fluids)
Critical rule:
Use cases:
Fire-resistant hydraulic systems
Outdoor pneumatic/hydraulic systems needing weathering resistance
Brake fluid circuits and certain polar-fluid applications
3.5 VMQ (Silicone) and FVMQ (Fluorosilicone): special-purpose options
VMQ: very wide temperature range, but poor wear and mechanical strength → mostly static sealing, electronics potting.
FVMQ: silicone temperature advantages + improved oil resistance → aviation fuel systems, cold-region vehicles, diaphragm valves needing low-temp flexibility plus oil resistance.
4) Failure mechanisms in hydraulic seals: engineering-level diagnosis
Seal failures are usually multi-factor: material + geometry + fluid + environment.
4.1 Extrusion and nibbling (high pressure + clearance)
O-rings behave nearly incompressible under pressure. If the hardware clearance is too large, elastomer can be forced into the gap and then cut during motion—“nibbling.”
Prevention checklist:
Reduce clearance and tighten tolerances
Increase hardness (e.g., 90 Shore A)
Add backup rings (PTFE/nylon/filled PTFE) on the low-pressure side
Consider composite seal designs in cylinders
4.2 Compression set: when “elastic memory” disappears
A seal must maintain contact stress higher than the fluid pressure. Over time, heat, fluid effects, and over-compression change the polymer network, flattening the seal until contact stress drops to near zero → leakage.
What drives compression set:
High temperature and long exposure
Poor curing system choice
Wrong squeeze ratio / gland design
Chemical attack from fluid additives
High-reliability practice:
Treat compression set as a key reliability KPI, not a lab number.
For critical systems, specify tight limits and validate with standardized test methods.
4.3 Fluid interactions: swelling, extraction, and chemical degradation
In oil, elastomers can:
Absorb fluid → swell → hardness drops
Lose plasticizers/additives → shrink and become brittle
Undergo chemical attack → cracking, softening, loss of tensile strength
Engineering rule:
4.4 Rapid Gas Decompression (RGD) and hydrogen permeation
In high-pressure gas/hydrogen environments, gas dissolves into the elastomer. During rapid depressurization, gas expands internally, creating microcracks and blistering—sometimes an “explosive” failure.
Common approaches:
Choose materials with low permeability (often certain FKM grades)
Use high-strength, high-hardness elastomers (e.g., 90 Shore HNBR)
Control pressure ramp-down where possible
Validate with RGD-specific testing protocols for the application
5) Match hydraulic fluid type to seal material: a practical selection matrix
To select correctly, start from fluid category (ISO/DIN) and then refine by temperature, pressure, and duty cycle.
Common guideline matrix:
Mineral oils (ISO HL/HM/HV; DIN HLP/HVLP): NBR (standard), HNBR (higher temp/longer life), FKM (very high temp)
Water-glycol (HFC): EPDM preferred; NBR may be limited at higher temperatures
Phosphate esters (HFD-R): EPDM is typically the dedicated match; extreme cases may require specialty materials
Biodegradable esters (HETG/HEES): HNBR often a balanced choice; FKM for higher performance where compatible
If your equipment runs hot—common in enclosed engine bays on heavy excavators—moving from NBR to HNBR is often the most direct way to reduce leakage, stabilize service intervals, and improve total cost of ownership.
6) Verification standards that protect reliability (and procurement)
If you buy seals based only on a datasheet, you’re gambling. Reliability-focused teams use standardized validation to convert “marketing claims” into engineering evidence.
Key standards to know:
ISO 3601: O-ring sizes, tolerances, and surface defect grading
ASTM D471: fluid immersion testing (volume change, hardness shift, mass change)
ASTM D395: compression set evaluation
ISO 48-2 (IRHD): hardness testing with better repeatability on curved parts than Shore A in many cases
ISO 2230: storage conditions and shelf-life guidance
Procurement best practice:
Require immersion test results in the exact hydraulic fluid or a documented equivalent.
Set accept/reject thresholds for volume change and hardness shift aligned to your duty cycle.
For high-pressure cylinder applications, validate extrusion resistance with real clearance and pressure conditions, not only lab coupons.
7) Storage and lifecycle management: seals can “age out” before installation
Elastomers begin aging as soon as curing is completed. Poor storage can ruin seals long before they reach the machine.
Storage principles (aligned with ISO 2230 logic):
Temperature: controlled moderate range; avoid heat sources
Humidity: avoid extremes (too dry or too wet)
Light & ozone: keep away from UV, direct sunlight, high-voltage equipment
Avoid stress: don’t hang O-rings on hooks; prevent permanent deformation
Lifecycle takeaway:
8) Field lesson: how a “small leak” becomes a system failure
A common heavy-equipment pattern:
A minor oil film appears on a cylinder rod.
Dust sticks to the film → abrasive contamination risk increases.
Wipers can’t fully remove the grit → particles enter the system.
Valve spools and pump components wear → performance drops.
The system needs major repair, flushing, and component replacement.
Reliability lesson:
9) Practical recommendations for OEMs, maintenance teams, and buyers
Use this “minimum closed-loop” method:
Identify the fluid precisely (ISO/DIN category + additive type).
Define real temperature exposure at the sealing interface (not just tank temperature).
Evaluate pressure + clearance and decide if you need backup rings or composite seals.
Validate with standardized tests (immersion + compression set at relevant temperature).
Control storage, assembly, and installation practices to protect the seal before service.
Where this connects to hydraulic component sourcing:
If you supply complete hydraulic solutions—hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic cylinders, hydraulic hoses, and fittings—seal strategy should be consistent across the entire system. For example, hose-end sealing (O-ring face seal, bonded seal) must match the same fluid/temperature reality as cylinder and valve seals to prevent “weakest-link” leakage.
If your customers operate in Russia/CIS or Spanish-speaking Belt & Road markets, it’s worth standardizing a two-tier sealing option in your quotations:
FAQ
Q1: Which O-ring material is best for standard mineral oil hydraulic systems (DIN HLP/HVLP)?
A: In most mineral oil systems, NBR is the standard choice. If oil temperature is often above ~100°C or long service life is required, HNBR is usually a better upgrade.
Q2: Can EPDM seals be used in hydraulic systems with mineral oil?
A: No. EPDM must not be used with mineral oil, because it can swell severely and lose strength, causing rapid leakage and failure.
Q3: When should I use FKM (Viton®) in hydraulic equipment?
A: Use FKM when high temperature, low gas permeability, or chemical resistance is required—after confirming compatibility with your specific fluid and additives.
Q4: What causes O-ring extrusion in high-pressure cylinders?
A: Extrusion usually occurs when pressure is high and hardware clearance is too large, allowing the elastomer to be forced into a gap and cut during motion. Higher hardness and backup rings are common solutions.
Q5: What test is most useful to confirm seal compatibility with a hydraulic fluid?
A: ASTM D471 immersion testing is widely used to evaluate swelling, hardness change, and mass/volume change after exposure to a specific fluid at temperature.
Q6: For machines working in cold regions (e.g., Siberia) what should I watch for in seals?
A: Low temperature can reduce flexibility and contact stress. Select materials and grades with verified low-temperature performance, and validate with real duty conditions (dynamic sealing is more demanding than static).
Q7: How do I reduce hydraulic leaks in hose and fitting connections?
A: Ensure the seal material matches the fluid, control assembly torque and surface finish, and standardize connection types. Using consistent-quality hydraulic hoses and fittings reduces leak risk across fleets.
Q8: Do seals have a shelf life before installation?
A: Yes. Elastomers age over time. Good storage (controlled temperature, low ozone/UV exposure, no deformation) is essential to prevent early failures.
