The Complete Guide to Hydraulic Pump Troubleshooting and Preventive Maintenance

Hydraulic pumps are the heart of industrial fluid power systems. They convert mechanical rotation into pressurized flow, driving cylinders, motors and actuators across industries as diverse as metal forming, injection moulding, mining and offshore drilling. When a pump fails, the entire system grinds to a halt and production losses can quickly exceed the cost of replacing the pump itself. Despite this high cost, the pump is often the first component replaced during a breakdown. This practice contradicts industry best‑practice: the pump should be the last component replaced, not the first because it is one of the most time‑consuming and expensive parts to change. Effective troubleshooting requires a systematic diagnostic approach that eliminates simpler causes before the pump is condemned. This guide synthesizes technical advice from leading hydraulic maintenance sources to provide a comprehensive, step‑by‑step procedure for diagnosing and preventing pump problems. In addition to diagnostic techniques, it explains the underlying physics of cavitation and aeration, lists common failure modes with corrective actions, and outlines preventive maintenance strategies to extend pump life. Proper troubleshooting and maintenance will minimise costly downtime and maximise the reliability of your system.

Understanding Pump Types and the Importance of Diagnosis

Hydraulic circuits utilise several families of positive‑displacement pumps. Gear pumps are simple rotary devices that trap oil between the teeth of two meshing gears and the housing. The resulting flow is pulsed but reliable; external gear pumps are prized for their ruggedness and low cost. Piston pumps employ pistons in axial or radial cylinders to generate flow, making them ideal for high‑pressure and high‑efficiency applications. They may have variable displacement mechanisms that adjust flow to match load demands. Vane pumps use sliding vanes that ride along a cam ring; these units are known for smooth, low‑noise operation at moderate pressures. Each design presents unique failure signatures and testing methods, so understanding your pump type is essential when troubleshooting.

When introducing pump varieties, technicians should also be familiar with available component technologies. For example, hydraulic gear pumps are the workhorses of low‑to‑medium pressure systems thanks to their robust design, while variable displacement piston pumps provide precise control in high‑pressure circuits. Applications requiring quiet operation often rely on fixed displacement vane pumps. Matching the correct pump type to your system prevents many failures and helps you diagnose problems faster.

Equally important is the actuator that converts flow back into mechanical power. For slow‑speed, high‑torque operations such as winches or conveyors, manufacturers supply low‑speed high‑torque hydraulic motors. These motors are prone to damage if supplied with aerated or contaminated oil; understanding motor behaviour helps you distinguish between pump faults and downstream issues.

Finally, every hydraulic circuit includes pressure control and filtration devices. Relief and compensator valves prevent over‑pressure conditions, while filters and strainers remove particulate contamination and protect the pump’s suction side. High‑quality pressure relief valves and hydraulic filters are indispensable for troubleshooting because they allow you to isolate failures without dismantling the pump itself. Proper selection of these components and awareness of how they interact with the pump form the foundation of a successful diagnostic process.

Step 1 – Basic Pre‑Diagnostic Checks

Before reaching for tools or ordering parts, perform a series of visual and acoustic tests. These straightforward checks often reveal obvious causes of poor performance and prevent premature pump replacement.

Visual Inspection

1. Verify the electric motor is running – The simplest oversight can be forgetting to power the motor. The motor must run for the pump to create flow.

2. Confirm pump shaft rotation – Coupling guards can obscure the shaft. Observe from the shaft end to ensure it rotates in the correct direction. An arrow on the housing may indicate the designed rotation direction.

3. Check oil level and condition – The reservoir should maintain the oil level at least three inches above the suction inlet. A low level can permit vortices that draw air into the pump, causing cavitation and aeration. Milky or foamy oil suggests water or air infiltration.

4. Inspect for leaks – Trace hoses, fittings and shaft seals. Leaking connections and worn seals admit air on the suction side, leading to aeration.

5. Assess suction filters and strainers – A clogged strainer will starve the pump of oil and induce cavitation. Many reservoirs hide their strainers; remove and clean them at least once per year.

6. Evaluate fluid viscosity – Too viscous oil (often due to low temperature or incorrect fluid selection) restricts flow into the pump. Follow the manufacturer’s recommended viscosity range and replace oil regularly.

Acoustic Diagnostics

Listening to the pump reveals much about internal conditions. Vane pumps tend to run quieter than piston or gear pumps under normal operation, so relative noise levels matter. When testing:

• High‑pitched, steady whine → Cavitation – Cavitation occurs when the pump cannot ingest enough oil and dissolved air bubbles implode inside the pressure chamber. This implosion creates a persistent whine and erodes internal surfaces.

• Knocking or gravel‑like sound → Aeration – Aeration results from air leaking into the suction line; collapsing bubbles produce a knocking or rattling noise akin to marbles,.

• Rhythmic thumping → Mechanical failure – Misaligned couplings, broken shafts or worn bearings often generate cyclic knocks. In such cases, stop the pump and investigate mechanical components immediately.

Recording baseline sounds when equipment is new helps identify deviations later. Ultrasonic sensors or sound meters can quantify acoustic signatures, but your senses remain valuable diagnostic tools.

Step 2 – Distinguish Cavitation from Aeration

While cavitation and aeration share some symptoms, they stem from different mechanisms and require distinct remedies. Confusing one for the other can waste hours of labour and result in unnecessary part replacements.

Cavitation

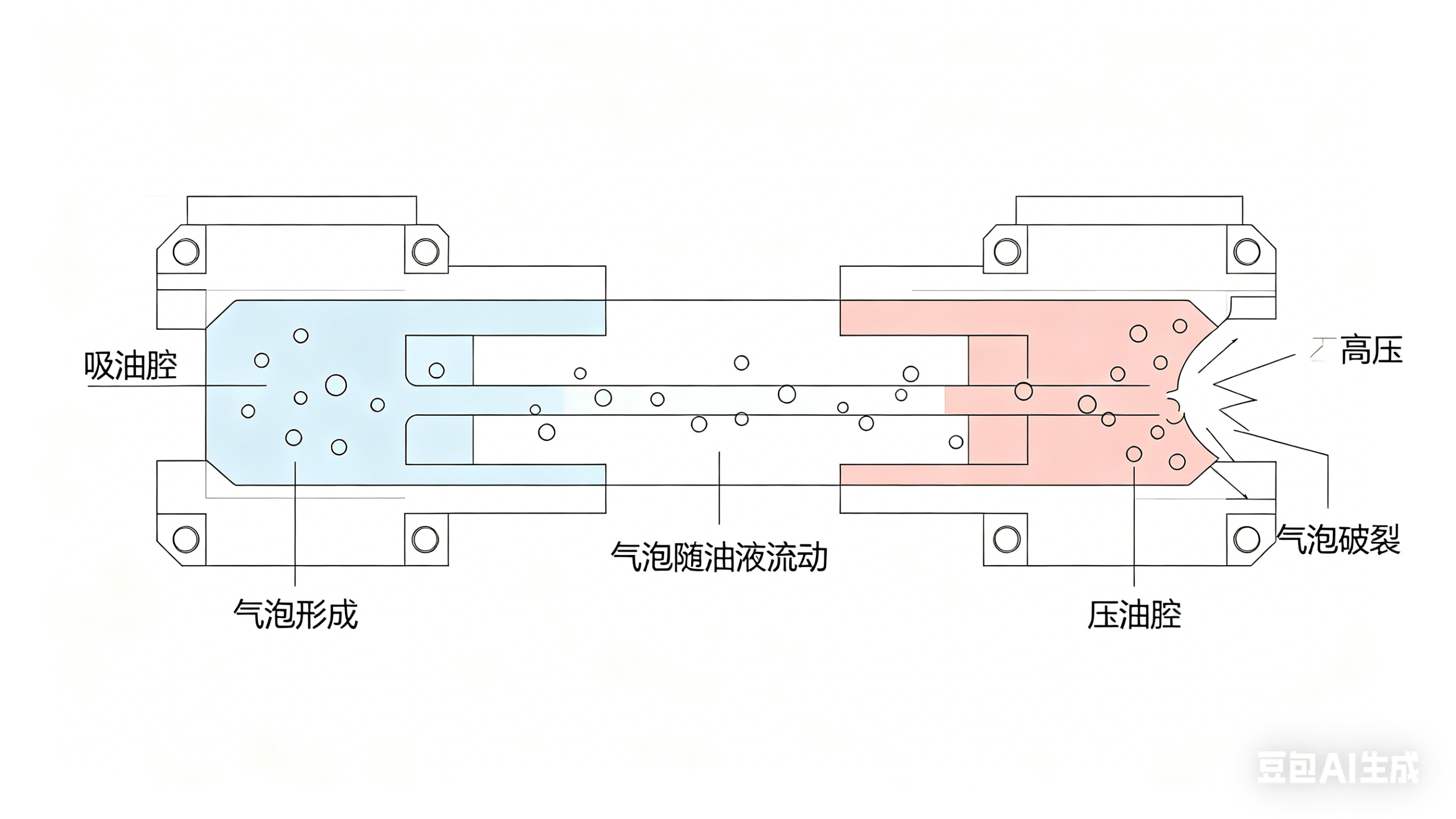

Mechanism: Cavitation forms when high vacuum at the pump’s inlet pulls dissolved air out of the oil. As the pump carries this vapour into the pressure chamber, bubbles collapse under high pressure, causing localized shock waves and erosion. Cavitation primarily damages the inlet side of gears, vanes or pistons, leaving pitted surfaces and reduced efficiency.

Symptoms:

• Persistent high‑pitched whine during operation.

• Drop in flow or pressure and overheating due to internal scoring and leakage.

• Pitted or eroded pump components when inspected during maintenance.

Root causes and corrective actions:

Aeration

Mechanism: Aeration introduces external air into the suction stream through leaks in fittings, seals or hoses. Unlike cavitation, the pump continues to ingest oil; however, entrained air compresses and expands as it travels, creating noise and erratic flow. Aeration often accompanies cavitation because both conditions stem from suction side issues.

Symptoms:

• Rattling or knocking noise similar to marbles,.

• Cloudy or foamy oil in the reservoir.

• Erratic actuator motion due to air compressibility.

Root causes and corrective actions:

Differentiating cavitation and aeration is key: cavitation extracts dissolved gas due to high vacuum, while aeration admits external air via leaks. Both produce noise, but cavitation’s whine is steady whereas aeration’s knock is intermittent. Correct diagnosis directs you to either improve suction conditions or repair leakage.

Step 3 – Common Failure Modes and Diagnostic Flowcharts

Hydraulic pumps exhibit recurring failure patterns. The following subsections outline the most common modes, their probable causes and recommended remedies. Use these lists as flowcharts: check the first item; if it does not resolve the issue, proceed to the next.

No Pressure or Insufficient Pressure

1. Pump not primed or supply blocked – Air trapped in the pump prevents oil delivery. Bleed the pump and verify the suction line is immersed.

2. Wrong rotation direction – Reversed rotation will not draw oil into the gears. Check the motor wiring and ensure the pump rotates according to the arrow on the housing.

3. Clogged suction filter – A clogged filter reduces inlet flow and pressure. Clean or replace the filter or strainer.

4. Low oil level or high viscosity – Insufficient oil or cold, viscous fluid can starve the pump. Top up oil and warm it before loading.

5. Pressure relief valve malfunction – An incorrectly set or defective relief valve may divert flow back to tank. Adjust or replace the valve; calibrate according to system requirements.

6. Worn pump components – Gear, vane or piston wear reduces volumetric efficiency and pressure. Test the pump as described later to confirm; replace if efficiency drops below 80%.

Slow Actuator Speed or Insufficient Flow

1. Internal pump wear – Gradual wear increases internal leakage, reducing delivered flow. Monitor pump efficiency; values below 90 % suggest degradation. If flow capacity is <80 %, the pump should be replaced.

2. Case drain flow excessive – Variable displacement pumps normally bypass 1–3 % of maximum volume through the case drain. If the case drain flow reaches 10 % of rated volume, the pump is severely worn and must be replaced.

3. Relief valve stuck open – A partially open relief valve passes excess flow to tank. Check tank line temperature; a hot return line indicates the valve is stuck.

4. Excessive air entrainment – Aerated oil compresses, reducing volumetric efficiency. Fix leaks and maintain proper suction submersion as described earlier.

5. Blockages downstream – Flow restrictions in valves or actuators cause speed loss. Isolate the pump and test with load-sensing modules to determine if the issue lies downstream.

Overheating

1. Worn pump causing internal leakage – Internal leakage generates heat. Efficiency below 90 % or a significant rise in pump housing temperature indicates wear.

2. Operating above rated pressure – Excess pressure increases friction and heat. Ensure the relief valve is set correctly and that compensators maintain setpoints.

3. Oil viscosity too high or too low – High viscosity increases friction, while low viscosity reduces lubrication and generates heat. Maintain recommended viscosity and use proper fluid.

4. Insufficient cooling – Heat exchangers or reservoirs may be undersized. Evaluate heat removal capacity and install coolers when necessary.

External Leaks and Seal Failures

1. Contaminated oil with abrasive particles – Dirt or chips can wear seals and cause leaks. Improve filtration and fluid cleanliness.

2. Excessive working pressure or misalignment – Over‑pressurisation or misaligned couplings place axial load on seals. Adjust pressure settings and realign couplings.

3. Aging seals and gaskets – Seals harden and crack over time. Replace during scheduled maintenance.

Abnormal Noise and Vibration

1. Presence of air – Air in the circuit is a primary cause of noise. Address aeration as described.

2. Excessive viscosity – Thick oil can cavitate in the suction line. Warm or change the oil.

3. Misalignment or worn couplings – An alignment defect between motor and pump results in vibration. Realign and replace couplings.

4. Worn pumps or motors – Wear increases mechanical noise and should be confirmed via testing.

Motor Overload or Overcharging

1. Excessive drive speed – Running the pump above its rated speed overburdens the motor. Match motor and pump speed ratings.

2. Excessive pressure or flow demand – Operating near maximum pressure continuously can overload the motor. Check system pressure requirements and adjust relief valves or compensators.

3. Obstructed delivery lines – Clogged lines increase motor load. Inspect and clean lines.

4. Undersized or defective motor – A motor with insufficient horsepower cannot deliver the required hydraulic power. Use the formula hp = GPM × psi × 0.00067 to size the motor correctly.

Irregular Pressure and Flow

1. Defective or mis‑adjusted flow regulator – Bad regulators cause unstable pressure and flow. Inspect and calibrate regulators.

2. Air in the circuit – Entrained air introduces compressibility and oscillations. Eliminate leaks and purge the system.

3. Empty or defective accumulators – Accumulators smooth out pressure fluctuations; an empty one fails to dampen surges. Service or replace accumulators.

4. Stick‑slip or pilot instability – Friction or inadequate pilot signals in directional valves may cause pressure oscillation. Check pilot line length and adjust spool friction.

Step 4 – Specialized Testing by Pump Type

After preliminary checks, diagnostic tests quantify pump condition without dismantling it. Tests differ for fixed‑displacement and variable‑displacement pumps.

Fixed‑Displacement Pump Testing

A fixed‑displacement pump delivers a constant volume per revolution. The following tests help determine whether the pump or other system components are responsible for performance issues:

1. Isolation test – Close the downstream valve or block the relief valve to isolate the pump from the system. If pressure builds to the desired level, the problem lies downstream; if not, the pump or relief valve is faulty.

2. Relief valve check – A relief valve is mandatory downstream of fixed‑displacement pumps. Inspect the valve for stuck spools, contamination or mis‑adjustment. A partially open valve causes low pressure and heating.

3. Current draw test – Measure the electric motor current and compare it with baseline values. A significant drop in current may indicate that the pump is bypassing oil internally due to wear. Establish baseline current when the pump is new.

4. Temperature test – Use an infrared camera to monitor the pump housing and suction line. A severe temperature rise signals internal leakage.

5. Efficiency assessment – Compare actual flow against rated flow. Gear pumps often operate efficiently (>90 %) when new; efficiency dropping below 80 % indicates excessive internal leakage and the need for replacement.

Variable‑Displacement Pump Testing

Variable pumps use a compensator to modulate displacement and maintain a set pressure. Testing focuses on both the pump and its control system.

1. Isolation and compensator inspection – Isolate the pump and relief valve as with fixed‑displacement pumps. If pressure fails to build, the relief valve or compensator may be defective. Disassemble and check for contamination, wear or broken springs after performing lockout procedures.

2. Tank line temperature – Check the return line temperature; it should be near ambient. A hot return line indicates a relief valve stuck partially open or mis‑adjusted.

3. Case drain flow measurement – Install a flow meter on the case drain line. Most variable pumps bypass 1–3 % of their maximum volume; if the case drain flow reaches 10 %, the pump is severely worn and must be replaced.

4. Motor current measurement – As with fixed pumps, monitor motor current. High current may indicate over‑pressure settings, while low current suggests internal leakage.

5. Compensator pressure setting – Ensure the compensator is set at least 200 psi above the maximum load pressure. If the setting is too low, the spool shifts prematurely and reduces displacement, causing slow actuators.

6. Efficiency evaluation – Variable pumps often operate at efficiencies >90 %. A drop towards 80 % or below signals wear or control issues.

Gear, Vane and Piston Pump Specifics

• Gear pumps (external or internal) should operate at moderate pressures and speeds; exceeding rated values increases noise and wear. Monitor lateral clearance and seal condition, especially on external gear pumps where axial balancing discs adjust clearance. Cavitation and aeration are common in gear pumps because of their suction sensitivity.

• Vane pumps tolerate some contamination but rely on vane wear surfaces for efficiency. Wear is indicated by reduced flow, increased noise and difficulty maintaining pressure. Since they produce less noise than gear or piston pumps, any significant noise rise is a red flag.

• Piston pumps have high efficiency and pressure capability but are sensitive to contamination. Variable displacement piston pumps rely on precise control of swash plates or bent axes; dirt in servo valves or stuck compensators quickly degrades performance. Always purge air and filter oil before commissioning a piston pump.

Step 5 – Preventive Maintenance for Extended Pump Life

The most cost‑effective way to avoid pump failures is to implement a rigorous preventive maintenance program. The following practices ensure pumps operate within design limits and remain reliable throughout their service life.

Oil Management

1. Maintain proper oil level – Keep the reservoir full enough to submerge the suction line by at least three inches. Check levels with all actuators retracted to prevent misreading.

2. Control fluid temperature – Use heaters to warm cold oil before startup and avoid starting the system below 40 °F (4 °C). Do not apply load until oil reaches 70 °F (21 °C). Install coolers to dissipate heat when continuous operation causes overheating.

3. Filter and clean oil – Replace suction strainers and return filters regularly. Clean hidden strainers inside tanks at least annually. When discussing contamination and filtration practices, remember that well‑sized hydraulic filters protect pumps from dirt and extend their life.

4. Monitor viscosity and fluid condition – Test the oil for viscosity, acidity and contamination. Replace fluid when out of specification.

5. Prevent aeration – Ensure suction line fittings are tight, hoses are not cracked and shaft seals are intact. Inspect hoses for deterioration and replace as needed.

Scheduled Component Inspections

1. Periodic checks – Conduct a comprehensive inspection every six months for industrial pumps. Look for leaks, unusual noise and vibration, and verify that pressure readings align with design values.

2. Baseline performance data – Record flow, pressure and motor current when the pump is new. Use this baseline to detect gradual degradation.

3. Pressure and efficiency monitoring – Compare operating pressures with nameplate values and keep efficiency above 90 %. When efficiency approaches 80 %, plan to replace or rebuild the pump.

4. Valve calibration – Test and calibrate relief valves and pressure regulators. A mis‑adjusted relief valve can cause low pressure or overheating. Keep the compensator 200 psi above the maximum load pressure to prevent premature reduction in displacement.

Reliability and System Upgrades

• Improve filtration – Consider installing finer filters or duplex filter arrangements that allow element changes without stopping the system. Regularly sample oil and perform particle counts.

• Add monitoring instrumentation – Install pressure gauges, temperature sensors and flow meters on case drain lines. These tools help detect early signs of wear, such as rising temperature or increasing case drain flow.

• Maintain alignment and coupling integrity – Misalignment between pump and motor shafts causes vibration and premature seal failure. Use flexible couplings and align shafts within manufacturer tolerances.

• Train personnel – Operators should understand the importance of starting procedures, warm‑up periods and avoiding rapid load changes. Encourage staff to listen for unusual noises and perform daily visual checks.

Conclusion – The Value of Systematic Troubleshooting and Reliable Components

Hydraulic pumps deliver the lifeblood of industrial systems. When a problem arises, replacing the pump should be a last resort because it is costly and time‑consuming. Systematic troubleshooting—beginning with simple visual and sound checks, distinguishing cavitation from aeration, and following diagnostic flowcharts—ensures that failures are accurately diagnosed and corrected. Specialized tests tailored to fixed and variable displacement pumps quantify wear and guide decisions about repair versus replacement. Preventive maintenance, particularly controlling oil quality and temperature, regularly cleaning filters and strainers, and monitoring efficiency, extends pump life and prevents unplanned downtime.

Reliable pumps and support components play an integral role in overall system performance. Selecting quality pressure relief valves, durable filters, and robust motors helps maintain stable operation and protects the pump from overload. When designing or upgrading a hydraulic system, consider engaging professionals who offer custom hydraulic system solutions to ensure that pumps, valves, filters and actuators are properly matched. By combining thoughtful design, vigilant maintenance and systematic troubleshooting, maintenance technicians and engineers can sustain high system reliability, improve safety and reduce the lifetime cost of hydraulic equipment.
