How to Increase Hydraulic Motor Speed: Expert Guide & Optimization Strategies

Hydraulic motors are now widely used in various industries such as construction, mining, manufacturing, and agriculture. They play an industrial applications and crucial role in hydraulic systems. When using hydraulic motors, two important parameters cannot be ignored: "torque and speed." Torque determines the pressure the hydraulic motor can withstand, while speed determines the motor's rotational speed. Some users want to increase the motor's speed while keeping the torque constant. How can we increase the rotational speed without changing the motor? blince Hydraulics will tell you.

What is a Hydraulic Motor?

Let's first understand the concept of a hydraulic motor. A hydraulic motor converts hydraulic energy (in the form of pressure and flow) into rotational mechanical energy. Hydraulic energy is transmitted to the system via a pump, which itself uses mechanical force as its input energy source. The pump pushes hydraulic fluid, which in turn pushes the gears, vanes, or pistons of the hydraulic motor. hydraulic motor principle is very simple: the pump pushes the oil, and the oil pushes the motor.

Types of Hydraulic Motors

Hydraulic motors are classified by two types of rules: one by their structure and one by their rotational speed.

Classified by structure: Gear motors, Vane motors, Piston motors.

• Gear motor: As the name suggests, gear motors convert hydraulic energy into mechanical energy through the meshing motion of gears. High-pressure fluid pushes the gears to rotate, outputting torque. Advantages of gear motors include low initial cost and strong contamination resistance.

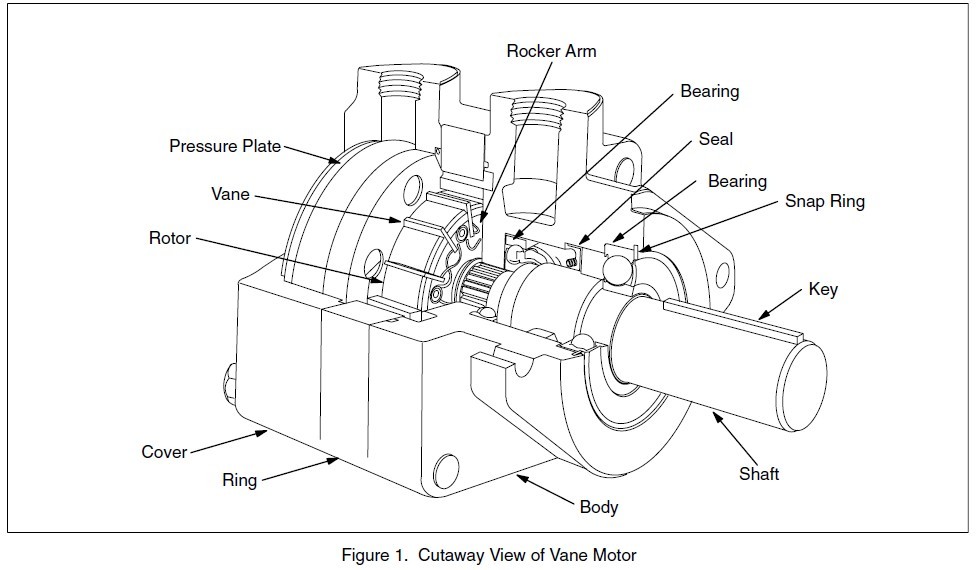

• Vane motor: This type of hydraulic motor has an eccentric hole in its casing. The rotor runs within the eccentric hole, and the vanes slide within it. Hydraulic oil enters the motor and then flows into the rectangular vanes. The main output shaft is connected to the central rotor. The hydraulic oil acts on the vanes, causing the output shaft to rotate. The two main advantages of vane motors are their simple design and low noise.

• Piston motor: Generally divided into radial piston and axial piston types, they convert hydraulic energy into rotational motion through the reciprocating motion of pistons pushed by hydraulic oil. The pistons, in turn, convert this through a crankshaft or eccentric mechanism. Piston motors offer the advantages of high output torque and high efficiency. They can withstand high pressure and heavy loads, making them suitable for heavy-duty applications.

Two Important Characteristics of Hydraulic Motors: Torque and Speed

The two characteristics of a hydraulic motor are its torque and speed capabilities.

• Hydraulic motor torque:hydraulic motor Torque is the rotational force output by a hydraulic motor, and it is an important indicator of the hydraulic motor's ability to do work. The magnitude of torque depends on the hydraulic motor's displacement and working pressure. The greater the hydraulic motor torque, the greater the rotational force the hydraulic motor can provide, and the larger the load it can drive.

• Hydraulic motor speed:Hydraulic motor speed is the rotational speed of the hydraulic motor's output shaft, and it is an important indicator of how fast the hydraulic motor operates. The magnitude of speed depends on the hydraulic motor's displacement and flow rate. The higher the hydraulic motor speed, the faster the hydraulic motor operates, allowing for higher output speeds.

These two parameters are usually inversely related: as torque increases, speed decreases, and as speed increases, torque decreases. They have an inverse relationship.

How to increase hydraulic motor rotational speed?

In today's "bigger is better" world, you might first think of using a larger hydraulic motor to make it run faster, but this will actually have the opposite effect. Let's demonstrate simply:

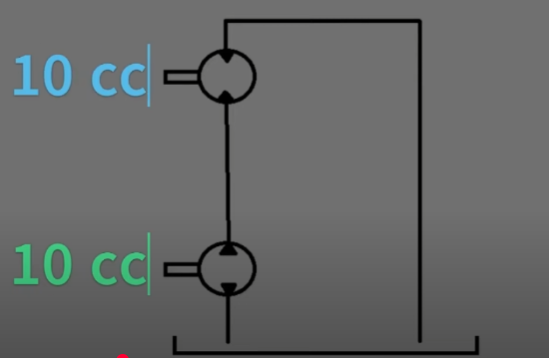

In a very simple pump and motor setup, if you have a pump with a 10cc displacement and a hydraulic motor with the same displacement, the pump and motor will now rotate at the same speed. The pump rotates once, causing the motor to rotate once.

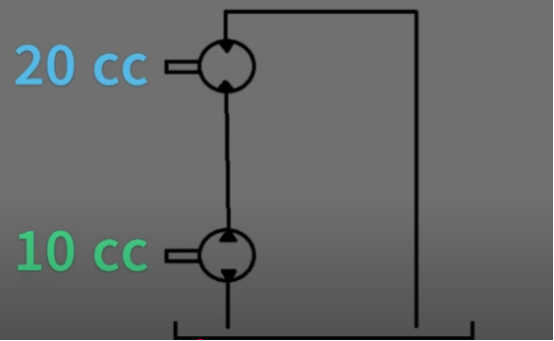

Now, if we keep the pump at a 10cc displacement but increase the hydraulic motor's displacement to 20cc, the pump will now need to rotate twice to make the motor rotate once. Increasing the motor's size and displacement like this will produce more torque but will decrease the hydraulic motor's speed.

From the example above, we can conclude that increasing the motor's size will only increase its torque, not its speed.

If we reduce the motor's displacement from 10cc to 5cc, then for every rotation of the pump, the hydraulic motor will rotate twice. Therefore, reducing the motor size will increase the speed.

While using a smaller motor achieves faster speed, the motor's available torque will decrease.

How to increase hydraulic motor speed without reducing torque？

Yes, there is! That is to increase the pump's flow rate. The more flow the pump outputs, the faster the hydraulic motor will rotate. Keeping the motor displacement the same means the available torque will also be the same. In other words, increasing the pump's size can increase speed while maintaining torque.

Hydraulic motor speed calculation formula

The rotational speed of a hydraulic motor can be calculated using the oil flow rate and motor displacement. The formula is:

n = Q / V

, where $n$ is the rotational speed, $Q$ is the flow rate, and $V$ is the motor displacement.

According to the formula, we know that as the flow rate increases, the rotational speed increases, and vice versa.

Other Factors Affecting Rotational Speed

Maintain good hydraulic fluid condition: Insufficient hydraulic fluid level or contaminated fluid can lead to decreased system performance and slower operation. Regularly checking and maintaining the quality and level of hydraulic fluid is crucial.

Reduce internal system friction: By selecting appropriate components and ensuring proper lubrication, internal energy loss in the system can be effectively reduced, thereby improving operating speed.

Consider load and pressure matching: Appropriately lowering system operating pressure can sometimes improve efficiency, but this might require a larger displacement motor to maintain the original torque output.

Remove air from the system: The presence of air in the system can severely affect hydraulic efficiency and motor speed. It is essential to ensure the system is completely bled of air.
