Why Don't Excavators Use Gearboxes to Drive Their Buckets?
Anyone who takes a close look at an excavator for the first time tends to ask the same question: this machine weighs dozens of tonnes — how does it coordinate so many directions of movement simultaneously? The boom lifts, the arm extends, the bucket curls, the upper structure rotates — all at once, all independently.
If conventional mechanical power transmission — gears, chains, belts — were used to drive every "joint" of an excavator, the entire machine would become an unmaintainable tangle of mechanisms. Hydraulic technology changed all of that.
Hydraulic drives replace rigid rods and shafts with fluid. A slender hydraulic hose can snake around structural members, carrying power from the engine compartment to the bucket tip ten meters away, branching along the way to control each motion precisely. This logic is what allows modern construction machinery to achieve power distribution that would be physically impossible with purely mechanical means.
In this article, we use excavators, road rollers, and cranes as examples to disassemble the "joints" of construction machinery — explaining the hydraulic drive logic behind each motion.
1. The Power Transmission Chain: From Engine to End Actuator
Understanding hydraulic drives begins with understanding how the power transmission chain of a construction machine is structured.
The logic of traditional mechanical transmission (early tractor example):
This chain is rigid: every additional direction of movement requires an additional gear set or driveshaft, and structural complexity grows exponentially. When three independent motions — travel, steering, and working attachments — must be driven simultaneously, mechanical transmission becomes essentially impractical.
The engine's rotational mechanical energy is first converted by the hydraulic pump into fluid pressure energy stored in the circuit. Control valves determine where the high-pressure oil flows; hydraulic cylinders convert it into linear motion, hydraulic motors convert it into rotational motion. In this system, the hose is the driveshaft and the control valve is the gearbox — but the hose can bend around any obstacle, and the valve can be modulated infinitely with a single lever.
This is the essential advantage of hydraulic transmission: using fluid instead of rigid components to transmit, distribute, and control power through any spatial geometry.
2. The Excavator: A Steel Arm Built from Hydraulic Joints

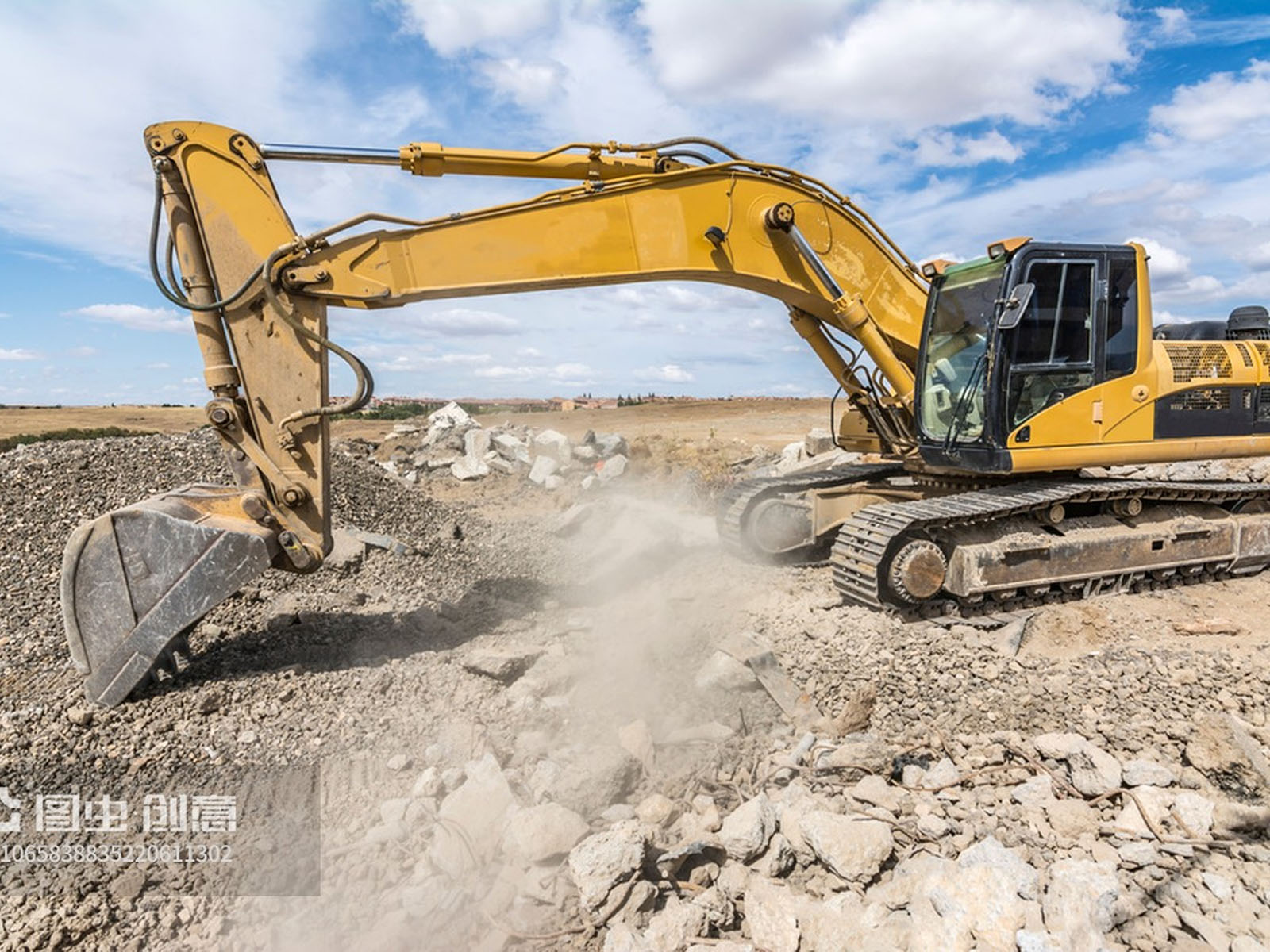

The excavator is the most instructive textbook example of hydraulic drive. A standard hydraulic excavator runs at least five mutually independent hydraulic circuits, each driving a fundamentally different type of motion.
2.1 Boom — Lifting the Entire Arm
The boom is the most structurally massive member of the excavator, connecting the upper structure to the arm. It is raised and lowered by the boom hydraulic cylinders (typically two cylinders mounted in parallel at the boom root).
When the operator pushes a joystick, the control valve routes high-pressure oil into either the rod-end or cap-end of the cylinder, extending or retracting the piston rod, and the entire boom rises or falls accordingly.
The engineering challenge here is holding position under load: the boom, arm, bucket, and payload can weigh several tonnes combined, and the hydraulic cylinder must maintain pressure to prevent the boom from slowly sinking under its own weight when held stationary. Modern excavators incorporate pilot-operated check valves (counterbalance valves) inside the control valve block, which automatically lock the oil circuit when the joystick returns to neutral, allowing the boom to hover precisely at any position.
2.2 Arm (Stick) — The Forearm
The arm is hinged at the tip of the boom and driven by the arm hydraulic cylinder, which controls its extension and retraction. The arm's motion resembles the bending and extension of a human forearm, governing the horizontal reach and digging depth of the bucket.
In deep excavation work, the arm cylinder must support the full weight of a loaded bucket while operating in a near-vertical posture — placing extreme demands on cylinder sealing and pressure-holding performance. Engineering standards typically require that the arm cylinder piston rod not sink more than 3 mm over 30 minutes at rated working pressure.
2.3 Bucket — The Fingers
The bucket is hinged at the arm tip and controlled by the bucket hydraulic cylinder, which curls and opens the bucket. Bucket stroke is short, but the forces involved during ground penetration are enormous — rock and hard soil can generate pressure spikes of tens of megapascals in the circuit within milliseconds.
This is why bucket and arm cylinder circuits are typically equipped with safety relief valves (overload valves): when external force-induced pressure exceeds the set point, the valve automatically relieves pressure, protecting the cylinder from damage and preventing the bucket's structural members from fracturing under rigid overload.
2.4 Swing — The Excavator's "Waist"
Upper-structure swing is the most characteristic hydraulic motor application on an excavator. The entire upper body — engine, cab, and working attachment — must rotate 360° continuously relative to the undercarriage. A hydraulic cylinder cannot achieve this (stroke is finite); the job requires a swing hydraulic motor.
The motor's rotational output passes through a swing reduction gearbox (typically a planetary gear set) to dramatically reduce speed and multiply torque, then drives a swing bearing ring gear fixed to the undercarriage, rotating the entire upper structure.
The swing motion places exceptionally demanding requirements on the hydraulic motor:
High starting torque: the upper structure has enormous rotational inertia and requires sufficient torque to start from standstill
Low-speed stability: precision positioning requires smooth rotation at extremely low speeds — sometimes below 3 rpm — without any jerkiness
Fast braking response: when the operator releases the joystick, the upper structure must brake quickly and accurately, without drifting from rotational inertia
To meet these requirements, large excavator swing motors are almost universally radial piston hydraulic motors, paired with integrated brakes and cushion valve assemblies for smooth start-stop control.
2.5 Travel — Two Independent "Legs"
Excavator travel is driven by two independent travel hydraulic motors, one for each track, each transmitting output torque through a travel reduction gearbox and drive sprocket to the track links.
Left and right motors are controlled independently, giving the excavator pivot-turn capability — left motor forward, right motor reverse, the machine spins on the spot; both motors at equal forward speed, the machine travels straight. This differential control requires complex differential-lock and steering-clutch mechanisms in a purely mechanical drivetrain, but in a hydraulic system it needs only two independent control levers.
Travel motors typically feature two-speed design (high/low shift): low speed delivers large displacement, high torque, and is used for slope climbing and short repositioning under load; high speed delivers smaller displacement, higher rpm, and is used for fast on-site repositioning. Speed switching is achieved by the motor's internal variable mechanism — no external gearbox required.
3. The Road Roller: The Hydraulic Logic Behind Compacting the Earth with Vibration
A road roller works by using the weight and vibration of its steel drum to compact road surface materials. A typical single-drum vibratory roller relies on its hydraulic system to simultaneously handle three functions: travel drive, drum vibration drive, and articulated steering.
3.1 Travel Drive
A road roller has no gearbox — its travel speed is entirely controlled by a hydrostatic transmission (HST). The engine drives a variable displacement piston pump, whose output flow is continuously adjusted by the swashplate angle: more flow means faster travel, less flow means slower travel, reversed flow means reverse travel — all without a clutch, without gear shifts, using only a single infinitely variable lever.
The travel motor mounts directly on the drive axle, receives high-pressure oil from the pump, and outputs rotation to drive the travel wheels. This closed-circuit "pump-motor" system is efficient, responsive, and continuously variable — the standard configuration for modern construction machinery travel systems.
3.2 Vibration Drum Drive
A road roller's vibration effect comes from an eccentric mass inside the steel drum, driven at high speed (typically 1,500–3,000 rpm) by a dedicated vibration hydraulic motor. The rotating eccentric mass generates centrifugal force, which is transmitted to the drum as periodic vibration at frequencies typically between 25 and 50 Hz.
The vibration motor operates in an extremely hostile environment — it is mounted inside the drum axle, directly coupled to the vibration source, and subjected to enormous radial shock loading. Bearing failure in a vibration motor halts the entire vibration system and dramatically reduces compaction efficiency. This is why vibration motors have strict requirements for bearing hardness and cast iron housing rigidity.
On high-specification rollers, both vibration amplitude (eccentric mass offset) and frequency are adjustable — by varying the motor speed and the relative phase of the eccentric masses, operators can switch between "high-frequency, small-amplitude" mode (suited to asphalt surface layer finishing) and "low-frequency, large-amplitude" mode (suited to base course rough compaction).
3.3 Articulated Steering
Large road rollers use an articulated frame design, where the front and rear frame sections fold relative to each other via steering hydraulic cylinders. Cylinder extension and retraction deflect the front and rear frames in opposite directions, achieving a tight turning radius. Compared to purely mechanical steering, this approach requires minimal operator effort, delivers linear response, and does not cause the steering to kick back when the drum rolls over uneven surfaces.
4.The Crane: Hydraulic Logic Behind Lifting Heavy Loads
A mobile crane is one of the most comprehensive showcases of hydraulic drive engineering. A typical wheeled crane hydraulic system must simultaneously command five distinct motion systems: outrigger deployment, boom telescoping, luffing, slewing, and hoisting.
4.1 Outriggers — The Foundation
Before lifting, the crane must extend four outriggers to jack the chassis clear of its tyres, preventing overturning under load. Each outrigger is deployed by a horizontal extension cylinder (pushing the outrigger beam laterally) and a vertical support cylinder (jacking the beam pad down against the ground to lift the chassis).
The critical performance requirement for outrigger cylinders is absolute long-term pressure retention: a single lift may continue for hours or an entire day. The cylinders must maintain their support force without any leakage throughout that period — if the chassis slowly sinks, the resulting shift in load geometry can trigger a catastrophic tip-over.
4.2 Boom Telescoping
A modern mobile crane's main boom can extend from its retracted length (around 10 meters) to its maximum working length (60 meters or more in large machines), driven by boom telescoping hydraulic cylinders that extend each nested boom section in sequence.
4.3 Luffing — Adjusting Boom Angle
Luffing adjusts the angle of the boom relative to horizontal, driven by the luffing hydraulic cylinder. By combining luffing with boom telescoping, the operator positions the hook precisely above the target pick point.
4.4 Slewing — The Crane's Waist Rotation
Like an excavator, a crane's upper-structure slewing is driven by a slewing hydraulic motor. But crane slewing is operationally more complex: when a crane rotates with a suspended load, the hanging load swings like a pendulum due to inertia, generating oscillating loads on the slewing drive system. The operator must use fine valve modulation to achieve gradual, smooth acceleration and deceleration — preventing swing from becoming uncontrollable.
High-specification cranes incorporate proportional control valves in the slewing circuit, mapping joystick displacement linearly to motor speed, creating a "push further = go faster, release = slow down" linear control feel that significantly reduces operator workload.
4.5 Hoisting — Lifting Vertically
The hoist mechanism uses a hoisting hydraulic motor to rotate the drum, winding or releasing wire rope to raise or lower the hook. The hoist motor is the highest-power and most operationally critical single actuator in the crane's hydraulic system. It must sustain smooth, constant-speed operation under rated load for extended periods, while providing reliable brake-holding capability — if hydraulic pressure is lost for any reason, the brake must engage automatically and instantaneously to prevent the suspended load from falling.
5. What Hydraulic Drives Give Construction Machinery
Synthesizing the analysis across all three machine types, hydraulic drives confer several fundamental capabilities on construction machinery:
① "Wireless" Power Distribution
Hydraulic hoses can route around structural members and reach any point on the machine without requiring rigid driveshafts threading through the structure.
② Multiple Independent Simultaneous Motions
A single pump can supply oil to multiple actuators simultaneously; each actuator is independently controlled by its own valve without interfering with others. An excavator operator can swing and extend the arm at the same time without waiting for one motion to finish before starting the next.
③ Continuously Variable Speed and Fine Control
Speed is modulated by adjusting flow — either pump displacement or valve opening. Joystick position determines speed; full deflection means maximum speed; release means stop. The control logic is direct and intuitive.
④ Force Multiplication
By Pascal's Law, a hydraulic system can control tens of tonnes of load with minimal operator effort. A light push of a lever in the cab can lift a fully loaded truck — a force multiplication ratio that would require an enormous lever mechanism in a purely mechanical system.
⑤ Automatic Overload Self-Protection
System relief valves automatically unload pressure when it exceeds the set value, protecting all components from overload damage. Mechanical overload protection typically relies on "sacrificial components" (shear pins) that must be replaced after each overload event; hydraulic systems protect themselves and resume work automatically without intervention.
6. Where Hydraulic Motors Fit in This Chain
Across all the motion scenarios above, hydraulic motors are the irreplaceable actuator wherever continuous rotational output is required:
Machine
Hydraulic Motor Location
Key Requirements
Excavator
Upper-structure swing, left/right travel
High starting torque, low-speed stability, fast braking
Road Roller
Travel drive, vibration drum drive
Continuously variable speed, shock resistance
Mobile Crane
Upper-structure slewing, hoist drum
High-precision control, reliable brake holding
Combine Harvester
Header drive, travel drive
Stable speed under variable load, compact installation
Ship Windlass
Cable drum
Ultra-low speed high torque, corrosion resistance
Hydraulic motors come in several types to suit different application requirements. Radial piston designs — such as the Blince LD Series Hydraulic Motors — are widely used in demanding applications such as excavator swing drives, crane slewing systems, and marine winches, where low-speed stability, high pressure tolerance, and shock resistance are simultaneously required.
Summary
A piece of construction machinery, viewed from the outside, is a demonstration of raw steel force. Viewed from the inside, it is a study in hydraulic intelligence. Power generated by the engine is converted by the hydraulic pump into fluid pressure, distributed through hoses to every joint, transformed by cylinders into linear force and by motors into rotational force — ultimately producing the visible macro-scale actions we see: the arm extending, the drum compacting, the boom reaching skyward.
Understanding this power chain helps engineers make better decisions in equipment selection and system design. It gives operators and maintenance technicians a clearer diagnostic framework for understanding where and why problems occur. Every hydraulic joint in a construction machine is a synthesis of mechanics, fluid dynamics, and precision manufacturing.
FAQ
Q1: Can hydraulic cylinders and hydraulic motors be used interchangeably?
No. Their functions are fundamentally different: hydraulic cylinders produce limited-stroke linear motion and cannot rotate continuously; hydraulic motors produce continuous rotational output and cannot produce linear reciprocating motion. On an excavator, the boom, arm, and bucket must use cylinders; swing and travel must use motors — these assignments are dictated by the type of motion required and cannot be swapped.
Q2: Why does an excavator sometimes "over-swing" and fail to stop precisely?
When the upper structure rotates, it accumulates significant rotational kinetic energy. When the operator releases the joystick, the brake engages — but without anti-cavitation (make-up) valves in the hydraulic circuit, overly abrupt braking creates a momentary vacuum in the circuit, reducing the motor's braking force and allowing the upper structure to continue coasting. Modern excavator swing circuits typically include bi-directional make-up valves that fill the low-pressure side with oil during braking, preventing cavitation and drift. Improper operation (releasing the joystick too quickly) and low hydraulic oil levels both worsen this effect.
Q3: How does a road roller's vibration frequency affect compaction quality?
Vibration frequency (Hz) and amplitude (mm) jointly determine compaction outcome. Low frequency, high amplitude (e.g., 25–30 Hz, high amplitude) suits thick base course and aggregate materials — the vibration wave penetrates deeply with high energy, achieving deep-layer densification. High frequency, low amplitude (e.g., 40–50 Hz, low amplitude) suits thin asphalt surface layer finishing — energy concentrates at the surface layer without fracturing aggregate particles. Incorrect parameter selection leads to either over-compaction (aggregate crushing) or under-compaction (insufficient density), which is precisely why high-specification rollers offer adjustable vibration parameters.
Q4: Why does a suspended load swing when a crane rotates, and how can it be minimized?
The hook and load, suspended by wire rope, form a free pendulum. When the crane accelerates or decelerates during slewing, inertia displaces the load horizontally relative to the hook, creating swing. Swing amplitude increases with rotation acceleration rate and rope length — longer rope and faster acceleration produce larger swing. Mitigation approaches: operationally, the operator should accelerate slowly and uniformly, beginning deceleration well before the target position; at the equipment level, proportional control valves enable gentle acceleration profiles, and high-specification cranes incorporate active anti-sway control systems that use sensors to continuously measure swing angle and automatically compensate motor speed.
Q5: What type of failure is most feared in hydraulically driven construction machinery?
The most dangerous failure is sudden hydraulic hose burst. When a hose fails, the affected actuator instantly loses pressure, potentially causing: boom or arm sudden drop (personnel injury risk), crane suspended load free-fall, or uncontrolled travel. Modern machines use counterbalance valves (load-holding valves) to automatically prevent uncontrolled actuator movement when a line ruptures, buying time for emergency response. The next most significant issue is severe hydraulic oil contamination causing seal wear and valve spool sticking — this is the most common cause of gradual performance degradation in daily operation and the most important focus of hydraulic system preventive maintenance.
Q6: For rotational motion, why do some machines use hydraulic motors while others use electric motors directly?
The choice depends on three factors: power density, control mode, and operating environment. Hydraulic motors deliver far higher torque per unit volume than electric motors of the same size, and are inherently water-resistant, dust-resistant, and free of heat-generating coil windings — making them well-suited for heavy-duty, wet, and dusty outdoor environments. Electric motors offer higher control precision and efficiency (no hydraulic transmission losses), making them appropriate for high-precision, clean indoor industrial environments. In recent years, as electro-hydraulic hybrid drive technology has matured, the boundary between the two approaches has blurred: electric excavators retain their hydraulic systems for working attachments while replacing only travel drive with electric motors — because hydraulic cylinders and motors remain unmatched in power density and controllability under low-speed heavy-load conditions.
