A brake releases correctly on the workshop floor, but hesitates when the oil is hot. A load-sense pump behaves normally with one function, then hunts when two functions are feathered together. Two pressure gauges show that source A is higher, yet the downstream pilot line appears to follow source B.
All three symptoms can involve a shuttle valve, but replacing the valve by port size alone is a weak diagnosis. The real selection variables are the pressure that reaches each inlet, the flow and pressure loss through the selected path, internal leakage, switching behavior near equal pressure, cavity geometry, seal material, oil condition, and the consequence of a false signal.
Short Answer
A hydraulic shuttle valve is a three-port, pressure-operated selector. Two ports receive candidate pressures; the internal ball, poppet, or spool connects the outlet to whichever inlet produces the controlling local force and blocks the other inlet. A passive shuttle valve does not add the two inlet pressures. It also does not automatically provide relief, commanded directional control, or certified load holding.
For selection, define the valve's job first: is it carrying a low-flow pilot signal, supplying brake-release oil, choosing between redundant sources, or passing meaningful actuator flow? Then verify rated pressure, allowable flow at an acceptable pressure drop, leakage, near-equal-pressure behavior, cavity or port details, seal compatibility, viscosity, temperature, contamination target, and safe failure behavior. If a published curve or limit is missing, treat it as unknown rather than assuming that a similar-looking valve will behave the same way.
Evidence Boundary: Published Examples Are Not BLINCE Ratings
The numeric examples below come from current manufacturer pages or technical manuals and show how much shuttle-valve specifications can differ. They are comparison references, not universal limits and not BLINCE model ratings.
Published example
Pressure / flow information
Leakage / fluid information
Installation information
Selection lesson
Danfoss 565621
210 bar; 23 L/min nominal flow
0.3 cc/min leakage; stated cleanliness ISO 4406 18/16/13
C-10-3 cavity; ball-style construction
A compact valve may have explicit cavity, leakage, and cleanliness requirements
HydraForce LS08-30
Maximum operating pressure 241 bar
Maximum internal leakage 0.25 ml/min at 207 bar; temperature range depends on seal option
Cartridge configuration; model-specific cavity data must be checked
Leakage and temperature cannot be inferred from nominal port function
WEBER-HYDRAULIK FTRW-2.5 / FTRW-5
8 L/min at 315 bar / 15 L/min at 350 bar
7.4–420 cSt; ISO 4406 18/16/13; -20 to 80 °C
Published installation and technical data apply to these named models
Pressure rating, flow capacity, viscosity, and temperature form one selection envelope
Unit labels also matter. In hydraulic component literature, cc/min and ml/min describe the same volumetric rate because 1 cc equals 1 ml. A leakage value is still incomplete unless its test pressure, oil condition, temperature, and acceptance basis are known.
How a Shuttle Valve Works
A basic hydraulic shuttle valve has two inlets, often called X and Y, and one selected outlet, often called S. Pressure at X pushes the internal element toward Y; pressure at Y pushes it toward X. The resulting position connects the outlet to one source while isolating the other.
That description is useful, but “the higher pressure wins” is shorthand. The element responds to local hydraulic force, spring force if present, friction, flow force, geometry, and transient effects. The pressure measured at a remote gauge can differ from the pressure actually arriving at the shuttle inlet because a hose, orifice, filter, fitting, check valve, or narrow manifold passage consumes pressure.
When the inlet pressures are nearly equal, the selected side may depend on small local losses and mechanical details. Some designs can switch cleanly; others may chatter, hesitate, or retain the last selected path over a small pressure band. Use a manufacturer switching curve or application confirmation if stable source priority matters.
What the valve does not do
It does not combine inlet flows like a flow summing junction.
It does not add two pressure values.
It does not limit maximum pressure unless a separate relief function is specified.
It does not provide an electrically commanded choice between sources.
It should not be treated as a zero-leakage device without a stated, verified test limit.
It should not be treated as the sole load-holding or personnel-protection device unless the complete safety function has been engineered, rated, validated, and documented for that purpose.
If the machine needs deliberate source selection, a monitored solenoid valve or manual selector may be more appropriate. If the circuit must hold an overrunning load, inspect the counterbalance, pilot-operated check, brake, hose-burst protection, and control architecture rather than assigning that duty to an ordinary shuttle valve.
Start With Circuit Role, Not Thread Size
Two valves with the same external size can serve very different jobs. A pilot-signal shuttle may pass only enough oil to charge a control line. A brake-release shuttle may need prompt pressure buildup and predictable venting. A source-selection shuttle between pumps or accumulators may see reverse pressure, long dwell periods, and a meaningful leakage requirement. A valve placed in a main-flow path may create heat even if it survives the peak pressure.
Write one sentence before comparing part numbers:
The shuttle valve must select between sources and , deliver it to , pass L/min, operate from to bar, and fail safely by .
If the blanks cannot be filled, the part-number search is premature.
The Eight Selection Checks
1. Define normal, transient, proof, and reverse pressure
Record pressure at both inlets and the outlet during the full duty cycle. Separate normal steady pressure from shock peaks. State whether either inlet can be pressurized while the outlet is blocked, and whether the non-selected inlet can see reverse pressure. A system relief setting is not automatically the component's actual transient pressure.
Choose a valve whose current datasheet covers the applicable pressure case with the project-required margin. Do not transfer a 350 bar rating from one manufacturer's FTRW-5 example to another valve of similar size.
2. Match flow to an acceptable pressure drop
A nominal flow number says little without a pressure-drop curve or test condition. For a pilot signal, a small restriction may slow response or shift the local pressure enough to select the wrong source. For a higher-flow path, the same restriction converts hydraulic power into heat.
Ask for the pressure drop at the required flow, oil viscosity, and temperature. If only a rated flow is published, request the curve or the test point before approving the design.
3. Set an internal-leakage limit
Every practical sealed path has an acceptance basis. A published maximum leakage such as 0.25 ml/min at 207 bar is useful because the pressure is stated. It does not predict leakage at every pressure, viscosity, temperature, contamination condition, or service age.
Decide what leakage does to the circuit. In a brake-release pilot, it may delay or lose the release signal. In an accumulator-backed circuit, it may increase pump cycling. In a diagnostic line, it may slowly equalize two supposedly isolated sources. Specify a maximum allowable rate and the test conditions that matter to the machine.
4. Examine switching near equal pressure
Near-equal inputs deserve a specific operating case, not a footnote. Record the minimum pressure difference available during slow ramps, warm oil, and combined functions. Ask whether the design has a spring bias, priority behavior, defined switching differential, hysteresis, or dynamic limits.
If one source must take priority at equal pressure, an ordinary symmetric shuttle may not satisfy the requirement. A biased shuttle or controlled selector can make the desired priority explicit, subject to its own failure analysis.
5. Confirm cavity, ports, and manifold geometry
For a screw-in cartridge, the cavity designation, nose geometry, sealing diameters, thread, installation torque, surface finish, and cross-drilling must match. “Fits the hole” is not the same as being hydraulically interchangeable. A wrong cavity can damage seals, leave a passage blocked, or create an internal leakage path.
For an inline valve, verify port standard, thread form, sealing method, flow orientation, mounting clearance, and the mass supported by the connected pipework. Avoid using adaptors as an unreviewed substitute for the correct manifold interface.
6. Match seals, fluid, viscosity, and temperature
State the hydraulic fluid, additive package if relevant, minimum cold-start temperature, stabilized operating temperature, and expected viscosity range. NBR, FKM, EPDM, and other seal materials do not share the same fluid compatibility or temperature envelope.
The WEBER-HYDRAULIK example publishes 7.4–420 cSt and -20 to 80 °C for the named products. Those numbers demonstrate why “hydraulic oil” is not a complete fluid specification; they do not define a BLINCE or industry-wide range.
7. Set cleanliness and commissioning controls
Small shuttle passages and seating surfaces are sensitive to particles, varnish, and assembly debris. Both the Danfoss and WEBER-HYDRAULIK examples above state ISO 4406 18/16/13. That repeated value is still product evidence, not a blanket rule for every circuit.
Specify the machine cleanliness target from the most sensitive component and confirm filter location, beta ratio, bypass behavior, filling method, hose-cleaning procedure, and post-repair flushing. Cap open lines during service. A new cartridge placed into a contaminated cavity can repeat the same symptom quickly.
8. Review installation and safe verification
Mark the three hydraulic connections on the schematic and on the physical valve. Confirm torque, seal lubrication, orientation restrictions, and venting requirements from the chosen model instructions. Before loosening a fitting or removing a cartridge, isolate energy, lower or mechanically support loads, discharge accumulators using the approved procedure, and verify zero pressure at the relevant test point.
HAWE's technical documentation for WV/WVC shuttle valves instructs users to follow the documentation, use qualified personnel, and depressurize the hydraulic system before maintenance. Apply the exact machine manual, risk assessment, lockout procedure, and component instructions to the real equipment; this article is not a replacement for them. See the HAWE WV/WVC technical data.

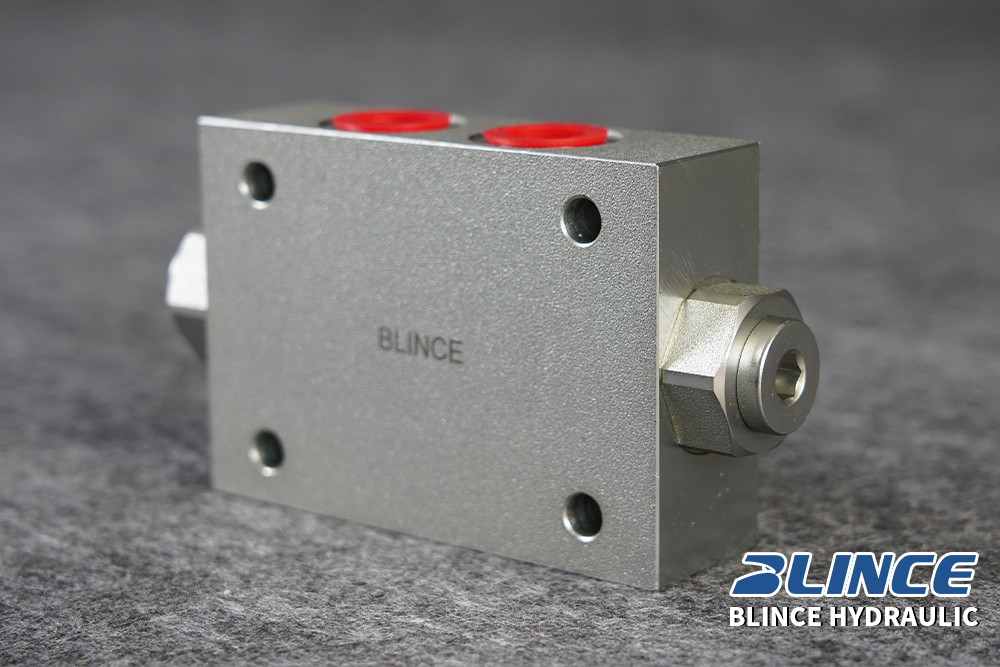

Pressure-Drop Calculation: When a Small Valve Becomes a Heater
The theoretical hydraulic power dissipated across a restriction is:
P_loss (kW) = Δp (bar) × Q (L/min) ÷ 600
Assume a selected flow path carries 15 L/min and the measured pressure drop across the shuttle is 2.5 bar:
P_loss = 2.5 × 15 ÷ 600 = 0.0625 kW = 62.5 W
That 62.5 W is a calculated hydraulic loss at this operating point, not a valve rating. If the path is active for only part of the cycle, average heat input is lower; if viscosity rises at cold start or flow increases, pressure loss can change sharply. The valve curve and machine duty cycle are needed before estimating oil temperature rise.
The tradeoff is practical: a compact cartridge can reduce manifold size and hose count, but a smaller flow path may increase pressure loss. Oversizing may reduce loss, yet it can add cost, volume, cavity constraints, and sometimes slower or less predictable signal behavior. Select for the circuit, not for the largest number in a catalog.

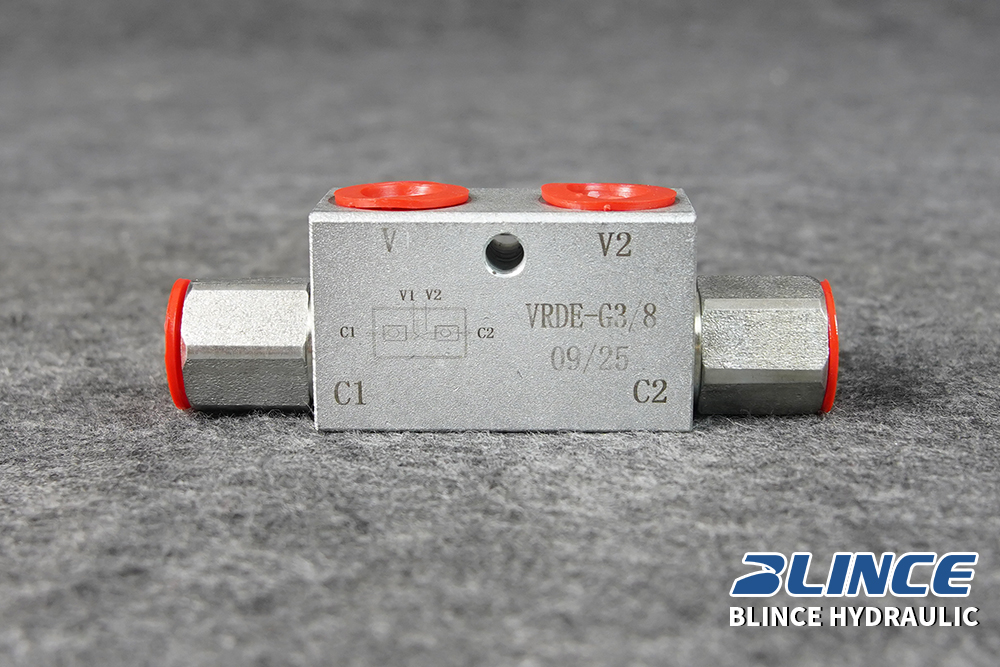

Signal-Error Calculation: Why the Lower Gauge Reading Can Win
Suppose two remote sources are measured as follows:
Source A gauge: 158 bar
Source B gauge: 154 bar
Estimated line loss from A to the shuttle inlet during the event: 7 bar
Estimated line loss from B to the shuttle inlet: 1 bar
The local inlet pressures are approximately:
A_local = 158 - 7 = 151 bar
B_local = 154 - 1 = 153 bar
Although the remote gauge shows A as 4 bar higher, the shuttle locally sees B as about 2 bar higher. Selecting B is therefore consistent with local pressure. The fault may be a restriction, poor test-point placement, a collapsed hose liner, a blocked orifice, cold oil, or an undersized passage—not a defective shuttle element.
This calculation is a diagnostic model. Real switching also depends on the internal geometry, dynamic pressure, friction, spring force, and measurement accuracy. Install test points close to both shuttle inlets and the outlet if the selection event cannot be explained from remote gauges.
Ball or Poppet, Spool, Inline, or Cartridge?
Option
Often useful when
Tradeoff to review
Evidence needed
Ball or poppet shuttle
Compact automatic selection and a distinct seat are wanted
Seating condition, contamination, switching impact, and pressure drop remain design-dependent
Source choice must be commanded, interlocked, or made visible
Adds controls, wiring or operator action, and another failure mode
Logic state table, fail position, coil voltage, manual procedure
These are design tendencies, not fixed characteristics. Compare the current drawings and performance data for the actual candidate models.
Five Circuit Checks Before Buying
Load-sense mobile hydraulics
A load shuttle network can route the highest local load signal toward the pump controller. Check signal-line restrictions, damping orifices, bleed paths, warm-oil behavior, and the pressure margin required by the pump control. Hunting with combined functions can come from the interaction among several shuttles and compensators rather than one failed cartridge.
Winch or brake-release circuits
Identify every condition that is allowed to release the brake. Verify minimum release pressure, maximum permitted pressure, response time, leakage tolerance, hose-failure behavior, and what happens after the command is removed. The shuttle should not be used to bypass the counterbalance or brake-control logic.
Redundant pump or accumulator sources
Define whether automatic selection of the higher source is actually the desired behavior. Check isolation leakage, recharge cycling, source priority, downstream relief protection, and the consequences of one source failing high or low. If the lower source must be selected for a test or maintenance mode, use a controlled selection method.
Clamp and cylinder pilot circuits
Clarify whether the selected pressure is a command signal, a pressure-holding path, or a source of actuator flow. Cylinder drift, clamp relaxation, and pressure decay can also come from piston-seal leakage, directional-valve leakage, hose expansion, or temperature change. Isolate the circuit before blaming the shuttle.
Test and diagnostic circuits
A shuttle can reduce the number of gauges, but a single downstream gauge hides the individual source pressures. Provide upstream test points if the machine must distinguish which source is active. A diagnostic convenience should not remove the measurements needed to find a restriction.
Symptom-to-Check Table
Field symptom
First measurements
Likely mechanisms to separate
Useful next action
Outlet follows the apparently lower source
Pressure at both shuttle inlets and outlet during the same event
Remote line loss, gauge error, near-equal switching, blocked passage
Add local test points; compare simultaneous readings
Contamination, wrong cavity, seal damage, system-level cause
Stop parts swapping; inspect cavity and cleanliness controls
Common Selection Mistakes
Buying by port size and maximum pressure
Port fit and pressure survival do not establish flow performance, leakage, switching behavior, or compatibility. Use a selection sheet that records all eight checks.
Treating nominal pump pressure as both inlet pressures
The shuttle reacts where it is installed. Measure or calculate losses between each source and the valve during the failing event.
Assuming equal pressures will combine
A passive shuttle selects a path; it does not sum pressure. Near equal pressure, local losses and internal forces decide position. If the design needs combined flow, use an engineered combining circuit with the required check, relief, balancing, and control functions.
Ignoring leakage because the line is “only pilot flow”
Small lines contain little oil. A modest leakage rate can materially change signal buildup or decay. Specify the acceptable response time and pressure retention instead of relying on the word “pilot.”
Calling every three-port valve interchangeable
Port function, cavity, seat geometry, material, seal, rated pressure, and switching response can differ. Verify the model code and drawing revision.
Replacing parts before checking contamination
Particles on a seat can imitate wear. Debris found in a removed valve is evidence about the whole system, not permission to install another component without cleaning the cavity and tracing the contamination source.
Who Should Not Use a Basic Shuttle Valve?
A basic automatic shuttle is a poor fit when the circuit must deliberately select the lower-pressure source, prove which source is active, maintain a defined source priority at equal pressure without published bias data, combine flows, limit maximum pressure, meter flow precisely, or act as the sole safety-rated load-holding device.
It is also a poor purchasing choice for a buyer who cannot provide a schematic, port or cavity details, pressure range, flow, fluid, temperature, and leakage requirement. In that situation, a visually matching part may create a new failure while hiding the original circuit problem.
Shuttle Valve vs Check Valve
A check valve normally has one inlet and one outlet and permits flow in one direction. A shuttle valve uses two candidate inlets and one selected outlet; internally, it performs two-way source isolation while choosing a pressure path. The distinction matters when interpreting a schematic and when testing leakage.
Hydraulic schematic with the two sources, shuttle outlet, relief valves, load-control valves, and test points marked.
Pressure at inlet X, inlet Y, and outlet S during standby, actuation, hold, and the failing event.
Required flow through the selected path, with acceptable pressure drop or response time.
Maximum allowable internal leakage and its test pressure, oil temperature, and hold time.
Current valve manufacturer, complete model code, cavity or port standard, and clear photos of markings.
Hydraulic fluid, viscosity grade, minimum and maximum oil temperature, and seal restrictions.
Cleanliness target, filter information, and any recent contamination or repair history.
Required source priority or behavior when the two inlet pressures are nearly equal.
Safety consequence of no selection, false selection, delayed selection, or internal leakage.
With those values, BLINCE can review the circuit role, product-family fit, and missing specification points. Final acceptance should be based on the current model datasheet, drawing, sample validation, and the machine manufacturer's safety requirements.
Frequently Asked Questions
Does a shuttle valve add two inlet pressures?
No. A passive hydraulic shuttle valve selects one pressure path and isolates the other. It does not sum the two pressures. If inlet pressures are close, the selected side depends on the local forces and the valve design.
What happens when both shuttle-valve inlets have equal pressure?
There is no universal outcome that should be assumed from the symbol alone. Friction, geometry, spring bias, flow forces, transients, and previous position can affect the element. Request switching or hysteresis data when equal or near-equal pressure is a normal operating condition.
Can a shuttle valve carry main hydraulic flow?
Some models can carry meaningful flow, but the decision requires a pressure-drop curve, rated pressure, temperature/viscosity conditions, and a duty-cycle heat check. Many applications use shuttle valves primarily for pilot or load-sense signals.
How much pressure does a shuttle valve lose?
Pressure loss depends on the exact model, flow, oil viscosity, temperature, and flow direction. Measure inlet-to-outlet pressure at the operating point and compare it with the current manufacturer curve. A rated-flow number alone is insufficient.
How is shuttle-valve heat loss calculated?
Use P_loss (kW) = Δp (bar) × Q (L/min) ÷ 600. For 2.5 bar at 15 L/min, the theoretical loss is 0.0625 kW, or 62.5 W. This does not by itself predict bulk oil temperature.
Why can the lower remote gauge pressure be selected?
The pressure arriving at that shuttle inlet may be higher after local line losses are included. In the worked example, remote readings of 158 and 154 bar became local estimates of 151 and 153 bar. Simultaneous test points close to the valve help separate line loss from an internal fault.
Is zero leakage a realistic shuttle-valve requirement?
Do not assume zero leakage. Define an allowable leakage rate, pressure, temperature, fluid, and hold time, then compare it with model-specific data. A circuit that needs certified load holding requires a dedicated safety and load-control review.
Can I replace a ball shuttle with a spool shuttle?
Only after comparing cavity or ports, pressure and flow data, leakage, switching behavior, material, seals, cleanliness, and failure response. The same schematic function does not prove drop-in interchangeability.
Which seal should I choose?
Choose from the actual fluid chemistry, temperature range, additive exposure, storage environment, and current manufacturer compatibility information. A generic oil name or viscosity grade does not settle seal compatibility.
What causes a shuttle valve to chatter?
Common contributors include near-equal inlet pressure, pressure ripple, insufficient damping, flow forces, contamination, damaged seating or spool surfaces, incorrect cavity geometry, and unstable upstream controls. Record both local inlet pressures during the event before replacing the valve.
This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.
Blince Hydraulic Team
Blince Hydraulic is an industry-leading company dedicated to precision-engineered fluid power manufacturing and custom hydraulic solutions. Backed by decades of deep field expertise in industrial machinery and thousands of successful global deployments, our engineering team focuses entirely on high-performance hydraulic component manufacturing, including specialized orbital motors, high-pressure travel drives motor, and robust directional control valves. Our production infrastructure utilizes state-of-the-art multi-axis CNC machining systems and is fully ISO 9001 certified to guarantee repeatable volumetric accuracy across every single manufacturing run.
We deliver fast, highly dependable, and cost-efficient hydraulic solutions to heavy industry distributors, machinery OEMs, and maintenance crews across more than 150 countries. Whether your active project calls for a small-volume batch of customized shaft profiles or a large-scale production run of severe-duty cast iron gear pump, we configure our flexible production schedules to meet your target lead times with total pricing predictability. Partnering with Blince means securing maximum system efficiency, elite material quality, and uncompromised fluid power professionalism.
To learn more about our complete product lineup, visit our official website: www.blince.com.
Final Selection Note
A shuttle valve is simple on a schematic and conditional in a machine. Product selection is defensible when the circuit role, local pressures, flow and pressure loss, leakage, switching differential, interface, fluid, temperature, cleanliness, and safe failure behavior are documented together.
For a BLINCE compatibility review, send the schematic plus measured X, Y, and S pressures; flow; allowable leakage; cavity or port details; fluid and temperature; current model code; and the consequence of delayed or false selection. BLINCE can then identify relevant valve-family options and the datasheet items that still need confirmation.
Technical information here supports product screening and troubleshooting. It does not replace the selected component's current datasheet, the machine manual, a qualified hydraulic risk assessment, or required validation testing.
