Hydraulic Tank Breather Selection Guide: Air Filters, Moisture Control, And Pump Inlet Diagnosis

A hydraulic tank breather rarely gets blamed first.

The complaint usually arrives as something louder or more expensive. The pump whines during cold start. The oil turns cloudy after a wet week outdoors. A directional valve sticks again after cleaning. A filter plugs early. A cylinder seal fails, then the replacement seal does not last much longer. Someone points at the pump. Someone else points at the oil supplier. A third person wants to flush the whole machine and start over.

Sometimes one of those answers is right. Sometimes the dirt or moisture entered through the quietest part on the reservoir.

A hydraulic reservoir breathes whenever the oil level moves. A large cylinder extends. Oil leaves the tank. Air must enter. The cylinder retracts. Oil returns. Air must leave. If the breathing path is missing, blocked, undersized, wet, or open to dust, the reservoir can become a pump inlet problem, a water problem, and a contamination problem at the same time.

That is why I would not start this choice at the thread chart. Start at the machine. Does it sit in rain, dust, fertilizer, or wash-down spray? Does one cylinder drop the oil level in a hurry? Is the pump already sensitive on cold mornings? Those answers tell more than the cap size.

The goal here is a working selection path for a hydraulic air filter, filler breather, or desiccant breather. In some cases the answer is a better breather. In other cases the breather is only pointing toward a dirty reservoir, a weak suction path, a tired filter arrangement, or a wider hydraulic system problem.

Why Trust This Guide

Blince works around hydraulic motors, pumps, valves, cylinders, hoses, fittings, coolers, gauges, and related hydraulic accessories. That range matters here. A tank breather complaint rarely introduces itself politely as a tank breather complaint. It may arrive as pump wear, a sticky valve, cylinder drift, heat, foam, or a filter that gives up too early.

This article keeps the laboratory work out of the foreground. For most repairs, the first useful checks are more ordinary: where air enters, how moisture gets in, how far the oil level moves, where the pump takes oil from, and whether the breather is protecting the reservoir or quietly choking it.

For background on particle control, the article Hydraulic Contamination Control Guide: Filters, Oil Cleanliness, and System Checks is closely related. This guide narrows the subject to the reservoir air path.

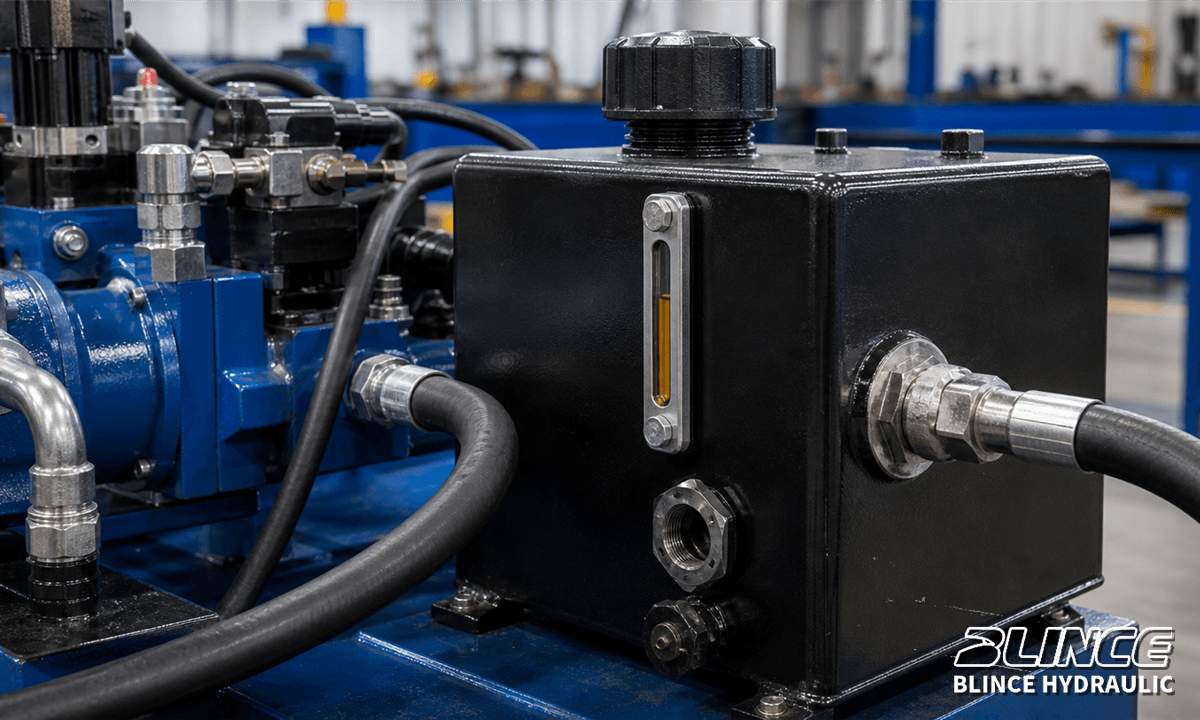

Start With the Oil Level, Not the Cap

Before choosing a hydraulic tank breather, write down what the oil level actually does during work.

One large double-acting cylinder tells a different story from several small cylinders. A long attachment circuit tells another one. A hydraulic motor that runs all afternoon may not move the tank level much, but it can warm the oil and stir the return side. A boom that extends fast can pull air through the breather in a short burst. Then there is the service habit: clean transfer cart, capped container, or the old funnel sitting on a shelf with grinding dust on it.

After that, the breather choice becomes less mysterious. The answer may be a basic filtered vent, a better filler breather, a desiccant unit, or a tank layout change that the catalog page never mentions.

On a small indoor power unit, air exchange may be slow and the room may be fairly clean. Put the same style of breather on an agricultural machine and it sees dust, fertilizer residue, rain, plant material, and months of storage. Put it on a compact construction machine and the tank may be small, hot, and squeezed between an engine radiator, a cooler package, hoses, and quick couplers. The part photo looks calm. The machine is not.

The useful field question is:

Where does the reservoir take air from when oil leaves, and what does that air bring with it?

If that question is skipped, a new breather may fit the hole and still fail the job.

What a Hydraulic Tank Breather Actually Does

A hydraulic tank breather is the reservoir's controlled air door. When oil leaves the tank, air has to come in. When oil returns, air has to leave. A good design can filter dust, resist splash water, hold moisture in desiccant media, share the filler cap, or move the breathing point to a cleaner remote location.

The basic functions are simple:

A breather is not the same thing as a hole in the cap. A hole lets air move. It does not necessarily stop dirt, water, wash-down spray, or oil mist. A real hydraulic tank air filter must be chosen for flow, environment, service interval, and reservoir layout.

The trap is that a poor breather may not create one clean symptom. It may leave a faint trail across several parts of the hydraulic circuit.

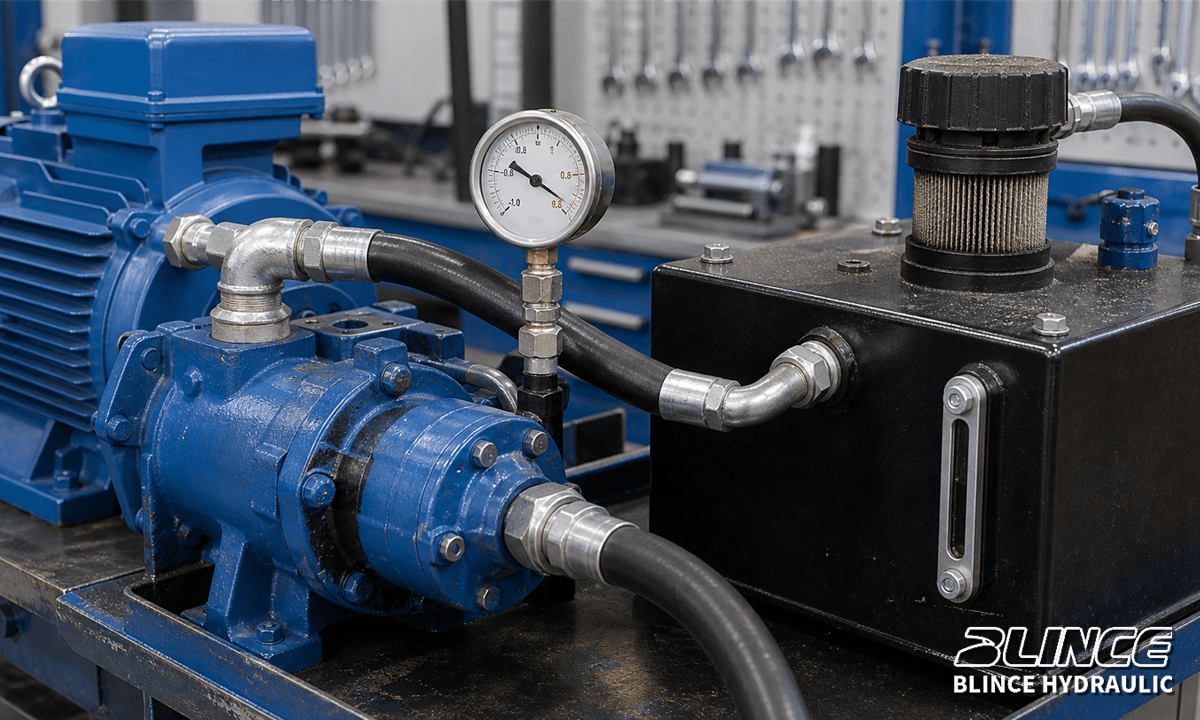

When a Breather Problem Looks Like a Pump Problem

Pump noise is one of the common ways a breather problem announces itself.

During cold start, oil is thick. The suction line already has more resistance than it will have after warm-up. If the reservoir breather is blocked, painted over, packed with dust, or soaked with oil, the pump may be asked to pull from a tank that does not admit enough replacement air. Add a dirty suction screen, a small suction hose, a low oil level, or a long inlet run, and the pump can start to sound guilty.

The pump may whine. The oil may foam. The outlet pressure may still climb. That combination confuses the diagnosis because the gauge reading makes the pump look alive while the inlet side is being treated badly.

Before condemning a hydraulic pump, check the reservoir breathing path:

• Is the breather present, or has it been replaced by an open plug?

• Is the media dark, oily, wet, painted, or packed with dust?

• Does the reservoir cap show signs of suction or pressure when opened?

• Does pump noise change after the tank cap is safely loosened for a short test?

• Is the suction line too small, too long, collapsed, or restricted?

• Is the oil level low during the machine function that creates the complaint?

• Does the issue appear only when oil is cold?

Loosening a cap for a short, safe test does not fix anything. It only tells you where to look next. If the pump quiets down when the tank can breathe, the repair belongs in the breather, filler cap, suction path, or reservoir layout, not in another rushed pump order.

The article Hydraulic Pressure Gauge Placement Guide: Test Points And False Readings is relevant here because pump outlet pressure alone does not tell the whole story. Inlet conditions and pressure drop matter too.

Sizing the Breather for Real Air Flow

A hydraulic reservoir breather must pass enough air for the fastest expected oil level change, not just the average duty cycle.

The air exchange demand comes from actuator movement, pump flow, external circuits, oil returning from attachments, and thermal expansion. The largest moment may be short. A dump bed lowers. A telescopic cylinder retracts. A loader boom cycles. A large cylinder fills one side while the other side returns a different volume. The reservoir does not care that the event lasts only a few seconds; it still needs air flow then.

Undersizing usually shows up in indirect ways:

• Pump noise during fast cylinder movement

• Oil mist around the filler area

• Collapsed or distorted low-pressure hoses

• Dust marks around cover gaskets and level gauges

• Oil seepage that appears after repeated cycling

• Breather media that loads with oil instead of dust

Compare the breather air flow rating with the machine's actual oil movement, not with a tidy average duty cycle. If that information is missing, treat the first selection as preliminary and watch the machine during real operation. A breather that behaves on a bench power unit can still be too small for a mobile attachment circuit that drops the oil level quickly.

For a replacement job, do not copy only the old thread. Ask why the old breather failed, why it was removed, or why oil has been dirty. A missing breather may be a sign that the old one kept plugging, not proof that the machine did not need one.

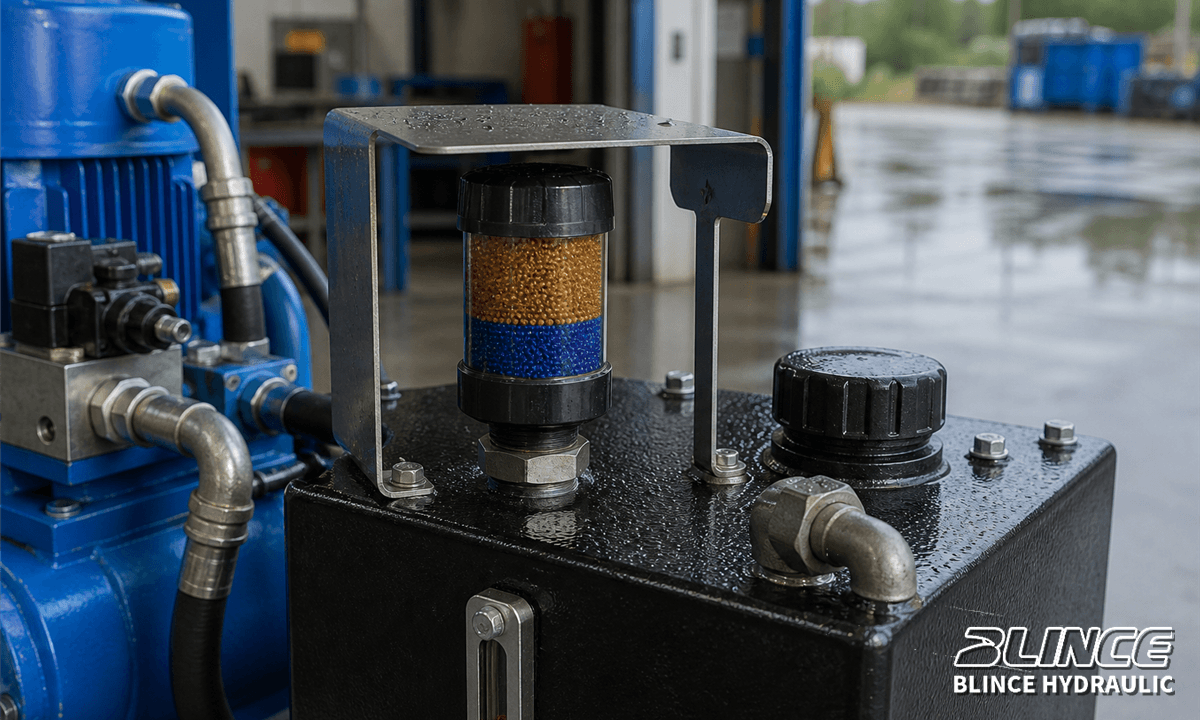

Ordinary Filler Breather or Desiccant Breather?

A standard filler breather or air breather can be enough when the environment is clean, dry, and controlled. Indoor hydraulic power units, test stands, and compact machines with stable maintenance routines may not need a desiccant breather.

I pay more attention to desiccant breathers when water keeps returning after the obvious leaks have been checked. Outdoor machines, port equipment, wash-down areas, seasonal farm machines, and units that sleep through warm days and cool nights all breathe humid air. Some of that moisture can condense in the tank, settle low, disturb additives, start corrosion, or turn the oil cloudy enough to start an argument.

The decision should be based on exposure, not fashion:

A desiccant breather is a service item, not a charm. The media fills up. The color indicator is useful only if someone can see it and has permission to replace it. Mount the breather where rainwater runs over the body and it may spend its life drying the weather instead of protecting the tank.

Moisture in Hydraulic Oil: Check the Air Path Before the Argument

Cloudy oil often starts a supplier argument. The oil was new. The drum looked sealed. The machine worked last month. Then the reservoir sight glass turns milky and the system begins to feel uneven.

Water can enter through more than one path:

• Humid air entering through the breather

• A missing or damaged filler cap seal

• A wash-down hose aimed at the reservoir top

• Rainwater collecting near a poorly protected cap

• Damaged level gauge seals

• A leaking water-cooled heat exchanger

• Oil stored in drums outdoors

• Condensation during long idle periods

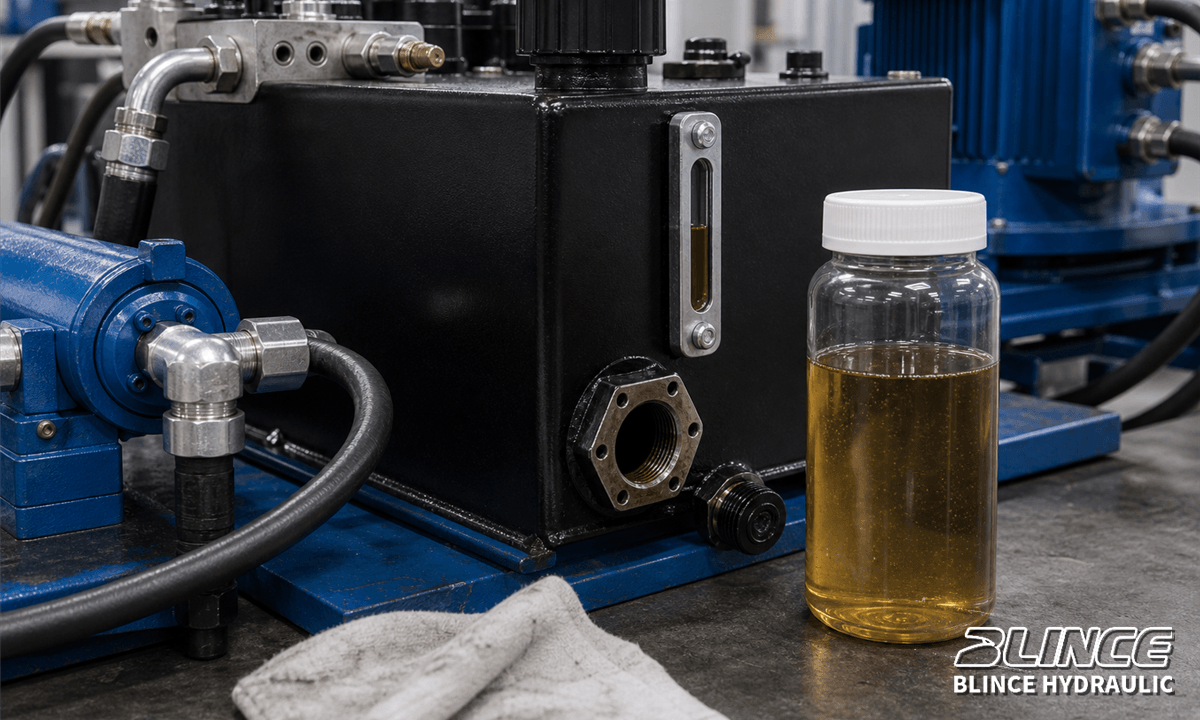

Sight glass color is a poor witness by itself. Take a clean sample from a point that actually represents the circulating oil, let it stand, and compare it with known clean oil from the same grade if you have it. If a water-cooled heat exchanger is in the circuit, isolate or pressure-test the water side before the whole discussion turns into an oil-supplier complaint.

Where air humidity is the likely source, the breather and filler arrangement should be reviewed together. A desiccant breather may help, but only if the rest of the reservoir is not open to rain, wash water, or dirty filling practice.

If heat and moisture appear together, the article Hydraulic Oil Cooler Sizing Guide: Stop Overheating Without Back Pressure may help separate thermal load from water entry.

Reservoir Layout: The Breather Is Only One Opening

A breather can be correct and still fail to protect the system if the reservoir layout is poor.

Look at the tank as a flow path. Oil returns from the machine. Air separates. Particles settle. Heat leaves. Oil moves toward the pump inlet. Air enters or leaves through the breather. Service oil enters through the filler. Water and dirt should stay out.

Common layout problems include:

• Return oil splashing directly under the breather

• Return flow aimed near the pump suction area

• No baffle between return and suction zones

• Breather mounted where oil mist wets the media

• Filler neck positioned under rain or wash-down spray

• Suction port placed too close to the bottom sediment zone

• Level gauge hidden where operators rarely inspect it

• Drain plug difficult to access, so water is never removed

These details decide whether the reservoir quietly conditions oil or keeps sending air, water, heat, and debris back into the circuit.

If the system has long hydraulic hoses and fittings, frequent attachment changes, and a small reservoir, the breather is only one part of the picture. Hose cleanliness, quick coupler caps, return routing, and oil filling practice all matter.

Filling Oil Without Defeating the Breather

Many reservoirs are contaminated during service, not during normal operation.

A clean breather does not protect the system if oil is poured through a dirty funnel. A new drum does not guarantee clean oil at the point of use. A hose used for several fluids may carry dust, water, and old additives. A filler cap set on the ground can bring grit back to the tank.

A better filling routine is simple:

1. Clean the area around the filler before opening it.

2. Use filtered transfer equipment where possible.

3. Keep oil drums sealed and stored correctly.

4. Keep open buckets and mystery containers away from the machine.

5. Check the filler screen, cap seal, and breather before the cap goes back on.

6. Record oil type, quantity, machine hours, and reason for filling.

If a machine becomes dirty soon after service, do not assume the filter failed. Ask what entered during maintenance. A careful shop will protect the filling path as seriously as the pressure line.

Breather, Return Filter, and Suction Screen Must Be Read Together

Reservoir breathing, return filtration, and suction protection work as a group.

The return filter captures particles coming back from the circuit. The suction screen, if used, protects the pump from large debris but should not become a hidden restriction. The breather controls airborne dirt and moisture entering with air exchange. If one part is treated as a substitute for the others, the system becomes harder to diagnose.

For example, a fine return filter can plug early after a pump failure simply because the tank and lines still contain debris. Install a new pump into that reservoir and the new part inherits the old dirt. A suction screen may stop large pieces before they reach the pump, but a plugged screen becomes an inlet restriction. A breather can stop new airborne dust; it cannot wash yesterday's contamination out of the tank.

After a real failure, treat the reservoir as part of the failed assembly:

• Look at the tank bottom for sludge, water, and metal debris.

• Cut open failed filters if the failure is expensive enough.

• Flush or replace contaminated lines where debris is likely trapped.

• Check return filter bypass behavior.

• Inspect valves, manifolds, coolers, and actuators that may hold debris.

• Replace the breather if it was open, saturated, or overloaded.

This is where a simple accessory becomes part of component life. A clean replacement pump in a dirty reservoir is not a clean repair.

Hydraulic Oil Foaming and Air Entry

Foam in the reservoir can come from oil chemistry, low oil level, return line turbulence, suction leaks, wrong oil, or poor reservoir design. A breather problem can join the mess in two ways.

First, if the tank cannot breathe freely, the pump inlet may become unstable. Second, if the breather or filler area allows unfiltered air and dirt to enter, the oil can carry air and particles through the system. Once air is entrained, the machine may feel weak, noisy, hot, or spongy even when pressure appears acceptable.

Do not bleed the same cylinder or motor circuit again and again without checking the reservoir. Look for return oil entering above the oil level, oil falling from height, suction leaks, low oil level, and a breather located where oil mist keeps wetting the filter media.

If the machine recently had hose work, check whether the replacement hydraulic hose was cleaned after cutting. Rubber dust and wire fragments can move into the tank and later return to valves and pumps.

How Breather Choice Changes by Equipment Type

Industrial Hydraulic Power Units

Industrial hydraulic power units usually have better access and more predictable maintenance than mobile machinery. That does not make the breather unimportant. Indoor tanks still see oil mist, additive vapor, shop dust, and careless filling.

For a power unit, focus on serviceability. Can the breather be inspected without removing guards? Is the filler area easy to clean before oil is added? Is the return filter easy to replace? Is the oil level visible? Does the tank have a drain point that maintenance actually uses?

If the unit controls precision valves, the filling method and air filtration are not housekeeping details. They are part of valve life.

Agricultural Machinery

Farm equipment has a rough calendar. It may sit through wet weather, collect plant material and fertilizer dust, then run long days in heat and vibration. The reservoir does not get a clean laboratory life, so moisture control and dust control cannot be treated as extras.

An open vent is a cheap-looking shortcut in that environment. Put the breather where rain and wash-down spray do not hit it directly, and check it before the busy season starts. Clean quick couplers, hose ends, and filler caps before connection or filling; otherwise the breather is doing careful work while service dirt walks in through the front door.

Compact Construction Equipment

Compact machines give the tank very little breathing room. The reservoir may sit beside the engine radiator, oil cooler, and hydraulic pump, with hot air and tight hose routing all around it. A small blocked breather can turn an already marginal suction side into the loudest part of the machine.

If a compact loader overheats or whines after an attachment change, do not stop at the attachment motor. Check the reservoir level change, return flow, quick coupler restriction, breather condition, and suction hose routing.

Marine, Port, and Outdoor Industrial Sites

Moisture is the main enemy in these environments. Salt air, rain, washing, and condensation can shorten oil and component life. A desiccant breather or protected remote breather may be justified, but placement matters. A premium breather installed where water runs across it will not perform like the catalog picture.

Test Benches and Service Shops

Service shops often connect unknown components to a test power unit. That makes contamination discipline important. The tank breather should be clean, but so should the hoses, adapters, quick couplers, and temporary test lines. The liquid filled pressure gauge on the bench can report pressure, but it cannot tell whether a dirty adapter just added debris to the oil.

Practical Checklist Before Ordering

Before ordering a hydraulic reservoir breather, hydraulic air filter, or desiccant breather, gather the few details below. They save the most back-and-forth.

If several items are still unknown, a supplier can still make a first recommendation. Just treat it as a starting point. Every missing detail raises the odds of buying a breather that screws in nicely and still does the wrong job.

Common Mistakes Seen in the Field

Mistake 1: Replacing the Breather With an Open Vent

An open vent may reduce tank vacuum for a moment, but it invites dust and moisture into the reservoir. If the old breather plugged often, find out why. The answer may be too little media area, oil mist wetting the element, bad placement, or a dirty environment.

Mistake 2: Choosing by Thread Size Only

Thread size proves the part can be screwed into the tank. It says little about breathing flow, filter media, water exposure, or whether the part will survive the machine's real work.

Mistake 3: Installing a Desiccant Breather and Never Checking It

Desiccant media eventually fills with moisture. Once that happens, the breather may still look expensive while doing very little drying. If the indicator faces a wall or hides under a cover, it will probably be ignored until cloudy oil forces the issue.

Mistake 4: Blaming the Pump Before Checking the Tank

A noisy pump is not always a guilty pump. Oil level, suction hose condition, suction screen restriction, tank breathing, and foaming can all punish the inlet side before the pump itself has failed.

Mistake 5: Cleaning the Valve but Leaving the Dirty Reservoir

A sticky hydraulic valve can be cleaned, tested, and blamed again a week later if the reservoir keeps feeding dirt through the circuit. Dirt can arrive through the filler, old hoses, failed components, or a tank that was never cleaned. The article Hydraulic Directional Control Valve Selection Guide explains why valve complaints often start outside the valve body.

Mistake 6: Ignoring the Cooler and Return Line

Return oil can bring air, heat, and debris straight back to the reservoir. A clogged cooler, tight return hose, or return pipe aimed into the wrong part of the tank can stir the oil and add heat. If the system uses a hydraulic oil cooler, check return pressure and cooler condition before every oil complaint gets handed to the breather.

What Information Helps Blince Check the Selection

If you contact a supplier after a contamination, moisture, or pump inlet complaint, do not send only the old breather thread.

Send the machine context:

• Photos of the tank top, breather, filler cap, level gauge, and return filter

• Reservoir volume or tank dimensions

• Pump flow and pump type if known

• Oil level cold and hot

• The function being operated when the complaint appears

• Oil condition photos or sample notes

• Where the machine actually works: shop floor, rain, dust, wash-down, fertilizer, humidity, or mixed use

• Filter plugging history

• Pump noise history

• Recent service work such as hose replacement, oil change, pump failure, or tank cleaning

With that context, the next step becomes less of a guess. It may be a larger breather, a desiccant breather, cleaner filling equipment, suction-side inspection, return filter review, tank cleaning, or a component replacement.

FAQ

What does a hydraulic tank breather do?

It lets air enter and leave the hydraulic reservoir while helping control dirt and, in some designs, moisture. Without controlled breathing, the tank may pull unfiltered air through weak points or create poor pump inlet conditions.

Can a blocked breather damage a hydraulic pump?

It can contribute to pump damage. A blocked breather may create tank vacuum, which makes suction conditions worse. The pump can become noisy, run hot, cavitate, or wear faster, especially with cold oil or a restricted suction line.

Is a desiccant breather always better than a standard breather?

No. A desiccant breather is useful where moisture is a real threat, but it adds service requirements. In a clean indoor environment, a properly sized filtered filler breather may be enough.

How often should a hydraulic breather be changed?

There is no universal interval. Dust, humidity, oil mist, duty cycle, tank breathing volume, and maintenance habits all matter. Inspect it during regular service and replace it when media is plugged, saturated, damaged, wet, or past the service indicator.

Why does my hydraulic oil turn cloudy?

Cloudy oil may contain water, air, or both. Check the breather, filler cap, oil storage, wash-down exposure, heat exchanger leakage, return turbulence, suction leaks, and recent service work before blaming one source.

Can I run a hydraulic tank without a breather?

A reservoir needs controlled air movement unless it is part of a specially designed sealed or pressurized system. Running with no breather or an open vent can create contamination, moisture, pressure balance, and pump inlet problems.

Should the breather be the same micron rating as the hydraulic filter?

Not necessarily. Air filtration and liquid filtration are different jobs. The breather must balance particle control with enough air flow. A very restrictive breather can create its own problem if it cannot pass the required air.

Why is my breather oily?

Oil on the breather may indicate return splash, excessive oil mist, overfilled reservoir, poor baffle layout, or a breather installed too close to turbulent return flow. A wet breather may lose air flow capacity and collect dust faster.

Final Takeaway

A hydraulic tank breather is a small part with a large diagnostic shadow.

If a pump whines, ask whether the tank can breathe. If oil turns cloudy, ask where humid air or water entered. If a filter plugs early, ask whether dirt arrived through service work, failed components, or an open reservoir path. If a valve sticks again, ask whether the oil path was cleaned or only the visible part was replaced.

Choose the hydraulic reservoir breather around the machine, not around the cap alone. Oil level movement, breathing demand, water exposure, dust load, suction behavior, filling habits, and tank layout are the pieces that decide whether the breather will actually protect the system.
