A hydraulic motor parts diagram is easier to understand when you stop reading it as a list of pieces. It is a map of energy moving through a machine.
Oil enters through a working port. A distribution element directs that oil into moving chambers. The moving chambers push a rotating group. That motion reaches an output shaft, which turns a drum, conveyor, wheel, mixer, auger, or another load. Small amounts of oil also pass through clearances inside the motor. The drawing needs to show how that leakage is handled, because that modest line can decide whether a shaft seal stays dry.
That is the useful question behind most searches for a hydraulic motor parts diagram: what does each part reveal about the machine, and what should I check before I order a replacement or begin a rebuild?
The short answer is that a diagram can identify the motor family and its risk points, but it cannot approve a replacement by itself. The BLINCE hydraulic orbital motor range is relevant when the drawing shows an orbital rotating group; the BLINCE travel-motor range is more appropriate when the diagram includes a brake, reduction components, or a drive interface. The next step is always to join the picture to flow, usable pressure difference, return back pressure, temperature, mounting, and load data.
Start With the Purpose of the Diagram
People often use the word “diagram” for three different things:
A simplified educational sketch that explains how a motor works.
An exploded drawing that helps identify service parts.
A dimensional or port drawing used to check installation.
They are related, but none answers all three jobs. A simplified sketch can teach the oil path but may not show the exact seal, bearing, or spline. An exploded drawing can identify a bearing retainer but may not state a pressure rating. A dimensional drawing can confirm a flange pilot but tells little about the internal leakage route.
For an accurate decision, use each drawing for its intended job. The hydraulic motor maintenance guide gives the system checks that an exploded view cannot show, while the motor speed-formula guide explains why a correct-looking motor can still turn at the wrong speed.
The Simplest Way to Read the Oil Path
Imagine tracing one small parcel of oil through the drawing. It enters port A or B, depending on the chosen direction of rotation. It does not go straight to the shaft. First, a distributor, spool, valve plate, or timing surface guides it into the correct working chamber. Pressure acts on a surface inside that chamber. The resulting force makes a gear set, rotor, or piston group rotate. A coupling transfers that rotation to the output shaft. The orbital-motor range and radial-piston motor range show why the same oil-path idea can be built with different moving groups.
The motor has an outlet path for the main working flow. It may also have an internal or external route for leakage oil. The distinction matters. Main outlet flow can be large; case leakage is normally much smaller but can be more sensitive to restriction. The case-drain pressure guide and the drainage-port installation guide explain why “both lines go back to tank” is not enough to prove that they can share the same path.
Here is a generic reading sequence:
Working port -> distribution element -> rotating chambers -> drive link or cylinder block -> output shaftInternal clearance leakage -> motor housing -> specified drain route or low-pressure return
This is an educational schematic, not a service drawing for any particular product. The exact ports, drain arrangement, allowable back pressure, and seal limits must come from the selected model documentation.
The Parts That Appear on Most Hydraulic Motor Diagrams
Part or area
Plain-English job
What it does not prove
Question it should trigger
A and B main ports
Bring working oil to and from the motor
The port position alone does not prove rotation direction or reversibility
Which port standard, seal, hose size, and circuit direction apply?
Distributor, spool, or valve plate
Sends oil to the right chamber at the right time
It does not show whether the rest of the circuit can supply clean oil or adequate flow
Is this the correct architecture and has contamination been checked?
Gerotor/geroler, gears, or piston group
Converts hydraulic energy into rotational displacement
It does not make motors with similar outside dimensions interchangeable
What displacement, pressure difference, and speed range are required?
Drive link, coupling, or splined connection
Transfers internal rotation to the shaft
It does not confirm the mating hub or engagement depth
Does the spline, key, taper, or coupling match exactly?
Shaft and bearings
Deliver torque and carry a defined external load
A strong shaft is not a guarantee against misalignment or side load
Is there a chain, belt, wheel, or rigid coupling loading the shaft?
Shaft seal
Separates the housing oil from the outside environment
A leaking seal is not automatically a seal-only fault
What are the shaft condition, housing pressure, and drain-route conditions?
Case drain or internal drain route
Removes leakage oil from the housing in the intended way
Its presence does not mean any return connection is acceptable
What does the data sheet require for drain routing and maximum case pressure?
Brake, sensor, or reduction gear
Adds holding, feedback, or speed-reduction functions
It does not turn the whole assembly into a bare motor
What brake-release pressure, electrical interface, ratio, and control logic apply?
The table is deliberately broader than an orbital-motor drawing. A good science article should explain the principle first, then show why a reader cannot apply an orbital-motor answer to an axial-piston or travel-drive assembly without checking the architecture.
Why the Rotating Group Changes the Entire Conversation

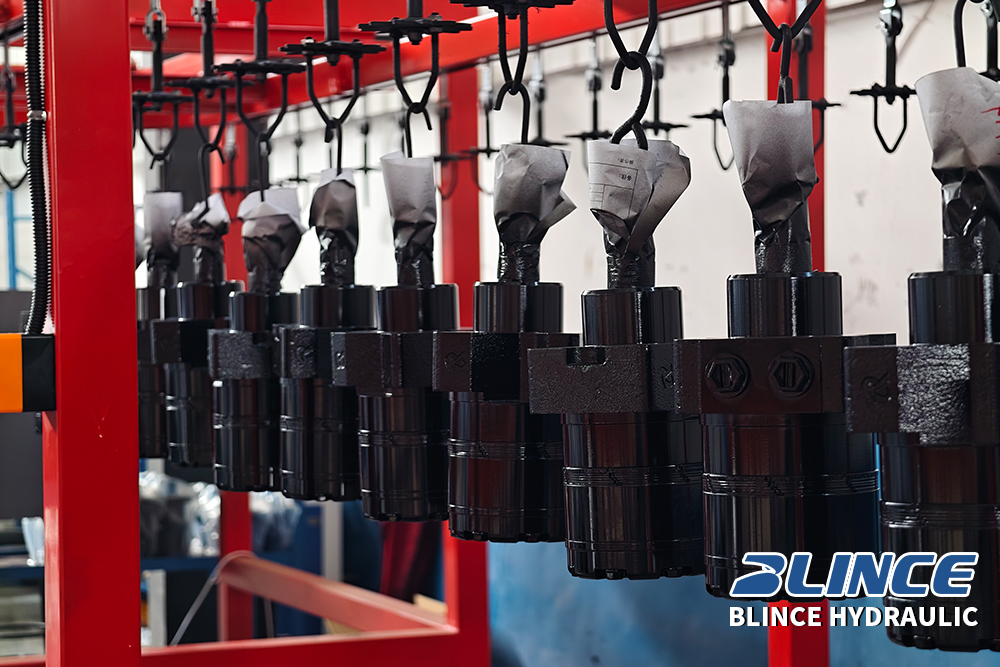

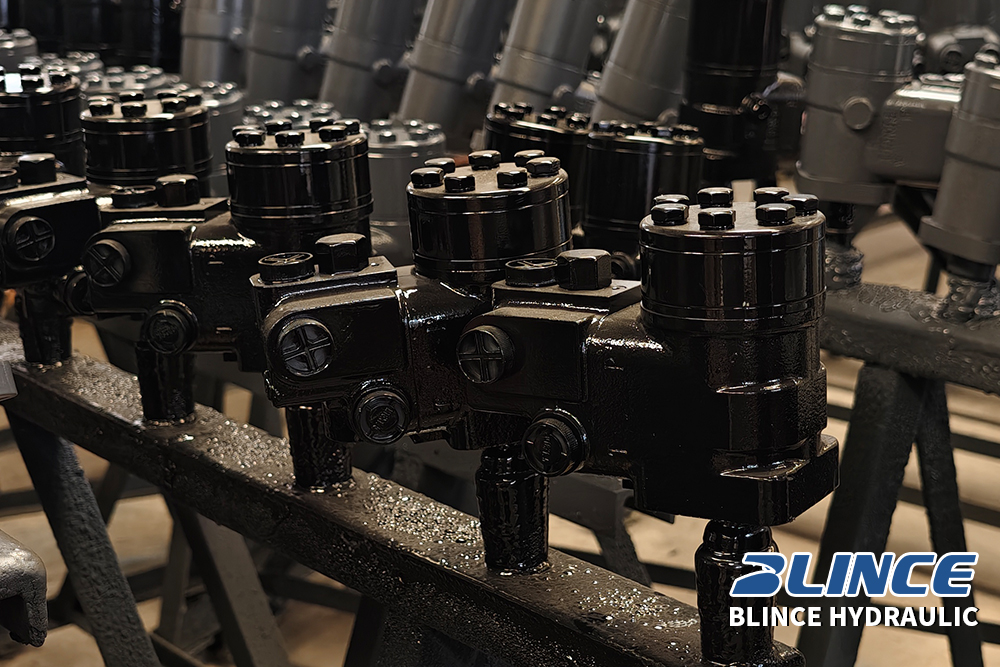

Orbital motors: oil moves a compact star-shaped gear set
An orbital motor diagram commonly shows an inner and outer gear set, often called a gerotor or geroler, together with a distribution system, a drive link, shaft, bearings, and seals. The point is not the terminology. The important idea is that each turn consumes a defined volume of oil. That volume is the displacement.
If you see this type of structure, the orbital-motor category is a reasonable product-family starting point, and the 200 cc, 250 cc, and 500 cc comparison can help explain how displacement changes speed and torque potential. The drawing still leaves open several critical questions: Does the machine use a separate drain? Is the shaft cylindrical, tapered, or splined? Is the motor driving a flexible coupling, a chain sprocket, or a direct load? Does the old code include a valve, speed sensor, or special seal?
The BLINCE BMER 750 page is a useful example of how a product page should be read with care. It identifies a gerotor design and lists 745 cc/rev displacement, 1,050 N·m torque, 8 kW power, and a four-hole magneto mount for that listed configuration. Those are Published values for the cited product page, not default figures for every gerotor motor. The BMER product page should be read alongside the full model code and the machine data—not used as a shortcut from “large-looking rotor” to “suitable replacement.”
Radial-piston motors: torque comes from pistons acting around a cam
A radial-piston diagram normally shows multiple pistons arranged around a cam or eccentric track. It may have a larger bearing arrangement and a layout suited to low-speed, high-torque work. The visual difference from a compact orbital motor is important because the selection conversation expands: direct-drive load, bearing capacity, brake options, mounting interface, and case drainage can all be material. Compare the radial-piston product family with the travel-motor family before treating either structure as a bare motor.
BLINCE describes its HMS02/HMSE02 travel-drive range as radial-piston units for compact and medium-duty mobile machinery, with published category values of 172–348 cc/rev, maximum pressure up to 400 bar, torque up to 1,800 N·m, and a 0–650 rpm speed range. That is useful context, but not an approval to substitute a radial-piston unit into any drive. Compare the physical diagram with the radial-piston category and the travel-motor category; then confirm the exact brake, ratio, flange, shaft, ports, and machine load.

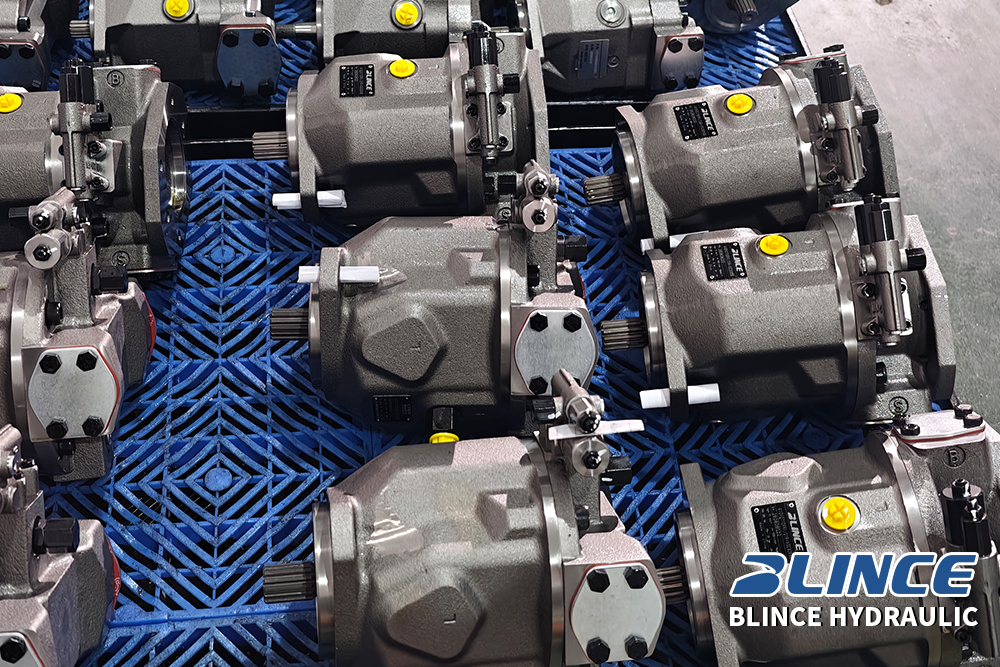

Axial-piston motors: timing surfaces and case pressure become more visible
An axial-piston motor diagram often shows a cylinder block, pistons, slippers, a swashplate or bent-axis mechanism, a valve plate, and a case-drain port. These are not just more parts to memorize. They tell you that clean oil, correct control arrangement, housing pressure, and exact porting need careful attention. A reader should not infer a rating, drain route, or repair-part interchangeability from a general picture. The case-drain pressure guide and temperature-shock guide show why those limits belong to the circuit, not just the illustration.
The engineering lesson is simple: a motor can have the same nominal displacement as another motor and still require a different drain installation, cleanliness level, mounting arrangement, or control circuit. The case-drain guide and the temperature-shock guide explain two system conditions that a diagram may suggest but cannot measure.
The Number Hidden Behind Every Diagram: Displacement
Displacement is the volume of oil a motor needs for one revolution. It is usually expressed in cc/rev. It connects the drawing to the way the machine behaves.
At a given flow, a larger displacement motor usually turns more slowly because each revolution uses more oil. At a given pressure difference, a larger displacement motor has more theoretical torque potential because the pressure acts across more displacement per turn. Neither statement says which motor is “better.” It says the same pump flow can create different speed-and-torque outcomes with different motor sizes. The speed-formula guide and orbital displacement comparison turn that principle into a checkable selection conversation.
Use this basic speed relation when flow is in L/min and displacement is in cc/rev:
Theoretical RPM = flow × 1,000 / displacement
Worked example: reading a 315 cc/rev label
Use the following as a constructed calculation example:
Flow that actually reaches the motor: 28 L/min
Candidate displacement: 315 cc/rev
Assumed volumetric efficiency for screening only: 0.90
First calculate the theoretical speed:
28 × 1,000 / 315 = 88.9 rpm
Then apply the stated screening assumption:
88.9 × 0.90 = 80.0 rpm
The result is not a BLINCE performance claim. It means that, under this assumed flow and efficiency, a 315 cc/rev candidate belongs in an approximately 80-rpm discussion. That is enough to ask the next question: can the machine tolerate that speed under real load? The speed-formula article and the orbital displacement guide show why pump nameplate flow is not automatically the flow available at the motor.
Pressure Difference Is the Other Half of the Picture
Speed is mainly about flow. Torque is mainly about pressure difference across the motor. A pump may be rated for a certain pressure, but that is not necessarily the pressure difference the motor receives while doing work. Hoses, directional valves, filters, coolers, return restrictions, and other functions can take part of the available pressure.
If 0.85 mechanical efficiency is used only as a screening assumption:
902.4 × 0.85 = 767.0 N·m example output torque
This calculation separates two common misunderstandings. First, raising a relief setting does not create no-load RPM; extra flow or a smaller displacement changes speed more directly. Second, a motor that slows under load may not have the wrong displacement. It may be losing usable pressure difference through a restriction, a valve setting, warm-oil leakage, or a problem elsewhere in the circuit. The winch/brake-valve guide and case-drain guide give two examples in which control and return-path conditions change the conclusion.
For a drive with gravity, inertia, or a suspended load, the calculation needs one more layer: control of an overrunning load. The winch motor and brake-valve guide and the drain-port guide show why an adequate torque estimate cannot replace a brake, valve, and drain-path check.
Why Shaft Seals Leak: Read the Diagram, Then Measure the System
The shaft seal is one of the most familiar items on a motor drawing, which is why it is easy to blame too quickly. A worn seal can leak. So can a scored shaft. But an otherwise correct replacement seal may leak again if pressure builds inside the motor housing or if misalignment overloads the sealing surface.
The diagram directs you to the right questions:
Is there an external case-drain port?
Where does its hose run?
Is it long, kinked, too small, or shared with a high-flow return?
Does a return cooler, filter, quick coupling, or manifold create back pressure?
Does the shaft have side load from a belt, chain, or poorly aligned coupling?
Does the leak appear only when oil is hot or when another machine function operates?
Those questions matter because case-drain pressure and case-drain flow are not the same measurement. High pressure can point to resistance in the drain route. High flow can point to increased internal leakage. Either one requires more evidence before the reader decides that the seal is the root cause. The case-drain pressure guide and the BLINCE maintenance guide provide a practical inspection path.
Decision Table: From Diagram Clue to Next Action
Diagram clue
What it suggests
Useful next action
Tradeoff or boundary
Gerotor/geroler group with simple shaft
Orbital-motor family may be relevant
Check displacement, flow, shaft type, flange, ports, and drain arrangement
Compact size does not prove the same load or seal capability
Piston group and case-drain port
Piston-motor installation rules may apply
Confirm exact drain routing, pressure limit, cleanliness, controls, and model code
A generic picture cannot set an allowable case-pressure value
Large bearing, brake, and reduction section
Integrated travel or winch-drive assembly
Confirm ratio, brake-release pressure, output interface, and counterbalance circuit
A bare motor is not a substitute for an integrated drive
Repeated seal shown near a drain passage
Housing pressure or shaft condition may be material
Measure drain pressure and flow; inspect shaft and line route
Seal replacement alone may not address the cause
Spline, taper, or uncommon flange pilot
Mechanical interface is model-specific
Measure or photograph the complete interface and compare to the data sheet
Similar diameters can still have incompatible profiles
Four Common Mistakes a Diagram Can Help You Avoid
1. Using outside dimensions as the whole identity
Outside dimensions are useful for an initial screen. They are not a complete identity. The shaft profile, flange pilot, port thread, seal material, brake option, and drain arrangement may vary inside a visually similar family. A BLINCE BMV gerotor motor is published with cylindrical, spline, or tapered shaft options, which makes the point without implying that any one option fits a different machine. The BLINCE orbital-motor category provides the family context; the exact selected data sheet must settle the interface.
2. Treating pump pressure as motor torque
The motor only sees the pressure difference available at its ports. A gauge at the pump can be useful, but it does not quantify loss across the rest of the circuit. Record pressure at the motor inlet and outlet under the load that matters. Then use the speed and torque calculations as a screening tool, not a warranty.
3. Joining every return line together
The main return and the case drain may both end at a tank, but they can serve different duties. If a particular motor requires a low-pressure drain route, a convenient shared manifold may be unsuitable. This is especially important where a load can drive the motor, a brake is present, or other functions create intermittent return pressure.
4. Rebuilding before checking contamination and heat
An internal part can be damaged by debris, cavitation, unsuitable viscosity, overheating, or a circuit fault that remains after the old motor is removed. A clean rebuild bench does not correct a contaminated tank, damaged pump, blocked suction path, or restrictive return circuit. The maintenance guide and temperature-shock guide make those checks visible before a new component is exposed to the same conditions.
Who Should Pause Before Ordering from a Diagram?
Do not use a diagram alone as an ordering authority when:
The nameplate is unreadable or incomplete.
The motor has a holding brake, sensor, reduction gearbox, or counterbalance valve.
The machine has an overrunning load, such as a winch or load-driven travel function.
The shaft seal leaks repeatedly, especially after oil reaches normal operating temperature.
The output shaft drives a chain, belt, wheel, or rigid coupling with unknown side load.
The old motor failed with debris, abnormal noise, hot oil, or an unexplained pressure problem.
None of these conditions means the motor cannot be identified. They mean the diagram must lead to a better data request.
A Better Replacement Request
Send these items together:
Full nameplate photo and any original part number.
The parts diagram, if available, plus clear photos of every port and the whole shaft.
Shaft profile, flange pilot, mounting-hole pattern, and installation length.
Machine function and load: conveyor, auger, wheel drive, winch, mixer, or another duty.
Inlet and outlet pressure under representative load, plus the relief setting if known.
Actual motor inlet flow or the information needed to determine it.
Oil type, normal/max oil temperature, contamination history, and filter condition.
Case-drain pressure and flow, where the motor uses an external drain.
Brake-release pressure, gearbox ratio, and valve schematic where relevant.
This list is longer than a photograph, but it is shorter than a second failed replacement. BLINCE can use it to identify a candidate motor family, screen the speed and torque calculation, compare ports/shaft/flange options, and flag missing data or an installation risk before quotation.
Frequently Asked Questions
What is the most important part on a hydraulic motor diagram?
There is no single most important part for every failure. For identification, the rotating group is often the quickest clue to the motor family. For replacement, the shaft, flange, ports, and model code can be decisive. For repeat leakage, the drain route and shaft condition often deserve attention.
Can a hydraulic motor turn if it is worn out?
Yes. A motor can still turn while internal leakage, heat, poor torque under load, bearing wear, or seal problems are developing. Rotation alone is not a complete health check; compare speed, pressure difference, temperature, noise, leakage, and the machine load.
Why does a bigger displacement motor turn more slowly?
At the same flow, it needs more oil for each revolution. That tends to reduce rpm. The same larger displacement can provide more theoretical torque at the same pressure difference, which is why speed and torque must be checked as one decision.
Does every hydraulic motor have an external case drain?
No. The arrangement depends on the motor design and its permitted operating conditions. Some compact designs use internal drain routing in defined situations; many piston motors use an external drain. Follow the selected model documentation rather than a general assumption.
Can I choose a replacement from flow and displacement alone?
Flow and displacement are useful for an initial speed screen. They do not confirm torque duty, allowable pressure, porting, shaft, flange, drain route, brake, temperature, contamination, or external load. More data is needed for an actual replacement decision.
Sources and Scope
This article uses verified BLINCE category/product pages for examples and separates Published product values from calculated examples. General principles and configuration context were checked against Danfoss orbital-motor technical information and Bosch Rexroth’s Hydraulics – Basic Principles. The exact data sheet and machine circuit remain controlling for any individual motor.
Next Step
If you have a hydraulic motor parts diagram, send BLINCE the full nameplate, shaft/flange/port photos, machine function, pressure and flow readings, oil temperature, drain details, and brake or gearbox information. We can explain which motor family the drawing suggests, which compatibility points are still unknown, and what must be checked before a replacement is specified.
This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.
