Hydraulic Motor Maintenance Guide: Preventative Checklists & Troubleshooting

A hydraulic motor rarely fails without warning.

Most failures start with small signs. The motor runs slower. The housing feels hotter. The shaft seal leaks. The machine starts weak under load.

Ignore these signs, and the repair cost grows fast.

A hydraulic motor converts oil pressure into torque and speed. It works in construction machines, agricultural equipment, recycling lines, marine systems, industrial conveyors, and mobile vehicles.

For B2B buyers, the key question is not only how to repair a failed motor. The better question is how to reduce repeat failure.

This guide explains practical hydraulic motor maintenance methods for orbital motors, cycloidal motors, radial piston motors, axial piston motors, gear motors, and hydraulic travel motors.

It also covers heavy-duty motors with gearboxes, including maintenance points for wheel drive and track drive applications.

What Hydraulic Motor Maintenance Really Means

Hydraulic motor maintenance is not only oil replacement.

It is a control system for wear, heat, leakage, and contamination.

A good maintenance plan protects four things:

• Oil cleanliness

• Working temperature

• Mechanical alignment

• Internal clearance

These four points decide motor life.

For orbital motors, maintenance focuses on the rotor, stator, needle rollers, distribution shaft, output shaft, and seal kit.

For piston motors, it also includes pistons, cylinder block, valve plate, bearings, and case drain flow.

For travel motors, maintenance also includes the brake, shaft seal, gearbox, bearing load, mounting bolts, and final drive oil.

A motor can still rotate when it is already damaged. That is why daily inspection matters.

When fluid turns milky, water ingress is usually the cause. Stop the system immediately. Do not run the machine and hope it improves.

That decision can save the pump.

Who Should Use This Guide?

This guide is written for:

• OEM machinery manufacturers

• Hydraulic distributors

• Repair workshops

• Fleet service teams

• Mining and recycling plants

• Agricultural equipment builders

• Construction machinery suppliers

• Marine and offshore equipment buyers

It is not a full repair manual.

Some hydraulic motors need special test benches, clearance control, torque settings, and factory repair data.

For example, repairing a distribution shaft without measuring working clearance is risky.

The motor may pass a no-load test. Then it loses torque under load.

That problem appears often in field service.

Where Hydraulic Motor Maintenance Pressure Is Highest

Hydraulic motors work in different load conditions. Each application creates different failure patterns.

Construction Machinery

Excavators, compact loaders, drilling rigs, rollers, and road equipment face shock load and dust.

Main risks include:

• High oil temperature

• Dirty oil after hose replacement

• Loose mounting bolts

• Shaft seal leakage

• Brake wear in travel drives

For mobile equipment applications, see BLINCE Mobile Machinery.

Agricultural Machinery

Harvesters, sprayers, seeders, mowers, and forestry tools often work with dust, mud, and long idle periods.

Main risks include:

• Contaminated oil

• Hose cracks

• Cold start viscosity issues

• Seal aging

• Oil mixed with water

For agricultural applications, see BLINCE Agricultural Machinery.

Industrial Engineering

Conveyors, mixers, injection molding machines, and production lines need stable speed.

Main risks include:

• Continuous heat

• Pressure spikes

• Low-speed fluctuation

• Misalignment

• Poor filtration

For industrial systems, see BLINCE Industrial Engineering.

Offshore and Energy Equipment

Marine winches, offshore platforms, and energy equipment need strong corrosion control.

Main risks include:

• Moisture in oil

• Rust on exposed parts

• Seal hardening

• Salt spray corrosion

• Infrequent but high-load operation

Related applications include Offshore and Energy Technology.

Tunnel Boring and Mining

Tunnel boring and mining equipment punish hydraulic motors.

Dust, heat, long duty cycles, and high load often appear together.

For these applications, see BLINCE Tunnel Boring Machine.

Technical Data Maintenance Teams Should Record

Maintenance without data is guesswork.

Before removing a hydraulic motor, record the following values:

For BLINCE orbital motors, common maintenance cases include OMR and OMS series motors.

For heavy-duty travel applications, a BLINCE MSE travel motor with 398 cc/rev displacement and 22 kW power may be used in demanding wheel or track drive systems.

In that case, maintenance is not only motor care. The gearbox must also be inspected.

Materials and Components That Usually Wear First

A hydraulic motor has many close-fitting parts.

Small dirt particles can cut these surfaces.

In cycloidal and orbital motors, check these parts first:

• Rotor and stator

• Needle rollers

• Distribution shaft

• Output shaft

• Housing bore

• Oil seal

• O-rings

• Shaft bearing

In piston motors, check:

• Valve plate

• Cylinder block

• Piston shoes

• Swash plate

• Bearing set

• Case drain path

• Brake piston

• Shaft seal

In travel motors, add:

• Planetary gears

• Gear teeth

• Gearbox bearings

• Brake friction discs

• Floating seal

• Mounting flange

• Hub bearing

If a motor works under no load but slows under load, suspect internal leakage first.

If it shakes at low speed, inspect friction surfaces and oil supply stability.

If it smells burnt, stop the machine and check Hydraulic Heat Exchanger.

Why Assembly Workmanship Matters

Many motor failures start after repair.

I have seen one simple mistake many times.

A motor is rebuilt. The bench test looks fine. Then it fails on the machine.

The cause is often not the new part. It is poor assembly control.

Check these points during assembly:

• Clean the bench before opening the motor.

• Cap all ports during removal.

• Do not wipe parts with dirty cloth.

• Match rotor and stator parts correctly.

• Keep the distribution shaft position accurate.

• Lubricate seals before installation.

• Tighten bolts in sequence.

• Check shaft rotation before startup.

• Remove air before load testing.

• Run at low load before full load.

For cycloidal motors, rotor-stator clearance matters.

Too much clearance increases leakage.

Too little clearance increases friction.

Both reduce performance.

Oil Cleanliness and ISO 4406

Oil can look clean but still damage a hydraulic motor.

This is why oil cleanliness should be measured, not guessed.

ISO 4406 is a common international method for reporting solid particle contamination in hydraulic oil.

It helps maintenance teams compare oil cleanliness over time.

For B2B fleets, do not rely only on visual inspection.

Use oil sampling when:

• A motor is new

• A machine runs 24/7

• Oil looks dark or milky

• A filter indicator rises

• A motor loses torque

• A pump has failed

• Hoses were replaced

• The environment has dust or moisture

For sensitive systems, set a target cleanliness level with the motor maker.

A gear motor can tolerate more dirt than a piston motor.

A servo-controlled system needs cleaner oil.

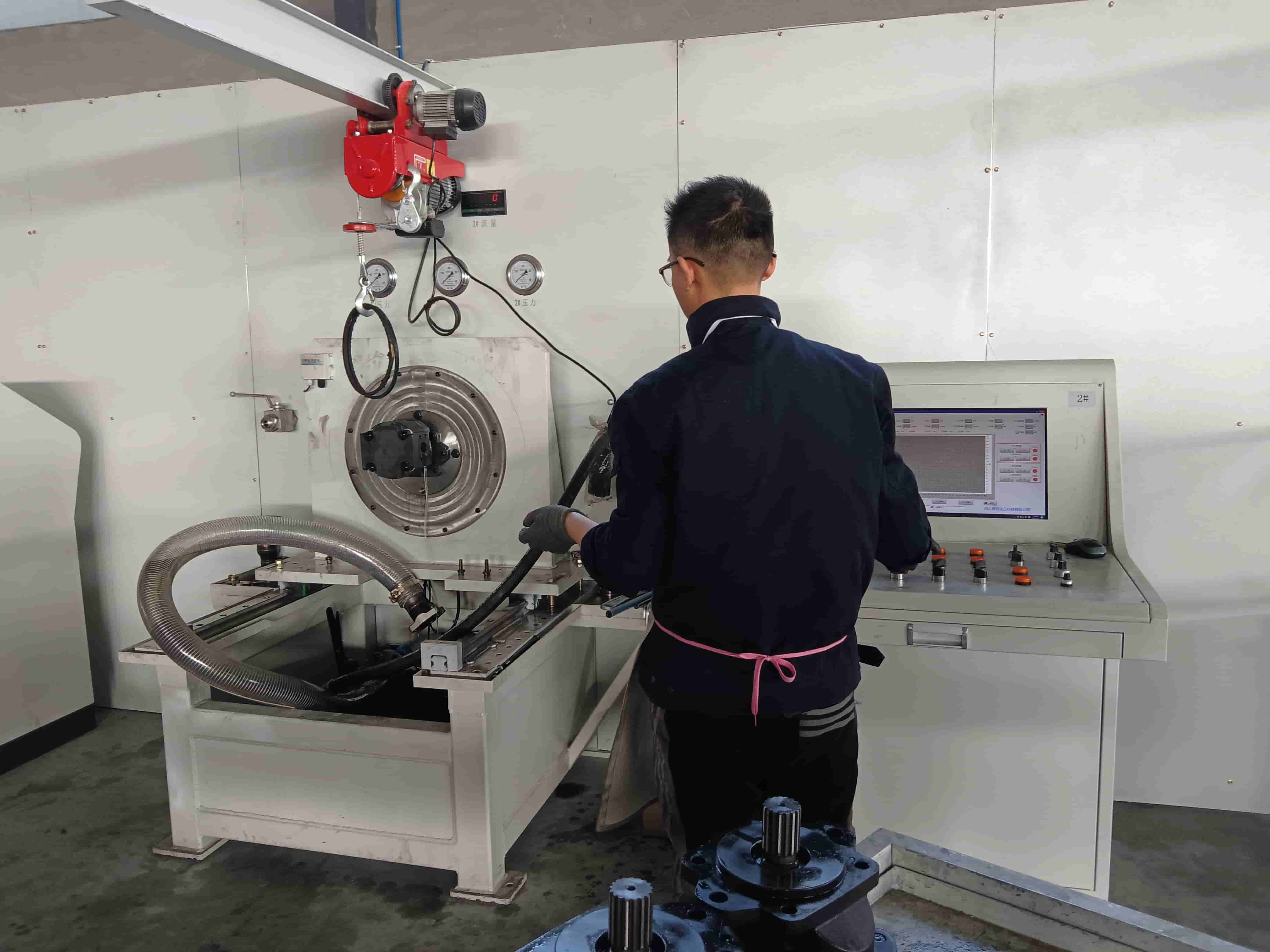

BLINCE applies quality checks across hydraulic products. These may include dimensional inspection, pressure testing, leakage testing, speed testing, flow testing, and function verification.

For company background, see About BLINCE.

Hydraulic Motor Maintenance Checklist Table

This table can be used as a hydraulic motor preventative maintenance checklist.

For high-duty machines, shorten the interval.

Do not copy one schedule for every machine.

A shredder motor and a farm sprayer motor do not live the same life.

Hydraulic Motor Model Comparison for Maintenance Planning

Related BLINCE products include:

• Blince A4V Axis Piston Motor

• Blince A6VM Hydraulic Axis Piston Motor

• Blince GM5 Series Gear Hydraulic Motor

• Blince OMM Series Hydraulic Orbit Motor

Common Hydraulic Motor Troubleshooting Table

How to Maintain OMR and OMS Hydraulic Motors

OMR and OMS motors are common in mobile and industrial equipment.

They are low-speed, high-torque hydraulic motors.

They often work in conveyors, sweepers, augers, harvesters, and compact drive systems.

Step 1: Check Oil First

Do not open the motor first.

Check oil first.

Look for:

• Milky oil

• Foam

• Dark oil

• Burnt smell

• Metal particles

• Water at the tank bottom

If oil is bad, a new motor will fail again.

Step 2: Test Pressure and Flow

A motor cannot produce speed without flow.

It cannot produce torque without pressure difference.

Record inlet pressure, return pressure, and flow.

Do this under load.

No-load data can hide the fault.

Step 3: Inspect Shaft Load

Orbital motors dislike side load.

Too much side load damages bearings and seals.

Check coupling alignment.

Check whether the motor shaft carries radial force from a chain or belt.

Use a support bearing when needed.

Step 4: Check Rotor and Stator Wear

If the motor is weak under load, inspect internal leakage.

The rotor and stator may look acceptable at first glance.

Measure clearance.

Do not guess.

Step 5: Replace Seals Correctly

Use the correct seal kit.

Clean the groove.

Do not scratch the shaft.

Apply oil before assembly.

Dry seal installation often causes early leakage.

Heavy-Duty Travel Motor and Gearbox Maintenance

Travel motors face a harder life than common orbital motors.

They carry torque, shock, braking load, and often wheel load.

When the motor integrates with a reducer, maintenance must include the gearbox.

For an MSE travel motor rated at 398 cc/rev and 22 kW, the system may work in wheel drives, track drives, and heavy mobile machines.

Check Gearbox Oil

Gearbox oil is separate from hydraulic oil in many designs.

Check:

• Oil level

• Oil color

• Metal powder

• Burnt smell

• Seal leakage

Replace gearbox oil on schedule.

Shorten the interval in mining, mud, or high-temperature sites.

Check Brake Function

A travel motor brake must release fully.

A dragging brake creates heat.

It also destroys friction discs.

Check brake release pressure.

Check whether the machine creeps on a slope.

Check Case Drain Pressure

High case pressure damages shaft seals.

Check the case drain line.

Do not connect it to a high back-pressure return line.

Keep the drain line direct and unrestricted.

Check Gear Backlash

Gear backlash affects noise and impact.

Too much backlash means wear.

Too little backlash creates heat.

Record backlash during major service.

Check Mounting Face Accuracy

A dirty mounting face causes misalignment.

Clean the flange before installation.

Tighten bolts in sequence.

Use the right torque.

I have seen a travel motor fail after two weeks because paint chips sat under the flange.

That failure was avoidable.

Maintenance Cost and Risk for B2B Buyers

The cheapest hydraulic motor is not always the lowest-cost motor.

Buyers should compare total cost.

Key cost items include:

• Motor purchase cost

• Downtime cost

• Labor cost

• Oil replacement cost

• Filter cost

• Emergency freight

• Pump damage risk

• Gearbox damage risk

• Warranty dispute cost

A failed motor can spread debris through the system.

That debris may damage the pump, valve, cooler, and hoses.

This is why oil sampling matters after motor failure.

Do not install a new motor into dirty oil.

Flush the system first.

Change filters.

Clean the tank when needed.

OEM/ODM, Model Matching, and IP Protection

Large buyers often need more than a part number.

They need technical matching.

BLINCE can support model selection by:

• Motor model

• Displacement

• Pressure

• Flow rate

• Output torque

• Output speed

• Shaft type

• Port thread

• Mounting flange

• Brake requirement

• Drawing or sample

• Application photos

For OEM/ODM projects, protect sensitive drawings.

Share only what is needed at the early stage.

Use a drawing control process.

Confirm these points before batch orders:

• Shaft dimensions

• Mounting pattern

• Port standard

• Rotation direction

• Paint color

• Nameplate requirements

• Packing method

• Batch inspection rules

For corporate information, visit Home, Products, Product Category, News & Events, and Contact Us.

When Should You Contact a Hydraulic Motor Supplier?

If your motor loses speed, leaks oil, or lacks torque, do not send only a photo.

Send these data points:

• Motor model

• Machine type

• Working pressure

• Flow rate

• Oil temperature

• Operating hours

• Failure symptom

• Shaft and flange dimensions

• Port thread

• Photos of installation

• Short running video

BLINCE can review the application and suggest a replacement or maintenance direction.

For motors, pumps, valves, cylinders, coolers, hoses, fittings, and custom hydraulic systems, contact BLINCE through Contact Us.

FAQ: Hydraulic Motor Maintenance for B2B Buyers

1. How often should hydraulic motors be maintained?

Check oil level, leaks, and noise before each shift. Inspect filters weekly. Test oil cleanliness quarterly for high-duty systems. Adjust the interval by duty cycle.

2. What is the most common hydraulic motor failure cause?

Contaminated oil is one of the most common causes. Dirt, water, and air damage close-fitting parts. Heat then makes the damage faster.

3. How do I maintain OMR and OMS hydraulic motors?

Keep oil clean. Check shaft load. Inspect seals and mounting bolts. Record pressure and flow under load. If torque drops, inspect rotor-stator wear.

4. Why does a hydraulic motor run normally without load but become weak under load?

This often means internal leakage. Worn rotor-stator surfaces, valve plates, or distribution shafts may leak oil inside the motor.

5. What does milky hydraulic oil mean?

Milky oil usually means water or air contamination. Stop the machine. Find the source before the motor and pump are damaged.

6. What oil cleanliness standard should buyers use?

Use ISO 4406 as the reporting method. Set the target cleanliness level with the motor and filter supplier. Sensitive systems need cleaner oil.

7. Why is case drain flow important?

Case drain flow shows internal leakage in piston and travel motors. A rising trend often means wear. High drain pressure can destroy shaft seals.

8. How is travel motor maintenance different?

A travel motor may include a brake and gearbox. You must check hydraulic oil, case drain, brake release, gear oil, backlash, and hub load.

9. Should I repair or replace a failed hydraulic motor?

Repair is reasonable if parts are available and wear is limited. Replace it if the housing, shaft, or critical surfaces are badly damaged.

10. How can large buyers protect IP in OEM hydraulic motor projects?

Share controlled drawings. Confirm NDA terms when needed. Define inspection standards, nameplate rules, and packaging details before batch orders.

Tel: +86 189 6887 7545

Email: sales16@blince.com

Website: https://www.blince.com/

Blince Hydraulic Team

Blince Hydraulic is a professional hydraulic components supplier focused on practical and reliable solutions for mobile machinery, agricultural equipment, construction machinery, and industrial hydraulic systems. We provide a wide range of hydraulic products, including hydraulic motors, hydraulic pumps, hydraulic valves, hydraulic hoses and fittings, heat exchangers, cylinders, and customized hydraulic system solutions.

With years of experience in hydraulic product selection and international supply, Blince helps customers choose suitable components based on working pressure, flow rate, displacement, speed, oil type, installation space, and real machine conditions. Whether you need a replacement hydraulic motor, a pump for a power unit, or a complete hydraulic solution, our team can help you check the working conditions and recommend a practical option.

If you are not sure whether a hydraulic motor can be used in your application, or you need help selecting the right pump or motor, please send us the model number, photos, hydraulic schematic, pressure, flow, speed, and quantity. Our team will review the details and provide a suitable solution and quotation as soon as possible.

To learn more, visit our website: www.blince.com
