A machine builder may know the pump flow and target shaft speed, but still choose the wrong hydraulic motor. A repair shop may copy the displacement stamped on an old unit, install the replacement, and then find that the conveyor runs slower when the oil is hot. The formula is not difficult. The hard part is knowing what the formula does not protect: torque demand, pressure drop, return back pressure, case drain, brake release pressure, oil temperature, and the real efficiency of the selected motor.
Short Answer
Start with the flow that actually reaches the motor, then divide it by motor displacement:
RPM = (Flow L/min x 1000 x volumetric efficiency) / displacement cc/rev
For a quick theoretical check, many technicians first use:
RPM theoretical = (Flow L/min x 1000) / displacement cc/rev
A quick no-efficiency pass is only a starting point. If 50 L/min reaches a 250 cc/rev motor, the theoretical result is 200 rpm. Use 90% volumetric efficiency as a screening assumption and that same motor is closer to 180 rpm before the load changes the picture. The number is useful because it exposes the displacement range worth checking; it is not enough to approve a BLINCE hydraulic motor without the torque demand, pressure margin, mounting, ports, brake, side load, duty cycle, and oil condition.

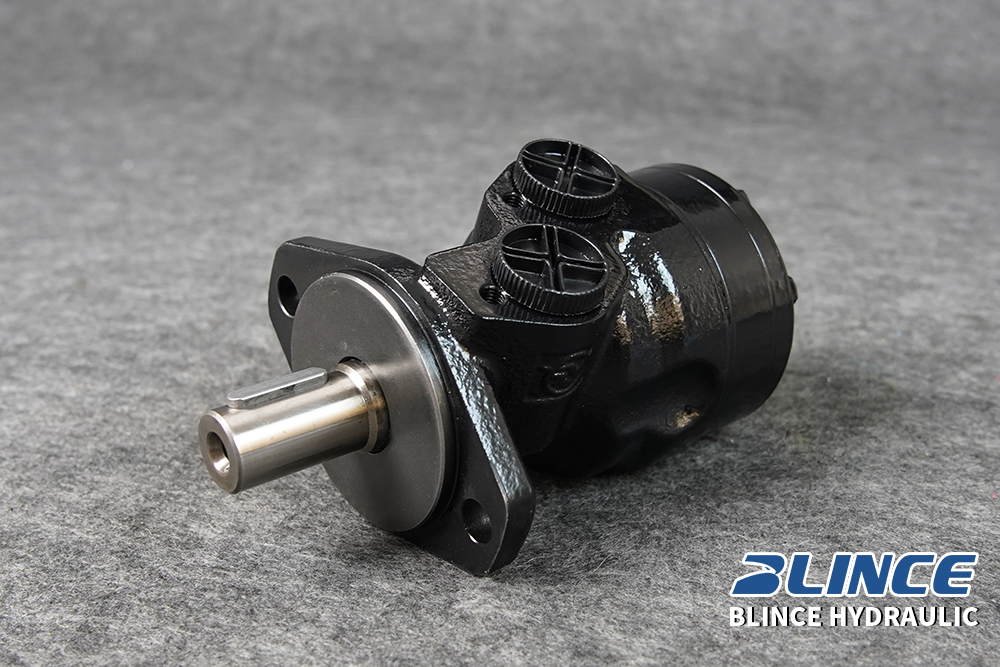

Why Speed Cannot Be Checked Alone
A hydraulic motor turns because flow fills its chambers and pressure difference produces torque. Flow mainly decides speed. Pressure difference mainly decides torque. Displacement connects both sides: a larger displacement motor turns slower at the same flow but produces more torque at the same pressure. That is why the same pump can make one motor fast and weak, another slow and strong, and a third one hot because the rest of the circuit is undersized. When the issue looks like a weak drive rather than a calculator problem, compare the result with the BLINCE guide on hydraulic motors running slow or weak before ordering parts.
Speed also changes with motor type. A compact G Series gear motor may suit a high-speed, moderate-torque circuit because the published range includes 2.6-90 cm3/rev displacement, rated pressure up to 250 bar, and maximum speed up to 4000 rpm for Groups 1 and 2. A hydraulic travel motor may work at much lower speed but far higher torque, such as BLINCE HMS02/HMSE02 units with 172-348 cc/rev displacement and 0-650 rpm speed, or larger MK18 travel motors with 1395-2812 cc/rev displacement, torque up to 17,900 N.m, and speed up to 160 rpm. These are published category ranges, not permission to ignore the selected data sheet.
The Core Formula
For most BLINCE selection conversations, the SI form is the easiest one to use because pump flow is often discussed in L/min and motor displacement in cc/rev:
n = Q x 1000 x eta_v / Vg
Where:
n = motor speed, rpm
Q = inlet flow to the motor, L/min
Vg = motor displacement, cc/rev
eta_v = volumetric efficiency as a decimal
If efficiency is unknown, calculate theoretical RPM first and label it as theoretical. Then use a realistic efficiency assumption only as an example. Do not write the adjusted RPM as a BLINCE performance promise unless the exact model data and test conditions support it. For a deeper type comparison, the BLINCE article on hydraulic motor types and working principles helps separate orbital, gear, vane, axial piston, and radial piston designs.
Worked Example: Flow to RPM
Assume a buyer has these conditions:
Available motor inlet flow: 48 L/min
Candidate motor displacement: 315 cc/rev
Estimated volumetric efficiency for screening: 0.90
Target shaft speed: about 130 rpm under normal load
The theoretical calculation is:
RPM theoretical = 48 x 1000 / 315 = 152.4 rpm
With the screening efficiency:
RPM estimated = 152.4 x 0.90 = 137.2 rpm
On paper, 137.2 rpm is close enough to keep the candidate alive. Now the selection moves away from speed and into load. Can the motor make the required torque at the pressure the circuit can really supply? Will the hydraulic valve, return line, or brake-release circuit create enough loss to pull the motor away from that number? If 130 rpm is only needed at no load, the result is promising. If the shaft must hold 130 rpm while lifting, steering, or climbing, pressure and torque decide whether the calculation survives contact with the machine.
Reverse Formula: Target RPM to Required Flow
When the machine speed is fixed first, rearrange the formula:
Required flow L/min = RPM x displacement cc/rev / (1000 x eta_v)
Example:
Target speed: 220 rpm
Motor displacement: 160 cc/rev
Screening volumetric efficiency: 0.88
Required flow = 220 x 160 / (1000 x 0.88) = 40 L/min
If the pump can only deliver 32 L/min after valve losses and warm-oil leakage, the motor will not hold 220 rpm in real work. A larger hydraulic pump may not be the first answer either. The relief setting, hose size, inlet restriction, valve spool capacity, oil cooler, and reservoir design may decide whether more pump flow becomes useful motion or unwanted heat. BLINCE's overview of types of hydraulic pumps is useful when the speed problem is actually a pump-flow or pump-type problem.

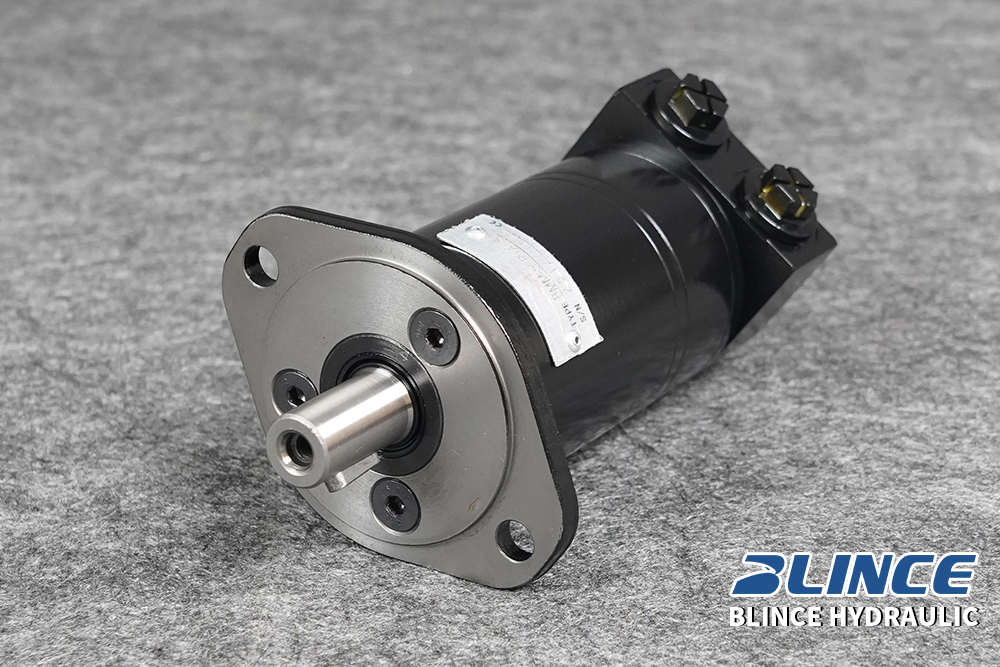

Displacement Choice: The Tradeoff Buyers Often Miss
Displacement is the lever that creates the usual buyer conflict. Reduce displacement and the same flow produces more RPM, but the shaft has less torque available at the same pressure. Increase displacement and the motor has more torque potential, but it consumes more flow for every revolution. When a buyer asks for "more speed and more torque," the answer may be more pump flow, more usable pressure, a different motor type, a gearbox, or a changed duty cycle. A displacement change by itself usually buys one advantage by spending another.
For example, 60 L/min gives about 600 rpm theoretical with a 100 cc/rev motor, about 240 rpm with a 250 cc/rev motor, and about 120 rpm with a 500 cc/rev motor. The 500 cc/rev option may be attractive for starting a heavy auger or wheel drive, but it will not meet a high-RPM target unless the system has enough flow. The 100 cc/rev option may spin fast but may need more pressure than the pump, relief valve, hoses, and machine structure can safely support. If the load needs both slower output and higher shaft torque, the BLINCE guide on pairing hydraulic motors with gear reducers may be more relevant than a direct motor swap.
Decision Table
Selection situation
What the formula says
What to check next
Likely BLINCE direction
RPM is too low at no load
Flow may be too low or displacement too large
Pump flow test, valve capacity, oil viscosity, actual motor displacement
Smaller displacement motor, more flow, or valve/pump correction
RPM is correct at no load but drops under load
Speed formula passed, torque or leakage may be failing
Differential pressure, case drain, return pressure, hot-oil flow
Torque calculation, larger displacement, radial piston option, or system repair
Motor is fast but stalls easily
Displacement may be too small for torque demand
Required torque, available pressure, relief setting
Larger displacement or different motor type
Target is low speed with high torque
Formula may show very large displacement
Smooth low-speed requirement, brake, side load, duty cycle
Orbital or radial piston travel motor
Target is high speed with moderate torque
Formula may favor small displacement
Maximum continuous speed, inlet condition, cooling
Gear motor or axial piston motor, depending on duty
Replacement has same displacement but wrong behavior
Formula alone did not capture compatibility
shaft, flange, ports, rotation, brake, drain, side load, efficiency
Cross-reference by full model and installation data
Use the table as a screening tool. The final selection still needs the selected product curve, continuous and intermittent ratings, oil viscosity, temperature, mounting load, and machine manual.
When Actual RPM Is Lower Than Calculated
Start with the measured flow at the motor inlet. Many slow-motor cases trace back to a number that came from the pump nameplate instead of a warm-oil test point. Wear, suction restriction, wrong pump rotation, high oil temperature, and low drive speed can all reduce delivered flow. So can a valve spool, hose, fitting, or quick coupling that is too small for the circuit. Even a hydraulic power unit with enough advertised flow can disappoint when the motor circuit, cooler, tank, and return line were sized as separate pieces instead of one system.
Internal leakage is the second reason. As clearances wear or oil viscosity falls, more oil slips across internal leakage paths instead of producing rotation. The formula still says the flow should create RPM, but part of that flow is bypassing the working chambers. This is why a motor may run acceptably when cold and slow down after the oil reaches operating temperature. Temperature shock is a separate risk; a motor exposed to a sharp hot-oil or cold-oil step should be checked against the BLINCE article on avoiding hydraulic motor temperature shock and the exact model data sheet.
Back pressure matters too. High return pressure reduces the effective pressure difference across the motor and may increase case pressure, seal load, heat, or brake-release problems. On travel and slew circuits, the same motor speed can feel completely different if counterbalance valves, overcenter valves, brake-release lines, or anti-cavitation paths are not correct. That is where a formula article must stop pretending the motor is isolated from the circuit.
Match the Formula to Motor Type
Low-speed, high-torque work usually points the discussion toward orbital or radial piston motors before it points to a compact high-speed motor. BLINCE travel-motor category data gives the scale: HMS05/HMSE05 options are published at 260-565 cc/rev and 0-300 rpm, HMS08 at 467-1248 ml/r, and MCR05 at 380-820 ml/r with 0-220 r/min. The RPM formula itself has not changed. What changes is the motor construction around that formula: displacement range, torque structure, bearing support, brake options, and the duty window expected in heavy mobile drives. For travel and rotation decisions, BLINCE's comparison of hydraulic travel motor vs hydraulic slew motor helps prevent applying a good speed calculation to the wrong machine function.
For higher speed and moderate torque, a gear motor or axial piston motor may fit better. The BLINCE G Series gear motor page publishes 2.6-90 cm3/rev displacement, rated pressure up to 250 bar, and high maximum speeds for compact circuits. A small displacement motor can reach higher RPM from the same flow, but the load torque must stay inside the pressure and bearing limits. If the motor speed target is high and the duty is continuous, cooling and inlet condition become more important than the formula result alone. BLINCE's guide to hydraulic motor applications across construction, agriculture, and marine industries gives useful application context.
Torque Check After the Speed Formula
After speed, check torque. A simplified SI screening formula is:
Torque N.m = displacement cc/rev x pressure bar x mechanical efficiency / 62.8
Example:
Displacement: 315 cc/rev
Available pressure difference across the motor: 160 bar
Screening mechanical efficiency: 0.85
Torque = 315 x 160 x 0.85 / 62.8 = 682 N.m
Treat 682 N.m as a screening result. If the shaft has to deliver 800 N.m, this 315 cc/rev candidate is probably undersized at 160 bar unless the system can safely provide more effective pressure. The repair path might be a larger displacement, a higher allowable pressure after system review, a gearbox that trades speed for torque, or a motor family with stronger torque capacity. If the real demand is closer to 450 N.m, the same motor may have enough torque margin, but continuous heat load and duty rating still need a separate check.
Equipment Checks Before You Order
Conveyor drives care about steady speed, start torque, chain tension, and low-speed stability. A formula that gives the correct RPM may still fail if the motor sees shock loading at startup or if a sprocket puts side load into a motor not designed for it. Ask for bearing and side-load data before treating the displacement as the only selection variable.
Wheel drives and travel drives care about vehicle weight, grade, rolling resistance, brake release, counterbalance behavior, and stall condition. A low speed hydraulic motor may be appropriate when smooth slow movement and starting torque matter more than high shaft RPM, but the correct displacement still depends on available flow and load torque.
Fan, cutter, and brush drives are less forgiving about inertia, overspeed, and heat during long runs. A small displacement motor may hit the blade-speed target with less flow, then struggle when startup torque or cutting load rises. A larger motor protects torque margin, but the machine may miss speed unless the pump and valve can supply the extra flow. Running the formula both ways lets the buyer see that compromise before ordering hardware.
Common Mistakes
The first mistake is using pump rated flow instead of measured flow at the motor inlet. Pump nameplate flow may be calculated at a speed and pressure the machine does not actually use. Measure flow at operating oil temperature when possible.
The second mistake is ignoring volumetric efficiency. Theoretical RPM is useful for screening, but worn motors, hot oil, thin viscosity, and high internal leakage reduce actual speed. For troubleshooting, compare cold and hot speed under the same load.
The third mistake is selecting displacement from speed only. If the motor becomes smaller to gain RPM, torque falls unless pressure rises. If the pressure cannot rise safely, the machine may become fast with no useful pulling force.
The fourth mistake is copying only displacement from the old motor. Shaft, flange, port position, rotation, drain, brake, bearing load, seal material, and mounting envelope can make a same-displacement replacement unsuitable.
The fifth mistake is treating return pressure as harmless. High return pressure can reduce effective torque, increase heat, and stress seals or case drains. This is especially important on travel, slew, and brake motors.
Who Should Not Use This Formula as the Final Selection
Do not use the formula alone for suspended loads, personnel lifts, braking systems, high-inertia cutters, road travel drives, winches, marine drives, or machines with unclear counterbalance and brake-release circuits. In those cases, the speed formula is only the first screen. The final decision needs machine safety rules, load-holding design, pressure settings, motor curves, brake data, case drain limits, and a responsible engineering review.
This formula also should not be used as the only basis for replacing a failed motor when the original failure cause is unknown. If contamination, cavitation, heat, wrong rotation, or side loading destroyed the first motor, the new motor may fail even if the RPM calculation is correct.
Quote Request Data BLINCE Needs
Send this information before asking for a motor recommendation:
Target shaft speed in rpm, including no-load, normal-load, and maximum acceptable speed.
Available flow at the motor inlet in L/min or GPM, preferably measured at working oil temperature.
Existing motor model, displacement, photos, shaft, flange, port type, rotation, and mounting envelope.
Required torque, machine load, sprocket or wheel radius, vehicle weight, grade, or drive force if known.
Continuous, intermittent, and peak pressure; relief valve setting; return pressure; case drain pressure.
Oil and contamination: oil type, viscosity grade, normal temperature, cold-start temperature, filter condition, and any debris found after the last failure.
Circuit layout: valve type, brake, counterbalance valve, anti-cavitation path, cooler, tank volume, hose sizes, and any quick couplers or restrictions in the motor line.
Duty cycle: running minutes per hour, starts per hour, shock load, reversing frequency, maximum ambient temperature, and whether the target speed is continuous or occasional.
Those details let BLINCE separate three questions that often get mixed together: whether the RPM calculation is realistic, whether the shaft torque is enough, and whether the job belongs to a gear, orbital, axial piston, or radial piston motor. The final quotation still depends on the model data sheet items that cannot be guessed from flow and displacement alone.
FAQ
What is the formula for hydraulic motor RPM?
Use RPM = flow x 1000 x volumetric efficiency / displacement with flow in L/min and displacement in cc/rev. If volumetric efficiency is not known, remove it from the equation and mark the answer as theoretical.
Why is my hydraulic motor slower than the formula says?
Usually one of the inputs is not what the calculation assumed. Motor inlet flow may be lower than pump nameplate flow, warm oil may increase internal leakage, a worn pump may bypass more oil, valves or hoses may be restrictive, or return pressure may be stealing effective pressure difference.
Does a bigger hydraulic motor turn slower?
At the same flow, yes. The larger displacement uses more oil per revolution, so RPM falls. The benefit is more torque potential at the same pressure, which is why speed and load torque must be checked together.
How much flow do I need for 200 rpm?
Use flow = rpm x displacement / (1000 x efficiency). For example, a 160 cc/rev motor running at 200 rpm with 0.88 volumetric efficiency needs about 36.4 L/min at the motor inlet, not just at the pump outlet.
Can I increase RPM by raising pressure?
Not directly. Flow sets no-load speed; pressure gives the motor torque to resist the load. Raising pressure can help a motor stop dropping speed when torque was the limiting factor, but it will not create more no-load RPM without more flow or a smaller displacement.
Can BLINCE choose a motor from just flow and RPM?
Flow and RPM are enough for a first displacement screen, not a final selection. BLINCE still needs torque, pressure, mounting, shaft, ports, oil temperature, return pressure, case drain, brake, duty cycle, and machine information.
CTA
If you are sizing or replacing a hydraulic motor, send BLINCE the target RPM, measured flow, required torque or machine load, existing model code, shaft and flange photos, port layout, pressure data, oil temperature, return pressure, and duty cycle. BLINCE can check the speed calculation, identify missing compatibility data, and suggest the motor family that should be confirmed against the final data sheet before quotation.
This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.
