A hydraulic motor rarely becomes weak in one clean step. It fades.
The operator first notices slow rotation. Then the hydraulic wheel motor needs more throttle to climb the same ramp. The brush cutter stalls in thick grass. A winch starts hot. A 540 rpm hydraulic motor no longer holds 540 rpm when the load comes in. Someone turns up the relief valve. The machine works for another week, maybe two.
Then the bill arrives.
The mistake is simple: treating slow RPM and weak torque as the same failure. They are not. A hydraulic motor running slow usually points to flow loss, excessive internal leakage, wrong displacement, cold oil, restricted inlet flow, or pump wear. A hydraulic motor that turns at the right speed but stalls under load points to low pressure, poor mechanical efficiency, worn gear faces, gerotor leakage, relief valve bypass, or an undersized motor.
The useful question is not “Is the motor bad?”
The useful question is: “Where did the pressure-flow energy go?”
1. The Quantitative Inflection Point: When Motor Degradation Starts Costing Money
In field troubleshooting, the first commercial danger zone appears when loaded speed drops by 10–15% against the same pump flow and pressure setting. At that point, lost production and heat generation start to cost more than scheduled repair.
The second danger zone is volumetric efficiency. A healthy positive-displacement hydraulic motor converts most incoming flow into shaft rotation. When internal leakage increases, more oil slips across clearances instead of producing speed.
A practical warning line:
92–95% volumetric efficiency: normal for many good motors under suitable conditions.
85–90%: watch oil temperature, case drain, and load drift.
Below 82%: replacement or rebuild analysis should start.
Below 75%: heat, low torque, and unstable speed become common.
A 250 cc/rev orbit hydraulic motor receiving 45 L/min should run near 180 rpm at 100% efficiency. At 90%, it runs about 162 rpm. At 75%, it falls to 135 rpm. The pump did not necessarily fail. The motor may simply be leaking internally.
2. Repair or Replace: Not Every Buyer Needs the Same Answer
A maintenance director and an OEM designer look at the same slow hydraulic motor differently.
Repair may fit when:
The motor is a high-value piston unit.
The shaft, housing, and mounting face are not damaged.
Spare parts are available.
Downtime is planned.
Case drain is high, but the rotating group is still reusable.
The orbit hydraulic motor has worn gerotor pockets.
Shaft splines are twisted or fretted.
The motor has repeated seal failure.
The machine needs a different displacement or torque rating.
The existing motor is an obsolete White hydraulic motor or similar older interchange model.
For B2B buyers, the real cost is not only the hydraulic motor for sale price. It is downtime, oil cleanup, labor, repeat failure, and the risk of damaging the pump after metal debris enters the return line.
A cheap rebuild can become expensive if the root cause stays inside the system.
3. Slow RPM and Weak Torque Are Separate Symptoms
A hydraulic motor makes speed from flow. It makes torque from pressure.
Weak motor, high pressure: check motor displacement, mechanical binding, brake drag, overload, bearing failure.
Hot motor, falling speed: check internal leakage and oil viscosity loss.
Torque calculation gives a fast reality check:
Theoretical torque in N·m = pressure differential in bar × displacement in cc/rev ÷ 62.8
A 200 cc/rev hydraulic motor at 160 bar has about 509 N·m theoretical torque before mechanical efficiency loss. If mechanical efficiency is 88%, usable torque is closer to 448 N·m. If the machine needs 600 N·m, no repair will solve it. The selection is wrong.
4. Engineering Causes of Slow or Weak Hydraulic Motors
Volumetric Efficiency Drop
Internal leakage increases as clearances open. In an orbit hydraulic motor, wear between the gerotor set, valve plate, and distribution surfaces lets oil bypass the working chambers. In a hydraulic gear motor, end clearance and housing abrasion let oil slip from high pressure to low pressure.
The symptom is simple: flow goes in, RPM does not come out.
Common triggers include dirty oil cutting the sealing surfaces, long operation above rated pressure, thin hot oil, cavitation erosion, poor filtration after pump failure, and wrong shaft load on a motor not designed for radial force.
Viscosity Breakdown and Wrong Oil
Hydraulic oil is not motor oil.
This matters. Engine motor oil is designed around combustion byproducts, detergency, soot control, and engine lubrication chemistry. Hydraulic oil is selected for anti-wear protection, air release, demulsibility, oxidation resistance, seal compatibility, and stable viscosity in pumps, valves, and motors.
The search phrase hydraulic oil vs motor oil often appears after someone fills a hydraulic system with the wrong fluid. The machine may still move, but spool response, leakage, cavitation behavior, and seal life can change.
Typical field targets:
Mobile hydraulic systems often use ISO VG 46 or ISO VG 68, depending on climate and operating temperature.
Very cold startup needs lower viscosity or warm-up time.
Hot oil below roughly 10 cSt can accelerate leakage and wear.
Oil above 100 cSt during startup can make a hydraulic motor slow and noisy.
ISO 4406 provides a coding method for solid particle contamination levels in hydraulic fluid. That standard does not select the oil for you, but it gives maintenance teams a common cleanliness language when diagnosing wear-related slow motor problems.
Cavitation appears when the motor cannot fill its chambers properly. The motor sounds sharp, rough, or gravel-like. Speed becomes unstable. Metal surfaces start to pit. In severe cases, the motor loses efficiency even after the inlet problem is corrected.
Check these points:
Suction hose collapse.
Undersized inlet port.
Clogged filter.
Cold oil at startup.
Excessive pump speed.
Long hose runs on mobile equipment.
Wrong valve size before the motor.
Internal Scoring and Abrasion
Scoring is a signature, not a mystery.
In a hydraulic gear motor, the aluminum or cast iron housing may show crescent-shaped abrasion where gear tips contact the body. In an orbit hydraulic motor, the gerotor set may show polished leakage paths. In a piston motor, slippers, valve plate, and cylinder block wear drive case drain upward.
A motor can look clean outside and be badly worn inside.
5. Diagnostic and Test Methods That Actually Separate Causes
Do not start with the catalog. Start with measurements.
Flow Meter Placement
Install a flow meter where it answers one question at a time.
Pump outlet flow: proves pump delivery.
Motor inlet flow: proves what the motor receives after valves and hoses.
Motor outlet flow: shows return restriction and flow balance.
Case drain flow: isolates internal leakage in motors with a drain port.
If pump outlet flow is correct but motor inlet flow is low, the problem is in the valve, hose, quick coupling, priority divider, or control system. If motor inlet flow is correct but shaft speed is low, the motor is leaking internally or the displacement is wrong.
Case Drain Flow Analysis
For piston motors and drained LSHT designs, case drain is one of the cleanest tests. It separates pump weakness from motor leakage.
Red flags:
Case drain rises sharply as pressure increases.
Case drain continues to climb after oil warms up.
Drain line is hot compared with inlet oil.
Drain flow exceeds the manufacturer’s limit.
Drain pressure is high because the line is restricted.
A drain line is not a return line. Treat it gently. Backpressure can destroy shaft seals.
Pressure Drop Testing
Measure pressure before and after the hydraulic motor under load. The motor only sees the difference.
If inlet pressure is 180 bar and outlet pressure is 35 bar, usable ΔP is 145 bar. The relief valve setting alone does not tell you torque.
A practical test sequence:
Warm oil to working temperature.
Record pump flow at no load.
Record motor inlet flow under load.
Record inlet and outlet pressure under the same load.
Record case drain flow.
Measure motor surface temperature and return oil temperature.
Compare actual RPM with calculated RPM.
A heat gradient above 10°C across a manifold or motor section is worth checking. Heat is often wasted pressure or leakage made visible.
6. Materials and Wear Components by Motor Type

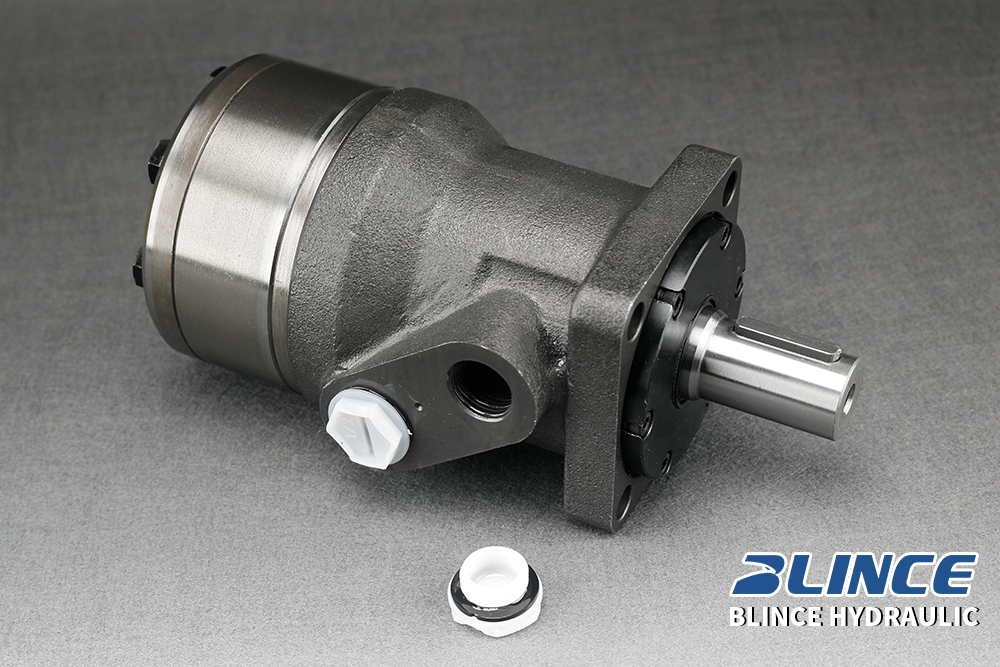

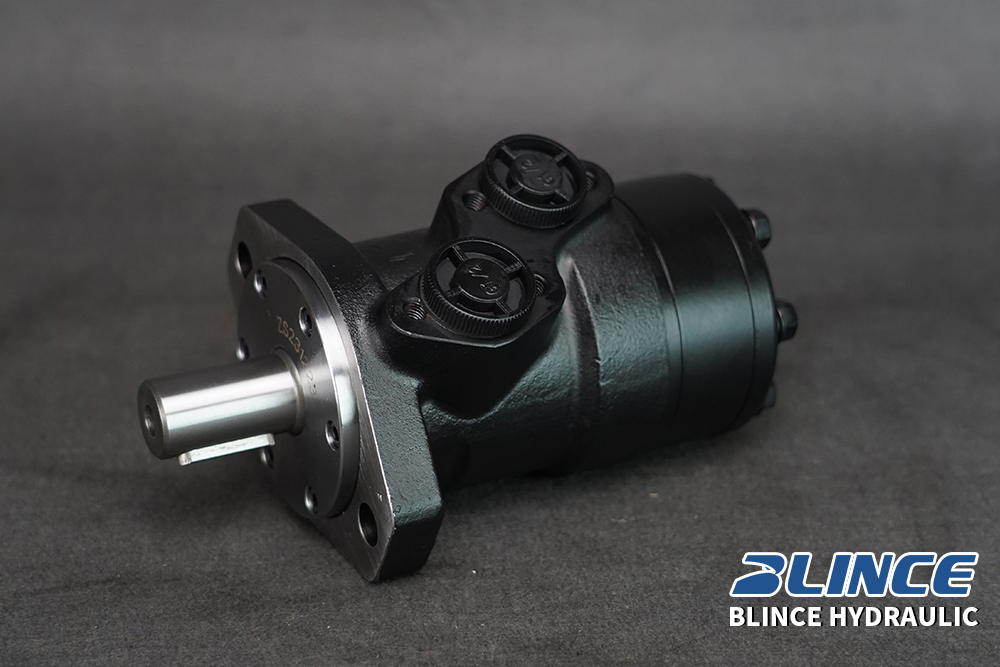

Orbit Hydraulic Motor / Gerotor Motor
An orbit hydraulic motor works well when low speed and high torque are needed in compact space. Agricultural attachments, conveyors, sweepers, small winches, and hydraulic motor for brush cutter applications often use this structure.
Common wear points include the gerotor star and ring, valve plate, output shaft spline, shaft seal, front bearing, and check valve or flushing valve if fitted.
When a low speed high torque hydraulic motor becomes slow, do not only inspect the gerotor set. Check bearing load. Side loading from a pulley, wheel, or chain drive can damage the front bearing and open internal clearances.
Hydraulic Gear Motor
A hydraulic gear motor is simple, compact, and cost-effective. It suits medium speed and moderate torque. It is less forgiving when the housing is scratched or when end clearance grows.
Common wear points include gear journals, end plates, housing bore, shaft seal, bushings, and keyway or spline.
Gear motors often fail after contamination, poor lubrication at startup, or excessive radial load.
Piston Motor
Piston motors handle higher pressure and better efficiency in demanding drives. They cost more. Repair can make sense when the rotating group, valve plate, and bearings are available.
Common wear points include valve plate, cylinder block, pistons and shoes, swash plate or bent-axis components, case drain path, and shaft bearing.
A piston motor with rising case drain and falling torque should be tested before it contaminates the full hydraulic circuit.
7. Selection Corrections: When the Motor Was Never Correct
Some motors are not worn. They were misapplied.
Wrong Displacement
A smaller displacement gives higher RPM at the same flow but lower torque. A larger displacement gives higher torque but lower RPM.
That tradeoff cannot be escaped.
A 100 cc/rev motor receiving 40 L/min may run near 360 rpm at 90% volumetric efficiency. A 400 cc/rev motor on the same flow may run near 90 rpm. If the load needs torque, choose displacement. If the machine needs speed, increase flow or reduce displacement.
Wrong Motor Type
Use a high speed hydraulic motor when the machine needs RPM and the load is moderate. Use a low speed high torque hydraulic motor when the machine needs starting torque, stall resistance, and smooth low-speed control.
Use an orbit hydraulic motor for compact LSHT drive. Use a hydraulic gear motor when price, simplicity, and medium-speed duty matter. Use a piston motor when pressure, efficiency, and duty cycle justify the cost.
Wrong Shaft and Bearing Arrangement
A hydraulic wheel motor is not just a motor with a wheel bolted on. It needs bearing capacity, seal protection, and side-load resistance.
If a standard hydraulic drive motor is used as a wheel motor without enough bearing support, the shaft may survive but the internal clearances will not. Speed loss follows.
Marine Steering and Lift Components
Searches such as hydraulic steering outboard motor, outboard motor hydraulic steering kit, and kicker motor hydraulic power lift cylinder often mix different hydraulic problems.
A steering kit problem is usually cylinder, helm pump, air, hose expansion, or seal leakage. A kicker motor hydraulic power lift cylinder that moves slowly may have low voltage, weak trim pump output, bypassing cylinder seals, wrong fluid, or air in the system. That is not the same as a rotary hydraulic motor losing volumetric efficiency.
Name the component first. Then test it.
8. ROI: Repair, Replace, or Redesign
A useful rule:
If repair costs less than 40% of replacement and the motor housing is healthy, repair may work.
If repair costs 40–70% of replacement, compare downtime and warranty risk.
If repair exceeds 70% of replacement, replacement is usually the cleaner commercial decision.
If the same failure repeats, redesign the selection.
A replacement hydraulic motor is not always a like-for-like unit. Sometimes the better correction is larger displacement for more torque, smaller displacement for more speed, case drain added for seal protection, higher shaft bearing rating, different seal compound for temperature or fluid, port change from BSP to NPT, SAE, UNF, or metric, or a cross-reference from White hydraulic motors to current orbit motor dimensions.
9. QC and Standards That Matter in Motor Replacement
A replacement motor should be checked beyond paint and packaging.
Minimum QC points:
Displacement confirmation.
Rotation direction.
Port thread gauge.
Shaft size and spline count.
Flange pilot diameter and bolt circle.
Pressure test.
Leakage test.
Starting torque behavior.
Speed stability at specified flow.
Cleanliness control.
ISO 4392 test methods are relevant when comparing motor characteristics, especially low-speed performance and startability. ISO 4406 is relevant when controlling contamination that accelerates wear in pumps, valves, and motors.
10. Replacement Data Needed Before Quotation
For a fast B2B replacement quote, send:
Motor nameplate photo.
Machine model and working condition.
Displacement, if known.
Shaft type: straight, tapered, spline, or keyway.
Flange type and pilot diameter.
Bolt circle and hole size.
Port size and thread standard.
Drain port size, if any.
Required RPM and torque.
Working pressure and peak pressure.
Flow rate.
Oil type and working temperature.
Photos of the old motor from front, side, shaft, and ports.
For standard hydraulic motors, quotation can often be prepared quickly from photos and dimensions. For custom shafts, non-standard ports, special seals, or private-label replacement, production planning usually needs more time.
11. B2B Engineering Consultation
When a hydraulic motor runs slow or weak, do not buy by appearance alone. Send the pressure, flow, RPM, oil temperature, and case drain data. If those numbers are not available, send the machine model, pump flow, target speed, load type, and old motor photos.
Blince can review the working condition and recommend a hydraulic motor, hydraulic pump motor pairing, orbit hydraulic motor, hydraulic gear motor, hydraulic wheel motor, or low speed high torque hydraulic motor correction based on mounting, ports, displacement, and duty cycle.
A motor that fits the bolt holes but not the load is not a replacement. It is a delayed failure.
FAQs
1. Why does my hydraulic motor run slow but still has pressure?
Pressure without flow does not create speed. The motor may be receiving less flow than expected, leaking internally, or using too large a displacement for the available pump flow.
2. Can I use motor oil instead of hydraulic oil?
Do not use engine motor oil unless the equipment OEM clearly allows it. Hydraulic oil is selected for hydraulic pumps, valves, seals, air release, anti-wear behavior, and viscosity stability.
3. What causes a low speed high torque hydraulic motor to lose torque?
Common causes include internal leakage, worn gerotor surfaces, low pressure, relief valve bypass, thin hot oil, excessive side load, and undersized displacement.
4. How do I know if my orbit hydraulic motor is worn?
Compare actual RPM against inlet flow and displacement. Then check leakage, heat, pressure drop, and shaft play. A worn orbit motor often becomes hot, slow, and weak under load.
5. Is a hydraulic gear motor better than an orbit motor?
Neither is always better. A hydraulic gear motor is simple and cost-effective for medium-speed duty. An orbit hydraulic motor is stronger at low speed and high torque.
6. Why does my hydraulic wheel motor get hot?
Heat may come from internal leakage, brake drag, return restriction, excessive load, wrong oil viscosity, or using a motor without enough bearing capacity for wheel side load.
7. What is a 540 rpm hydraulic motor used for?
A 540 rpm hydraulic motor is often selected where hydraulic drive replaces PTO-type rotational output. Flow and displacement must match the target RPM under load, not only in free rotation.
8. Can a high speed hydraulic motor replace a low speed motor?
Only if the torque requirement is low enough or a gearbox is added. High speed motors usually need reduction to produce high output torque at low shaft speed.
9. When should I repair a hydraulic motor?
Repair makes sense when the housing, shaft, and core components are reusable and parts are available. If wear is severe or repair cost approaches replacement cost, replacement is safer.
10. What information is needed to replace White hydraulic motors?
Send the model code, displacement, shaft, flange, port type, rotation, pressure, and photos. Many White hydraulic motors can be cross-referenced, but dimensions must be confirmed.
