A hydraulic motor turns oil pressure into rotary motion. Simple sentence. Difficult job.
Inside a real machine, that motor may have to start a loaded conveyor at 15 rpm, crawl a wheel drive through mud, rotate an auger under uneven soil resistance, or keep a small industrial attachment moving all day without burning the oil. This is where an orbit hydraulic motor earns its place. It is not the fastest hydraulic motor. It is not always the most efficient one either. But when the machine needs compact size, low speed, high starting torque, and acceptable cost, the low speed high torque hydraulic motor is often the practical answer.
An orbit hydraulic motor is also called a gerotor motor or geroler motor, depending on the internal design. In a roller stator hydraulic motor, rollers are placed in the stator pockets to reduce friction between the rotor and stator. Less sliding. Better life. The rotor orbits inside the stator, and the changing chambers receive pressure oil in sequence. That creates torque at the output shaft.
The market calls these units hydraulic motors. Engineers usually look deeper. They ask about displacement, pressure rating, shaft load, internal leakage, port size, oil cleanliness, and speed stability below 50 rpm. That is where selection becomes real.
Where an Orbit Hydraulic Motor Fits
The orbit hydraulic motor sits between simple hydraulic gear motor designs and more expensive piston motors. A gear motor is compact and fast, but it usually prefers higher speed and lower torque density. A piston motor can handle high pressure, high power density, and better efficiency, but cost and maintenance are higher. The orbit motor fills the middle ground.
It works best in low-speed drive systems where the load is not perfectly steady. Agricultural implements, sweepers, winches, small drilling attachments, conveyors, forestry equipment, and hydraulic motor wheel drives are common examples. The motor can start under load without a large external gearbox. That saves space. Sometimes it saves the whole design.
For many OEM projects, a hydraulic motor gearbox is still used. Not because the orbit motor cannot provide torque, but because wheel diameter, duty cycle, shock load, and travel speed may require reduction. A hydraulic hub motor or hydraulic motor wheel assembly must be checked as a full drivetrain, not as a motor alone.
When Not to Use an Orbit Motor
There are cases where an orbit motor is the wrong choice.
If the target speed is 1,500 rpm or higher, a high speed hydraulic motor such as a gear motor, vane motor, or piston motor may be better. Orbit motors can run at moderate speed in small displacements, but they are not built for continuous high-speed duty. Heat rises. Leakage rises. Life drops.
If the system needs servo-level response, tight acceleration control, or high dynamic stiffness, a Axial piston motor with closed-loop control is usually safer. If the machine works at very high pressure for long duty cycles, again, piston technology may win. If oil cleanliness is poor and nobody will maintain filters, no motor is safe. The orbit motor is tolerant, not magic.
How Does a Hydraulic Motor Work?
A hydraulic pump pushes oil into the system. A hydraulic motor receives that oil and converts hydraulic energy into mechanical rotation. That is the basic difference in the hydraulic pump vs motor discussion. The pump creates flow. The motor consumes flow.
In an orbit motor, pressure oil enters a valve section and is directed into expanding chambers between rotor and stator. The pressure force acts on the rotor profile. As chambers expand and contract, the rotor makes an orbital movement and transmits rotation to the output shaft through a drive link or splined shaft. Oil from the contracting chambers returns to tank.
Torque mainly follows pressure and displacement. Speed mainly follows flow and displacement. Real performance is lower than the theoretical value because of leakage, friction, oil viscosity, machining error, and temperature.
A typical medium-duty orbit hydraulic motor running near 20 MPa may maintain volumetric efficiency around 88% to 93% when the sealing gaps, rotor-stator geometry, and oil viscosity are under control. Mechanical efficiency may sit lower when speed is very low or side load is high. The loss has a sound. You can hear it sometimes.
Core Parameters Engineers Should Read First
Displacement is the first number. It tells how much oil the motor consumes per revolution, usually in cm³/rev. A 100 cm³/rev motor running with 40 L/min theoretical flow would turn near 400 rpm before efficiency losses. After leakage and real-world pressure loss, actual speed is lower.
Pressure is the second number. Continuous pressure matters more than peak pressure. A motor advertised with a high intermittent pressure may still fail early if the real duty cycle keeps it near that value for hours. For small and medium orbit hydraulic motors, common continuous pressure bands often fall around 10 to 20 MPa, with higher intermittent ratings depending on frame size and design.
Torque is tied to displacement and pressure. If an OEM only says “I need more torque,” the engineer should ask two questions: at what pressure, and at what speed? Without those two numbers, torque is just a wish.
Flow rate decides speed. If the machine is too slow, increasing displacement will make it slower, not faster. This mistake happens often. To increase speed, the system may need more pump flow, smaller displacement, lower pressure loss, larger hoses, or a different motor type.
Inside the Roller Stator Hydraulic Motor
The main parts are not complicated, but their geometry is unforgiving.
The stator is usually made from high-strength alloy steel or ductile iron depending on product class. The rotor uses hardened steel with a precisely machined profile. In a roller stator design, each roller must maintain consistent contact and rotation inside the stator pocket. Bad roundness creates pulsation. Bad hardness creates wear. Bad surface finish increases leakage and friction.
The distribution shaft or valve plate controls oil timing. This part decides which chamber receives pressure and which chamber returns oil. If the distribution angle is wrong, the motor may still rotate, but starting torque becomes weak and heat increases. The customer sees “low power.” The test bench sees pressure fluctuation.
Seals carry quiet responsibility. Shaft seals, O-rings, backup rings, and internal sealing surfaces must survive pressure cycling, oil temperature, contamination, and occasional misalignment. NBR is common for general mineral hydraulic oil. FKM may be selected for higher temperature or special fluids. The seal material must match the oil. Guessing is expensive.

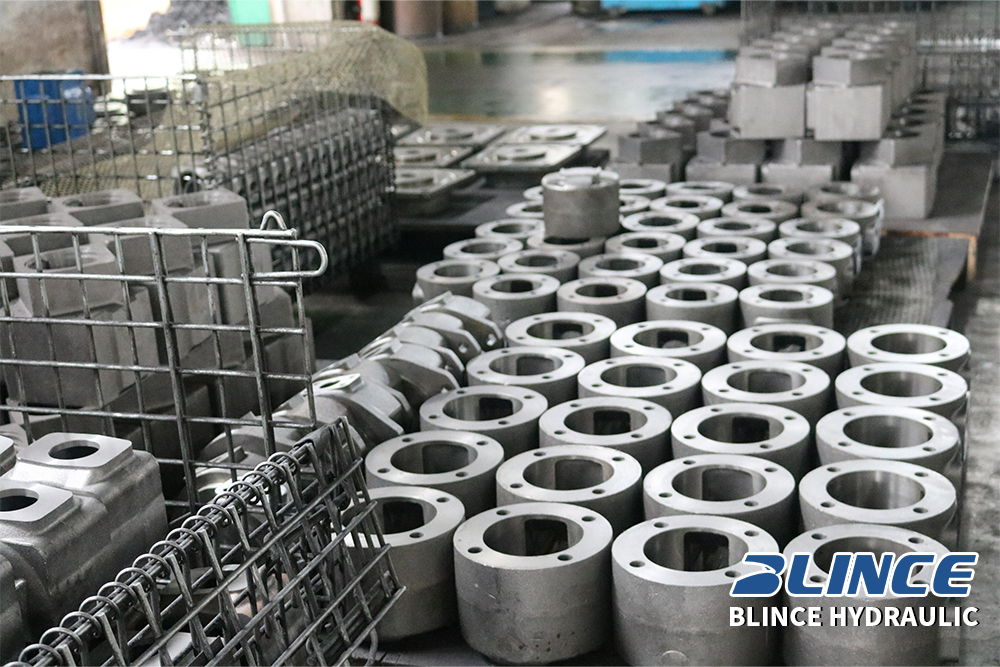

Manufacturing Process and Tolerance Control
A good orbit motor is made by controlling small errors before they become big failures.
Rotor and stator profiles need stable tooth geometry. Heat treatment must improve wear resistance without causing distortion beyond machining allowance. Grinding and finishing must control the contact surface. On the distribution face, flatness and roughness affect leakage directly. A few microns can matter. Not in a brochure. On a test bench.
Critical dimensions are checked with micrometers, height gauges, roundness instruments, coordinate measuring machines, and custom gauges. The exact inspection plan depends on the model. For repeated OEM orders, the control points should be locked: shaft diameter, spline fit, pilot diameter, mounting flange, port thread, stator thickness, valve face flatness, and end clearance.
End clearance is especially sensitive. Too tight, and the motor may seize when hot. Too loose, and volumetric efficiency drops. The efficiency drops. Why? Because high-pressure oil finds a shortcut back to the low-pressure side.
QC, ISO 9001, ISO 4406, and CE in Real Production
ISO 9001 should not be treated as a certificate hanging on a wall. For hydraulic motor production, it should appear in incoming material checks, machining records, process inspection, assembly control, test data, nonconformity handling, and corrective actions. If a batch shows abnormal leakage, the question is not only “which motor failed?” The better question is “which process allowed the failure to pass?”
ISO 4406 belongs to the oil, but it affects the motor every day. The standard expresses solid particle contamination as a cleanliness code based on particle counts. For orbit hydraulic motors used in mobile machinery, a practical target often sits around 19/17/14 or cleaner, depending on valve sensitivity, pressure, and bearing life expectations. Servo systems need cleaner oil. Rough agricultural systems may run dirtier, but life will be shorter.
Contamination damages the motor in several ways. Hard particles scratch distribution faces. Fine particles increase internal leakage. Larger particles can cut seals or jam small passages. Once leakage starts rising, the operator usually adds pressure to “recover power.” That makes heat. Then viscosity falls. Leakage rises again. Bad loop.
CE compliance is different. It does not mean the European Union has “approved” a product. For applicable products, CE marking means the manufacturer has assessed conformity with relevant safety, health, and environmental requirements. For hydraulic components used in machinery, documentation, traceability, and correct application matter. The motor must be selected and installed as part of a safe system.

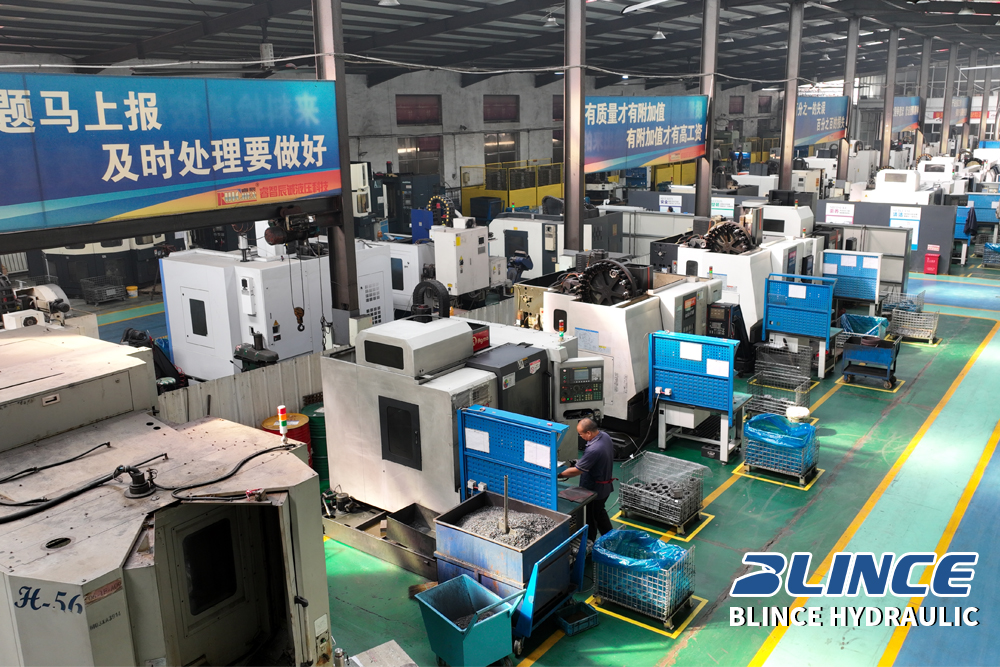

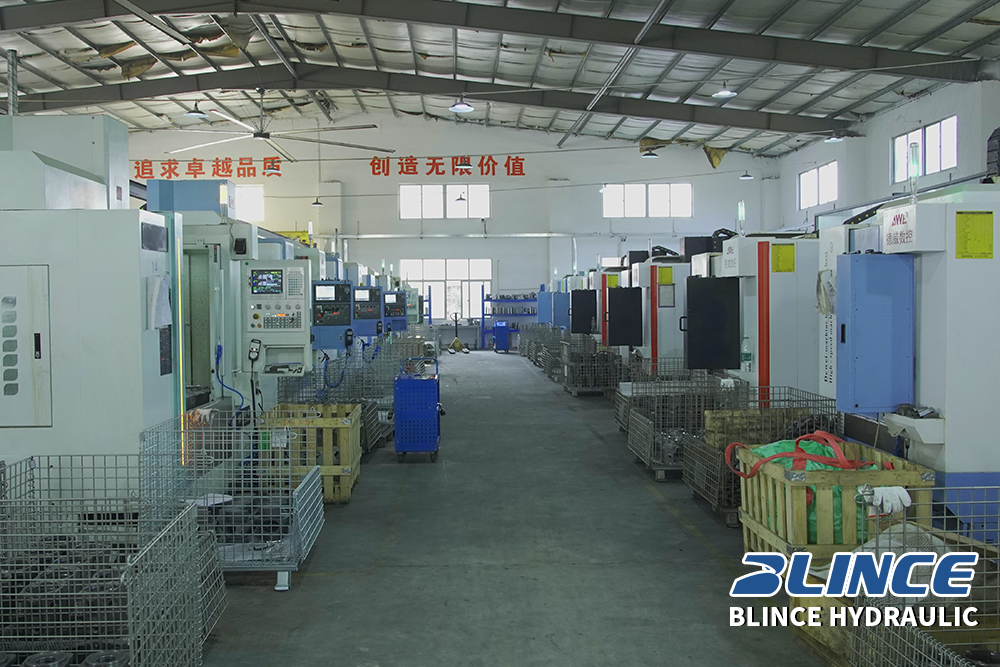

Blince Hydraulic Production and Lead Time Management
Blince Hydraulic manufactures and supplies hydraulic motors, pumps, valves, cylinders, steering units, hoses, fittings, and related hydraulic solutions for machinery applications. For orbit hydraulic motors, the practical lead time depends on frame size, shaft type, flange, port thread, seal material, surface treatment, order quantity, and test requirements.
Standard models are easier to schedule. Custom shafts or non-standard flanges take longer because tooling, machining setup, and inspection gauges may need confirmation. For OEM projects, our engineering team usually asks for the old motor nameplate, drawings, installation photos, port thread, shaft dimensions, pilot diameter, bolt circle, working pressure, pump flow, and machine duty cycle.
That may sound slow. It prevents wrong motors.
A reliable shipment is not only a production date. It also includes material preparation, heat treatment, machining, cleaning, assembly, pressure testing, leakage testing, packaging, and export documentation. Weak control at any step becomes a delay at the end.
LSHT Orbit Motor vs High-Speed Motor
The LSHT orbit motor is selected when the machine needs usable torque at low rpm without a large gearbox. It is a strong choice for wheel drive motors, auger drives, brush drives, conveyor drives, and compact attachments.
A hydraulic gear motor is better when the system needs lower cost, higher speed, and simpler rotary power. It is common in fans, light conveyors, and auxiliary systems. But if the machine needs high starting torque at 30 rpm, the gear motor may require a gearbox.

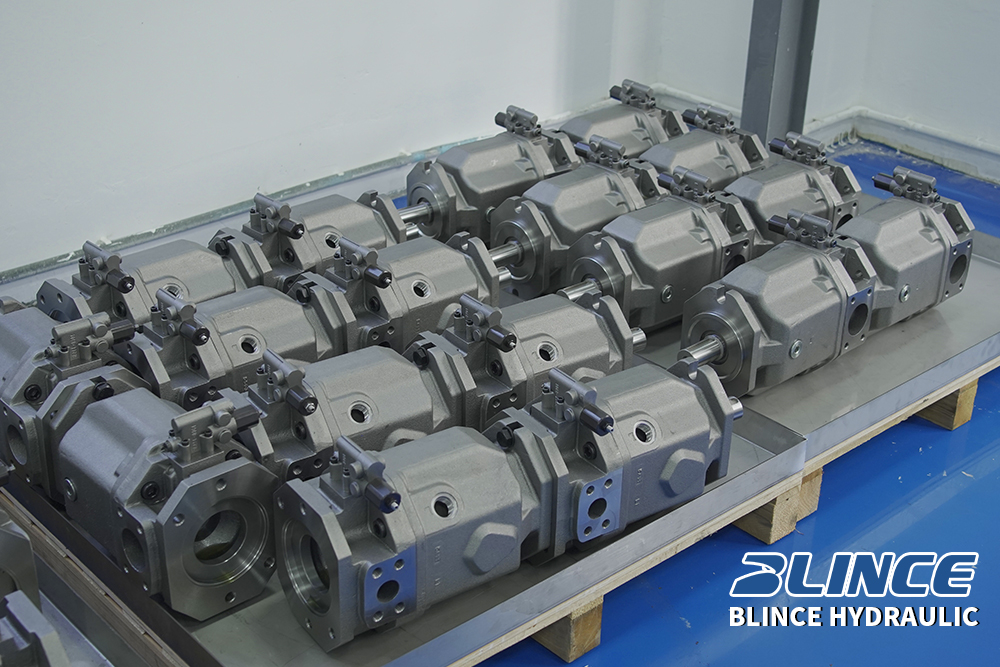

A piston motor is selected when pressure, efficiency, and power density are more important than initial cost. Construction equipment travel drives, closed-loop transmissions, and heavy-duty industrial systems often use piston motors. They handle demanding loads well, but they ask for cleaner oil and better maintenance.
Selection is not about which motor is “best.” Best for what?
Lifecycle Cost and Failure Risk
The cheapest motor can become expensive after three failures.
Common failure causes include contaminated oil, overpressure, poor filtration, incorrect shaft load, wrong coupling alignment, cavitation, excessive return pressure, and overheating. In wheel drive applications, radial load deserves special attention. Some orbit motors are not designed to carry heavy wheel loads directly. A hydraulic hub motor or bearing-supported wheel drive may be needed.
Cavitation is another quiet killer. If the return line is restricted, if inlet oil supply is poor, or if the motor overruns the pump flow during downhill travel, vapor bubbles can damage internal surfaces. The operator hears noise. The motor feels weak. The damage has already started.
Oil choice matters too. Hydraulic oil is not motor oil. The phrase “hydraulic oil vs motor oil” appears in search data for a reason. Engine motor oil contains additives designed for combustion engines. Hydraulic oil is designed for pressure transmission, anti-wear protection, air release, demulsibility, oxidation resistance, and seal compatibility. Use the oil specified by the equipment manufacturer.
OEM/ODM Development: What to Send Before Quotation
For an OEM or distributor, a fast and accurate quotation needs more than a model name. Send displacement, target torque, flow rate, working pressure, speed range, rotation direction, shaft type, flange standard, port thread, drain requirement, seal material, paint color, annual quantity, and working environment.
If replacing an existing hydraulic drive motor, photos help. Nameplates help more. A used sample helps most.
For small hydraulic motors, the risk is usually packaging space and speed. For large LSHT motors, the risk is torque shock and shaft load. For hydraulic motor gearbox assemblies, the risk is ratio selection and thermal balance. Each case has its own trap.
Engineer-Focused Next Step
If you are selecting an orbit hydraulic motor for a new machine, start with four numbers: required output torque, target rpm, available pump flow, and system pressure. Then check mounting space, shaft load, oil cleanliness, duty cycle, and ambient temperature.
For replacement projects, send the old motor model, photos, and key dimensions. Our engineering team can compare displacement, shaft, flange, port, pressure rating, and application risk before recommending a direct replacement or a safer alternative.
A motor is small compared with the machine. But when it stops, the machine stops.
FAQs
1. How does a hydraulic motor work?
A hydraulic motor receives pressurized oil from a pump and converts that hydraulic energy into rotary mechanical output. In an orbit motor, pressure oil fills chambers between the rotor and stator, forcing the rotor to orbit and drive the output shaft.
2. What is the difference between a hydraulic pump and motor?
A pump converts mechanical input into hydraulic flow. A motor converts hydraulic flow and pressure into mechanical rotation. Some designs look similar, but their sealing, bearing load, timing, and lubrication assumptions may differ.
3. What does a hydraulic motor symbol mean?
In hydraulic schematics, a motor symbol is usually a circle with a triangle pointing inward, showing that fluid energy enters the component and creates rotation. A reversible motor may show two triangles or bidirectional flow paths.
4. Can motor oil be used instead of hydraulic oil?
Normally, no. Engine motor oil and hydraulic oil are formulated for different jobs. Hydraulic systems need correct viscosity, anti-wear behavior, air release, seal compatibility, and filtration performance.
5. What is a low speed high torque hydraulic motor?
It is a motor designed to produce high torque at low rpm. Orbit hydraulic motors are one of the most common LSHT motor types.
6. What is a roller stator hydraulic motor?
It is an orbit motor design that uses rollers in the stator to reduce sliding friction between rotor and stator. The benefit is smoother operation and improved wear behavior compared with simple sliding contact designs.
7. When should a gear motor be selected instead?
Choose a hydraulic gear motor when the system needs compact size, lower cost, higher speed, and moderate torque. It is not the first choice for very low-speed, high-starting-torque work unless paired with a gearbox.
8. When is a piston motor better?
A piston motor is better for high pressure, high power density, high efficiency, and demanding continuous-duty systems. It costs more and usually requires cleaner oil.
9. What oil cleanliness should be used for orbit motors?
A common practical target is around ISO 4406 19/17/14 or cleaner for many mobile hydraulic systems, but the exact target depends on pressure, valve sensitivity, filtration, duty cycle, and expected service life.
10. Can an orbit motor drive a wheel directly?
Sometimes. The engineer must check radial load, bearing capacity, shaft type, wheel diameter, vehicle weight, speed target, braking, and shock load. For heavy wheel loads, a dedicated hydraulic hub motor or wheel drive assembly is often safer.
