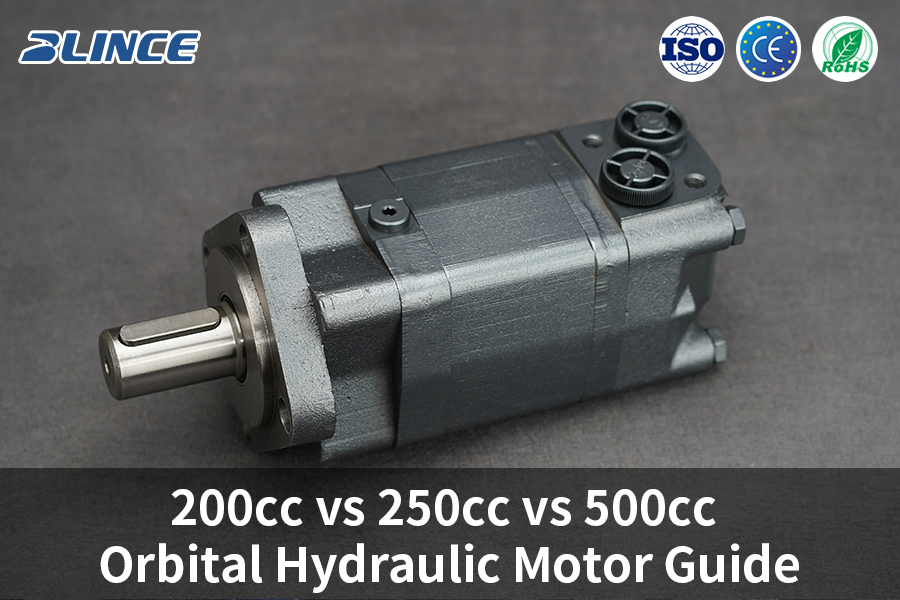

200cc Vs 250cc Vs 500cc Orbital Hydraulic Motors: Flow, Torque, Speed, And Replacement Guide

A larger hydraulic motor can make a machine slower.

That sentence sounds wrong until a replacement job is standing in front of you. The old motor turns an auger, mixer, conveyor, sweeper or feed mechanism. It has lost torque, started leaking, or become difficult to source. Someone measures the flange, finds a physically similar motor with more displacement and expects an upgrade.

The new motor starts. The shaft turns. It may even feel stronger at low speed. Then the complaint changes: the conveyor no longer reaches production speed, the attachment heats the return hose, or another machine function becomes sluggish whenever the motor runs.

The mistake was not necessarily product quality. It was treating displacement as a power rating.

This guide compares three common decision points—200 cc/rev, 250 cc/rev and 500 cc/rev—using published data from the BLINCE OMH/BMH orbital hydraulic motor. The family covers 200–500 cc/rev, a listed flow of 75 L/min, approximately 155–366 rpm, and 510–830 N·m across its available configurations. These are family-level specifications. Final selection still requires the exact model sheet, the machine data and a load calculation.

The Short Answer

A 200 cc hydraulic motor favors speed when pump flow is limited. A 500 cc hydraulic motor favors torque per bar but needs more oil for every revolution. A 250 cc hydraulic motor often sits between those two choices, but “middle size” does not automatically mean “best compromise.”

Use this order when choosing:

1. Required running and breakaway torque

2. Required shaft speed

3. Flow available while the machine is working

4. Pressure at the motor inlet and outlet

5. Continuous or intermittent duty

6. Shaft, flange, ports, drain and allowable side load

The model number comes after those questions, not before them. For a broader view of the product families, start with the hydraulic orbital motor range and narrow the search only after the circuit is understood.

What Displacement Actually Changes

Motor displacement tells you how much oil is theoretically required for one shaft revolution. A 200 cc/rev motor needs 0.20 L per theoretical revolution. A 500 cc/rev motor needs 0.50 L.

That creates the first trade-off:

• More displacement gives more theoretical torque at the same pressure differential.

• More displacement gives less speed at the same flow.

The motor does not create extra oil. If the pump, directional valve, hose, filter, cooler and return path can only deliver a certain flow, a larger motor divides that flow into fewer revolutions.

The basic speed estimate is:

Theoretical motor speed (rpm) = Flow (L/min) × 1000 ÷ Displacement (cc/rev)

Real speed is lower because oil slips through internal clearances. The calculation is still the quickest way to reject an obviously poor match.

Speed Comparison at Three Flow Rates

Those are theoretical figures before volumetric loss. At 90% volumetric efficiency, the 250 cc motor receiving 60 L/min would run closer to 216 rpm, not 240 rpm.

The table also explains a common field surprise. Moving from 250 cc to 500 cc without increasing flow roughly halves shaft speed. If the attachment needed 260 rpm, the larger motor cannot satisfy that target on the same 60 L/min supply, no matter how attractive its torque figure looks.

For machines where pump and motor sizing are both uncertain, the hydraulic pump and motor matching guide gives a useful circuit-level check before either component is changed.

Torque Depends on Pressure Differential, Not the Inlet Gauge Alone

Speed comes mainly from flow. Torque comes mainly from pressure differential and displacement.

The theoretical torque estimate is:

Torque (N·m) = Pressure differential (bar) × Displacement (cc/rev) ÷ 62.8

Mechanical efficiency reduces the usable shaft torque. More importantly, pressure differential means inlet pressure minus outlet pressure. A gauge near the pump or motor inlet shows only one side of that subtraction.

Consider two motors with 160 bar at the inlet:

The operator may see the same 160 bar number in all three cases. The shaft does not experience the same working condition.

High outlet pressure can come from a small return hose, a restrictive directional valve, a narrow fitting, an undersized quick coupler, a blocked return filter or a cooler with excessive pressure drop. The hydraulic quick coupler pressure-drop guide shows why a coupler that connects correctly can still waste pressure during continuous motor flow.

Approximate Theoretical Torque Before Efficiency Loss

The following values use pressure differential, not pump outlet pressure.

These are mathematical estimates, not promises for a specific motor. Continuous pressure, peak pressure, mechanical efficiency, shaft strength and model-specific torque limits still apply. The published OMH/BMH family torque range of 510–830 N·m should be used ahead of a generic formula when evaluating an exact OMH configuration.

200cc vs 250cc vs 500cc: Practical Advantages and Disadvantages

200cc Orbital Hydraulic Motor

Advantages

• Produces higher shaft speed from a limited pump flow.

• Often fits conveyors, feeder drives and sweepers that need moderate rpm.

• Uses less oil per revolution than the 250 cc and 500 cc options.

Disadvantages

• Produces less torque at the same pressure differential.

• Has less reserve when the load has high breakaway torque.

• May require a gearbox if the final load needs lower speed and higher torque.

A 200 cc model is a sensible starting point when speed matters and the load is known. It is a poor choice when the buyer is trying to overcome an unmeasured mechanical jam by increasing relief pressure.

250cc Orbital Hydraulic Motor

Advantages

• Balances moderate speed with more torque per bar than a 200 cc motor.

• Commonly falls within the useful range for mixers, conveyors and agricultural drives.

• May allow direct drive where a smaller motor would need reduction.

Disadvantages

• Still slows significantly if actual flow falls below the pump's catalog number.

• Can be undersized for severe starting loads or oversized for a speed-critical machine.

• “250 cc” does not define shaft, flange, ports, bearing package or duty rating.

The 250 cc option is often called a compromise, but the machine decides whether it is balanced or merely average.

500cc Orbital Hydraulic Motor

Advantages

• Provides more theoretical torque for the same pressure differential.

• Suits slow rotary work when the pump can provide enough flow.

• May reduce or eliminate mechanical reduction in selected applications.

Disadvantages

• Turns at half the theoretical speed of a 250 cc motor at the same flow.

• Places greater flow demand on valves, hoses, couplers and the return path for a given target rpm.

• A larger frame can change shaft load limits, mounting space and inertia.

A 500 cc motor is useful for a slow heavy load. It is not a universal repair for a weak 250 cc drive. If the original motor became weak because the pump lost flow or the return line built back pressure, the larger displacement may make the real fault easier to see without correcting it.

Start With the Driven Load

Catalog selection often begins at the motor. Field selection should begin at the shaft.

Write down what the motor drives: an auger, conveyor, mixer drum, fan, brush cutter, wheel, winch, feeder or gearbox. Then record four numbers where possible:

• Normal running torque

• Breakaway or starting torque

• Required operating speed

• Duration of each work cycle

The difference between running and starting torque matters. A conveyor carrying a stable load may start gently. A mixer with settled material may need a short torque peak. An auger can encounter a hard obstruction. A brush cutter sees repeated impact as the blade load changes.

If the load data is unavailable, measure motor pressure during a known good cycle and inspect the mechanical drive. A tight bearing, misaligned coupling, dragging brake or jammed gearbox can make a correctly selected motor look weak. The hydraulic motor slow-or-weak guide separates flow loss from torque loss before the parts order begins.

Flow Must Be Measured During the Complaint

The pump nameplate is not the same as flow reaching the motor.

A pump may be rated for 75 L/min at a stated speed and displacement, while the machine delivers less because the engine is slow, the pump is worn, the oil is hot, another function is using flow, or a priority valve is diverting part of the supply.

For a useful test, measure or estimate flow under the condition that produces the complaint. If a sweeper slows only after twenty minutes, a cold idle test does not represent the job. If a loader attachment loses speed only when steering is used, record both functions together.

The same point applies to a variable pump. Its maximum displacement does not prove that the load-sense signal, compensator and standby pressure are commanding full delivery.

A Field Note That Helps

Instead of writing:

Need a stronger 500 cc motor.

Write:

The attachment requires 220 rpm after warm-up. Available flow at the auxiliary couplers is 62 L/min with no other function used. Motor inlet pressure is 168 bar and outlet pressure is 34 bar. The duty cycle is 30 minutes on and 10 minutes off.

That note gives a supplier something to calculate. It also reveals that a 500 cc motor would have a theoretical speed of only 124 rpm at 62 L/min before leakage.

Return Pressure and Case Drain Can Decide Motor Life

Not every orbital motor uses the same drain arrangement. Some models tolerate pressure at the return port differently; others require a dedicated case drain for the supplied shaft-seal and bearing configuration. The correct answer belongs to the exact model.

Where a separate case drain is required, route it through a low-resistance line to the reservoir according to the manufacturer's instructions. Do not combine it casually with a return manifold that may see pressure when another function operates.

Return pressure and case pressure are related but not identical. Outlet pressure reduces the useful pressure differential across the motor. Case pressure loads the shaft seal and housing. A machine can therefore be slow because of outlet back pressure and leak at the shaft because of case pressure at the same time.

The motor case-drain and shaft-seal guide is relevant when a replacement motor begins leaking soon after installation or when the drain hose becomes hot under load.

Continuous Duty Is Not an Intermittent Peak

The phrase “maximum pressure” attracts attention because it is easy to compare. It does not describe how the machine works.

A motor that runs for 15 seconds to position a mechanism sees a different thermal load from a conveyor that runs for 45 minutes. A mixer may require high starting torque and then settle into moderate continuous torque. A wheel drive sees changing traction and shock. A hydraulic fan may run for hours but at a predictable load.

For continuous service, use the continuous pressure, flow, speed and torque limits. Check oil temperature and cooler capacity after the machine reaches thermal balance. Peak values belong to short, defined events—not the entire shift.

Orbital motors are attractive because they provide useful low-speed torque in a compact package. For extremely low stable speed or severe continuous torque, a radial piston motor may be a better technical choice even if it costs more. The BLINCE hydraulic motor range includes orbital, radial piston, axial piston, gear, slewer and travel motor families for this reason.

Shaft, Flange, Ports, and Side Load

Two motors can both be labeled 250 cc and still be impossible to interchange.

Check these dimensions and functions:

A chain sprocket mounted directly to the motor shaft can apply a continuous radial load. A belt can add both side load and over-tension. A wheel can add bending load and impact. When the motor is not designed to carry that force, use an external bearing block or gearbox.

The H Series mini orbital motor illustrates how small frames serve compact drives, while a heavier OMH/BMH frame addresses a different displacement and torque range. Choosing between them requires more than matching the port thread.

Application Checks

Conveyors and Feed Drives

Conveyors usually need predictable speed and enough starting torque to move the loaded belt. A 200 cc or 250 cc motor may suit moderate speed when flow is limited. Check whether the conveyor starts loaded and whether material accumulation changes breakaway torque.

If speed falls after warm-up, compare actual flow and motor leakage before increasing displacement. A larger motor can hide a torque shortage while creating a speed shortage.

Augers and Drilling Attachments

Augers see changing torque and possible shock. A larger-displacement motor may improve torque reserve, but the relief setting, shaft, coupling and attachment structure must tolerate the load.

Do not select the motor from auger diameter alone. Soil, material density, flight pitch, depth, speed and obstruction risk all change the duty.

Mixers and Feed Trucks

The published OMH/BMH product information lists feeding and mixer trucks among its applications. These machines may start with settled material, then run for a long cycle. Starting torque and thermal behavior therefore matter together.

A 500 cc configuration may offer more torque at lower speed, while a 200 cc configuration may turn faster with the same flow. The correct model follows the drum speed, load and available circuit capacity.

Sweepers and Brush Cutters

Sweepers and cutters can run continuously and reveal pressure loss in couplers and return hoses. If the base machine operates normally with other attachments, compare coupler bore, hose ID, motor displacement and return pressure before blaming the new motor.

Winches and Overrunning Loads

A winch requires more than a motor. The brake, overcenter valve, drum ratio, line pull and safe lowering behavior are part of the drive. A high-torque motor without suitable load control is not a safe winch solution.

Who Should Not Buy a 200–500cc Orbital Motor?

This product family should not be the default choice for buyers who require:

• Near-zero shaft speed with minimal stick-slip

• Continuous operation near a peak-pressure limit

• High unsupported radial load from a wheel, pulley or sprocket

• Servo-level speed accuracy under rapidly changing load

• A drop-in replacement without confirming ports, shaft and flange

• A motor to compensate for an unmeasured pump or return-line fault

A radial piston motor, external bearing support, gearbox or different circuit architecture may be more appropriate.

Buyers should also pause if available flow and outlet pressure are unknown. Those two missing numbers can turn a physically correct replacement into a slow and hot installation.

Buying Errors That Look Reasonable at First

The Biggest Motor That Will Bolt On

At 500 cc/rev, half a litre of oil is needed for one theoretical turn. A pump delivering the same flow cannot preserve the old shaft speed. Calculate the required rpm first; only then decide whether extra displacement is useful.

One Pressure Gauge, Half the Story

Torque follows the pressure left across the motor after outlet pressure is deducted. Take the return-side reading while the same load is turning, not later with the attachment stopped.

Treating Nameplate Flow as Delivered Flow

The figure printed for the pump assumes stated conditions. Engine speed may be lower in the machine, and wear, warm oil, priority flow or another moving function may leave considerably less oil at the motor.

Forgetting the Hardware Between Valve and Motor

The selected motor may be correct while a compact coupler, small fitting or replacement return hose throttles the circuit. Put gauges on both sides of the suspected section; one reading beside the pump cannot locate that loss.

Using a Short Peak Rating for an All-Day Drive

A pressure allowed for a brief shock is not a normal shift-long setting. Conveyors, mixers and hydraulic fans need the continuous data, followed by an oil-temperature check after the machine has settled into work.

Giving the New Shaft an Old Worn Hub

Backlash in a reused spline, keyway or coupling can mark a new shaft surprisingly quickly. It can also knock loudly enough to send the diagnosis back inside a perfectly serviceable motor.

Calling the Oil Clean Because It Looks Clear

Metal left by the failed motor can hide in a hose, valve passage, filter housing or tank corner. Inspect and clean that route before fresh oil carries the old debris into the replacement.

Believing Equal Displacement Means Equal Fit

Two motors marked 250 cc may use different shafts, pilots, ports, bearings, drain arrangements or duty ratings. The displacement figure settles none of those details.

A Better Request for Quotation

Avoid sending only “quote 250 cc hydraulic motor.” A useful inquiry includes:

• Old motor manufacturer and complete model

• Nameplate and four-side photographs

• Shaft type, diameter, spline count or key dimensions

• Pilot, bolt pattern and flange dimensions

• Port threads, orientation and drain connection

• Available flow under working conditions

• Motor inlet and outlet pressure

• Normal oil temperature and oil grade

• Driven load, required rpm and duty cycle

• Quantity and required delivery date

A practical message might read:

The conveyor needs 230 rpm and runs 40 minutes per cycle. Measured flow at normal engine speed is 64 L/min. Motor inlet pressure is 155 bar and outlet pressure is 26 bar after warm-up. The old motor is 250 cc with a 32 mm keyed shaft and four-bolt flange. Shaft, flange, ports and nameplate photos are attached. Please confirm a compatible motor and expected speed before quoting.

With those measurements, a supplier can question a poor assumption while the motor is still on the quotation—not after it has crossed a border.

FAQ

Will a 500cc motor always pull harder than a 250cc unit?

Only if the comparison is made within each model's limits and at the same pressure differential. The 500 cc calculation gives about twice the torque, but that motor also turns at about half the speed when flow is unchanged. Shaft capacity, continuous rating and actual efficiency can narrow the apparent advantage.

What rpm should I expect from 60 L/min and 250cc/rev?

The arithmetic gives 240 rpm before leakage. If volumetric efficiency is 90%, a more useful estimate is 216 rpm. Treat that as a planning figure; warm-oil leakage, pressure and the exact motor data decide what appears at the shaft.

I need 200 rpm from a 500cc motor. What pump flow is required?

Start with 500 × 200 ÷ 1000, which gives 100 L/min theoretically. The real circuit needs some allowance for leakage. A supply limited to 75 L/min would reach only 150 rpm on paper, before efficiency is considered.

Can I gain motor speed by turning up the pressure?

Usually not. Oil flow sets the basic speed, while pressure rises as the load asks for torque. Moving the relief setting upward does not add pump delivery; it can simply make more heat or expose the shaft, hoses and valves to extra stress.

The supply gauge looks healthy, yet the motor stalls. How is that possible?

That gauge describes its own tapping point. The motor works with the pressure difference between its inlet and outlet. A valve passage, narrow coupler, small hose, dirty filter, cooler or shared return can consume part of that difference before the oil completes the circuit.

Why is the motor acceptable when cold but slow after twenty minutes?

As viscosity falls, leakage that was hidden during startup can take a larger share of pump flow. A warm test may also expose a return restriction or relief loss that never becomes obvious during a two-minute yard check.

Is moving from 200cc to 250cc a straightforward replacement?

It can be, but expect fewer rpm from the same flow and recalculate the available torque. Then compare the shaft, pilot, bolt pattern, ports, drain route, rotation and pressure limits. Equal family names do not guarantee those interfaces.

When does replacing 250cc with 500cc make sense?

It makes sense when the load needs more torque, the lower shaft speed is acceptable—or the circuit can supply additional flow—and the mounting and pressure limits agree. It is a sizing decision, not a dependable cure for an unexplained weak drive.

Is a separate case-drain hose required on every orbital motor?

No. The answer changes with motor construction, shaft-seal option and circuit arrangement. Use the installation data for the exact configuration and stay within its stated return- and case-pressure limits.

What should be included in a replacement inquiry?

Begin with the complete model and nameplate. Add clear views of the shaft, flange and ports, then provide displacement, drain arrangement, target rpm, measured flow, inlet and outlet pressure, warm oil temperature, work-cycle length and quantity.

Final Takeaway

The 200 cc, 250 cc and 500 cc labels describe oil volume per revolution. They do not describe the whole drive.

A smaller motor favors speed from limited flow. A larger motor favors torque per bar but consumes more oil per revolution. Return pressure can remove useful torque while the inlet gauge still looks healthy. Continuous duty can expose heat that a short test never reveals. A matching flange can still hide the wrong shaft, port, bearing or drain arrangement.

For orbital hydraulic motor selection, begin with the load and the circuit. Then choose the model.
