A hydraulic pump motor match should start with the job at the shaft: how fast it must turn, how hard it must start, and how long it must keep doing that work after the oil is hot.
Pump flow is the first speed check. Motor displacement and pressure differential are the first torque checks. If those checks are treated as one vague "more power" problem, the drive can look fine with no load and still feel weak as soon as the machine bites into material.
The valve, hoses, fittings, return line, reservoir, and cooler belong in the same calculation. They are not small accessories at the end of the quote. A good pump and a good motor can still run badly when the oil has to fight through a tight valve spool, undersized hose, or hot return circuit.
For replacement work, do not stop at the nameplate. Ask why the old set failed. Wear, heat, undersizing, and poor plumbing usually leave different evidence, and they should lead to different choices.
Why This Guide Matters
Searches for "hydraulic pump motor" are not always asking for the same product. In one RFQ, the phrase may mean an electric motor coupled to a pump. In another, it means the pump and the hydraulic motor inside a drive circuit. This guide deals with the second case: matching hydraulic pumps and motors so the machine reaches the required speed and torque in service.
In service, these problems are often split too early. The pump supplier is asked for more flow. The motor supplier is asked for more torque. The old valve block and hoses stay in place because changing them is inconvenient. Once the machine runs for a while, the complaint usually becomes less tidy: the shaft still turns, but the oil temperature creeps up, the sound changes, and the operator says the drive has lost its pull.
That is why Blince usually looks beyond the motor nameplate. A drive problem may involve the pump, valve, hose, fitting, cooler, or several of them at once, so the quote has to follow the oil path instead of stopping at one component.
For clarity, I am using hydraulic motor in the normal sense: the component that turns oil power into shaft rotation. A hydraulic pump is the component feeding the circuit. In real hydraulic machinery, those two parts never work alone; pressure loss, return flow, oil temperature, and load all show up in the final result.
What Does Hydraulic Pump Motor Matching Actually Mean?
In this guide, a matched pump and motor set means the drive can still meet its speed and torque target when the oil is warm, the load is on the shaft, and the pressure losses around the circuit have already been allowed for.
That last condition is where many wrong selections hide. On a bench or in a yard test, the motor may turn cleanly and the pressure gauge may look ordinary. Put the same machine into a longer job, and the picture changes: warm oil leaks past worn clearances more easily, the return side may build back pressure, and the drive can lose speed or force.
Before choosing a frame size or pump series, write down the answers to these practical questions:
What shaft speed is required under load?
What starting torque is needed?
Will the drive work in short bursts, or will it stay loaded for most of the shift?
What pump input rpm is actually available from the engine, PTO, or electric motor?
What valve and hose layout will remain on the machine?
What oil temperature does the system reach during a full work cycle?
If those answers are missing, the selection is mostly a guess with a part number attached.
Start With Speed: Pump Flow vs Motor Displacement
Motor speed begins with flow, but the circuit only benefits from flow it can actually use. If a larger pump sends extra oil through a valve spool, hose, filter, or return line that is already close to its limit, the shaft may gain little speed while the system gains heat.
When motor displacement goes up, the drive asks for more oil every time the shaft makes one turn. That can help the start, especially on a loaded conveyor, sweeper, or wheel drive. But if the pump flow has not changed, the tradeoff is easy to feel: the machine pulls harder at first and then runs slower than expected.

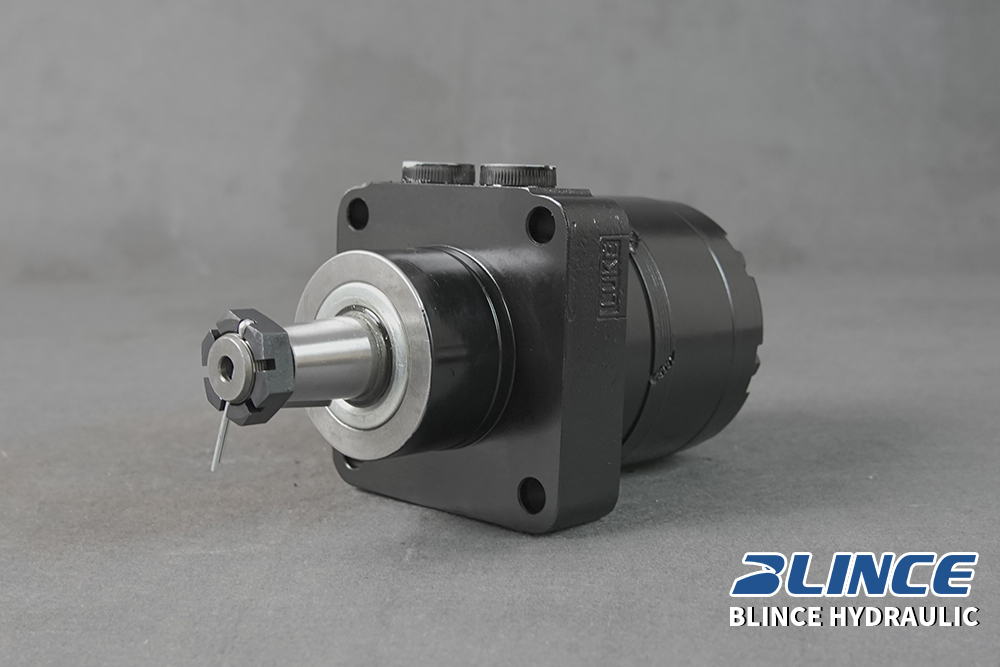

For compact low-speed equipment such as conveyors, sweepers, small wheel drives, and agricultural attachments, an OMT series orbit hydraulic motor is a practical comparison point. If the available flow is limited, review an OMR series hydraulic orbit motor before moving to a larger frame. For heavier low-speed work, an OMV series hydraulic orbit motor may fit the torque need, but the pump must still support the target speed.
When motor type is still open, Blince's article on hydraulic gear motor vs orbital motor helps clarify the tradeoff between compact speed, low-speed torque, and working load.
Then Check Torque: Pressure Differential and Motor Size
Flow makes the motor turn. Pressure differential is what lets it do useful work.
A pump outlet gauge is only one reading, so it can point the diagnosis in the wrong direction. The motor works from the pressure difference across its ports. A high return line, a restrictive valve passage, or a partly blocked fitting can leave the gauge looking acceptable while the motor receives less useful torque than the operator expects.
This is where many hydraulic drive motor complaints begin. The system "has pressure," but the motor still struggles. The pressure exists somewhere in the circuit, just not as useful pressure across the motor.
For wheel drives, augers, brush cutters, and light rotary loads, calculate the actual starting torque before choosing a hydraulic gear motor or orbit motor. For shock-loaded travel circuits, review whether a radial piston travel motor is more suitable. For higher power density drives, compare the duty cycle and case drain requirements with an A6VM axial piston motor or an A2FE axial piston motor.
Pump Selection: Fixed Flow, Variable Flow, and Real Duty Cycle
The pump should be selected from the duty cycle first, not from the highest pressure number on the brochure.
A fixed-displacement pump is simple: flow rises with input speed, after efficiency losses are considered. It can work well when the drive demand is steady and predictable. A variable-displacement piston pump can be a better fit when flow demand changes, but it is not a cure for a poor circuit. If the motor displacement is wrong, or the valve is restrictive, a variable pump will simply work harder inside the same bad conditions.
The pump also needs to be judged hot. Cold oil can hide leakage. A pump that looks acceptable at startup may lose enough flow after warm-up to make the motor slow, especially on older equipment with worn clearances.
Valves, Hoses, and Fittings Are Not Accessories in This Calculation
A pump and motor can be matched correctly on paper and still disappoint because the valve or hose layout was treated as fixed background hardware.
A hydraulic control valve may shift normally and still create too much pressure drop. A relief valve may open before the motor reaches working torque. A multi-way valve may feed the motor well until another function is operated. Hoses and fittings can create the same kind of loss quietly, especially where small adapters or sharp bends were added during previous repairs.
For electric directional circuits, check whether the hydraulic solenoid valve in the motor circuit has enough rated flow for the actual motor demand. For mobile equipment with several functions, the center position and flow path of a hydraulic multi-way control valve can decide whether the motor receives full flow or only leftover oil after another function is moving.
On the plumbing side, check hose ID, bend radius, fitting passage, filter restriction, and return pressure. If the circuit sees pressure spikes, a two-wire hydraulic hose may be more suitable than a lighter hose. For layout decisions, start with the hydraulic hoses and fittings range.
Heat: The Hidden Cost of a Poor Hydraulic Pump to Motor Match
Heat is often the first honest sign that the match is not clean, because heat records every loss the circuit is hiding.
Too much pump flow through a small valve becomes heat. A motor running close to its limit for long periods becomes heat. Return pressure becomes heat. Internal leakage becomes heat. The drive may pass a short shop test and still fail after one full work cycle in the field.
Do not use a larger cooler to hide obvious circuit losses. First check pump flow, motor displacement, valve pressure drop, hose restriction, and return pressure. After the avoidable losses are corrected, size the cooler for the remaining heat load.
Field Case: The Pump Was Larger, but the Drive Was Not Better
A buyer wanted more torque from a compact mobile drive that started poorly when the machine was loaded. The first idea was simple: use a larger hydraulic motor and a larger pump.
The first test looked promising. The drive started the load more confidently. After a short work period, however, the machine ran slower than expected and oil temperature climbed faster than the operator was used to seeing.
The reason was not the pump alone or the motor alone. The valve bank had not changed. The return line had not changed. The cooler had been selected for the older circuit. The larger pump pushed more flow through the same restrictions, while the larger motor needed more oil for each revolution.
The final solution used a motor displacement that met the starting torque target without making the speed unacceptable. Pump flow was selected for the required hot running speed, not for a cold no-load test. Valve pressure drop was checked, and cooling capacity was increased for the new duty cycle.
The finished drive looked less dramatic on a single specification line, but it worked better on the machine.
A Practical Matching Worksheet
Data point
Why it matters
Required shaft speed
Sets the flow target
Starting torque
Sets motor displacement and pressure need
Continuous torque
Prevents selecting only for peak load
Pump input speed
Determines real pump output
Available system pressure
Sets realistic torque limits
Valve rated flow
Shows possible pressure drop
Hose ID and fittings
Controls loss and return pressure
Duty cycle
Separates short bursts from continuous work
Oil temperature target
Decides cooling requirement
Mounting, shaft, and ports
Prevents installation mismatch
If this is a replacement project, add one more question: why did the old system fail? A worn component, an overheated circuit, and an undersized original design should not produce the same quotation.
Common Mistakes When Matching Hydraulic Pumps and Motors
Mistake 1: Choosing by maximum pressure only
Maximum pressure is not the working condition. A peak-pressure rating mainly tells you what the component can tolerate for a limited moment; it does not prove the drive will be efficient, cool, or steady during continuous operation.
Mistake 2: Increasing motor displacement without checking flow
Going up one motor size may make the first movement stronger, but it also raises the oil demand for every revolution. When pump flow is unchanged, the slowdown can look like a bad motor even though the selection is the real issue.
Mistake 3: Increasing pump flow without checking valves and hoses
Extra flow helps only after the valve passages, hose ID, fittings, and return line have room for it. If those parts are already tight, the added flow shows up as heat, noise, pressure drop, or touchy control.
Mistake 4: Ignoring return pressure
Return pressure eats into the pressure difference across the motor. The pump gauge may still look acceptable, but the motor is working with a smaller useful pressure gap.
Mistake 5: Copying the old part number without asking why it failed
If the old combination was killed by hot oil, poor sizing, or a hidden restriction, ordering the same set again only resets the clock on the same failure.
FAQ
How do I match a hydraulic pump to a hydraulic motor?
Start with required shaft speed and torque under load. Use pump flow to support speed, then use motor displacement and pressure differential to support torque. After that, check valves, hoses, return pressure, cooling, and duty cycle.
Is a bigger hydraulic pump always better?
No. A larger pump can create excess flow, heat, noise, and control problems if the valve, hose, motor, return line, and cooler are not sized for it.
Can I use the same pump with a larger hydraulic motor?
Sometimes, but speed may drop because the larger motor needs more oil per revolution. Check target speed at operating temperature before increasing motor displacement.
What type of motor is best for low speed high torque work?
Compact low-speed drives often start with orbit hydraulic motors. Heavy travel drives may need radial piston motors. Higher power density systems may use axial piston motors, especially when duty cycle and packaging become more demanding.
Why does the drive get hot after changing pump or motor size?
The new combination may have changed flow, pressure drop, leakage, or throttling behavior. Check valve pressure drop, hose size, return pressure, cooler capacity, and motor displacement before assuming the new component is defective.
Summary
Hydraulic pump motor matching is a system calculation, not a two-part shopping list. Pump flow, motor displacement, pressure differential, valve loss, hose restriction, oil temperature, and duty cycle must be reviewed together.
This article is for general technical reference. Hydraulic systems vary by machine design, operating pressure, load conditions, safety requirements, oil type, and installation quality. Final diagnosis and component selection should be confirmed against the machine manual, system schematic, supplier data, and applicable safety standards.
