A compact hydraulic power unit runs normally for the first 25 minutes. Then the oil temperature keeps climbing. The cooler fan is still off. A technician bridges the temperature switch and the fan starts, so the switch is blamed. Purchasing asks for another switch with the same thread and a lower setpoint.
That may fix the machine. It may also burn the new switch, cycle the fan too quickly, or hide a different fault. A hydraulic oil cooler temperature switch is only one link in a chain: oil temperature, sensing location, switch setpoint and hysteresis, contact rating, relay or controller, fan motor, wiring, airflow, and the hydraulic heat load all have to agree.
Short Answer
A hydraulic oil cooler temperature switch should normally be selected as a control device, not assumed to be the fan's power switch. Match its temperature range, hysteresis, thread, seal, pressure exposure, electrical contact rating, and environmental protection to the exact installation. If the fan current exceeds the switch rating, use the switch to command a correctly rated relay, contactor, or fan controller. Then verify voltage and current at the fan while it is running.
Do not choose a universal on/off temperature from a blog. The correct setpoint depends on the oil grade, required viscosity range, sensor location, machine duty, ambient temperature, cooler capacity, and the selected switch and fan data. The machine manual and component datasheets remain the final authority.
What the Temperature Switch Controls—and What It Cannot Fix
The switch decides when the fan-control circuit changes state. A simple mechanical switch may close as temperature rises and reopen after the oil cools by a specified amount. An electronic controller may read a sensor and command several fan speeds. Both can reduce unnecessary fan runtime and bring airflow in when the oil reaches the intended control band.
The switch does not calculate heat load. It does not increase oil flow through an undersized core, remove grass from blocked fins, open a collapsed return hose, correct a relief valve dumping flow, or restore a worn pump. If the circuit is generating 8 kW of waste heat and the installed cooler can reject only 4 kW under the real oil-to-air temperature difference, changing a 60°C switch to 50°C only starts an undersized solution earlier.
That boundary matters because the visible symptom often sits at the fan while the heat is produced elsewhere. The BLINCE hydraulic oil cooler sizing guide covers the broader heat-load, flow, pressure-drop, and mounting questions. Use this page when the control chain itself needs a decision.
Read the Control Chain Before Buying a Switch
Before buying anything, trace six connected jobs in the circuit:
The hydraulic oil reaches a measurable temperature at the sensor.
The switch or controller decides that the fan should run.
The control output energizes a relay, contactor, or electronic fan driver when required.
The power circuit delivers acceptable voltage to the fan motor under load.
The fan moves air in the specified direction through a clean core.
The cooler rejects enough heat without adding unacceptable hydraulic pressure drop.
Skipping any one of these produces misleading tests. Hearing a relay click does not prove the fan receives power. Seeing the fan spin does not prove the airflow is correct. Feeling hot oil at the cooler inlet does not prove enough oil is passing through the core.
Parker's air-oil cooler manual gives a useful safety boundary: a thermocontact can start a fan automatically, and a relay should be used when the current load exceeds the thermocontact's permitted load. That is a control principle, not a wiring diagram for every machine. Terminal layout, protective devices, conductor size, grounding, enclosure, emergency isolation, and overcurrent protection must follow the selected components and the machine's electrical design.
Decide the Switch Type Before the Temperature
The first purchasing question is not “50°C or 60°C?” It is “what job must this device perform?”
Control choice
Where it fits
Advantage
Cost or risk
Data to verify
Mechanical on/off temperature switch
Simple fixed-speed fan circuit
Few components and easy fault tracing
Fixed setpoint; contact wear; may need relay; hysteresis may be unsuitable
Setpoint, reset temperature, contact rating, thread, seal, pressure, IP rating
Electronic sensor plus fan controller
Variable-speed or closely managed systems
Adjustable control, diagnostics, softer fan behavior
More wiring, configuration, cost, and environmental requirements
Sensor curve, controller inputs/outputs, fan compatibility, fail-safe state
Engine/vehicle ECU command
Integrated mobile equipment
Can use existing temperature data and machine logic
Changes require OEM logic access; failure diagnosis is less local
CAN/control logic, output driver, fault strategy, service permissions
Manual switch only
Temporary test or supervised simple equipment
Direct and inexpensive
Depends on operator; easy to forget; no automatic overtemperature response
Machine risk assessment and operating procedure
Fan running continuously
Dirty environments or intentionally simple duty
Removes control delay and reduces switch complexity
Noise, electrical consumption, fan wear, cold-operation concerns
Fan duty rating, electrical supply, bypass/cold-start behavior
The table is not a product ranking. A basic on/off switch can be the right answer for a small power unit. A variable-speed controller may add cost without improving a machine whose main heat source is relief flow. The control architecture should follow the duty and service environment.
Setpoint and Hysteresis Are Two Different Numbers
Suppose a switch closes at 60°C and reopens at 50°C. The 60°C value is the switch-on point; the 10°C difference is the hysteresis. That gap prevents rapid on-off cycling when oil temperature sits near one threshold.
A narrower gap can control temperature more tightly, but it may increase cycling if the sensor is near a turbulent return jet or the fan changes oil temperature quickly. A wider gap reduces cycling, yet it lets the oil travel through a broader temperature band. Neither is automatically better.
Sensor location changes what those numbers mean. A switch in a hot return manifold may react sooner than a sensor in a mixed reservoir. A sensor in a stagnant corner may respond late. A surface-mounted sensor on a metal housing may lag behind the oil or respond to nearby engine heat. Record the measurement point whenever a setpoint is discussed.
Parker's cooler-sizing form lists thermoswitch options of 100, 120, 140, 160, and 175°F. Those are examples available within that product context, not recommended values for every hydraulic system. Converting them to Celsius does not make them universal. Select the control band against the oil supplier's viscosity-temperature data, seal and component limits, expected ambient temperature, and the actual measurement location.
The Contact Rating Decides Whether a Relay Is Optional
A temperature switch may have contacts suitable for a small control current, while the fan motor draws much more. DC motor starting current can also be higher than steady-state current. If a buyer matches only voltage—“both are 24V”—the switch contacts may be asked to interrupt a load they were not designed to handle.
The safe decision requires at least five electrical values from the actual hardware:
fan rated voltage;
fan rated running current or power;
fan starting/inrush current or the manufacturer's protective-device guidance;
temperature-switch contact rating for the relevant AC or DC load type;
relay, contactor, controller, fuse, conductor, and connector ratings under the machine's ambient conditions.
An AC contact rating cannot be transferred directly to a DC motor circuit, and a worked example is not enough to size the fuse. The motor datasheet and machine electrical standard must decide the final protection.
Worked Electrical Example: Useful for Screening, Not Final Wiring
Assume a fan is marked 24V and 200W. Treat both numbers as an Example, not as a BLINCE model commitment.
Steady-state current is:
I = P / V
I = 200 W / 24 V = 8.33 A
This calculated 8.33A is only the theoretical running current at rated voltage. It does not reveal starting current, locked-rotor current, controller behavior, hot-ambient derating, connector capacity, or the correct fuse and relay. If the temperature switch is rated below the actual motor load—or is rated only for a different load type—it should not carry the fan power directly.
Now measure 24.4V at the supply and 23.2V across the fan terminals while the fan is energized. The circuit has lost 1.2V.
Voltage drop percentage = 1.2 V / 24 V × 100 = 5%
That 5% result is a Calculated diagnostic value. Whether it is acceptable depends on the fan manufacturer's allowable supply range and the machine wiring criteria. Split the test across the positive and ground sides to find whether the loss is in the fuse holder, relay contacts, connector, conductor, or ground path. An unloaded voltage check can miss the problem because a corroded connection may show nearly full voltage until current flows.
BLINCE Product Data: What Is Public and What Still Needs a Datasheet

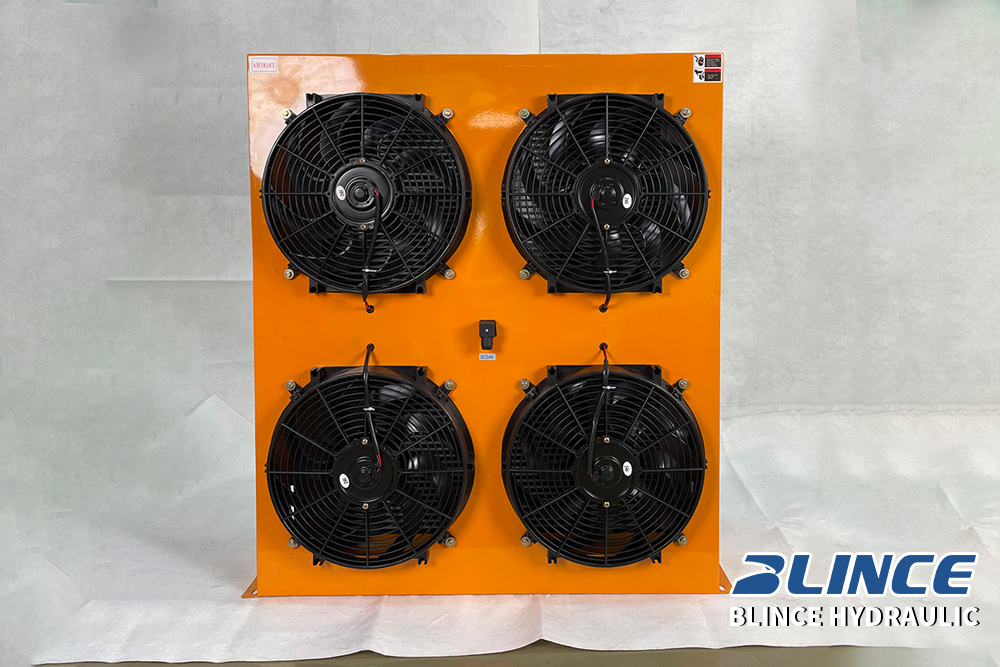

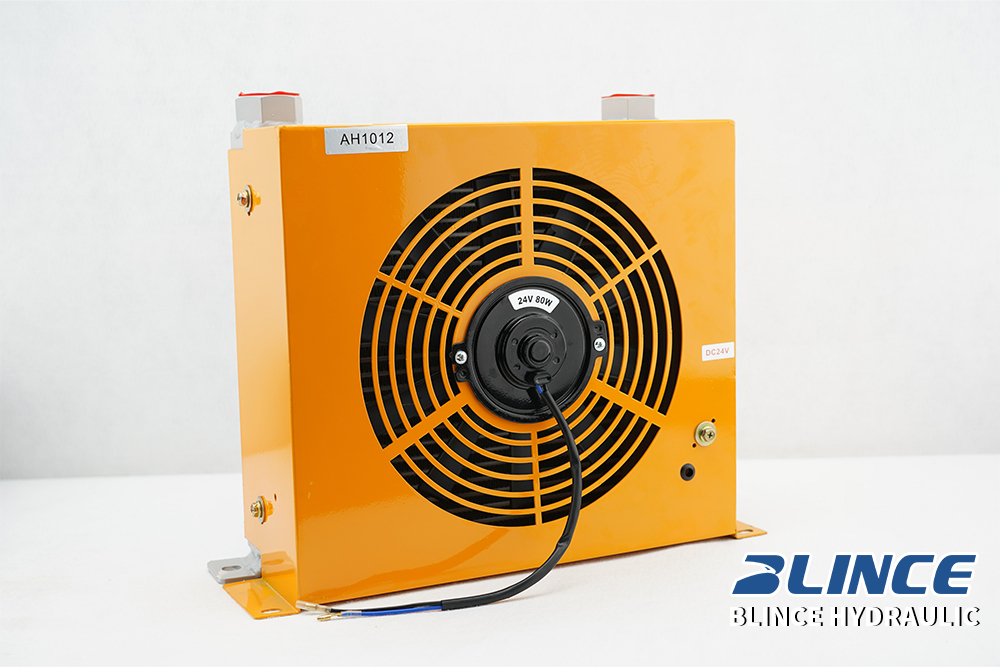

The current BLINCE AD Series hydraulic oil cooler page publishes a rated flow range of 150–350 L/min, working pressure of ≤2 MPa, fan power of 140–250 W, and fan voltage options of 24V, 220V, and 380V. These are Published family-level values.
They do not define a complete control circuit. The page does not publish a temperature-switch setpoint, hysteresis, contact rating, fan starting current, fuse, conductor size, connector, or statement that a switch and relay are included. Those items remain Unknown / confirm by datasheet for the selected configuration.
The BLINCE DXB Series sits in a different range: the page lists 100–1000 L/min, 25–35 bar, motor power of 0.55–4×2 kW, and 220V/380V input. It is a useful reminder that “hydraulic oil cooler fan control” can mean a compact 24V DC fan or a much larger industrial AC motor/contactor arrangement. The control hardware is not interchangeable.
For either family, ask for the exact model curve and wiring information before a purchase order. Family ranges do not prove that one size covers the machine's heat rejection, oil flow, pressure drop, voltage, frequency, starting method, or mounting envelope.
Heat Load Still Sets the Size of the Answer
Fan control changes when cooling is available. It cannot make the cooler reject more than its real capacity at the actual oil-to-air temperature difference.
Parker's heat-exchanger guidance asks for oil heat load, flow, maximum oil temperature, maximum ambient temperature, contaminants, and allowable pressure drop. If measured heat load is unavailable, a temperature-rise test can help estimate it, provided system oil volume, temperature change, time, fluid density, and specific heat are known. Any estimate should be treated as preliminary because the tank, piping, machine structure, and ambient air also exchange heat.
A different calculation finds heat created by a hydraulic restriction:
Power loss (kW) = pressure drop (bar) × flow (L/min) / 600
If a return path loses 12 bar at 80 L/min:
Power loss = 12 × 80 / 600 = 1.6 kW
The result is Calculated and assumes the lost hydraulic power becomes heat. It tells the buyer why cooler selection and pressure-drop diagnosis belong together. Removing a 1.6kW restriction may be more useful than starting the fan ten degrees earlier.
Check Hydraulic Pressure Drop Before Calling It an Electrical Fault
Many air-oil coolers are placed in a return line because the pressure there is lower than at the pump outlet. “Lower” does not mean harmless. A small hose, reduced-bore elbow, dirty return filter, wrong quick coupler, cold viscous oil, or restrictive cooler core can raise back pressure.
Install suitable test points and compare pressure before and after the cooler at the flow and temperature where the complaint occurs. The BLINCE pressure-gauge placement guide explains why one main gauge can miss a return-side restriction. Follow the machine's safe test procedure; hot oil, rotating fans, stored pressure, and hose failure can cause injury.
If pressure drop is high during cold start but acceptable when warm, review viscosity, bypass behavior, hose size, and the cooler curve. If it remains high when warm, compare flow against the exact cooler and plumbing. Do not route a case drain through a cooler unless the pump or motor manufacturer and the cooler design explicitly allow the resulting case pressure.
Airflow Tests That Take Less Time Than Another Parts Order
The fan should start automatically during a functional test only when it is safe to do so. Keep guards installed, isolate electrical power before touching the fan, and depressurize and cool the hydraulic system before opening any line.
With those boundaries in place, check:
fan rotation and airflow direction against the cooler label;
voltage at the fan while running, not just at the battery or cabinet;
current against the motor datasheet;
air temperature entering the core;
clearance on both sides of the cooler;
hot-air recirculation from an engine radiator or enclosed cabinet;
fin blockage, bent fins, oil mist, grass, fibers, mud, and debris;
abnormal noise, vibration, cracked mounts, and loose guards.

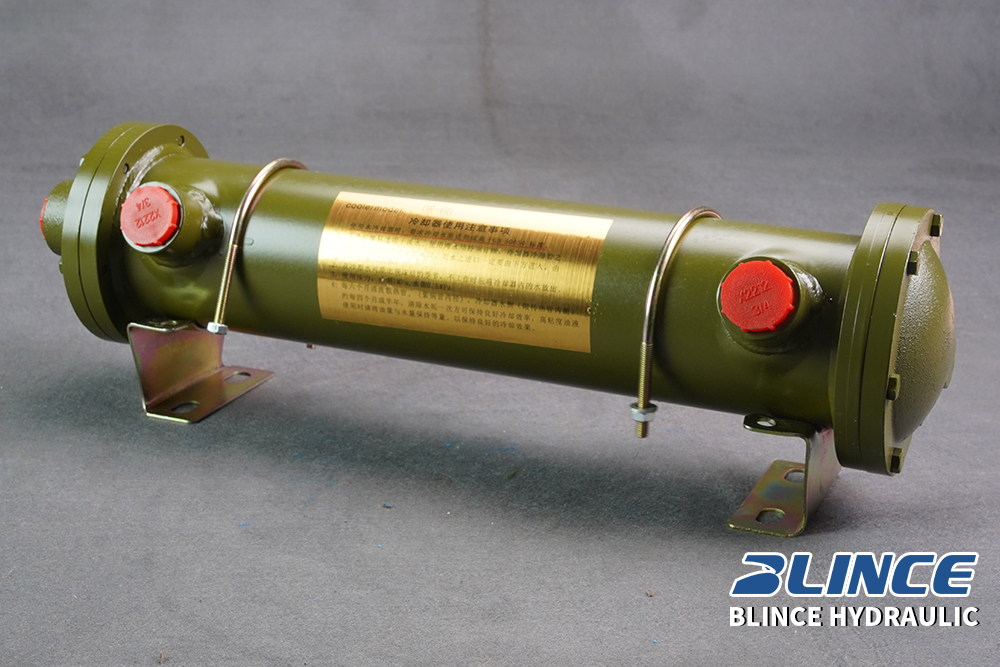

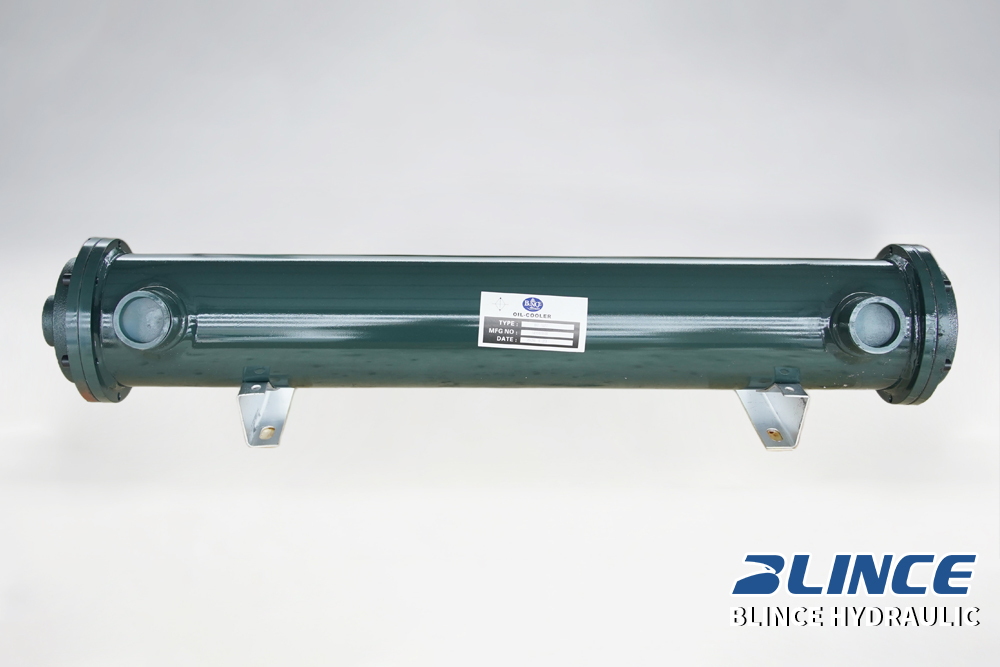

The BLINCE cooler-cleaning guide gives separate air-cooled and water-cooled maintenance paths. Cleaning intervals should be adjusted to the actual contamination rate; a weekly instruction from one application is not a universal interval for every machine.
Equipment-Specific Checks
Mobile Construction and Agricultural Equipment
A 24V fan may share a charging system with lights, controllers, solenoids, heaters, and starting loads. Measure fan supply with the engine and usual electrical loads operating. Check whether the fan circuit is isolated appropriately from sensitive controls and whether connectors are sealed for dust, washdown, salt, or fertilizer exposure.
Mounting is part of control performance. A temperature switch can command the fan perfectly while the cooler breathes engine discharge air or a screen packed with chaff. Make cleaning possible without removing major components.
Industrial Hydraulic Power Units
For 220V or 380V fan motors, the temperature switch may command a contactor, motor starter, VFD, or control input rather than carry motor power. Verify coil/control voltage, overload protection, phase and frequency, enclosure, emergency stop behavior, and restart logic with the electrical design. A thermal switch that closes after power returns can cause an automatic fan start.
Retrofitted Auxiliary Coolers
A retrofit adds hydraulic hose, fittings, electrical protection, brackets, and a new airflow path. Check the alternator or power supply as well as the fan. On the oil side, measure the return pressure created by the complete installed loop, not the loose cooler alone.
Cold-Start Machines
Cold oil raises pressure drop. A switch that keeps the fan off does not bypass the cooler core. If the circuit needs a thermostatic or pressure bypass, specify it separately and verify its opening behavior against oil viscosity, flow, and allowable return pressure.
Common Mistakes and Their Consequences
Replacing the Switch Because the Fan Runs When Bridged
Bridging proves only that part of the downstream circuit can run under that test. The original switch may be open because the sensor location is cooler than expected, the setpoint has not been reached, the switch lacks a ground path, or the wiring and logic are different from the assumed circuit. Test temperature and continuity using the manufacturer's method.
Copying Thread Size and Ignoring Pressure or Seal Material
Matching threads may fit mechanically while the sensing element, pressure rating, insertion depth, seal material, and temperature response remain wrong. Record the port standard and sealing method, not just the nominal diameter.
Running Fan Current Through a Small Thermoswitch
The contacts may weld closed, burn open, or fail intermittently. Use the switch contact rating for the exact load type and a properly rated relay/controller when required.
Measuring Voltage With the Fan Disconnected
A high-resistance connector can show normal voltage with no load. Test at the fan while it is commanded on, then perform voltage-drop checks across each side of the circuit.
Lowering the Setpoint to Cure an Undersized Cooler
Earlier airflow may delay the temperature rise. It does not change the core's heat-rejection curve or remove heat generated across a relief valve, throttling valve, filter, hose, or fitting.
Treating the Switch as Overtemperature Protection
A fan-control switch and a safety shutdown are not automatically the same device. If loss of cooling can create a hazardous condition, the machine risk assessment may require independent alarm, shutdown, monitoring, or redundancy.
Who Should Not Buy a New Temperature Switch Yet
Do not order the switch first if any of these are true:
the fan never receives its rated supply when commanded;
the fan motor is seized, noisy, drawing abnormal current, or turning the wrong direction;
the cooler core is blocked or installed in recirculated hot air;
oil temperature rises while a relief valve is passing continuous flow;
return pressure or cooler pressure drop has not been checked after a retrofit;
the old switch setpoint, reset point, contact rating, thread, or sensor location is unknown;
the cooler and fan are already running continuously but oil temperature still climbs.
These buyers need diagnosis or cooler/system sizing before a like-for-like switch. A replacement part chosen from thread and nominal voltage alone can make the fault harder to see.
Quote-Request Data That Prevents a Second Round of Questions
One complete quote package should contain:
Machine type, function, ambient range, and duty cycle.
Existing cooler, fan, switch, relay/controller, and power-supply nameplate photos.
Pump model/speed or measured flow; return flow through the cooler.
Working pressure, relief setting, and pressure before/after the cooler at the complaint condition.
Oil grade, reservoir volume, start temperature, temperature trend, and sensor location.
Required control behavior: on/off, variable speed, alarm, shutdown, manual override, and fail-safe state.
Fan voltage, phase/frequency where relevant, rated current/power, starting method, and manufacturer protection guidance.
Fuse/overload, relay/contactor/controller, conductor length, connector, ground path, and enclosure/IP requirements.
Cooler mounting envelope, air inlet/outlet clearance, contamination, cleaning access, and vibration.
BLINCE can then compare the hydraulic duty with the hydraulic heat-exchanger range, identify whether the public AD or DXB family is a plausible starting point, and list the remaining model-specific data needed before quotation. Final electrical design and machine safety validation remain the responsibility of the equipment designer and qualified personnel.
FAQ
Can a hydraulic oil cooler temperature switch power the fan directly?
Only if the switch manufacturer explicitly rates the contacts for the fan's voltage, load type, running current, and starting/inrush duty. Otherwise use the switch as a control signal for a suitable relay, contactor, or fan controller.
What temperature should a hydraulic cooler fan turn on?
There is no universal value. Use the required oil viscosity/temperature range, sensor location, ambient condition, duty cycle, cooler capacity, and component limits. Treat setpoints shown in another manufacturer's catalog as product options, not general recommendations.
Why does the fan work when I bypass the temperature switch?
The bypass confirms that the downstream circuit can operate under that test. It does not prove the switch is defective. Check actual oil temperature at the sensor, switch continuity at the specified temperature, wiring, ground/reference, relay logic, and hysteresis.
Why does the relay click but the fan stay off?
The power contacts, fuse, supply, connector, ground, conductor, or fan motor may be open or resistive. Measure voltage across the fan while the relay is energized and compare current with the motor data.
Is a 24V switch enough for a 24V cooler fan?
No. Voltage match is necessary but incomplete. Contact current, DC motor switching duty, inrush, connector, conductor, fuse, relay/controller, temperature range, and environmental rating also matter.
Should the sensor be in the cooler inlet, outlet, or tank?
Each location measures a different condition. The inlet sees hot return oil, the outlet shows cooled oil, and the tank shows a mixed bulk temperature. Follow the system control objective and component instructions; document the location with the setpoint.
Can a temperature switch stop cold-start back pressure?
Keeping the fan off does not remove hydraulic restriction through the core. Cold-start pressure management may require a correctly selected bypass or a separate offline cooling circuit.
Can I use the AD Series on a 12V machine?
The current BLINCE AD page lists 24V, 220V, and 380V fan options, not 12V. Do not assume a standard 12V configuration. Ask BLINCE whether a model-specific or custom option exists, and do not design around it until documented.
A Specific Next Step
Before requesting “the same temperature switch,” capture the fan, switch, relay, and cooler nameplates; measure fan-terminal voltage and current while energized; log oil temperature at the sensor and tank; and record pressure before and after the cooler during the hot complaint. Send those readings with the oil grade, flow, ambient temperature, duty cycle, mounting photos, and required control behavior.
BLINCE can use that package to check preliminary cooler-family compatibility, flow and pressure boundaries, fan-voltage fit, mounting risk, and which switch/control data are still missing. Do not energize an exposed fan or open a hot hydraulic circuit for these tests; use the machine's isolation procedure and qualified personnel.
This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.
