A hydraulic hose can fit both ports, hold pressure in the yard, and still be wrong for the machine.
The usual story begins after service. A loader gets a new pressure hose. A baler receives a replacement line that looks heavier than the old one. An attachment shop builds a two-wire assembly because two wires sound safer than one. The fittings crimp cleanly, the threads match, and the pump gauge reaches the expected pressure.
Then the machine works. The boom moves more slowly when the oil is cold. A hose rubs the frame because the bend is too tight. A hydraulic motor loses speed after twenty minutes. One fitting becomes hotter than the hose beside it. The new assembly has not burst, so the hose is declared good and attention moves to the pump or valve.
That conclusion comes too early. Pressure is the obvious check because a burst is impossible to ignore. The quieter faults sit elsewhere. Oil may be squeezing through a small stem, the ferrule may be starting the bend, or a moving hose may be twisting a little farther on every cycle. Temperature and impulse duty change the result again. Blince's broader hydraulic hose selection guide covers the main families. Here, the narrower question is the one that commonly reaches a hose shop: SAE 100R1, SAE 100R2, or SAE 100R16?
It is tempting to read those numbers as a ranking. They are not. I would rather see a properly sized R1 on a suitable branch than an R2 hose dragged sideways into a misaligned port. A hard pressure line may justify R2. A crowded boom joint may point toward R16. The fattest hose on the bench can still be the poorest fit once stiffness, port load, and the actual oil passage are considered.
This guide is written for buyers, repair shops, maintenance teams, and equipment builders who need to choose a hydraulic hose and fitting assembly from real machine data. It covers published Blince product information, simplified flow calculations, field checks, common mistakes, and the information that makes a quotation useful.
SAE 100R1AT / EN 853 1SN: one high-tensile steel-wire braid. On a line that stays within its size-specific rating, it is often the easier hose to live with: less weight, less resistance while routing, and less force pulling at the port. Its pressure ceiling is not the same as R2's.

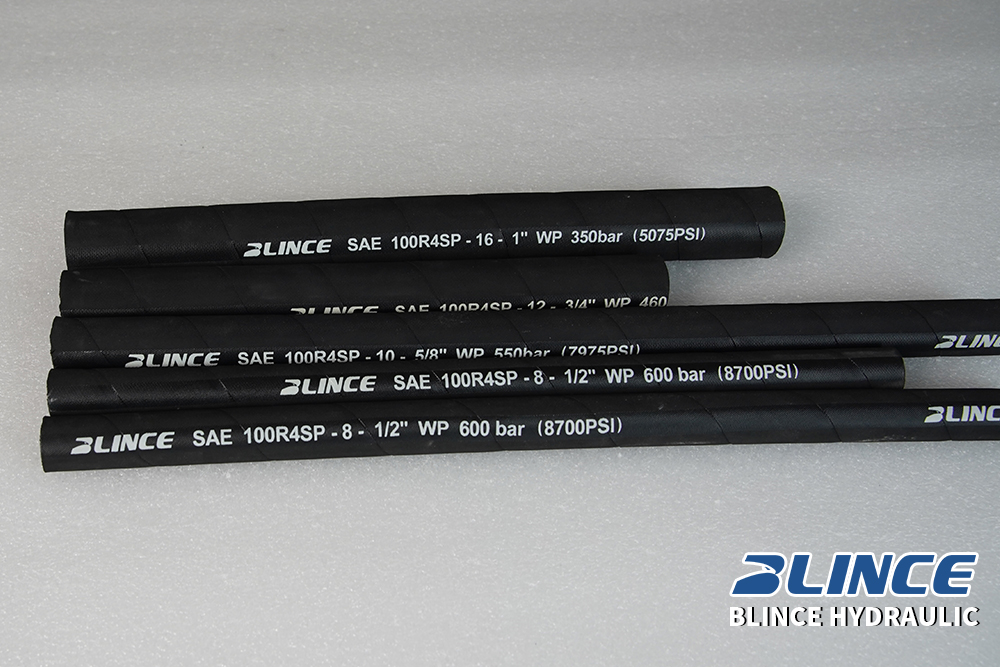

SAE 100R2AT / EN 853 2SN: two high-tensile steel-wire braids. This is where many higher-pressure jobs land. The price paid is physical rather than mysterious; the completed assembly is heavier and does not turn a tight corner as willingly.
SAE 100R16: a compact high-pressure family built with one or two wire braids, depending on size. The smaller bend radius helps when the available space is real, not theoretical. It still needs the R16 fitting and crimp combination specified for that hose.
The product name narrows the search. It does not finish the selection. Confirm the exact size table, working pressure, minimum bend radius, fluid compatibility, temperature, fitting series, and machine duty before ordering.
The following table summarizes family-level information published on the relevant Blince product pages. Working pressure varies with hose size, so a range must never be treated as the rating of every diameter.
Hose family | Reinforcement listed by Blince | Published temperature range | Published working-pressure information | Practical strength | Practical limitation |
|---|---|---|---|---|---|
1 high-tensile steel-wire braid | -40 to +100 degrees C | 40-250 bar, depending on size | Lower weight and easier routing for suitable medium-pressure service | Lower pressure capacity than R2 in many comparable sizes | |
2 high-tensile steel-wire braids | -40 to +100 degrees C | 8-41.5 MPa, or 80-415 bar, depending on size | Higher pressure capability and stronger reinforcement | More weight, stiffness, and routing demand | |
1 or 2 high-tensile steel-wire braids, depending on size | -40 to +100 degrees C | Check the exact size table | Compact construction and smaller bend radius | Requires verified R16 fitting and crimp compatibility |
These figures are useful for screening. They are not permission to apply 250 bar to every R1 size or 415 bar to every R2 size. Hose working pressure normally decreases as inside diameter increases, and the finished assembly is limited by its lowest-rated compatible component.
Start at the two ports and follow the oil. A line leaving the pump has a different life from one returning a motor to tank. The short hose beside a pilot valve is doing something else again, as is the line between a cooler and reservoir. Mark the line as pressure, actuator feed, motor return, pilot, suction, or transfer before discussing R1, R2, or R16. One machine may legitimately use all three because the oil is not doing the same job everywhere.
A pump pressure line can experience relief events and valve-induced spikes. A motor return line may operate at a lower average pressure but carry continuous flow and unwanted back pressure. A suction line has a different problem: vacuum resistance and internal support matter more than choosing a pressure hose with extra braid. Blince supplies dedicated hose families including SAE 100R4 suction hose, which should not be casually replaced by R1, R2, or R16 because the port threads happen to match.
For service notes, avoid writing only "replace 1/2-inch R2 hose." A more useful note reads: "Pressure line from the directional valve to the clamp cylinder, 210 bar working pressure, repeated end-of-stroke shock, 45 L/min, 1.1 m long, two moving bends, 78 degrees C oil, abrasion near the boom pivot." That sentence gives the hose supplier something to select against.

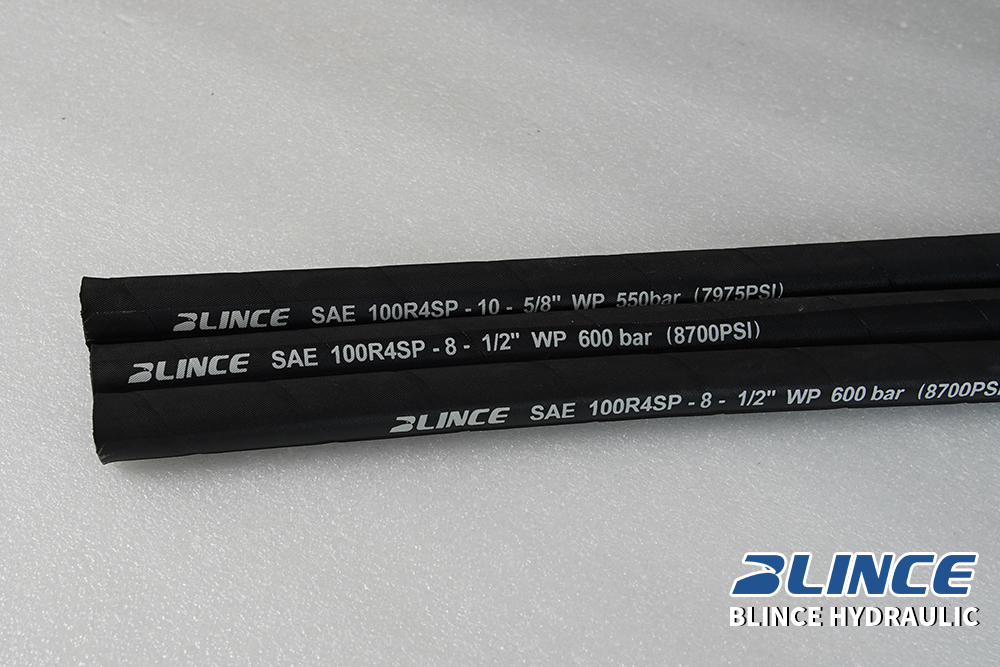

The steel braid carries pressure load and controls hose expansion. One braid does not mean weak, and two braids do not mean universally better. Each construction has a validated pressure and impulse envelope. The job is to stay inside it while preserving routing and assembly integrity.
R1's one-wire construction can reduce weight and stiffness. On a suitable branch line, this makes installation easier and reduces the force that the hose applies to ports during machine movement. The trade-off is that the same nominal size may not provide the pressure capacity or shock margin required by a harder circuit.
R2 uses two wire-braid layers. This can support higher working pressure, as the published Blince family range indicates, but the extra reinforcement changes handling. A short R2 assembly forced between misaligned ports may load the fitting, pull on a valve block, or kink near the ferrule. Higher pressure capacity does not excuse a bad hose path.
R16 is chosen for compact routing, not because the number 16 automatically outranks R2. Its smaller bend-radius capability can help inside crowded mobile machinery, yet the compact outside diameter changes the hose-and-fitting system. The hose must be crimped with compatible fittings, ferrules, tooling, and dimensions. A shop should not assume that an R2 fitting and crimp diameter transfer to R16.
Blince lists 40-250 bar for the R1 family and 80-415 bar for the R2 family, both depending on hose size. These ranges show the overall product envelope. They do not replace the row in the data table for the required inside diameter.
Take a circuit that spends most of the cycle near 180 bar. When the cylinder bottoms, the local reading jumps to 230 bar. A 200-bar hose has not become acceptable simply because 180 is the number seen most often; the brief 230-bar event is part of its working life. Check that event against the exact hose-size row and the rating of the fitting beside it. Measurement location matters too. As the hydraulic pressure gauge placement article shows, a gauge at the pump can miss what happens in a moving branch several components away.
Do not use burst pressure as working pressure. Burst data is a qualification and safety figure, not a normal operating target. Do not use a short commissioning run as proof of impulse life either. A line may survive five minutes and still fatigue after thousands of pressure cycles, especially if it is twisted or bent tightly at the ferrule.
The finished assembly takes the lowest rating among the hose, fitting, adapter, quick coupler, and other connected hardware. Installing a 415-bar-capable hose behind a lower-rated adapter does not create a 415-bar assembly. Pressure class must be checked as a chain.
A hose can look larger because it has more reinforcement while carrying the same, or even less, useful internal area. The machine responds to the inside diameter and fitting bore. Outside diameter is important for clamps and routing, but it does not tell you flow capacity.
Consider a simplified comparison at 60 L/min. If one flow path has a 12.7 mm effective ID and another has a 19.0 mm effective ID, the approximate oil velocities are:
Simplified effective ID | Flow area | Velocity at 60 L/min |
|---|---|---|
12.7 mm | 126.7 mm2 | 7.9 m/s |
19.0 mm | 283.5 mm2 | 3.5 m/s |
This is a calculation example, not a claim that every nominal 1/2-inch or 3/4-inch hose has those exact IDs. Actual hose and fitting dimensions must come from the manufacturer's table. The example simply shows why a small change in internal diameter can more than double velocity at the same flow.
High velocity raises friction loss. The problem becomes worse through elbows, adapters, undersized fitting stems, check valves, and quick couplers. A hose may carry the pressure without bursting while wasting useful power as heat. Blince's industrial hose and fitting selection guide also emphasizes matching hose ID to flow rather than choosing by thread alone.
There is a simple way to translate pressure loss into wasted power:
Power lost as heat (kW) = Pressure drop (bar) x Flow (L/min) / 600
At 60 L/min, an 8 bar loss wastes about 0.8 kW. If a continuous attachment runs for six hours, that restriction has converted roughly 4.8 kWh of hydraulic energy into heat, before other losses are counted. A heavier hose is not the automatic cure; the restriction may be in the fitting bore or coupler.
Many replacement assemblies are sold by thread: 1/2-inch BSP, 3/4-inch JIC, M22, or another connection description. Thread proves that two parts can screw together. It does not prove that the stem, insert, adapter, or coupler has enough internal area for the duty.
A 3/4-inch hose attached through a narrow reducing adapter may still behave like a smaller line at the restriction. The hose stays relatively cool while the adapter becomes hot. The actuator slows under high flow, and the pump gauge rises because oil is being forced through a small passage.
When the complaint began after a hose assembly change, compare pressure before and after the assembly while the same function operates. Then compare the hose ID with the fitting stem and any nearby hydraulic quick coupler. A coupler that is acceptable at 20 L/min may become a serious restriction at 60 L/min.

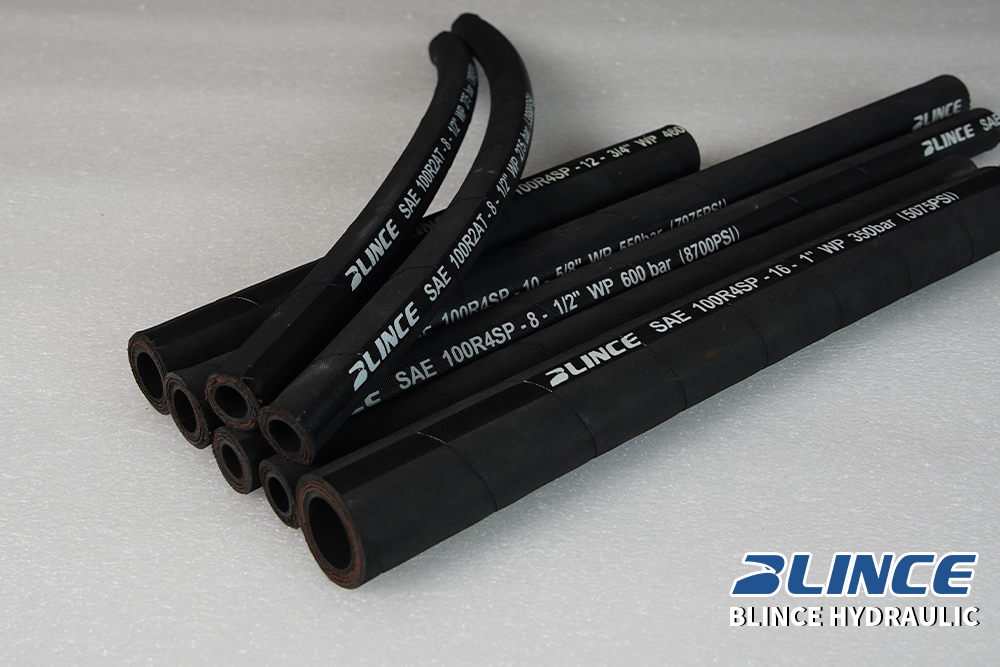

Minimum bend radius is not an installation suggestion. Bending tighter than the rated limit distorts the reinforcement, increases stress, and can reduce hose life. The worst location is often directly behind the ferrule, where the hose should leave the fitting straight before beginning its bend.
R16 can be attractive in compact equipment because Blince describes it as a smaller-bend-radius hose. That advantage has value in valve compartments, boom pivots, attachment heads, and power units where a conventional hose creates a loop that rubs nearby parts. It does not mean R16 can be folded into any available gap.
Measure the path with the machine in all positions. A loader hose that looks relaxed with the boom down may become tight at full lift. A steering line may twist when the axle articulates. A cylinder hose may rub only during the last 100 mm of stroke. Photographs should include both end positions, not only the parked machine.
If the route is so tight that the hose must be pulled into the port, change the route, fitting angle, clamp position, or assembly length. Using R2 because it feels stronger can make the port load worse. Using R16 may help, but only if its exact minimum bend radius and fittings suit the assembly.
A hose that is too short transfers machine movement into the fitting. A hose that is too long can snag, rub, or whip. The correct length allows pressure expansion and articulation without creating a loose loop in the danger area.
Twist is especially damaging because braid reinforcement is designed around axial pressure load, not continuous torsion. A hose may be twisted during assembly when the second fitting is tightened without a backup wrench. Lay-line markings can reveal this error: if the printed line spirals along a hose that should be straight, inspect the installation.
Do not use the hose to pull two components into alignment. Hydraulic ports are not structural mounting points. A valve, cylinder, motor, or pump should be mounted correctly before the hose is installed. The same principle appears in Blince's hydraulic cylinder installation guide: external mounting error can damage a correctly selected hydraulic part.
Blince publishes a -40 to +100 degrees C range for the R1 and R2 hoses discussed here and lists the same range for R16. That range still needs context. Fluid temperature inside the tube and ambient temperature around the cover are separate conditions. A hose routed beside an exhaust manifold may see a hotter cover than the tank thermometer suggests.
Cold starts tend to reveal two problems together. Thick oil takes more pressure to move through a narrow passage, while the cold hose is reluctant to flex through an already tight route. Heat changes the clues. The oil thins, leakage elsewhere in the circuit grows, and return flow can increase; meanwhile, the rubber is aging faster. A hose may therefore complain in winter at startup and in summer after lunch, for different reasons.
Read the fluid list literally. The published R1 and R2 information includes petroleum- and water-based hydraulic fluids, water-glycol oils, lubricating oils, emulsions, air, and water. That list does not quietly include every biodegradable fluid, fire-resistant formulation, solvent, or hot process liquid. When the medium is unusual, send its exact trade name or data sheet and have the tube compound checked before the hose is cut.
Farm machinery sees dust, fertilizer residue, weather, long storage, and short periods of heavy work. R1 can be appropriate on a correctly rated medium-pressure branch where flexibility matters. R2 may be the better choice on a higher-pressure implement circuit with repeated shock. R16 can help where hoses must pass through crowded frames or fold near a moving joint.
The purchase decision should also include abrasion protection and service practice. A two-wire hose dragged across a sharp bracket can fail before a properly clamped one-wire hose. Clean caps and plugs matter because each disconnected implement line can bring dirt into the hydraulic hose system.
Brush cutters, trenchers, sweepers, augers, and cold planers can demand continuous auxiliary flow. The hose set has to carry that flow in both directions without excessive loss. Return-side restriction deserves the same attention as the pressure side, especially with a hydraulic motor.
If an attachment runs at 60 L/min and the hose/coupler stack loses 8 bar, the earlier calculation shows about 0.8 kW turning into heat. R2 may provide sufficient pressure capacity, while R16 may simplify tight routing. Neither fixes a fitting stem or coupler that is too small.
Stationary power units often look easier because their hoses move less. They can still run for long duty cycles, so a small continuous pressure drop matters. R1 may suit suitable control or branch lines. R2 may be selected for higher-pressure pump and actuator connections. R16 can reduce crowding inside compact packaged units.
Record the oil temperature and pressure drop after the unit reaches steady operation, not only during a cold test. A hose that is acceptable for ten minutes may become a heat source during an eight-hour shift if the ID or fittings are restrictive.
Booms, clamps, outriggers, lift cylinders, and steering circuits combine movement with pressure shock. R2 is often considered because of its higher pressure envelope, but routing is just as important. A hose that bends tightly at the ferrule or rubs against a pin is not protected by an impressive pressure rating.
Use abrasion sleeves, clamps, guards, and suitable fitting angles where needed. Leave enough length for articulation without allowing the hose to enter a pinch point. If the machine geometry demands a compact hose, evaluate R16 with the supplier's routing and crimp data.
Choose R1 when the exact size rating covers the working and peak pressure, the line duty is suitable, and the installation benefits from lower weight or flexibility. It can be a sensible, economical hose rather than a compromise.
Advantages of R1:
One-wire construction is generally lighter and easier to route.
It can reduce unnecessary stiffness and port load.
Blince lists a broad -40 to +100 degrees C temperature range.
It is available for petroleum- and water-based hydraulic fluids, subject to exact compatibility.
Limitations of R1:
The published family pressure range is lower than R2's at the upper end.
It may not suit severe pressure shock or demanding high-pressure duty.
A flexible hose can still fail from abrasion, twist, or undersized fittings.
Who should not buy R1: Do not choose it when the required size does not meet the machine's working and peak pressure, when the duty has severe impulse beyond the hose specification, or when the line requires suction/vacuum construction rather than a pressure hose.
Choose R2 when the exact size and assembly need the higher pressure capability of two wire braids, and the machine has enough routing space to respect the bend radius without forcing the ports.
Advantages of R2:
Two-wire reinforcement supports a higher published pressure envelope.
It suits many demanding pressure-line applications.
It uses oil- and abrasion-resistant synthetic rubber construction.
Limitations of R2:
It is generally heavier and stiffer than comparable R1 hose.
Extra reinforcement does not increase the fitting bore or correct high fluid velocity.
A short, forced R2 assembly can apply harmful load to ports and brackets.
Who should not buy R2: Do not buy it merely because "two wire is safer." If the line is low or medium pressure, highly mobile, tightly routed, or flow-limited by a small stem, R2 may add stiffness without solving the actual problem.
Choose R16 when compact routing and a smaller bend radius are genuine design needs and the required pressure, size, fluid, temperature, fitting, and crimp specifications are available.
Advantages of R16:
Compact construction suits crowded mobile machinery.
Smaller bend radius can reduce oversized loops and rubbing.
The family uses one or two high-tensile wire-braid layers depending on size.
Limitations of R16:
Compact dimensions require the correct fitting and crimp system.
Replacement availability may be less universal than common 1SN/2SN assemblies in some markets.
Smaller outside diameter does not remove the need to verify inside diameter and pressure loss.
Who should not buy R16: Hold the order if the shop plans to use an R2 fitting and "adjust the crimper until it looks right." R16 also makes little sense when a 45-degree fitting or a moved clamp would correct the route with a familiar, fully validated assembly.
Question | Why it matters | Evidence to send |
|---|---|---|
What is the line function? | Pressure, return, suction, pilot, and drain lines need different construction | Circuit sketch and port locations |
What are working and peak pressures? | Family names do not replace size-specific ratings | Readings under real load |
What is the actual flow? | Flow and ID determine velocity and pressure loss | Pump data and duty-cycle notes |
What is the hose ID and dash size? | Thread and outside diameter are not enough | Hose marking and cut-end measurement if safe |
What fluid and temperature are used? | Tube compatibility and heat affect life | Oil type, cold-start and hot-running temperatures |
How does the hose move? | Bend radius, twist, length, and abrasion decide survival | Photos at both travel limits |
Which fittings and crimp data apply? | The hose assembly is a matched system | End types, angles, ferrules, supplier part numbers |
Did the complaint begin after service? | A changed bore, route, or coupler can create a new restriction | Old and new assembly comparison |
If several answers are missing, a quotation can still be preliminary, but it should be labeled that way. A hose selected only from thread, outside diameter, and a maximum pressure printed on an old cover may fit the machine without fitting the work.
Two wire braids increase pressure capability, but they also change weight and flexibility. If R1 meets the exact pressure and duty requirement, R2 may add stiffness and port load without adding useful machine performance.
The top of a published range belongs to certain sizes. Check the exact row for the hose ID being purchased. Never assign 250 bar to every R1 hose or 415 bar to every R2 hose.
A fitting can screw into the port and still restrict flow. Compare the hose ID, fitting stem, adapter, and coupler passage. The narrowest part often explains why a new assembly runs hot.
Pressure reinforcement does not automatically provide vacuum resistance. A suction hose can collapse internally while looking normal outside. Use a hose designed and rated for suction service.
Look at the first few centimeters behind the ferrule. They should be straight. If the curve starts there, every pressure cycle works the same small area of wire and rubber until cracking or seepage finally makes the error visible.
R1, R2, and R16 can have different cover thicknesses, reinforcement, fitting series, and crimp diameters. Use the validated hose-and-fitting combination and current crimp chart.
Return pressure can reduce motor torque, slow a cylinder, stress seals, and create heat. Measure the return side under real flow instead of calling every return line "low pressure."
Cold viscosity, hot leakage, machine movement, and continuous flow change the result. Inspect and measure the hose after the machine reaches normal working temperature and carries the actual load.
"Need 1/2-inch two-wire hose, 1 meter, BSP ends" is enough to copy dimensions. It is not enough to check the job. A field note can still be short, but it should sound more like this:
Skid-steer brush cutter, auxiliary circuit, about 60 L/min. We see 190 bar while cutting and a brief 230 bar when the blade stalls. After 35 minutes, return oil is at 82 degrees C. The old line is marked SAE 100R2AT -12; it has a straight end, a 90-degree end, and rub marks beside the coupler bracket. It sweeps through roughly 70 degrees. Photos show both travel limits. Please check the hose family, actual ID, pressure rating, bend radius, fitting match, and crimp data rather than copying the old route.
Now the supplier has something worth challenging. The answer may be a different hose; it may instead be a larger coupler bore, another fitting angle, or a clamp moved 40 mm. The note also gives the workshop a baseline when the operator reports that the machine "feels different" a month later.
R2 earns its place when the selected size needs its two-wire pressure capability and the route has room for the stiffer assembly. Where R1 already covers pressure, peaks, and duty, moving to R2 may add weight and port load without changing what the actuator receives.
Possibly, but not from size alone. Check working pressure, outside diameter, bend radius, fitting compatibility, crimp data, route, movement, and available space. The R2 assembly may be harder to route even when the threads match.
Not from the marking alone. Put the two size rows beside each other, then check pressure, ID, bend radius, and temperature. If R16 wins that comparison, build it with the fitting and crimp specification validated for R16; the old R2 setup is not evidence.
Blince lists -40 to +100 degrees C for the R1AT/1SN, R2AT/2SN, and R16 families discussed here. Confirm whether the limit applies to the actual fluid, ambient exposure, and duty of the final assembly.
Start by laying the old and new flow paths side by side. A smaller bore may be hiding inside the stem, reducer, or coupler even when the outside hose looks larger. A kink or partly seated quick coupler produces similar symptoms. Pressure readings on both sides of the changed section, taken during the same loaded movement, will show whether the new path is consuming pressure.
A larger ID can reduce velocity and friction loss, but it does not reduce the pressure required by the load. Oversizing also affects cost, routing, oil volume, and fitting size. Select ID from flow and acceptable pressure loss, not from the idea that larger is always safer.
Use kW = bar x L/min / 600. An 8 bar loss at 60 L/min converts about 0.8 kW into heat. The loss may come from the hose, fitting, adapter, valve, filter, or coupler, so measure across the suspected section.
Usually not. The pump inlet needs a hose that can resist vacuum without folding inward. That is why a purpose-built suction construction such as SAE 100R4 is checked for the job instead of choosing R1 or R2 merely because its pressure number looks generous.
Give the supplier the failure story as well as the dimensions: machine and line function, old hose marking, ID or dash size, loaded pressure and any peak, flow, fluid, hot and cold temperature, finished length, both end connections, fitting clocking, movement, rub points, and route photographs. If one of those items is unknown, say so rather than filling the gap with a guess.
SAE 100R1, 100R2, and 100R16 are different tools. R1 offers one-wire flexibility for suitable duties. R2 offers two-wire pressure capacity for harder lines. R16 offers compact routing where bend space is limited. None should be selected from the printed standard alone.
Start with line function, pressure, flow, temperature, movement, and the narrowest internal passage. Then check the exact hose-size row, fittings, crimp data, and routing. A hose that fits the ports is only a candidate. The correct assembly must also carry the oil without excessive pressure loss and survive the way the machine moves.
For an R1, R2, or R16 hose quotation, send Blince the existing hose marking, machine model, line function, working and peak pressure, flow, oil temperature, end connections, overall length, fitting orientation, and route photos. Blince can compare hydraulic hoses, fittings, and related components before the replacement is crimped, helping the next assembly fit both the machine and the job.
