Low Speed High Torque Hydraulic Motors: What Fails First, What Actually Matters, and How Engineers Should Select One
Views: 0 Author: Site Editor Publish Time: 2026-06-09 Origin: Site
A trenching machine does not usually fail in a dramatic way. The operator first notices a small hesitation at low speed. Then the auger stops for half a second when the soil changes from loose clay to compacted gravel. The wheel drive begins to crawl instead of rotate smoothly. The pressure gauge still looks acceptable.
That is the trap.
Pressure can be present while useful torque disappears. In a worn low speed high torque hydraulic motor, the missing energy is often not outside the motor. It leaks internally across clearances that were once controlled in microns. A small amount of wear at the rotor, stator, side plate, distributor valve, or shaft seal zone changes the pressure balance. Volumetric efficiency falls. Low-speed crawling appears. The operator increases throttle. Heat rises. Wear accelerates.
But wear is inevitable. Tolerances shift.
The engineering question is not whether a hydraulic motor can produce torque on a test bench. Most can. The harder question is whether the motor can keep acceptable volumetric efficiency after oil contamination, load shock, temperature rise, and repeated reversals have changed the geometry inside the unit.
This is where the orbit hydraulic motor still earns its place in agricultural machines, trenchers, sweepers, skid steer attachments, forestry tools, compact conveyors, and small hydraulic motors used in auxiliary drives. Its value comes from a simple physical fact: large displacement can be packaged into a compact body, allowing high torque at relatively low shaft speed.
1. How does a hydraulic motor work inside an orbit motor?
The common answer is too shallow: “Pressurized oil enters the motor and turns the shaft.” Correct, but not enough.
In an orbit motor, the real work happens inside a gerotor or geroler gear set. The rotor has one fewer tooth than the outer stator. As pressurized oil enters one group of expanding chambers, another group of chambers discharges oil back to tank. The rotor orbits inside the stator. A cardan shaft or drive link converts that orbital motion into shaft rotation.
In a roller stator hydraulic motor, the outer stator uses rollers instead of fixed tooth surfaces. This reduces sliding friction at the tooth contact zones. The pressure field is still cyclic, but the contact stress is better managed because rolling contact replaces much of the sliding contact seen in simpler gerotor designs.
That distinction matters under low-speed load.
At high speed, inertia can mask torque ripple. At very low speed, it cannot. Every pressure chamber must seal, fill, discharge, and transition cleanly. If the rotor tip clearance, end face clearance, or distributor timing is poor, the motor no longer behaves like a positive displacement device. It behaves like a controlled leak.
The operator feels it as crawling.
2. Why internal clearance controls motor life
A hydraulic motor is not a sealed block of metal. It needs controlled leakage to lubricate internal surfaces. Zero clearance would seize the motor. Excessive clearance wastes flow and creates heat. The correct range is narrow.
Three clearance zones usually decide the useful life of an orbit motor:
Radial clearance between rotor and stator profile
Axial clearance between gear set faces and wear plates
Valve plate or distributor clearance controlling port timing and cross-port leakage
When these clearances grow, three things happen.
First, the pressure chambers cannot hold differential pressure. Flow escapes from the high-pressure side to the low-pressure side. Volumetric efficiency drops. Second, leakage flow generates local heat, and heat lowers viscosity. Lower viscosity increases leakage further. Third, the loss is non-linear at low speed because there is less available flow per revolution to hide the leakage.
This is why a worn motor may still rotate fast without load, yet fail badly under slow loaded operation.
A buyer looking only at displacement and rated pressure misses this mechanism. A 400 cc/rev motor from two suppliers may have similar catalogue numbers, but the working behavior depends on metallurgy, heat treatment, surface finish, grinding stability, seal groove geometry, valve timing, and inspection discipline.
At Blince Hydraulic, our engineering discussions around LSHT motors on blince.com normally start with the duty cycle, not the model code. The model code comes later.
3. Hydraulic oil vs motor oil: why the wrong oil kills precision clearances
The search term “hydraulic oil vs motor oil” appears simple. In motor selection, it is not simple at all.
Engine motor oil is designed for combustion engines. It must handle soot, fuel dilution, oxidation byproducts, high localized temperatures, detergency requirements, and boundary lubrication in engine bearings. Hydraulic oil has a different job. It must transmit power, release air quickly, resist foaming, maintain viscosity under shear, protect against wear, and remain stable as a control medium inside valves, pumps, and motors.
A hydraulic motor is sensitive to the oil film between moving precision surfaces. If the oil viscosity is too low at operating temperature, leakage rises and the motor loses volumetric efficiency. If the viscosity is too high during cold start, inlet filling becomes poor, pressure drop increases, cavitation risk rises, and the motor may respond slowly.
Air release matters too.
Foamed oil compresses. Compressible oil does not transmit pressure cleanly. In low-speed control, entrained air can feel like mechanical backlash. The motor starts late, then jumps. In an auger or wheel drive, that delay can become dangerous because the load is not constant.
A proper hydraulic oil also needs anti-wear chemistry suited to pumps, motors, and valves. Zinc-based anti-wear fluids are common in many systems, while ashless formulations may be selected for environmental or compatibility reasons. The point is not the label. The point is viscosity grade, additive chemistry, seal compatibility, oxidation stability, water control, and cleanliness.
Wrong oil creates the perfect failure chain: poor film strength, aeration, higher temperature, accelerated wear, increased internal leakage, and finally low-speed crawling.
4. ISO 4406 cleanliness: why a few microns can destroy a motor
Solid particles do not need to be large to be destructive. The most damaging particles are often close to the size of the working clearance. They enter the contact area, bridge the oil film, and create abrasive wear. The process is slow. Then it is sudden.
ISO 4406 gives engineers a method to code the contamination level of hydraulic fluid by particle count. A code such as 18/16/13 is often used as a practical cleanliness target in many mobile and industrial hydraulic systems, though the correct target depends on component sensitivity, pressure level, filtration layout, and duty cycle.
Why does this matter to an orbit motor?
Because the rotor and stator surfaces are not decorative surfaces. They are sealing surfaces. The same is true for valve plates and side plates. A hard particle carried through the high-pressure zone can scratch the sealing face. One scratch creates a leakage path. Many scratches reduce efficiency. The motor may still pass a basic rotation test, but the torque-speed curve has shifted.
This is where system design and manufacturing discipline meet.
The customer controls oil storage, flushing, filtration, breather quality, hose cleanliness, and commissioning. The manufacturer controls machining stability, deburring, washing, assembly cleanliness, heat treatment repeatability, and final test criteria. ISO 9001 does not make a hydraulic motor good by magic. It provides a framework for controlling processes, traceability, inspection records, corrective action, and continuous improvement. In motor production, that means bore size records, gear set inspection, shaft hardness checks, seal batch control, pressure test procedures, and nonconforming part handling.
For a motor buyer, ISO 9001 should not be read as a slogan. It should trigger questions:
Is the rotor profile measured after heat treatment?
Are wear plates checked for flatness and surface finish?
Is assembly cleanliness controlled?
Is there a pressure and leakage test before packing?
Can the supplier explain failure feedback and corrective action?
These are boring questions. Good. Boring questions prevent expensive failures.
5. Extreme application analysis
Hydraulic auger motor: shock torque is the real test
A hydraulic auger motor does not see a smooth laboratory load. Soil changes every second. Clay sticks. Gravel jams. Roots create intermittent overload. The motor may stall, reverse, restart, and stall again.
The key requirement is not only rated torque. It is shock torque tolerance.
When an auger bit suddenly bites into hard material, the motor experiences a rapid pressure rise. If the relief valve is too slow or set too high, the pressure spike loads the shaft, spline, gear set, and mounting structure. A roller stator hydraulic motor is often preferred over a basic gerotor motor for severe auger service because rolling contact can better tolerate repeated loaded starts and high contact stress.
Displacement selection should begin with required auger torque, soil condition, bit diameter, and acceptable speed. Oversizing the motor gives torque but reduces speed at a fixed flow. Undersizing gives speed but overheats the system during stall. Neither error is small.
Hydraulic chainsaw motor: response and heat decide survival
A hydraulic chainsaw motor has a different problem. It needs fast response and sustained speed. The cutting chain needs stable surface speed, and the motor must handle rapid load changes as the chain enters and exits wood.
Here, low-speed torque is not the only target. Flow capacity, case drainage, bearing load, and heat rejection become critical. A motor that works well on a slow conveyor may be wrong for a chainsaw head because continuous high-speed operation produces more heat and exposes lubrication weaknesses.
A hydraulic chainsaw motor also needs attention to leakage flow and return line restriction. Excessive backpressure can push oil temperature upward and increase shaft seal stress. If the saw runs on a forestry machine, contamination risk is high because hose replacement and field maintenance are often done in dirty environments. Filtration cannot be an afterthought.
540 rpm hydraulic motor: why this speed keeps appearing in agriculture
The phrase “540 rpm hydraulic motor” is common in agricultural search behavior because 540 rpm is a familiar PTO reference point. Many implements were designed around that shaft speed. When engineers replace mechanical PTO drive with hydraulic drive, they often try to reproduce the same operating speed.
But matching 540 rpm is not just a speed problem. It is a flow and displacement problem.
A 100 cc/rev motor at 60 L/min may run near the 540 rpm range after efficiency losses. A 200 cc/rev motor at the same flow will not. If torque requirement is high, the engineer may increase displacement, but then more pump flow is required to keep 540 rpm. The hydraulic power must still be available:
Power kW ≈ pressure bar × flow L/min ÷ 600, before efficiency losses.
That is why many PTO conversion projects fail. The target speed is copied from the mechanical system, but the available hydraulic flow and cooling capacity are not checked.
6. Direct hydraulic hub motor or hydraulic drive motor with gearbox?
For wheel drives, the selection argument usually begins with packaging. It should begin with load.
A hydraulic hub motor puts torque directly at the wheel. This reduces mechanical components and can simplify machine layout. A conventional hydraulic drive motor combined with a hydraulic motor gearbox gives ratio flexibility, better protection for the motor in some layouts, and often higher wheel torque from a smaller motor displacement.
Neither architecture is automatically superior.
Table 1: Wheel Drive Architecture Decision Matrix
Selection factor
Hydraulic hub motor direct drive
Hydraulic drive motor + hydraulic motor gearbox
Initial purchase cost
Medium to high. Motor unit may be more specialized; wheel-end integration adds cost.
Medium. Standard motor plus gearbox may be cost-effective when volumes are stable.
System complexity
Lower hydraulic-mechanical part count at wheel end, but hub sealing and bearing loads must be managed carefully.
Higher part count: motor, gearbox, coupling, housing, oil fill, seals. Easier ratio tuning.
Transmission efficiency loss
Typically lower mechanical loss because there is no separate reduction gearbox, but motor must supply full wheel torque directly.
Gearbox adds mechanical loss, often 3–8% depending on gear type, lubrication, load, and temperature.
Maintenance MTBF expectation
Good when radial load, contamination, and seal protection are controlled. Wheel-end exposure can reduce life in mud, fertilizer, salt, or forestry debris.
Gearbox oil service adds maintenance. However, gearbox can isolate shock and allow motor operation in a more efficient speed range.
Torque density at wheel
Limited by motor displacement and pressure rating. Very large wheel torque may require a large motor.
High, because reduction ratio multiplies torque. Useful for compact machines and steep-grade operation.
Speed flexibility
Less flexible after selection. Speed depends mainly on displacement and flow.
More flexible. Ratio changes can tune wheel speed without changing motor displacement.
Best-fit applications
Compact machines, simple wheel modules, low-speed mobile equipment with limited space.
The ROI calculation should include downtime, not just purchase cost. A cheaper drive that overheats or crawls at low speed is expensive. A more complex gearbox system may be cheaper over its life if it keeps the motor inside a better efficiency island.
7. What Blince changes for OEM and ODM motor projects
Blince Hydraulic manufactures hydraulic motors, pumps, valves, cylinders, steering units, hoses, fittings, and customized hydraulic systems. For LSHT motor projects, the useful work usually happens before the first sample is built.
We ask for operating pressure, peak pressure, target speed, pump flow, oil viscosity grade, duty cycle, shaft load direction, installation angle, cooling method, filtration level, port type, flange pattern, and expected environment. The reason is simple: the motor does not fail alone. It fails as part of a system.
For OEM and ODM applications, common modifications include:
Thicker or longer output shaft for higher radial or torsional load
Special spline or keyed shaft to match existing equipment
Custom front flange or wheel mount interface
Side port, rear port, or special port thread configuration
Drain line addition for high backpressure or continuous-duty service
Seal material adjustment for temperature, oil type, or environmental exposure
Heat treatment and surface finishing control for gear set durability
Batch inspection records for critical dimensions and performance testing
A catalogue model is only the starting point. The final design should match the machine.
8. Technical specification matrix for Blince LSHT and roller stator motors
The following table gives engineering ranges for typical Blince LSHT orbit and roller stator motor families. Final values depend on exact frame size, displacement, shaft, flange, porting, bearing package, and duty cycle.
Table 2: Typical Blince LSHT Motor Parameter Matrix
Motor family
Typical construction
Displacement range
Typical max pressure differential
Typical torque range
Common use case
OMM / BMM
Compact gerotor orbit motor
8–50 cc/rev
10–14 MPa
15–90 N·m
Small hydraulic motors, conveyors, light feed drives
Augers, trenchers, forestry tools, heavy attachments
OMH / BMH
Heavy-duty orbit motor
200–500 cc/rev
17.5–22.5 MPa
510–830 N·m
Mixers, feed trucks, agricultural equipment
OMT / BMT
High-torque roller stator motor
160–800 cc/rev
20–24 MPa
600–2,400 N·m
Wheel drive, drilling attachment, high-load rotary systems
OMV / BMV
Large frame LSHT motor
315–1,000 cc/rev
20–24 MPa
1,000–3,200 N·m
Heavy rotary drive, marine deck machinery, industrial winch

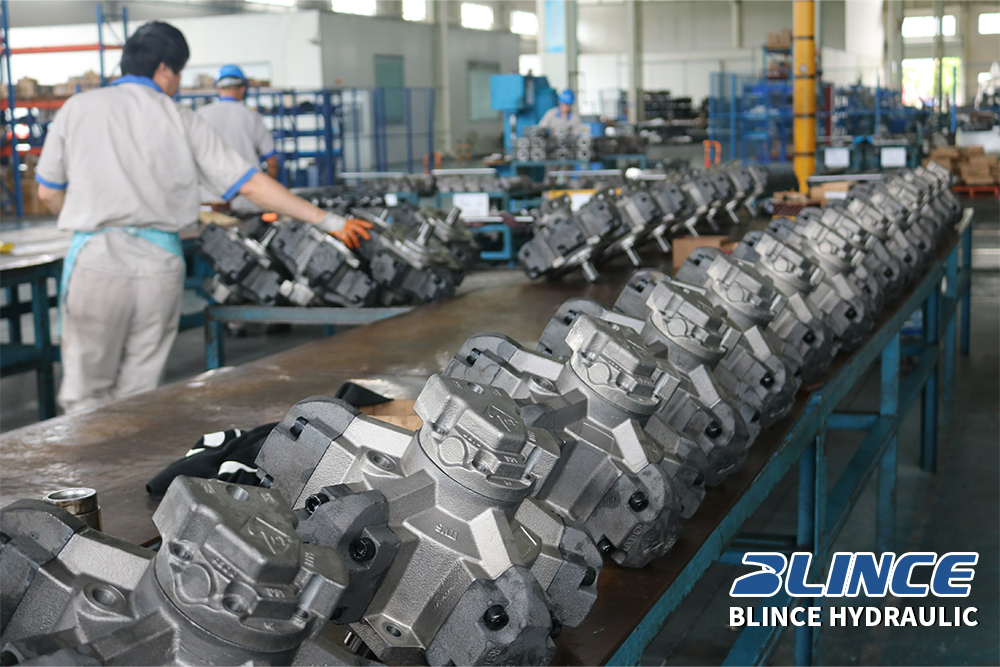

Radial piston travel motor
Piston motor with integrated drive options
398–2,800+ cc/rev
25–45 MPa depending on series
2,000–17,000+ N·m
Track drive, wheel drive, mining and construction machinery
These ranges should not replace a load calculation. They narrow the search.
9. Practical selection method
Start with torque. Not displacement.
Required torque comes from load, radius, friction, slope, cutting force, digging resistance, or acceleration demand. Once torque is known, estimate pressure differential and mechanical efficiency. Then calculate displacement. After displacement, check speed against available flow and volumetric efficiency. Then check heat.
A motor that meets torque but consumes too much flow will slow every other actuator. A motor that meets speed but works near relief pressure all day will overheat the oil. A motor that meets both but lacks a drain line in a high-backpressure circuit may fail at the shaft seal.
That is why selection should follow this order:
Load torque and peak shock torque
Available pressure differential
Required shaft speed
Available pump flow
Duty cycle and heat balance
Radial and axial shaft load
Oil cleanliness target under ISO 4406 logic
Viscosity at cold start and operating temperature
Port, flange, shaft, brake, and drain requirements
Test method after installation
The sequence is not elegant. It works.
10.FAQs
1. Why does low-speed crawling appear even when system pressure looks normal?
Because pressure alone does not prove torque delivery. If internal leakage across the rotor, stator, valve plate, or side faces has increased, pressure may still be measured upstream while effective chamber pressure collapses during slow rotation. Leakage becomes more visible at low speed because the motor has less flow per revolution to compensate.
2. Why can a few microns of contamination damage a hydraulic motor?
Particles near the size of internal working clearances can enter the oil film and scratch sealing surfaces. Once a scratch connects high-pressure and low-pressure zones, leakage rises. The damage may not stop the motor immediately, but it shifts the efficiency curve downward.
3. When does a system need an external drain line?
An external drain line is recommended when case pressure or return-line backpressure may exceed the shaft seal’s safe range, when the motor runs continuously at high load, when rapid reversals create pressure spikes, or when the motor design requires controlled case leakage removal. High backpressure without drainage is a common cause of seal failure.
4. Why does the shaft seal fail when backpressure exceeds about 150 bar?
Most standard shaft seals are not designed to hold full system pressure. If return pressure or case pressure rises too high, the seal lip overheats, extrudes, rolls, or is pushed out. The exact failure threshold depends on seal type, housing support, temperature, shaft finish, and pressure pulsation. The correct answer is usually not a stronger seal; it is better pressure management and drainage.
5. Why does a larger displacement motor run slower?
At the same pump flow, larger displacement means fewer revolutions per minute. It produces more torque at the same pressure differential, but consumes more oil per revolution. Speed cannot be discussed without flow.
6. Why does a hydraulic auger motor need shock torque capacity?
Soil load is discontinuous. The auger may hit roots, stones, or compacted layers. These impacts create pressure spikes and torsional shock. A motor selected only by steady-state torque may fail at the shaft, spline, gear set, or mounting flange.
7. Why is a roller stator motor often better for severe LSHT service?
A roller stator design reduces sliding contact at the stator interface. Under high load and low speed, this can reduce friction and wear compared with simpler gerotor contact. It does not eliminate contamination sensitivity. Clean oil still matters.
8. Can engine oil be used temporarily as hydraulic oil?
It may move the machine, but that does not make it correct. Engine oil may have unsuitable air release, viscosity behavior, additive chemistry, and seal compatibility for hydraulic motors and valves. Temporary use can create long-term damage, especially in precision LSHT motors.
9. Why does the motor heat up after it becomes worn?
Internal leakage converts hydraulic energy into heat instead of shaft work. As the motor wears, leakage rises. Oil temperature increases. Lower viscosity then increases leakage again. This feedback loop is why a mildly worn motor can deteriorate quickly under continuous duty.
10. How should an engineer verify a replacement motor after installation?
Measure pressure at inlet and outlet, check case drain flow if applicable, record no-load and loaded speed, observe temperature rise, inspect return filter debris, confirm rotation direction, and compare current draw or engine load against the original machine data. A successful replacement is verified by system behavior, not by bolt pattern alone.
