Choosing a hydraulic motor sounds simple at first. You check the old model, compare the size, ask for a quote, and then place the order. But anyone who has dealt with hydraulic equipment for a while knows that this is often where problems begin.
Two motors can look almost the same from the outside, but behave very differently once they are installed. One may start smoothly under load, while another one becomes weak after a few minutes. One may handle reversing and pressure shock without trouble, while another starts leaking from the shaft seal after a short period of use. In many cases, the problem is not that the motor is “bad”. It is simply the wrong motor for the system.
A hydraulic motor has to match the whole machine. Pressure, flow, displacement, torque, speed, oil condition, control valve, pump capacity, mounting dimensions and working environment all affect the final result. If you only choose by price or appearance, the risk of failure becomes much higher.
This guide explains how to choose a hydraulic motor in a practical way. It is written for equipment buyers, repair shops, hydraulic distributors, OEM manufacturers and machine owners who need a motor that actually works on the equipment, not just on paper.
If you are comparing different motor types, you can also review the hydraulic motor range for orbital motors, piston motors, travel motors, slewer motors and other hydraulic drive solutions.
Start from the machine, not from the motor model
When a customer sends only a motor model number, it helps, but it is rarely enough. A model number tells us what was used before, but it does not always tell us how the machine is working now.
For example, the original motor may have been selected for a lighter working condition. The machine may have been modified later. The pump may no longer deliver the same flow as before. The oil temperature may be higher than normal. The operator may also use the machine in a heavier condition than the original design expected.
That is why the first question should always be: what is the motor driving?
A hydraulic motor used on a conveyor does not face the same load as a motor used for a wheel drive. A motor on a harvesting machine has different requirements from a motor used on a mining vehicle. A slewing motor, a winch motor and a travel motor may all rotate, but the load pattern is completely different.
Before selecting the motor, it is better to confirm these points:
What machine is the motor used on?
What part does it drive?
Does the motor start with load or without load?
Is the rotation continuous or intermittent?
Does the motor need to reverse frequently?
Is the working speed fixed or adjustable?
Is the machine working outdoors, in mud, dust, heat or low temperature?
Is this a replacement project or a new design?
These questions look basic, but they prevent many wrong selections.
Understand what pressure and flow really mean
In hydraulic systems, pressure and flow are often discussed together, but they do different jobs.
Pressure is related to torque. Flow is related to speed.
This is also why a larger motor is not always the better choice. A larger displacement motor can produce more torque under the same pressure, but it will also run slower under the same flow. If the pump flow is limited, changing to a larger displacement motor may solve the torque problem but create a speed problem.
The opposite is also common. A smaller displacement motor may rotate faster, but once the equipment is loaded, it may not have enough torque to keep working.
A good motor choice is not about choosing the biggest displacement. It is about finding the right balance between torque and speed.
Compare the common types of hydraulic motors
Different motor structures are designed for different jobs. If you understand the general character of each type, selection becomes much easier.
Gear hydraulic motor
A gear motor is simple, economical and easy to maintain. It is often used where the system needs medium torque and relatively higher speed. Many simple rotary drives, conveyors, fans and light industrial machines use gear motors.
The main advantage is cost. The structure is straightforward, and replacement is usually not complicated. But gear motors are not usually the best choice for heavy low-speed work. If the machine needs high starting torque or smooth low-speed control, another motor type may be more suitable.
Orbital hydraulic motor
Orbital motors are very common in agricultural machinery, road equipment, sweepers, augers and small construction attachments. They are compact and can provide good low-speed torque at a reasonable cost.
For many machines, an orbital motor is a practical choice. It is not too expensive, the installation is simple, and there are many displacement options. This is why it is often used on seeders, harvesters, sweepers, small winches and light wheel drives.
However, orbital motors also have limits. If the machine has heavy impact load, high pressure, frequent shock or very demanding travel drive requirements, a radial piston motor may last longer.
Vane hydraulic motor
Vane motors usually run smoothly and produce less noise than some other motor types. They are often used in industrial equipment where stable rotation is more important than very high torque.
The weak point is oil cleanliness. A vane motor does not like dirty oil. If the system has poor filtration or the oil is contaminated, wear may appear faster.
Axial piston hydraulic motor
Axial piston motors are used in higher-pressure and higher-efficiency systems. They can be fixed displacement or variable displacement. For machines that need better speed control, higher power density or more efficient transmission, piston motors are often a better option.
Radial piston motors are often used where the machine needs strong low-speed torque. Travel drives, wheel drives, mining machinery, forestry equipment and heavy construction machines often use this type of motor.
The reason is simple: these machines do not just need rotation. They need force at low speed. They need the motor to start under load, handle shock, and keep working in rough conditions.
For this kind of application, choosing a cheaper light-duty motor may look attractive at the beginning, but it often creates higher cost later.
Do not choose torque only by feeling
Many buyers describe the problem as “the motor has no power”. In hydraulic terms, this usually means the motor does not have enough output torque under the actual working condition.
Torque is affected by displacement, pressure difference and motor efficiency. If the pressure is not enough, torque will be low. If internal leakage is serious, torque will also drop. If the displacement is too small for the load, the motor may rotate when unloaded but stop or slow down when the machine starts working.
For machines such as augers, wheel drives, winches and heavy rotating equipment, starting torque is especially important. Some motors can run once they are moving, but struggle at startup. This is a typical sign that the motor is not properly matched with the load.
When checking torque, do not only look at the maximum value in the catalog. Maximum torque is often a short-time value. The more useful figure is the continuous working torque under real working pressure.
A safer method is to calculate the working load first, then leave enough margin for starting, reversing and occasional overload.
Speed must match the pump flow
Motor speed depends mainly on oil flow and motor displacement. If the pump cannot provide enough flow, the motor will not reach the expected speed. This happens quite often in replacement projects.
For example, a buyer replaces the original motor with a larger displacement model because he wants more torque. After installation, the machine becomes stronger but much slower. This is not a motor quality issue. It is the result of changing the displacement without checking the available flow.
Before confirming the motor, check the pump flow at normal engine speed. Do not only check the theoretical pump displacement. Actual flow may be lower because of pump wear, engine speed, leakage or system settings.
Also check whether the valve and hoses can handle the required flow. A valve with a small flow capacity can create pressure loss and heat, even if the pump and motor are correct.
If the hydraulic pump also needs to be matched or replaced, the hydraulic pump selection should be considered together with the motor.
Pay attention to pressure rating
Every hydraulic motor has a pressure limit. Usually, the catalog gives continuous pressure and peak pressure. These two numbers should not be treated as the same thing.
Continuous pressure means the motor can work at that level for a longer time. Peak pressure is only for short moments, such as starting, reversing or temporary overload.
If a motor works near peak pressure all the time, its service life will be reduced. Seals, bearings and internal parts may fail much earlier.
In real machines, pressure shock is also worth watching. Travel drives, winches and machines with frequent reversing can produce sudden pressure peaks. If the motor is not suitable for that kind of working condition, leakage or internal damage may appear even when the normal working pressure looks acceptable.
Case drain is a small detail that causes big trouble
For many piston motors and high-pressure motors, the case drain line is not optional. It is part of the motor’s protection.
The motor will always have a small amount of internal leakage. This oil needs a path back to the tank. If the case drain is blocked, connected to a high-pressure return line, or installed with too much back pressure, pressure inside the motor housing will rise.
The result may be shaft seal leakage, overheating, abnormal noise or bearing damage.
This is a very common problem in field installation. The motor is replaced, the main ports are connected, the machine starts running, and everything seems fine at first. After some time, oil appears around the shaft seal. Then people suspect the motor quality. But when the drain line is checked, the real reason becomes clear.
If the motor has a drain port, connect it correctly. Keep the drain line low pressure and return it safely to the tank.
Oil condition can change the whole result
Hydraulic oil is not just “oil”. It affects lubrication, sealing, cooling and power transmission.
Oil that is too thick can make the motor slow at startup, especially in cold weather. Oil that is too thin can increase internal leakage and reduce efficiency. Dirty oil can damage precision parts quickly. Water in the oil can create rust, poor lubrication and unstable operation.
Before choosing a motor, confirm the oil type and working temperature. Some systems use standard mineral hydraulic oil. Some use fire-resistant fluid, biodegradable oil or special low-temperature oil. Seal material and internal design must be compatible with the oil.
For equipment working in dusty or muddy environments, filtration is just as important as motor selection. A good motor installed in a dirty system will not perform well for long.
Mounting dimensions still matter
After torque, speed and pressure are confirmed, installation details must be checked carefully. This is especially important for replacement motors.
The main dimensions include:
Mounting flange
Shaft type and shaft size
Port size and thread type
Port position
Case drain port
Overall length
Rotation direction
Brake or reducer connection, if used
If the motor is used with a gearbox, travel reducer or wheel hub, small dimensional differences may create installation problems. For this reason, photos and drawings are very useful. A clear photo of the nameplate, shaft, flange and ports can save a lot of communication time.
If the nameplate is missing, measure the key dimensions instead of guessing.
Choose by application, not only by catalog

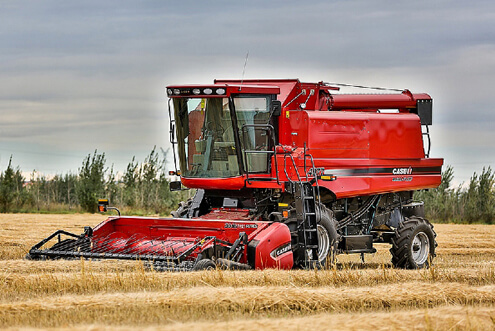

For agricultural machinery, many buyers care about practical performance and easy replacement. Orbital motors are often suitable because they are compact and cost-effective. They work well on seeders, sweepers, small harvesters, augers and similar equipment.
For construction equipment, the motor often faces higher pressure and heavier load. Travel motors, slewer motors and piston motors are more common. In this field, shock resistance and starting torque are very important.
For mining and forestry machines, working conditions are much harsher. Dust, impact, heavy load and long working hours are normal. A radial piston motor is often a safer choice than a lighter motor.
For industrial equipment, stable speed and smooth operation may matter more. Gear motors and piston motors can all be used depending on the required pressure, speed and load.
Compare hydraulic motor types before buying
Motor Type
Main Advantage
Limitation
Best For
Cost Level
Gear Motor
Simple, economical, easy to maintain
Limited low-speed torque, higher noise
Conveyors, fans, simple rotary drives
Low
Orbital Motor
Compact, good low-speed torque
Not ideal for very heavy shock loads
Agriculture, sweepers, augers, light wheel drives
Low to Medium
Vane Motor
Smooth running, lower noise
Sensitive to oil contamination
Industrial equipment, production lines
Medium
Axial Piston Motor
High efficiency, high pressure capability
Higher cost, more complex structure
Construction, marine, drilling, high-pressure systems
High
Radial Piston Motor
Excellent low-speed high torque
Larger size, higher price
Travel drives, mining, forestry, heavy machinery
High
The cheapest motor may not be the lowest-cost choice
Price matters. Every buyer cares about cost. But for hydraulic motors, the purchase price is only one part of the real cost.
A low-cost motor may be acceptable for a light-duty machine. But if it is used in a heavy-duty application, the real cost may appear later: downtime, repair labor, oil leakage, customer complaints, replacement parts and delayed production.
When comparing suppliers, look at more than the unit price. Also consider whether the supplier can help confirm the model, check dimensions, offer replacement suggestions and support batch supply.
For OEM buyers, consistency is also important. One good sample is not enough. The motor must be stable in repeated orders.
Key specifications to confirm with your supplier
Before asking for a quotation, prepare the following information. It will help the supplier recommend the correct motor faster.
Item
What to Confirm
Application
Machine type and motor function
Required Torque
Starting torque and working torque
Required Speed
Minimum and maximum rpm
System Pressure
Continuous pressure and peak pressure
Pump Flow
Flow rate at normal working speed
Displacement
Existing motor displacement or target displacement
Rotation Direction
One-way or reversible
Shaft Type
Straight shaft, splined shaft, tapered shaft
Mounting Flange
SAE, square flange, wheel flange or custom
Ports
Thread type, port size and position
Case Drain
Required or not required
Oil Type
Mineral oil, fire-resistant fluid or biodegradable oil
Working Environment
Temperature, dust, water, impact, outdoor use
Quantity
Sample order, batch order or OEM project
If you are replacing an old motor, clear photos of the nameplate, shaft, flange and ports are very helpful. If the nameplate is missing, measure the mounting dimensions and share the machine application.
FAQ
1. What is the most important factor when choosing a hydraulic motor?
The most important factor is the actual working requirement of the machine. Torque, speed, pressure, displacement and duty cycle should be checked together. Choosing only by model number or appearance can lead to wrong selection.
2. How do I know whether I need a high-torque hydraulic motor?
If the machine starts under load, drives wheels, rotates heavy equipment, works on slopes or faces shock loads, you usually need a high-torque motor. Travel drives, winches, augers and forestry machines often require strong starting torque.
3. What is the difference between flow and pressure in hydraulic motor selection?
Flow mainly affects motor speed. Pressure mainly affects motor torque. If the motor is slow, check flow. If the motor is weak, check pressure and torque demand.
4. Is a larger displacement hydraulic motor always better?
No. A larger displacement motor can provide more torque at the same pressure, but it also reduces speed under the same flow. The correct displacement depends on both torque and speed requirements.
5. When should I choose a radial piston hydraulic motor?
A radial piston motor is suitable for heavy-duty, low-speed and high-torque applications, such as travel drives, wheel drives, mining equipment, forestry machinery and heavy construction machines.
6. Can I replace an old hydraulic motor with a different brand?
Yes, but the replacement motor must match pressure, displacement, torque, speed, shaft, flange, port size, rotation direction and case drain requirements. Photos and dimensions are very important for replacement selection.
7. Why does my hydraulic motor leak oil after installation?
Possible reasons include excessive case drain pressure, wrong drain connection, damaged shaft seal, high return pressure, contaminated oil or incorrect installation. For piston motors, case drain connection should be checked first.
8. What information should I send to get a hydraulic motor quotation?
Send the application, required torque, speed, working pressure, pump flow, displacement, shaft type, flange size, port type, oil type, quantity and photos of the old motor if available.
9. Which hydraulic motor is best for agricultural machinery?
Orbital motors are commonly used in agricultural machinery because they are compact, cost-effective and suitable for low-speed high-torque operation. For heavier equipment, a piston motor may be required.
10. How can I reduce hydraulic motor failure?
Use clean oil, correct filtration, proper pressure settings, suitable oil viscosity, correct case drain connection, good alignment and regular inspection. Most motor failures are related to system conditions, not only the motor itself.
Final advice
A hydraulic motor should be selected as part of the whole hydraulic system. Do not look at the motor alone.
A good selection should answer these questions clearly:
Can the motor provide enough torque? Can it reach the required speed? Can it handle the working pressure? Does the pump provide enough flow? Is the oil suitable? Is the case drain installed correctly? Will the motor fit the machine? Can the motor survive the real working condition?
If these questions are answered before ordering, most selection mistakes can be avoided.
For light and medium-duty rotary drives, gear motors and orbital motors may be enough. For high-pressure systems, axial piston motors may be more suitable. For heavy low-speed travel or wheel drive applications, radial piston motors are often the better choice.
If you are not sure which hydraulic motor fits your machine, send the application details, working pressure, pump flow, required speed, photos and mounting dimensions to Blince Hydraulic. A correct selection at the beginning is always cheaper than solving a failure after installation.
