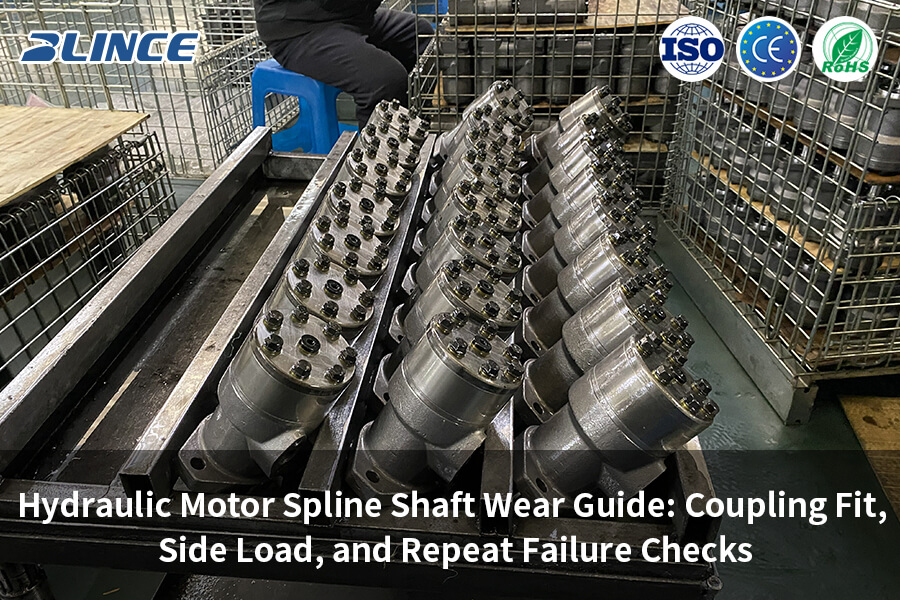

Hydraulic Motor Spline Shaft Wear Guide: Coupling Fit, Side Load, and Repeat Failure Checks

A worn hydraulic motor shaft usually does not introduce itself as a shaft problem. It arrives as a loose coupling, a stripped spline, a leaking shaft seal, a motor that chatters under load, or a drive that works for a week and then starts to knock again. Someone removes the guard, sees metal dust around the hub, and says the motor material must be soft.

Sometimes the motor really is worn out. But in many repeat failures, the hydraulic motor is only showing damage that began somewhere else in the drive: a poor coupling fit, a side-loaded pulley, a bent mounting bracket, a gearbox with bad input bearings, a case drain line with back pressure, or a hydraulic valve that shocks the motor each time it shifts.

That is why a shaft complaint should not start with the shaft diameter alone. It should start with the question: what is the motor being asked to drive, and how is that load reaching the output shaft?

Blince already has broader guides on hydraulic motor slowing under load and hydraulic motor torque loss. This article is narrower. It focuses on spline wear, coupling movement, shaft seal leakage near the output end, mounting face problems, and the checks that should happen before a buyer orders another motor with the same shaft and flange.

Quick Clues Before Ordering Another Motor

Treat the table like the first page of the job card. It tells you where to look, but it does not close the repair. I would still put a liquid-filled hydraulic pressure gauge on the circuit where it is safe to do so, then compare that with what the coupling, hub, guard, and mounting face are saying in photos and wear marks.

Start With the Driven Load, Not the Motor Shaft

Before choosing a replacement hydraulic drive motor, write down what the shaft is actually driving. A conveyor with a slack belt, an auger that bites into soil, a sweeper with sudden brush contact, a wheel hub, a mixer, and a gearbox input do not treat the same spline kindly. Also note whether the load eases in or arrives as a thump.

The same shaft size can live an easy life on one machine and fail early on another. A light conveyor with a flexible coupling is not the same as a chain drive with high tension. A wheel drive with a supported hub is not the same as a direct-mounted sprocket hanging on the motor shaft. If a buyer only writes "need 25 mm spline hydraulic motor," the most important part of the failure story has already been lost.

If the complaint is mainly speed or torque, the companion article on hydraulic motor running slow or weak is a better first read. For this article, the opening note should be more physical: where is the load carried, how far does the pulley or sprocket sit from the motor face, and exactly where did the damage appear: spline, keyway, seal land, shoulder, or bearing area?

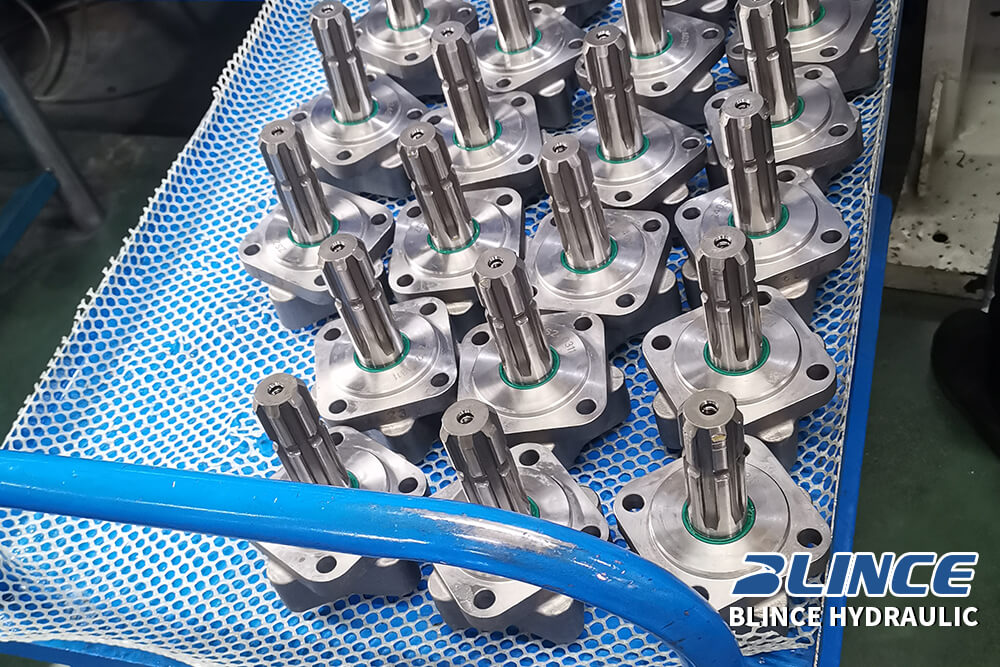

What Spline Wear Actually Tells You

A spline is supposed to spread torque over a contact length, not survive on two shiny corners. In the field that ideal is often lost. A loose hub, a short engagement, dirt packed into the teeth, or a small angle between the motor and the driven part can move the load to one strip of metal. After enough starts and reversals, the evidence shows up as polished teeth, reddish fretting dust, backlash, and a shaft that looks as if someone filed it a little every shift.

Do not judge spline wear only by the motor. Inspect the mating coupling or gearbox input at the same time. A new hydraulic motor installed into a worn female spline may begin its life with backlash already built in.

Fretting marks are useful because they remember movement that nobody saw. Rust-colored dust, black powder, or a bright patch on only one side of the spline usually means the joint has been moving under torque. If the hub uses a clamp screw, set screw, or key, do not stop at "it was tight." Look for a real locking bite, full contact, and a hub that has not simply stamped a witness mark on the shaft.

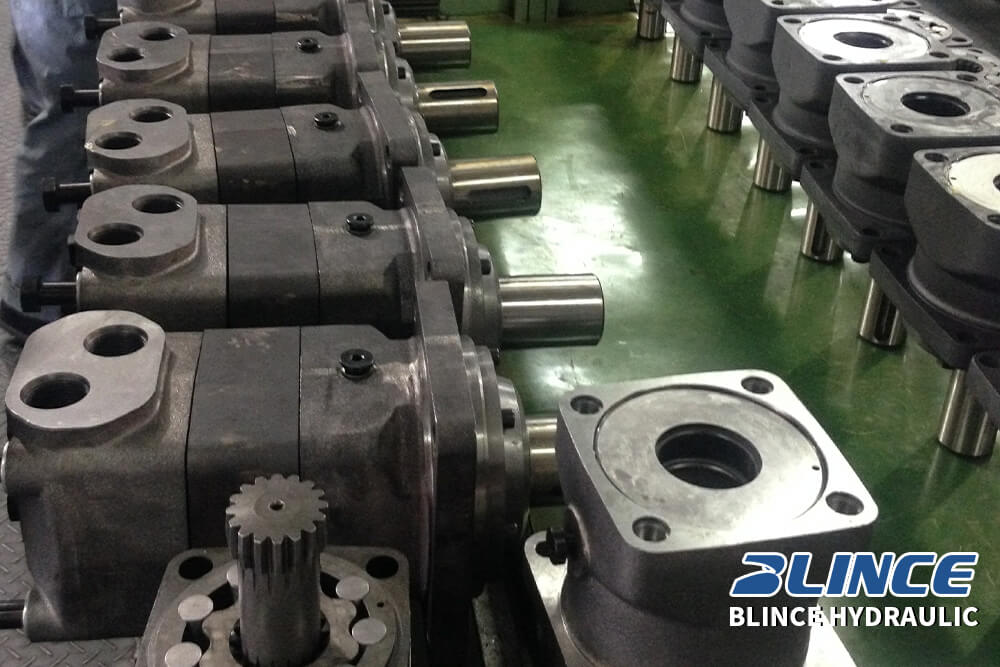

Coupling Fit: The Small Gap That Becomes an Expensive Failure

Hydraulic motor couplings are sometimes treated like simple adapters. That is a mistake. The hub bore, spline length, key fit, clamp force, insert hardness, and axial position all matter.

If the hub is too loose, torque is carried through impacts rather than full contact. If the hub bottoms against a shoulder before clamping properly, the connection may feel tight while still allowing movement. If the hub is installed too far out, only part of the spline carries load. If it is installed too far in, it may push against the seal area or motor bearing.

A flexible coupling can help with small alignment errors, but it cannot fix a badly positioned gearbox, bent bracket, or side-loaded sprocket. The same warning applies to motor and pump matching; Blince's article on hydraulic pump motor matching is useful because torque, flow, pressure, and heat are tied together in the same drive.

When a coupling fails, keep the broken insert, hub, key, and screws. They are not scrap yet. One side crushed more than the other may point to angular misalignment. A split insert after a pressure spike may point to torsional shock. A shiny keyway may point to poor key fit. A dark, hot insert may point to continuous flexing.

Side Load: The Hidden Enemy of Motor Shafts

Plenty of hydraulic motors are happy sending torque through the shaft but unhappy carrying a side pull from a pulley, chain, or belt. Some motor families allow more radial load than others; some need outside support. This is easy to overlook when the old motor comes off cleanly and the new one lines up with the same bolt holes.

A sprocket mounted far from the motor face creates leverage. A tight chain pulls the shaft sideways. A belt drive may add continuous radial load. A misaligned gearbox input may bend the shaft every revolution. The low speed high torque hydraulic motor selection guide explains why motor life depends on more than pressure and displacement.

If the machine needs a belt, pulley, sprocket, or overhung load, confirm the motor's allowable radial and axial load. In heavy applications, a supported output shaft, bearing block, gearbox, or different motor family may be required. A stronger motor body does not automatically mean the output shaft can accept the same side load.

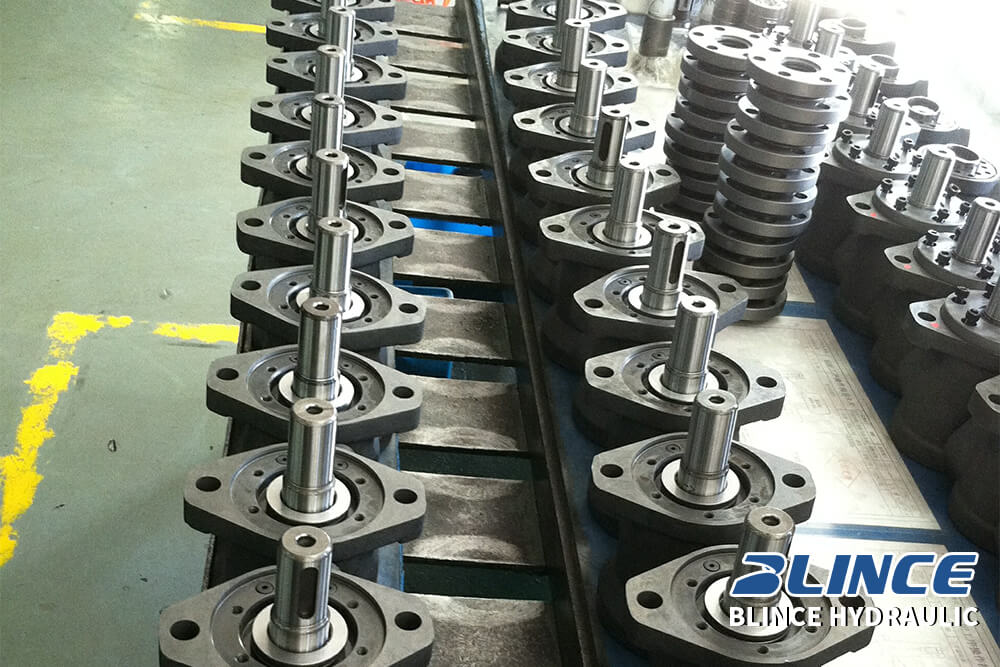

Mounting Face and Pilot Fit

The mounting face decides whether the motor sits square to the driven load. Paint, burrs, welding spatter, dirt, damaged pilot bores, oval bolt holes, or bent brackets can tilt the motor before the shaft turns.

The pilot should locate the motor; the bolts should clamp it. If the bolts are used to drag the motor into position, the installation is already forcing the shaft. If the mounting face has been repaired by welding, check flatness and perpendicularity instead of trusting the bolt pattern.

For machines using motors and cylinders in the same motion group, the article on hydraulic cylinder installation is a good reminder: side load and mounting error damage actuators even when the hydraulic part number is correct.

Shaft Seal Leakage Near the Output End

Oil around the shaft seal is easy to see, so the seal usually gets blamed first. I would still treat it as a clue, not a full diagnosis. A seal lip can be pushed by case pressure, rubbed by a moving shaft, cooked by hot oil, scored by dirt, or asked to run on a surface that was already scratched before the new seal went in.

For motors with an external case drain, measure drain pressure and inspect the drain route before replacing the seal. Blince's article on hydraulic motor case drain ports explains why motor leakage needs a low-restriction path back to tank.

Do not connect a case drain to a busy return line without checking pressure. Return pressure may rise when a filter plugs, a cooler is restrictive, a quick coupler is undersized, or a long hose carries hot oil back to the tank. A hydraulic hoses and fittings review is often part of a motor seal repair, not a separate shopping task.

Return Pressure Can Look Like a Motor Problem

A motor does useful work from pressure differential, not from inlet pressure alone. If return pressure is high, the useful pressure across the motor is lower, and case pressure may also become harder to control.

This is why a single pump outlet gauge can mislead the repair. If the pump outlet reads 160 bar, but the motor outlet or return side is also high, the shaft may see less useful torque than expected. The article on hydraulic pressure gauge placement is directly relevant here.

High return pressure can come from a small hose, reduced-bore fitting, tight quick coupler, clogged return filter, undersized cooler, or valve block passage. If the motor shaft or seal fails after a hose change, filter change, cooler installation, or attachment modification, measure the return path before blaming the motor.

Pressure Shock and Reversing Loads

A motor shaft may not fail from steady torque. It may fail from repeated shock. Rapid valve shifting, sudden load reversal, overrunning load, blocked attachment, or a brake release problem can hit the shaft harder than the average working load suggests.

When a hydraulic directional control valve shifts, the motor does not only see "flow on" and "flow off." Depending on the spool center and the plumbing, oil may be trapped, dumped, blocked, or reversed faster than the load can respond. A valve that behaved well on a cylinder circuit may be rough on a rotating drive.

On a winch, conveyor, wheel drive, or rotating attachment, watch the moment when the operator lets the lever go. A load that coasts, a load that stops hard, and a load that tries to overrun the motor are three different problems. Make-up oil, anti-cavitation protection, brake valves, and counterbalance valves are not small footnotes here; they can decide whether the spline wears slowly or fails in one ugly event.

Contamination Turns Small Movement Into Fast Wear

A coupling that moves slightly may survive for a while in clean conditions. Add abrasive dust, metal debris from a previous failure, water, or dirty oil, and the same small movement becomes a grinding process.

If the old motor failed internally, inspect the oil before installing the replacement. Particles can move through the hydraulic system, enter valves, scratch motor surfaces, and return later to attack the new unit. Blince's article on hydraulic contamination control is a useful companion for this reason.

Do not judge oil by color only. Pull a sample from a useful point, inspect filter debris, check the tank bottom, and look at hose ends. A hose replaced after a failure may carry cutting dust or rubber liner fragments if it was not cleaned properly.

Heat Makes Backlash and Leakage Worse

Cold tests can be too polite. Once the oil is hot, leakage paths open up, rubber parts relax, inserts lose some stiffness, and a loose hub may begin to talk. A motor that sounded fine for ten minutes in the yard may knock, leak, or lose pull after the real work warms the circuit.

When the shaft complaint appears late in the shift, write down oil temperature beside the torque complaint. A small return hose, tight fitting stack, dirty cooler, or overloaded cooler circuit can raise heat and case pressure together. If cooling is part of the fix, compare the circuit with a properly sized hydraulic heat exchanger, but do not let a cooler cover up a pressure loss that should have been removed.

The article on hydraulic oil cooler sizing explains the same trap from the thermal side: a cooler can remove heat, but it cannot decide where the heat was created.

Equipment-Specific Checks

Skid Steer Attachments

Skid steer attachments are good at finding weak joints. They put high flow through quick couplers and long hoses, then ask the motor to live with brush impact, soil changes, pavement bite, or debris entering the tool. Brush cutters, trenchers, sweepers, cold planers, and augers rarely load the shaft in a calm laboratory way.

If only one attachment keeps breaking couplings, put it next to one that behaves. Compare flow demand, hose length, coupler style, motor mount, hub condition, and whether the tool shaft has its own bearing support. The hydraulic quick coupler pressure drop guide is worth reading when the trouble started after a coupler, hose, or attachment swap.

Agricultural Machinery

Agricultural machines have their own rhythm. A motor may sit through storage, collect dust around the guard, see fertilizer residue on exposed metal, and then run long hot days with vibration and uneven crop load.

Check rust on splines, missing dust caps, dry coupling hubs, loose guards, and hose routing before treating every failure as a motor defect. If the machine has a tank breather problem, moisture and dirt may be entering through the reservoir; the hydraulic tank breather guide gives a useful oil-path check.

Industrial Conveyors and Mixers

Industrial drives may run smoother than mobile equipment, but continuous duty makes small errors expensive. A coupling that is slightly loose may polish the shaft over thousands of cycles. A gearbox input bearing with play may load the motor shaft from the first day.

For conveyors, mixers, and processing lines, inspect the driven shaft, gearbox, chain tension, base plate, and coupling insert together. A replacement motor may solve the immediate stop, but if the mechanical drive still moves, the next motor will inherit the same problem.

Wheel Drives and Travel Motors

Travel motors face another set of questions. The shaft, hub, brake, final drive, and case drain all matter. A machine that travels weakly, drifts, or damages splines may be reacting to load, braking, contamination, or final drive wear rather than the motor alone.

For excavator or mobile travel symptoms, read the Blince article on weak travel and travel deviation. If replacement is confirmed, compare the installed unit with the hydraulic motor family by displacement, pressure, shaft, flange, porting, brake arrangement, and drain requirements.

Field Checklist Before Ordering

If some of this information is missing, a supplier can still start the conversation. Just call the answer provisional. A motor chosen only because the shaft and flange match may bolt on neatly and still be wrong for the way the machine loads it.

Common Mistakes

Mistake 1: Buying by Shaft Diameter Alone

Shaft diameter only proves that the coupling might slide on. It says little about spline engagement, torque capacity, side load, hub position, or whether the motor face is square to the driven part.

Mistake 2: Reusing a Worn Coupling Hub

A new motor shaft installed into a worn hub starts with backlash. Inspect the female spline, keyway, clamp slot, set screws, and contact length before calling the motor new.

Mistake 3: Ignoring Side Load

A pulley, chain, or sprocket can put a bending load into the shaft when the driven part is not supported well. If the motor is being used as both a driver and a bearing stand, confirm allowable radial load or add support outside the motor.

Mistake 4: Treating Every Shaft Seal Leak as a Seal Problem

The seal may be innocent. Case pressure, bearing movement, shaft runout, side load, hot oil, or grit on the seal lip can all make oil appear at the output end. Replace the seal after the cause has been checked, not before.

Mistake 5: Measuring Only Pump Outlet Pressure

Pump outlet pressure does not show pressure across the motor. Measure inlet, outlet, return, and case pressure where relevant.

Mistake 6: Forgetting the Mechanical Drive

The motor may be healthy while the gearbox input bearing, chain tension, sprocket alignment, or driven shaft support is not. Inspect the drive before condemning the motor.

Mistake 7: Installing a New Motor Into Dirty Oil

A failed motor may leave debris in the tank, lines, valves, filters, and cooler. If the oil path is not cleaned, the replacement motor starts in the old failure environment.

Mistake 8: Using a Stronger Coupling to Hide Shock

A stiffer coupling may survive visually but send more shock into the motor shaft and gearbox. Find the pressure or mechanical shock source first.

What to Send for a Useful Quote

Send the motor nameplate, shaft and flange dimensions, photos of the worn shaft, photos of the coupling or mating hub, mounting face photos, hose routing, pressure readings, case drain routing, oil condition, and a short description of the driven load.

A useful request is not "quote same motor." It sounds more like this:

The motor drives a chain conveyor through a splined coupling. The old motor shaft has one-sided spline wear after six months. Inlet pressure is about 145 bar during loaded work, return pressure is 18 bar, and the case drain line is 1/4 inch back to the tank. The coupling hub has visible fretting. The machine runs eight hours per day and reverses several times per shift. Photos attached.

That message lets a supplier check motor size, shaft style, coupling fit, pressure differential, return pressure, drain pressure, duty cycle, and whether the next step should be a replacement motor, a different shaft option, a coupling correction, a hose change, or a wider system review.

FAQ

Why does a hydraulic motor spline shaft wear on one side?

One-sided wear usually means the joint was not sharing load evenly. Check for angular misalignment, a loose mating hub, short spline engagement, side pull from the driven part, or a support bearing that is no longer doing its job. Inspect the motor shaft and the coupling as one pair.

Can a loose coupling damage a hydraulic motor?

Yes. A loose coupling can turn normal torque into small hammer blows. That can leave fretting marks, enlarge a keyway, create noise, shake the drive, and help a shaft seal start leaking. If the hub bore or spline is already worn, tightening the screw only buys time.

Can high case pressure cause shaft seal leakage?

Yes. Excessive case pressure can push oil past a seal that would otherwise survive. Check the case drain line first, then return pressure, filter condition, cooler restriction, and whether the drain really reaches a low-pressure tank path.

Is it safe to reuse the old coupling on a new hydraulic motor?

Sometimes. I would not reuse it by habit. Check the hub bore, spline or keyway, clamp slot, set screws, insert, axial location, and how much of the shaft it actually engages. A tired coupling can ruin a new shaft before the motor has many hours on it.

What should be checked if several motors fail the same way?

Start by assuming the machine is giving you a pattern. Check the mounting face, driven shaft alignment, side load, coupling fit, pressure spikes, return pressure, case drain routing, oil cleanliness, and the mechanical load. If the second motor dies like the first, the first cause probably never left.

Can a hydraulic motor shaft fail because of a valve problem?

Yes. Sudden shifts, blocked actuator paths, trapped oil, brake release problems, or poor spool center behavior can create pressure shock or reversing loads that damage the shaft or coupling.

Does a larger hydraulic motor solve spline wear?

Not automatically. A larger motor may provide more torque, but if the cause is misalignment, side load, worn coupling, high case pressure, or contamination, the larger motor may fail in the same way.

What is the best way to diagnose motor shaft wear?

Combine mechanical inspection with hydraulic readings. Inspect the shaft, hub, mounting face, driven load, and bearing support. Then measure inlet pressure, outlet pressure, return pressure, and case pressure during the actual complaint.

Final Takeaway

Hydraulic motor spline shaft wear should not be treated as a simple shaft-material question. It is usually a drive-system question.

Start with the load. Check the mating hub. Look at side load and mounting face. Measure pressure on both sides of the motor. Confirm case drain and return pressure. Inspect oil cleanliness and heat. Keep the failed pieces long enough to read what they are telling you.

For hydraulic motor replacement, spline shaft matching, coupling fit review, or repeat failure diagnosis, send Blince the motor model, clear shaft photos, coupling photos, mounting layout, hose routing, pressure readings, case drain details, oil condition, and the short failure story. With that information, Blince can compare the hydraulic motor, hydraulic pump, hydraulic valve, hydraulic hoses and fittings, and related system parts before another replacement repeats the same failure.
