A motor that spins freely in the air can still fall on its face once the machine touches real work. Anyone who has tested a travel drive on blocks has seen this: the shaft turns, the operator nods, the machine goes back on the ground, and the same complaint returns ten minutes later.
That does not prove the hydraulic motor is good. It also does not prove it is bad.
The difference is load. With no load, a tired pump, a leaking valve section, or a slightly restricted return line may still pass enough oil to make the motor look healthy. Under load, the circuit has to deliver flow and pressure at the same time. If either one is missing at the motor ports, the machine slows down, even when the dashboard gauge looks acceptable.
Before ordering another motor, get four numbers from the machine while the fault is happening:
pressure at the motor inlet;
pressure at the motor outlet;
pump flow at operating temperature;
motor case drain flow, if the motor has a case drain line.
Those four readings usually tell you whether the problem is the motor, the pump, the valve block, the plumbing, or the original sizing.
Quick Reference: What the Symptom Usually Means
Field symptom
First measurement
What it often points to
Spins with no load, slows under load
Motor inlet and outlet pressure
Low effective pressure differential
Works for a few minutes, then gets weak
Oil temperature and case drain flow
Heat-related leakage or poor cooling
Gauge pressure looks normal
Pressure at the motor ports
Pressure drop before or after the motor
One travel side is slower
Left/right flow and brake release pressure
Travel motor wear, brake drag, or valve imbalance
New motor did not fix it
Pump flow and valve leakage
System fault, not a motor-only fault
Key Takeaways
Speed loss and torque loss are different problems. A slow hydraulic motor usually means the circuit is short on usable flow. A motor that cannot start the load usually means the motor is short on usable pressure differential or displacement.
A pump can still build pressure and still fail to feed the motor under real load. That is why flow testing at working temperature matters.
Hot oil changes the result. A circuit that looks fine cold can lose efficiency when the oil thins and internal leakage increases.
One pressure gauge near the pump is not enough. The reading that matters is the pressure drop across the motor while the load is applied.
Why Trust This Guide?
Blince works across hydraulic motors, pumps, valves, hoses, fittings, oil coolers, and related hydraulic accessories. That matters because a motor complaint is rarely only a motor question. The motor is where the symptom appears, but the cause may be several meters away in the valve bank, pump outlet, return line, or cooling circuit.
If you already replaced a motor and the machine still feels weak, read the related guide on hydraulic motors that remain weak after replacement. This article is written for the earlier decision point: before the second purchase, before the next teardown, and before another day of downtime is lost.
The Motor Needs Pressure Difference, Not Just Pressure
A hydraulic motor produces torque from pressure differential. In plain terms, inlet pressure has to be higher than outlet pressure by enough margin to move the load.
That is where many field checks go wrong. The technician sees 180 bar near the pump and assumes the motor is receiving 180 bar. But if the return side is sitting at 35 bar because of a blocked return path, a small valve passage, or a brake-release problem, the motor does not see the number on the main gauge.
Put a gauge on both sides of the motor. If the machine does not already have test ports, use a liquid-filled hydraulic pressure gauge at the closest safe test point. Record the values at idle, during movement with no load, and during the exact load condition that causes the slowdown.
If the system pressure looks normal but the machine still lacks force, Blince’s article on normal hydraulic pressure with weak machine power explains why the gauge location can mislead the repair decision.
If the Motor Is Slow, Look for Missing Flow
Flow decides speed. If a motor runs but turns slower than it should, do not start by arguing about motor torque. Start with volume.
A worn pump may pass a quick pressure check and still lose flow once the oil warms up. A directional valve may be just large enough for light movement but restrictive at full flow. A return hose may be one size too small. A filter may be partly blocked. None of these faults has to make a dramatic noise.
For pump-side checks, measure output flow at working temperature. If the system uses a piston pump, compare the duty cycle with a variable displacement hydraulic piston pump rather than judging the pump only by peak pressure. If you need the basic test sequence, start with how to test a hydraulic pump, then review the main types of hydraulic pumps if the installed pump family is uncertain.
If the Motor Cannot Start the Load, Check Displacement and Brake Release
A motor that crawls or stalls at startup may be short on torque, not flow. In that case, check pressure differential, motor displacement, relief setting, and mechanical load.

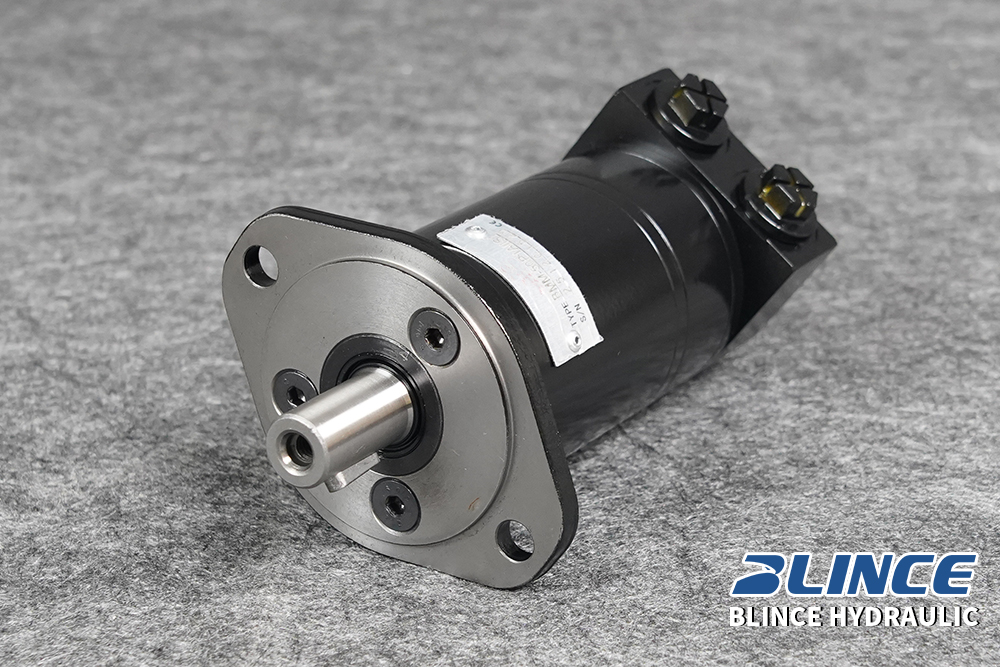

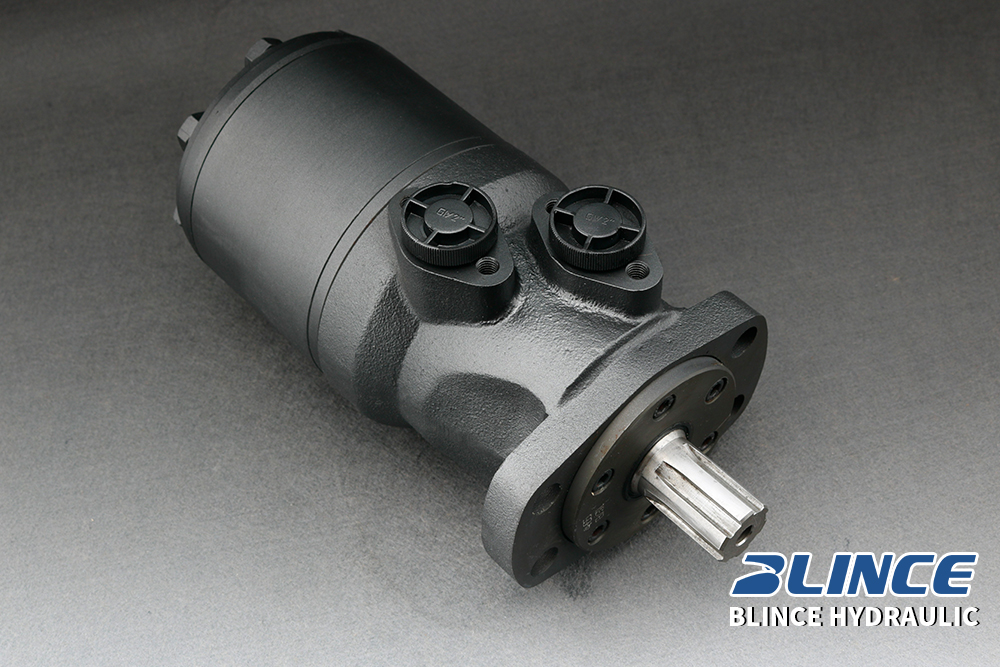

For compact equipment such as sweepers, winches, conveyors, and agricultural attachments, the answer may be a properly sized low-speed high-torque orbital motor. Smaller machines may use an OMR orbital motor, while heavier low-speed drives may need a larger OMV orbital motor.
Do not choose only by shaft and flange. Two motors can bolt into the same space and behave very differently if displacement, leakage, pressure rating, or startup torque is different. For a broader selection view, see the Blince guide to low speed high torque hydraulic motors.
Travel Motors Need Side-by-Side Testing
Travel complaints are easy to misread. If the left side is weak, the left motor may be worn. It may also be dragging a brake, fighting a tight track, receiving less flow from the valve, or pushing oil through a restricted return line.
Test both sides under the same ground condition. Do not test the left side on concrete and the right side in loose soil. Put the same load on both sides, then compare inlet pressure, outlet pressure, case drain, brake release pressure, and final-drive temperature. In travel work, the difference between the two sides often tells more than a single “normal” pressure number.
When the data finally points to the motor, a heavy travel circuit may need a radial piston travel motor, not a lighter motor chosen only because the shaft fits. For Poclain-style replacement work, compare flange, shaft, displacement, and pressure range against an MCR series travel motor. If the machine is an excavator and the complaint is weak travel or travel deviation, use the Blince article on excavator hydraulic travel faults as the next read.
A Valve Fault May Only Show Up When the Motor Is Asked To Work
Valve problems are not always dramatic. A spool does not have to jam completely. A relief valve does not have to scream. A passage that is just a little small for the flow can be enough to make the motor lazy under load.
One useful habit is to watch what changes when another function is used. If the motor slows when a cylinder is moved, or if one rotation direction is weaker than the other, the valve bank deserves attention before another motor is ordered.
For electric directional circuits, the first check is not only coil voltage. A coil can shift the spool while the valve still becomes a bottleneck. Make sure the directional solenoid valve in the motor circuit has enough rated flow for the motor’s actual demand. In pressure-control sections, confirm the job of the one-way pressure control valve: is it holding load, protecting the circuit, or creating a pressure sequence? On machines where several functions share a valve bank, the center condition and carry-over path of the multi-way control valve can decide whether the motor receives oil or waits for what is left.
Cold oil can flatter an old hydraulic system. It is thicker, so leakage through worn clearances is lower. After the oil warms up, the same pump, valve, and motor may lose enough efficiency to make the operator think the motor has suddenly gone weak.
That is why a cold shop test is not enough. Let the machine reach the temperature at which the complaint appears. Then record tank temperature, motor housing temperature, cooler inlet and outlet temperature, and case drain flow.
If the machine runs long cycles, works near an engine compartment, or has a small oil tank, the cooling package should be part of the repair discussion. A properly sized hydraulic oil cooler may do more for repeat failures than another motor swap. Tight installations may justify comparing an AD series oil cooler with a DXB series heat exchanger.
A bad hose is easy to find when it leaks. A restrictive hose is harder. The outside may look acceptable while the inner liner has softened, collapsed, or partly separated. A fitting with a small passage can do the same thing on a smaller scale.
Return lines deserve special attention. A motor does not care that return pressure is on the “low-pressure side.” If outlet pressure rises, useful pressure differential falls.
For motor circuits that see pressure spikes, a two-wire hydraulic hose may be a better match than a light-duty hose. If the drawing only says “hose” and does not list pressure, bend radius, or flow, start from the hydraulic hoses and fittings range and work backward from the machine data. If the choice is between rigid tubing and flexible hose, the guide to hydraulic tubing selection gives more context.
Field Case: A New Motor, Same Slow Travel
One compact construction machine arrived with weak travel on the left side. The old motor had high hours, so replacing it looked reasonable. The machine did improve, but only for a short time. Once it was back in dirt and working hot, the left side slowed again.
The second inspection compared both sides under the same ground condition. The weak side did not show abnormal case drain. It did show higher return pressure and a warmer valve section. After the valve leakage was corrected and the return plumbing was cleaned, the replacement motor behaved normally.
The lesson was simple: the motor was involved, but it had been asked to work inside a circuit that was wasting pressure.
Questions Buyers Usually Send After the First Test
“It turns on the bench. Why does it still fail on the machine?”
Bench running proves rotation, not working torque. The machine test adds load, return pressure, heat, brake release pressure, and real pump flow. If the motor slows only on the machine, the next reading should be taken at the motor ports under load.
“The gauge says pressure is normal. Can I still have a hydraulic problem?”
Yes. The gauge may be telling the truth about the pump outlet and nothing useful about the motor. A valve restriction or high return pressure can leave the main gauge looking fine while the motor sees a much smaller pressure drop.
“The customer says it fails after lunch. Is that useful information?”
Very useful. That usually means temperature belongs in the diagnosis. Run the machine until the complaint appears, then record oil temperature, pump flow, return pressure, and case drain. Cold numbers may hide the problem.
“Can I replace a travel motor with an orbital motor?”
Only if the torque, pressure, speed, mounting, and duty cycle support it. Small wheel drives and attachments may be fine. Heavy travel drives and shock-loaded track machines usually need a radial piston design. Matching the flange alone is not enough.
Closing Note for Maintenance and Purchasing Teams
A quick no-load spin test is useful, but it should not close the diagnosis. A slow motor under load deserves pressure readings at the motor, a hot flow test, a look at return pressure, and a check for leakage.
This article is a general engineering guide. Final component selection should be based on machine drawings, measured hydraulic data, working conditions, safety requirements, and confirmation from a qualified hydraulic engineer or supplier.
