A new hydraulic motor is supposed to end the trouble. The old unit comes off. The new one goes in. Hoses are tightened, oil is filled, and the machine is started again.
Then the same problem comes back.
The wheel drive still has no pull on a slope. The brush cutter still drops speed when the grass gets heavy. The conveyor turns when empty, but it loses force once material is loaded. In the workshop, this usually leads to the same argument: bad motor, wrong supplier, poor installation, or maybe the relief valve needs another turn.
Sometimes the replacement motor is wrong. That does happen.
But from a hydraulic troubleshooting point of view, the motor is not always the guilty part. It may only be the easiest part to blame. Low pump flow, weak pressure build-up, a sticky valve, a blocked return filter, high case pressure, hot thin oil, or a dragging mechanical load can all make a new hydraulic motor feel weak.
Before buying another motor, check the system around it.
Quick Answer: What Should You Check First?
If the new hydraulic motor is still weak, check these seven areas before placing another order:
Check
What It Usually Reveals
Flow at the motor
Whether the hydraulic pump and valve are actually sending enough oil
Pressure under load
Whether the system can build the torque the motor needs
Relief valve setting
Whether oil is being dumped before useful pressure is reached
Case drain flow
Whether the motor has internal leakage or case pressure trouble
Whether heat is reducing efficiency after the machine runs for a while
Mechanical load
Whether the driven part is binding, overloaded, misaligned, or partly braked
This is where many repairs go wrong. The shaft fits. The flange fits. The ports look close enough. So the motor is installed and everyone expects the fault to disappear. A hydraulic system is not that forgiving. It needs the right flow, the right working pressure, a clean return path, controlled case pressure, and a load the motor can actually handle.
For a wider explanation of slow or weak motor symptoms, see Blince's article on hydraulic motor running slow or weak. This article deals with the more specific problem: the hydraulic motor has already been replaced, but the machine still has no strength.
Why a New Hydraulic Motor Can Still Feel Weak
A hydraulic motor does not make power by itself. It converts oil flow and pressure into rotation. If flow is low, speed drops. If pressure cannot rise under load, torque drops. If the return line is restricted, heat rises and efficiency falls. If the driven part is dragging, even a good motor looks small.
That is why matching only the outside shape is risky.
Two motors may share the same mounting face, shaft size, and port position, but still behave differently on the machine. Displacement may be different. Starting torque may be lower. Pressure rating may not be the same. One motor may need a drain line while the old circuit does not handle it correctly. Another may not tolerate the side load coming from a chain, sprocket, hub, or wheel.
A low speed high torque hydraulic motor may be required where a lighter hydraulic gear motor keeps stalling. An orbit hydraulic motor may bolt on without trouble, yet still be wrong if the displacement does not match the pump flow and the load torque.
So do not look at the motor alone. Look at the whole hydraulic system.
Check 1: Measure Flow Before Judging the Motor
Weak speed usually starts with flow.
If the motor turns slowly even with little load, the first question is not the brand of the motor. The first question is whether enough oil is reaching the motor. Not rated pump flow. Not catalog flow. Real flow at the working port.
A worn hydraulic pump may still build some pressure but deliver less oil than expected. A blocked suction strainer can starve the pump. A valve spool may not travel fully. A hose can collapse inside while the cover still looks normal. A quick coupling may have a small internal passage. Any one of these faults can make a new hydraulic motor look tired.
Typical field signs include:
The motor speed is low even when the driven load is disconnected.
Other hydraulic functions on the same machine also feel slower than before.
The hydraulic pump makes a rough, whining, or dry sound near the inlet.
Motor speed changes a lot after the oil warms up.
The problem appeared after a hose, fitting, coupling, or valve was changed.
Do not rely too much on the pump nameplate. A pump flow rating is based on set test conditions: speed, oil viscosity, inlet condition, pressure, and a pump in usable condition. After several seasons in dust, heat, and dirty oil, the actual flow may be very different.
Check 2: Test Pressure Under Real Load
Torque comes from pressure. No working pressure, no real pulling force.
A hydraulic motor can spin well on the floor or in a no-load test and still fail on the machine. Free spinning proves very little. The motor must be tested where the complaint happens.
For a hydraulic wheel motor, read pressure while climbing, pushing, or turning against resistance. For a cutter motor, test while cutting material, not while the rotor is just spinning in air. For a conveyor, test while carrying product. Empty running can hide the real fault.
Watch the gauge behavior:
Gauge Behavior
Likely Meaning
Pressure stays low and the motor stalls
The pump, valve, or relief circuit may be limiting pressure
Pressure rises to relief quickly
The load may be too high, displacement may be wrong, or something mechanical may be dragging
Pressure jumps and drops badly
Air, cavitation, valve instability, or supply restriction may be present
If pressure cannot rise when the machine needs torque, replacing the hydraulic motor again will not solve much. The fault is usually in the pressure supply, pressure control, return path, or mechanical load.
Check 3: Do Not Adjust the Relief Valve Blindly
When a machine feels weak, somebody usually wants to turn up the relief valve. It is a common reaction. It is also where damage can start.
A relief setting that is too low will make a hydraulic motor weak. The motor reaches the pressure limit too early, oil bypasses, and torque never builds. But raising the setting without checking the motor rating, hose rating, pump condition, valve capacity, and machine design can create more heat or break parts that were never meant to see that pressure.
A safer sequence is simple:
Confirm the original machine pressure setting.
Check the pressure ratings of the hydraulic pump, motor, valve, hoses, and fittings.
Test whether the relief valve opens before normal working pressure.
Check whether another function shares the same relief path.
Adjust only inside the safe working range of the machine.
This matters even more on modified equipment. Added attachments, changed valve banks, and series-connected valves can change the pressure path. The hydraulic motor may be fine, but the circuit may be sending oil back to tank too early.
Check 4: Look at Case Drain Flow and Case Pressure
If you are going to maintain the motor.Case drain checks are easy to ignore. They are also very useful.
Some hydraulic motors need a drain line to carry internal leakage back to tank and keep case pressure under control. If the drain is blocked, routed into a pressurized return line, connected incorrectly, or not used when the motor requires it, the motor may leak, run hot, or lose efficiency. A shaft seal leak soon after installation is often the warning sign.
Look for these clues:
The shaft seal leaks soon after the new motor is installed.
The drain hose becomes hotter than expected.
The motor works better when cold and becomes weak after warm-up.
The same seal failure repeats.
The new motor has a drain port, but the machine plumbing does not handle it correctly.
High case drain flow and high case pressure are not the same problem. High drain flow often points to internal leakage. High case pressure usually points to a blocked drain, restricted return, or poor hose routing. The fix is different, so measure before guessing.
Check 5: Check Return Line Pressure, Not Just Supply Pressure
Choosing the right oil hose is important. Most mechanics check inlet pressure first. That makes sense. But the outlet side can cause the same kind of complaint.
The motor has to receive oil and get rid of oil. If the return path is restricted, back pressure rises. That pressure adds heat, reduces useful pressure difference across the motor, and can shorten seal life.
The cause is often ordinary:
A return filter is blocked or too small.
A quick coupling has a narrow internal passage.
A replacement hose has a high pressure rating but a smaller inside diameter.
An adapter fitting creates a bottleneck.
The return line is too long or passes through too many restrictions.
This is common after attachment changes. The hose is new. The fitting looks strong. But oil flow does not care how strong the outside looks. It cares about inside diameter, bend radius, coupling size, and how easily oil can return to tank.
Check 6: Treat Heat as a Symptom, Not Normal Aging
Hot oil is not just a comfort problem. It changes the performance of the whole hydraulic system.
As oil temperature rises, viscosity drops. Thin oil leaks more easily through internal clearances in the pump, motor, and valve. The motor may still rotate, but less energy becomes useful torque. More energy becomes heat.
Common causes of overheating include:
Internal leakage in the hydraulic pump or motor
A relief valve bypassing oil for too long
An undersized, dirty, or poorly placed hydraulic cooler
A restricted return line
Oil viscosity that does not match the working climate
A motor running outside its efficient speed range
Continuous duty on a motor selected for intermittent operation
Timing gives a good clue. If the machine pulls well for ten minutes and then becomes weak, heat must be checked. A new motor may hide the issue for a short time because its clearances are tighter. Once the oil gets hot, the same weakness returns.
Do not write off heat as normal aging until the cause has been found.
Check 7: Inspect the Mechanical Load
Hydraulic parts get blamed for mechanical resistance every day.
Before condemning the hydraulic motor, isolate the driven load when it is safe. A seized bearing, bent shaft, tight chain, dragging brake, packed debris, misaligned coupling, or overloaded cutter can make a correct motor look weak.
For wheel drives, check the brake release circuit if the motor includes a brake. A brake that only half releases can steal most of the available torque. For cutters, check blades, rotor balance, bearing load, and material build-up. For conveyors, check chain tension, roller drag, and product accumulation.
If the motor runs normally without the load but stalls when connected, the question changes. It is no longer only "is the motor bad?" The better question is: "is this motor correctly selected for this load?" Then it becomes very important to choose the right motor.
When the Motor Choice Really Is Wrong
Of course, sometimes the replacement hydraulic motor really is the wrong part. The checklist above does not remove that possibility. It only prevents buying another motor before the basic system checks are done.
The mistakes are usually practical:
Same mounting, wrong displacement.
Same displacement, lower pressure rating.
Similar port layout, wrong rotation or port logic.
No case drain provision where the machine needs it.
Hydraulic gear motor used where an LSHT motor is required.

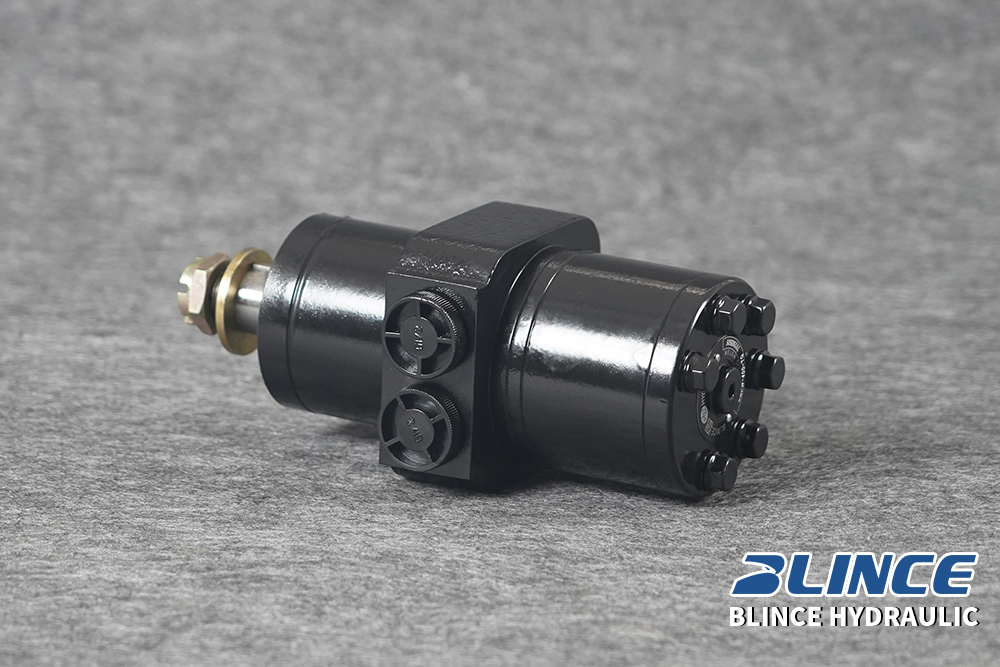

Orbit motor selected without checking side load.
Shaft type close enough to install, but not correct enough for long service.
Use this comparison before approving a replacement:
Selection Point
Must Match?
Why
Displacement
Yes
Affects speed and torque
Pressure rating
Yes
Protects the motor under load
Shaft and flange
Yes
Controls physical fit and load transfer
Port type and size
Yes
Prevents restriction and leakage
Drain requirement
Yes
Protects seals and keeps case pressure controlled
Rotation
Yes
Avoids wrong direction or poor control
Duty cycle
Yes
Prevents overheating and early wear
If several details are missing, guessing is expensive. Send the old model number, machine photos, pressure readings, flow estimate, shaft and flange dimensions, port type, drain information, and failure symptom to the supplier. It is a small step, but it prevents many wrong replacements.
A Short Field Example
A repair shop replaced a hydraulic wheel motor on a small agricultural machine. The old motor had visible leakage, so the decision looked reasonable. The new unit was installed, the wheel turned, and the machine went back outside.
It still could not climb a mild slope.
The second check found three things:
Pressure only reached about half of the expected working range.
The return filter was hot and overdue for replacement.
The brake release line built pressure too slowly.
The new motor was not the main cause of weak travel. The machine had a pressure control issue, return restriction, and partial brake drag. Another motor would have repeated the same complaint.
This is why weak hydraulic motor symptoms need careful checking. A weak hydraulic wheel motor, tired hydraulic pump, sticky hydraulic valve, restricted return line, and dragging brake can feel almost the same from the operator seat.
What to Send Before Requesting a Hydraulic Motor Quote
To avoid buying the wrong replacement, send more than one photo.
Useful information includes:
Machine brand and model
Application, such as wheel drive, cutter, conveyor, auger, or fan
Old hydraulic motor model and nameplate
Photos of shaft, flange, ports, and hose routing
Motor displacement, if known
Working pressure and relief setting
Pump flow or pump model
Whether the motor is reversible
Case drain line details
Oil temperature after the fault appears
Description of when the motor becomes weak
For buyers who already know they need a replacement, link hydraulic motor to the product page. For buyers still diagnosing the full circuit, link hydraulic system to the system page.
FAQ
Can a new hydraulic motor be bad?
Yes. A new motor can have a defect or be the wrong specification. But it should not be the first conclusion. Check flow, pressure, relief setting, case drain, return restriction, oil temperature, and mechanical load before buying another motor.
Why is my hydraulic motor strong when cold but weak when hot?
Hot oil becomes thinner. If the hydraulic pump, motor, or valve has internal leakage, performance often drops as temperature rises. A restricted return line or a relief valve bypassing oil can also create heat and make the weakness worse.
Can the wrong displacement make a motor feel weak?
Yes. Displacement changes the relationship between flow, speed, and torque. A motor may fit the machine physically but still give the wrong working performance.
Should I replace the hydraulic pump and motor together?
Not automatically. Test them first. If the pump cannot deliver enough flow or pressure, a new motor will not solve the fault. If the motor has high internal leakage, the pump may still be usable.
What is the most overlooked cause of repeated motor seal leakage?
High case pressure is often overlooked. A blocked drain line, restricted return path, or incorrect hose routing can damage seals even on a new hydraulic motor.
If your hydraulic motor is still slow or weak after replacement, send Blince the motor photos, machine model, pressure readings, flow information, hose layout, oil temperature, and fault description. We can help compare whether the fault points to the hydraulic motor, hydraulic pump, hydraulic valve, hydraulic hose and fitting, or the wider hydraulic system before you buy again.
