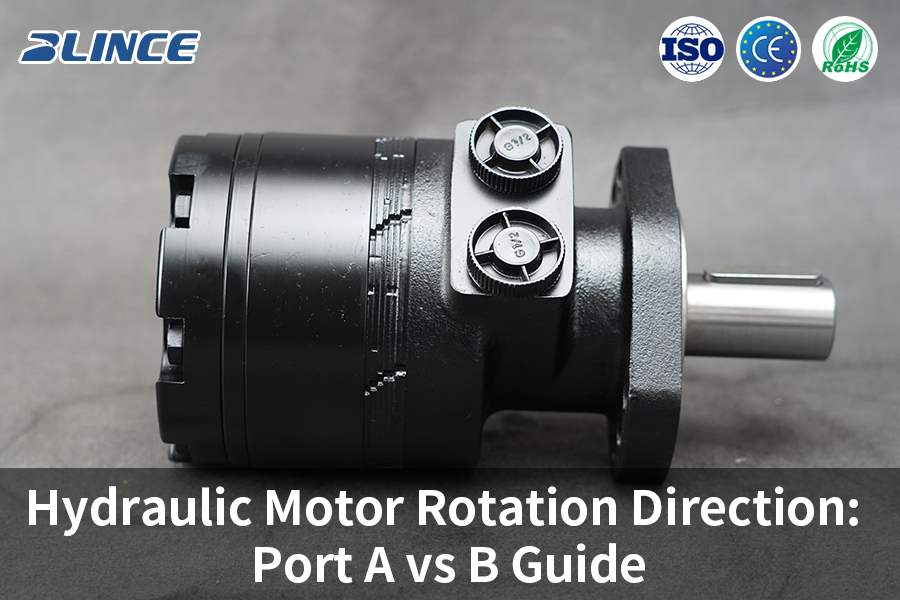

Hydraulic Motor Rotation Direction Guide: Port A Vs B, CW/CCW, Case Drain, And Brake Logic

Everything can line up on the bench - flange, shaft, even the hose threads - and the replacement motor can still send the machine backward.

That mistake is easy to dismiss during a quick start-up. The mechanic nudges the lever; the conveyor creeps the wrong way. Two hoses are exchanged, the belt heads toward the discharge, and everyone moves on. Then comes the longer run. The housing warms faster than it used to. The brake smells hot, or a wet line appears below the shaft. Reversing the oil path corrected the belt direction, but it may also have changed which line carries back pressure, which signal releases the brake, and how leakage leaves the motor case.

There is no industry-wide rule that makes A clockwise and B counterclockwise. The answer comes from the motor's port drawing and the end from which the shaft is being viewed. Cover position can matter too. So can a control block, shock cartridge, or anti-cavitation check bolted to the housing. The rotating group may accept oil both ways while the assembled drive, taken as a whole, has one preferred operating direction.

The job, then, is larger than choosing which hose goes on top. Buyers and service teams need to match hydraulic motor rotation with the pressures at both work ports, the drain route, brake-release signal, speed control, and the load on the shaft. Work through those items before the full-load test and a simple direction correction is far less likely to become the next seal or brake repair.

The Short Answer

Define rotation while looking at the output shaft. Then use the exact motor drawing to identify which work port must receive pressure for clockwise or counterclockwise rotation. Do not use hose color, port position, or another manufacturer's diagram as a substitute.

For a simple reversible orbital motor, changing pressure from A-to-B to B-to-A will often reverse the shaft. Before doing that, confirm that both work ports are rated for pressure in both directions, the case-drain arrangement remains correct, the shaft seal will not see excessive housing pressure, and any brake or valve block works in the new direction. The older BLINCE overview of orbital hydraulic motor operation provides useful background, but the model drawing remains the final authority.

Start With the Viewpoint, Not the Hose Color

Write the desired motion in plain language before touching the hoses. "Clockwise" is incomplete. A useful note says:

The shaft must rotate clockwise when viewed directly from the output-shaft end. That direction raises the winch hook. Pressure currently enters the upper work port, the lower work port returns to tank, and the brake-release line measures 22 bar during the command.

That sentence fixes the viewpoint, load movement, work-port state, and brake condition. It gives a supplier more information than "Port A should turn right."

The viewing direction matters because drawings and technicians do not always use the same reference. One manual may define rotation from the shaft end. Another drawing may be printed as if the reader were looking at the rear cover. On a gearbox, the motor shaft and final output can also turn in opposite directions. Before selecting a low-speed high-torque hydraulic motor, mark the motor shaft, gearbox input, and driven output separately.

Do not rely on hose colors either. Red and blue caps help keep ports clean; they do not define function. A repaired machine may already have crossed hoses, a rotated manifold, or a replacement motor with its ports on the opposite side. Trace each line to the hydraulic directional control valve, then confirm what that valve connects in each spool position.

What Port A and Port B Actually Mean

A and B usually identify the two work ports of a reversible motor circuit. They are useful labels, but the labels do not promise a universal shaft direction. On one product, pressure at A and return at B may produce clockwise rotation viewed from the shaft. On another motor, the same pressure path may produce counterclockwise rotation because the internal rotating group, end cover, or control orientation is different.

The safest rule is simple: read the exact model code and dimensional drawing. If the drawing gives a rotation arrow, check where the viewer is standing. If the drawing lists A-in/B-out and B-in/A-out, copy those conditions into the commissioning sheet. If the supplier cannot provide a port map, treat the direction as unconfirmed rather than guessing from a similar motor.

The BLINCE orbital motor range includes several frame sizes, shafts, flanges, and port arrangements. That variety is useful for replacement work, but it is also why a family name alone cannot settle rotation. A BMR-style motor, an OMH-style motor, and a travel motor may all be called bidirectional while their drain and brake details differ.

A Motor Can Be Bidirectional While Its Valve Block Is Not

The rotating group may accept pressure from either work port. A bolted-on valve block may not. Cross-port relief valves can have different settings. Anti-cavitation checks may supply make-up oil in only one intended condition. A brake valve may expect one port to be the normal lifting side. A flushing valve in a closed loop may select the low-pressure side according to a specific circuit layout.

This is why an external hydraulic check valve or cartridge cannot be judged by the arrow on the motor casting. The valve block needs its own schematic. If a replacement motor arrives with the same bolt pattern but a mirrored control block, copying the old hose positions can reverse more than the shaft.

A Six-Step Rotation Check Before Full Load

1. Define the Required Load Movement

Do not begin with the motor. Begin with the machine. Should a conveyor carry material toward or away from the discharge? Should an auger feed or clear? Should a winch raise the load when the lever is pulled? Should the left travel motor turn forward while the right motor appears to turn the opposite way because the units face each other?

A left and right pair deserves special attention. Two identical hydraulic travel motors mounted as mirror images may require different apparent shaft directions to move the machine straight. Swapping only one pair of hoses without reading the valve and brake logic can correct travel direction while creating unequal braking or return pressure.

2. Fix the Viewing Direction

Stand at the output-shaft end and mark the required direction on a photograph. Include the gearbox or coupling if one is fitted. If the drawing defines rotation from the rear, write that difference beside the arrow. A photograph with one clear arrow prevents a supplier, installer, and machine builder from using three different meanings of clockwise.

If the motor drives through gears or a chain, count direction changes. One external gear mesh reverses direction; a chain normally preserves sprocket direction; a crossed belt reverses it. A planetary or multi-stage gearbox may need its own output-direction confirmation. The article on hydraulic motor spline and coupling wear is relevant because a motor that is forced into a misaligned drive may fail even when its rotation is correct.

3. Identify Every Port, Not Only A and B

Mark the two work ports, each case-drain option, brake-release port, speed-shift port, flushing connection, and any gauge port. Do not assume the smallest port is always the drain. Pilot and drain threads can be similar, and plugs may be moved between housing positions to suit mounting orientation.

For axial piston hydraulic motors, drain-port selection can be tied to mounting position so the housing remains filled and air can leave. For orbital motors with an internal drain path, allowable return pressure becomes especially important. The BLINCE guide to hydraulic motor case-drain pressure explains why a dry outside surface does not prove that housing pressure is acceptable.

4. Trace the Valve in Both Commands and in Neutral

Use the schematic or continuity checks to identify which pump passage connects to A and B when the operator commands each direction. Then check neutral. Does the motor stop with both ports blocked? Are both ports connected to tank? Is the circuit open center, closed center, load sensing, or hydrostatic closed loop? Does a counterbalance valve trap pressure after the command ends?

The center condition matters after rotation as much as during it. A motor that should coast can stop abruptly if both ports are blocked. A suspended or overrunning load can drive the motor after the spool returns to neutral. The directional control valve selection guide provides a useful checklist for spool-center and pressure-drop questions.

5. Jog at Low Pressure With the Load in a Safe State

Secure or disconnect the driven load where the machine procedure permits. Reduce the available pressure, confirm oil level and case filling, and jog the motor briefly. A painted shaft mark or video makes slow direction easier to verify. Stop immediately if the brake remains applied, the motor housing pulses, the drain hose jumps, or pressure rises without useful movement.

A two-second jog earns one useful tick on the commissioning sheet: the shaft turns the intended way. It says little about the rest. Only a loaded run will show whether the hydraulic hoses and fittings pass the required flow, whether the outlet side is building back pressure, and whether the brake clears completely. Direction is the opening check; it is not acceptance of the drive.

6. Repeat the Test at Working Temperature and Load

Record inlet pressure, outlet pressure, case-drain pressure, flow, shaft speed, and oil temperature while the same machine function operates. Repeat in both directions if both are part of normal duty. A motor may run freely clockwise and lose torque counterclockwise because one return path, coupler, or cartridge creates more pressure drop.

Place gauges where the decision is made. One pump-outlet reading cannot show the pressure differential across the motor. The hydraulic pressure gauge placement guide explains how a normal main gauge can coexist with a weak actuator.

Speed Does Not Come From Port A or Port B

Work-port direction decides the sign of rotation. Useful flow determines how fast the motor turns. For a fixed-displacement motor, theoretical speed is:

n_theoretical (rpm) = Q (L/min) x 1000 / displacement (cm3/rev)

Take a 250 cm3/rev motor supplied with a measured 60 L/min. Before leakage is allowed for, the shaft-speed calculation is:

n_theoretical = (60 x 1000) / 250 = 240 rpm

Using 0.90 as a screening value for volumetric efficiency brings the estimate down to 216 rpm. That is not a promised operating speed; the selected motor's data at the actual pressure and oil temperature must replace the assumption. Nor will exchanging A and B create any missing oil. If the new outlet path is restrictive, the shaft can turn more slowly in reverse while the pump flow reading stays close to 60 L/min.

The hydraulic pump and motor matching guide is useful when a direction complaint is actually a speed complaint. A larger displacement motor increases oil required per revolution. At the same 60 L/min, a 500 cm3/rev unit has a theoretical speed of only 120 rpm before leakage is considered.

Torque Depends on Pressure Difference, Not Inlet Pressure Alone

Theoretical motor torque can be screened with:

T_th (N m) = [delta_p (bar) x V_g (cm3/rev)] / (20 x pi)

For the same 250 cm3/rev motor, assume gauges at the work ports show 170 bar entering and 30 bar leaving. The motor is working with 140 bar of differential pressure, so:

T_th = (140 x 250) / 62.83 = 557 N m, rounded

At an assumed 85 percent mechanical efficiency, the shaft estimate is about 473 N m. That efficiency is an example for preliminary comparison, not a product guarantee.

Run the motor the other way and take the readings again. Inlet pressure is still 170 bar, yet the opposite return path holds 70 bar at the outlet. The motor now has only 100 bar with which to produce torque. That works out to about 398 N m theoretically and about 338 N m if the same 0.85 mechanical-efficiency assumption is retained. Anyone watching only the inlet gauge would miss a loss of roughly 135 N m at the shaft.

That difference is why a motor can lift well in one direction and feel weak in the other. Compare both work ports while the same load moves. The troubleshooting article on a hydraulic motor running slow or weak expands the diagnosis beyond the rotation question.

Hydraulic Power Also Follows Differential Pressure

Hydraulic power across the motor is approximately:

P_hydraulic (kW) = pressure differential (bar) x flow (L/min) / 600

With 140 bar across the motor and 60 L/min passing through it, the hydraulic input is about 14 kW before motor losses. Move part of that pressure drop to a small valve passage, a coupler, or the return hose and the circuit still consumes power; less reaches the shaft, while more is released as heat along the oil path.

Adding a hydraulic oil cooler may lower the bulk-oil temperature, but it will not give back torque lost to outlet pressure. Measure across the suspected restriction and correct the avoidable loss. Cooler capacity can then be chosen for the heat the working circuit genuinely has to reject.

Case Drain: The Third Line That Decides Whether Reversal Survives

Many piston, radial-piston, travel, and some orbital motor installations have a dedicated case drain. Internal leakage lubricates and cools the rotating group, then needs a low-pressure path back to the reservoir. The drain is not an extra return work line, and it should not be treated as a convenient place to connect another function.

When the motor is reversible, the drain remains low pressure while A and B exchange high- and low-pressure roles. Tying the drain into whichever work port happens to be the return can be dangerous because that port may become pressurized during the opposite command. Excessive case pressure can push oil past the shaft seal, increase bearing load, and make a sound motor appear defective.

Route the drain according to the exact motor instructions. Use the recommended hose bore, avoid unnecessary couplers and elbows, and choose the drain port that keeps the housing filled for the mounting orientation. If the line joins a common manifold, measure pressure during the worst simultaneous return flow, not only while the motor idles.

The BLINCE article why some motors need a case drain is useful before replacing a seal. Repeated seal failure after direction changes often points to drain routing, return pressure, or internal wear rather than poor seal quality alone.

Brake Release Must Follow the Command, Not Fight It

A spring-applied, hydraulically released brake is common on winches, travel drives, slewing drives, and suspended-load systems. The brake is intended to hold when release pressure disappears. During motion, it needs enough pilot pressure, at the right time, to release before the motor develops meaningful torque.

Swapping A and B may reverse the motor while leaving the brake pilot connected to the old pressure side. The brake may release properly in one direction and drag in the other. Symptoms include high starting pressure, jerky motion, rapid housing heat, brake dust, and a motor that appears underpowered.

An integrated product such as the BLINCE OMR-BK01 orbital motor with brake should be selected as a motor-and-brake assembly. Confirm release pressure, brake torque, drain path, allowable back pressure, and the safe state when power is removed. The companion article on hydraulic motor brake systems explains the tradeoff between integrated packaging and externally serviced brakes.

Winches and Overrunning Loads Need Controlled Deceleration

A winch is not simply a reversible conveyor. During lowering, gravity can drive the motor. If the valve opens the return path too freely, the load can accelerate faster than the pump supplies make-up oil. Cavitation, overspeed, and poor control can follow. A counterbalance or overcenter valve may be needed to maintain control and prevent the load from running away.

The correct valve setting and pilot ratio depend on the actual load, motor displacement, line losses, and machine risk. The winch motor and overrunning-load guide should be read with the machine schematic; a catalog motor alone cannot define a safe lowering circuit.

Shock Valves, Anti-Cavitation Checks, and Directional Cartridges

Rapid reversal creates inertia and pressure spikes. A cross-port relief can limit the pressure difference between A and B. An anti-cavitation check can admit make-up oil when one side is pulled below available charge or return pressure. These parts may be built into the motor cover or mounted in a separate block.

The cartridge orientation matters. A shock/anti-cavitation assembly installed for one normal direction may not protect the reverse direction in the same way. A replacement block can look symmetrical while the internal checks point differently. If the motor became hot or noisy immediately after a cover or cartridge replacement, compare the old and new hydraulic diagrams rather than only the outside casting.

Contamination can also hold a check or relief poppet partly open. Clean oil may then bypass in one direction and lose torque. If the first motor failed internally, the hydraulic contamination control guide is relevant before another motor or valve block is installed.

Open-Circuit and Closed-Circuit Reversal Are Not the Same Job

In an open circuit, a directional valve usually sends pump flow to one motor port while connecting the other port toward tank. Reversal changes those two paths. The return side may pass through a valve, filter, cooler, and long hose, so back pressure can differ sharply between directions.

In a hydrostatic closed loop, both main lines can alternate as high- and low-pressure sides. A charge pump supplies make-up oil. Loop flushing removes hot oil. Controls may vary displacement or reverse the swashplate without a conventional directional valve. The main ports are not simple pressure-and-tank connections.

For closed-loop hydraulic axial piston motors, confirm charge pressure, flushing arrangement, case drain, displacement control, and the exact high-pressure protection in both directions. Do not connect a closed-loop motor as if it were an open-circuit orbital motor just because the shaft and flange fit.

Series and Parallel Motors Add Another Direction Check

Two motors in parallel receive flow from common pressure and return branches. Their shafts can be arranged to turn the same apparent way or opposite ways depending on physical mounting and hose connections. Flow sharing, load difference, and pressure drop can make one motor start first or run faster.

In series, the outlet of one motor feeds the inlet of the next. Reversing one motor independently changes the oil path for the other. Case drains remain separate low-pressure services unless the motor instructions explicitly say otherwise. A high return pressure that is acceptable as a work-port condition may still be unacceptable at a case-drain connection.

When several motors are involved, sketch arrows on every shaft and oil line. Include the hydraulic quick couplers because a restrictive coupler on one branch can alter speed sharing. The quick-coupler pressure-drop article explains why a connection that looks fully seated can still create heat and uneven performance.

Equipment-Specific Rotation Checks

Conveyors and Feeders

A conveyor often runs for long periods in one direction, then needs reverse only to clear a jam. That short reverse command can be the condition with the highest shock load. Check whether the relief and anti-cavitation protection cover both directions, and whether material can drive the belt after the valve centers.

For continuous duty, confirm motor displacement at the required belt speed, gearbox ratio, shaft and coupling capacity, return pressure, and cooling. A motor selected only by maximum torque may run too slowly or consume more oil than the hydraulic pump can deliver.

Augers, Sweepers, and Brush Cutters

Attachments are often connected in the field, where hose pairs are easy to cross. An auger may need reverse for clearing, while a brush cutter may be approved for only one blade direction. Before reversing, check the attachment manufacturer's mechanical limit; a retaining nut, blade shape, seal, or debris guard may rely on the original rotation.

If an attachment turns correctly but slows after warm-up, compare inlet and outlet pressure and inspect the couplers. The quick-coupler pressure-drop guide is especially relevant when the complaint began after changing from one coupler standard to another.

Winches and Hoists

Write down which port raises, which port lowers, and which line releases the brake. Confirm controlled lowering with the maximum intended load and a qualified machine-safety review. A winch that turns in the desired direction during a bench test can still be unsafe if the brake and counterbalance functions are connected incorrectly.

Do not buy a larger motor to cure poor lowering control. More displacement can change speed and torque, but it does not fix an incorrect pilot line or unstable overcenter valve. Select the hydraulic motor with brake and load-control circuit together.

Travel, Wheel, and Slew Drives

Left and right drives are frequently mirrored. The machine's forward command may therefore produce opposite shaft directions when each motor is viewed from its own shaft end. Confirm final sprocket or wheel direction, not just motor arrows.

Travel and slew drives may combine a radial piston motor, reduction gearbox, brake, speed-shift piston, and shock valves. Send the complete model code and machine side. A motor core that matches displacement may still be wrong if brake torque, reduction ratio, or control-port positions differ.

Practical Selection Table Before Ordering

Who Should Not Order a Reversible Motor Yet?

Do not order by shaft direction alone if the machine carries a suspended load, uses a spring-applied brake, can be back-driven by the load, or has an unknown valve block. Those applications need the control and safety functions identified first.

Do not order a nominally bidirectional motor if no one can confirm the viewpoint, desired machine movement, case-drain route, or port pressures. A model that fits can be damaged during the first test if the housing is dry, the drain is capped, or the brake remains applied.

Do not assume that reversing is permitted for a mechanically directional attachment. Pumps, fans, cutters, threaded couplings, and gearboxes may have one approved direction even when the hydraulic motor can rotate both ways.

Common Buying and Installation Mistakes

Mistake 1: Assuming Port A Always Means Clockwise

A and B identify work ports, not a universal direction standard. Use the model drawing and define the viewing end.

Mistake 2: Saying CW Without Naming the Viewpoint

The shaft appears to turn the opposite way from the rear cover. Add "viewed from output-shaft end" to every direction note and purchase request.

Mistake 3: Swapping A and B but Ignoring the Case Drain

Work ports can exchange roles; the case drain normally cannot become a high-pressure return. Verify the dedicated low-pressure drain path.

Mistake 4: Reversing the Motor but Not the Brake Logic

The shaft may turn while a spring-applied brake remains partly engaged. Check pilot source, release pressure, and sequence in both directions.

Mistake 5: Trusting Inlet Pressure Only

Torque follows pressure difference across the motor. High outlet pressure can make a normal inlet reading produce weak shaft torque.

Mistake 6: Testing Only With No Load

A no-load jog proves direction. It does not prove brake release, return capacity, case pressure, continuous temperature, or control under an overrunning load.

Mistake 7: Treating a Motor and Its Valve Block as Separate Choices

Shock valves, anti-cavitation checks, counterbalance valves, and flushing controls change bidirectional behavior. Review the assembly schematic.

Mistake 8: Reusing Restrictive Hoses and Couplers

One direction may push oil through a more restrictive return path. Compare pressure before and after the suspected hose, fitting, or coupler under load.

Mistake 9: Reversing at Full Speed

Rapid reversal can create severe pressure spikes, cavitation, coupling shock, and gearbox load. Use a control strategy that decelerates the actual inertia safely.

Mistake 10: Installing a New Motor Into the Old Debris Path

Particles from a failed motor can remain in valves, hoses, coolers, filters, and manifolds. Clean and verify the connected circuit before commissioning the replacement.

A Quote Request That Prevents a Direction Mistake

Avoid sending only:

Need one reversible motor, 250 cc, Port A clockwise.

Use a technical note:

The motor drives a conveyor through a 4:1 gearbox. The required conveyor direction corresponds to clockwise motor-shaft rotation viewed from the output-shaft end. Pressure at Port A and return at Port B currently produce the wrong direction. Pump flow is 60 L/min. Under the loaded forward command, motor inlet pressure is 170 bar, outlet pressure is 30 bar, and hot case-drain pressure is 1.2 bar. The desired motor speed is approximately 210 rpm. The conveyor can coast after power is removed but cannot drive the motor backward. The existing motor has a 32 mm keyed shaft, SAE mounting flange, two DN19 work hoses, and a dedicated DN10 drain returning directly to tank. Please confirm model rotation, displacement, continuous pressure, allowable return and case pressure, shaft and flange, port positions, seal material, and whether the attached shock/anti-cavitation block is suitable in both directions.

That request gives the supplier enough information to challenge an incorrect assumption before it becomes an installation problem. Add photographs of the motor from both sides, the nameplate, shaft coupling, valve block, hoses, gearbox, and a marked arrow showing the required output movement.

FAQ

Does Port A make a hydraulic motor turn clockwise?

Not as a universal rule. On some motors, pressure at A and return at B produce clockwise rotation viewed from the shaft end. Other models, cover orientations, and controls use the opposite relationship. Use the exact model drawing.

How do I identify hydraulic motor rotation direction?

First define the viewing end, normally the output-shaft end. Mark the desired machine movement, identify every motor port, trace the valve connections, and compare the motor's port map. Jog at low pressure before applying the real load.

Can I reverse a hydraulic motor by swapping the hoses?

Sometimes. A simple bidirectional motor may reverse when A and B are exchanged. Do not do it blindly if the motor has a case drain, brake, counterbalance valve, anti-cavitation block, speed control, flushing valve, or a mechanically directional load.

What is a bidirectional hydraulic motor?

It is a motor designed to accept work flow in either direction so the shaft can rotate both ways within its published limits. Bidirectional capability does not mean every attached valve, brake, gearbox, or machine function is safe in both directions.

Why does a hydraulic motor run strongly one way and weakly the other?

Common causes include high return pressure in one path, a partly seated coupler, an incorrectly oriented check or shock valve, poor brake release, internal wear, or unequal load. Measure both motor work ports during the same loaded test.

Does hydraulic motor speed change when direction is reversed?

Theoretical speed at equal flow and displacement is the same. Actual speed may differ because leakage, return pressure, valve passages, hose routing, brake drag, and load are not equal in both directions.

Why does the shaft seal leak after reversing the motor?

Check case-drain and return pressure first. A drain tied to the wrong line, a blocked hose, a restrictive fitting, or a shared return manifold can raise housing pressure and push oil past the seal.

Does a reversible orbital motor need a case drain?

It depends on the exact design, operating pressure, return pressure, duty, and seal arrangement. Some orbital motors use internal drainage; others provide a separate drain for demanding conditions. Follow the selected model data.

How should a hydraulic motor brake be connected?

Use the motor-and-brake schematic. A spring-applied brake normally needs hydraulic pilot pressure to release before motor torque rises and should reapply only after the load is controlled. The required pressure and timing are model and machine specific.

What happens if motor return pressure is too high?

High outlet pressure reduces the pressure differential available for torque. It can also increase heat and, depending on the design, raise seal or housing stress. Measure the return side instead of calling it low pressure without data.

Can an axial piston motor rotate both ways?

Many can, but controls, loop flushing, drain routing, displacement settings, and high-pressure protection must support both directions. Confirm the complete model code and application circuit.

Can a hydraulic motor reverse instantly?

The shaft can change direction only after the load decelerates. An abrupt valve command can create pressure shock, cavitation, coupling stress, and unstable control. The acceptable deceleration depends on inertia, load, motor, valve, and machine safety.

What information should I send for a replacement hydraulic motor quote?

Send the complete model code, photographs, shaft and flange dimensions, port threads and positions, required rotation and viewing direction, displacement, flow, loaded speed, inlet and outlet pressure, case-drain data, brake details, oil temperature, duty cycle, and a description of the driven load.

Final Takeaway

Hydraulic motor rotation direction is not a two-hose guessing exercise. The correct answer begins with a defined viewpoint and the movement required at the driven load. It then follows the exact motor port map through the directional valve, return path, case drain, brake, shock protection, and gearbox.

Port A and Port B are useful only after the product drawing gives them meaning. A low-pressure jog can verify shaft direction, but the loaded acceptance test must also confirm speed, pressure differential, case pressure, brake release, return loss, and oil temperature.

For a new or replacement BLINCE hydraulic motor, send the machine function, required CW or CCW direction viewed from the shaft end, motor nameplate, displacement, flow, loaded speed, work-port pressures, case-drain route, brake information, shaft and flange dimensions, hose details, oil temperature, and photographs of the complete installation. BLINCE can compare orbital, piston, radial-piston, gear, travel, and brake-motor options against the real circuit before a quotation is released.
